PLEASE READ BEFORE ATTEMPTING INSTALLATIONS

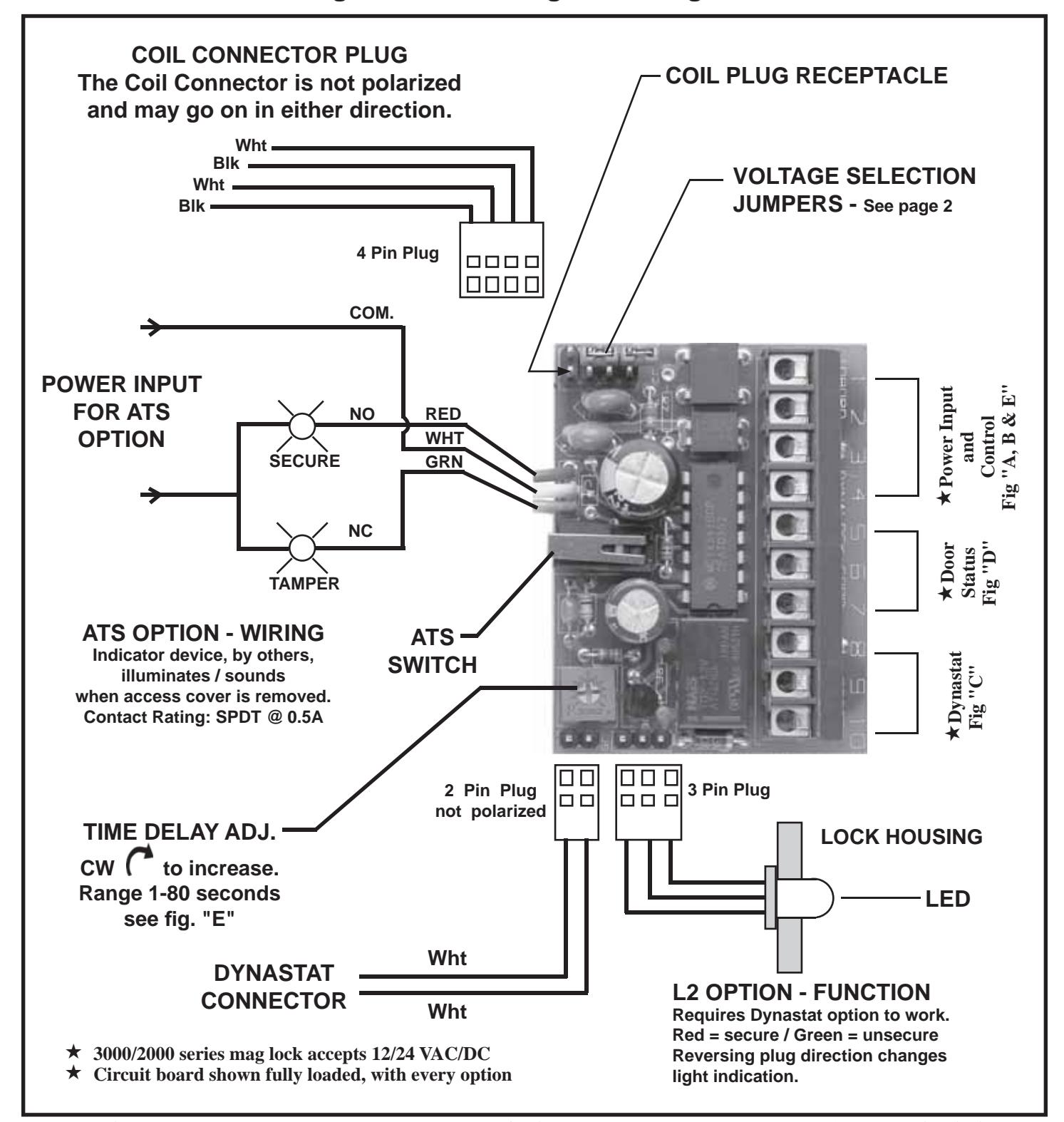

3000/ 3000LC/ 2000 SERIES CIRCUIT BOARD DESCRIPTION

Refer to Page 2 & 3 for wiring and voltage instructions

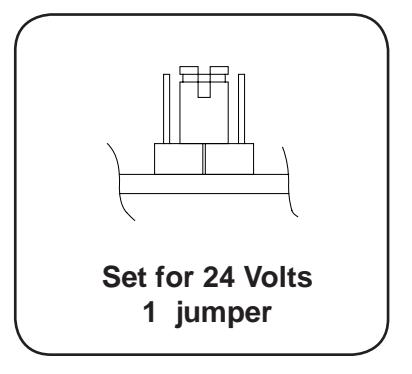

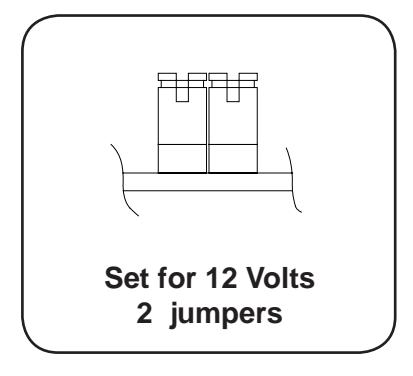

HOW TO SET VOLTAGE

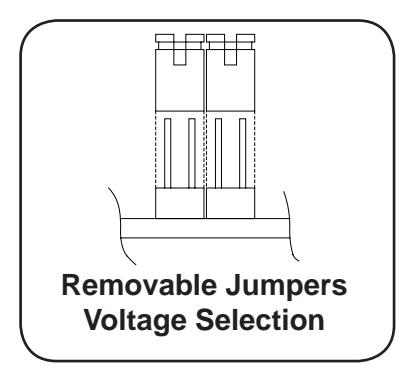

Voltage is set by proper placement of the blue jumper caps on 4 exposed pins

FACTORY SET FOR 24 VOLTS

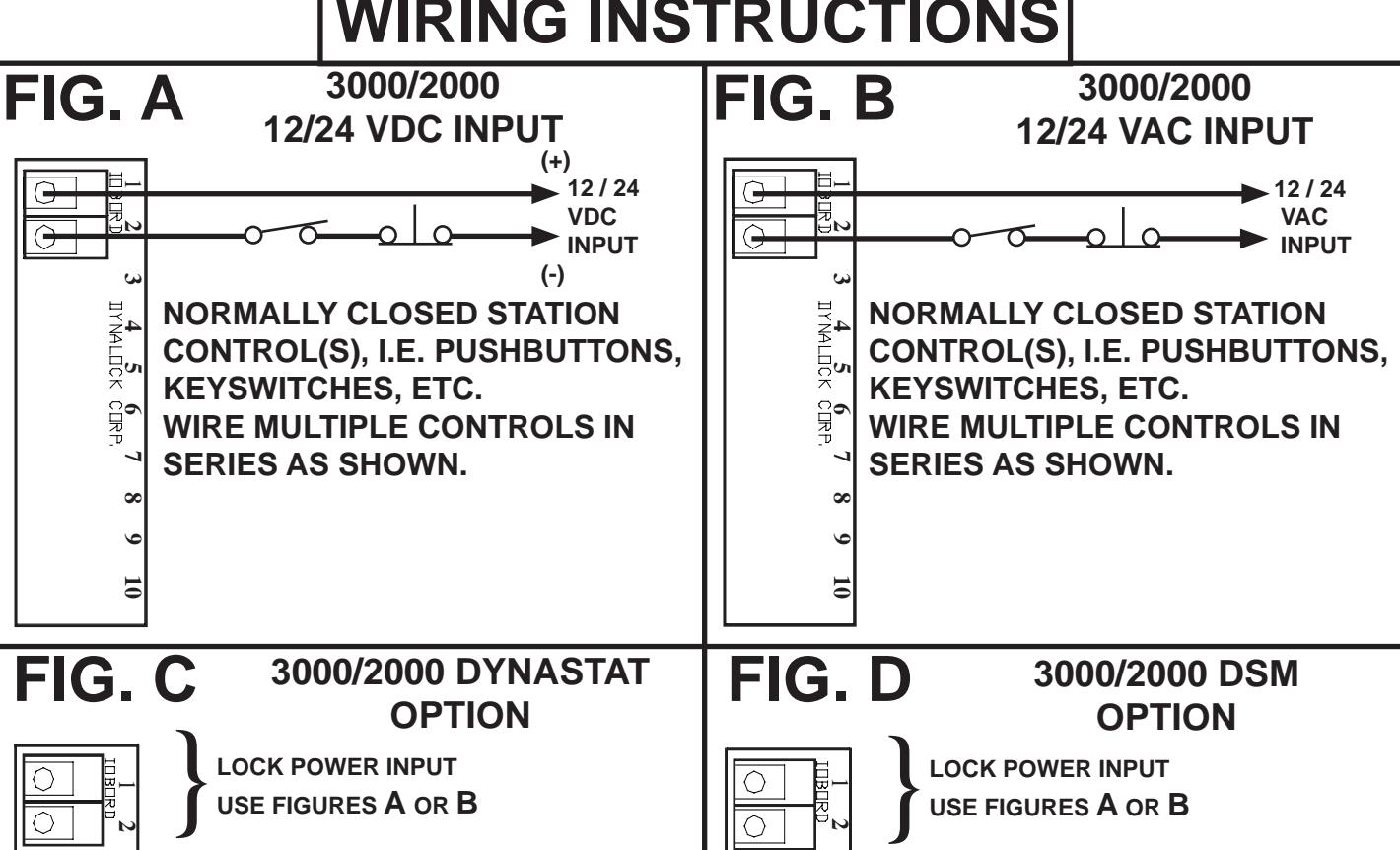

WIRING INSTRUCTIONS

Notes:

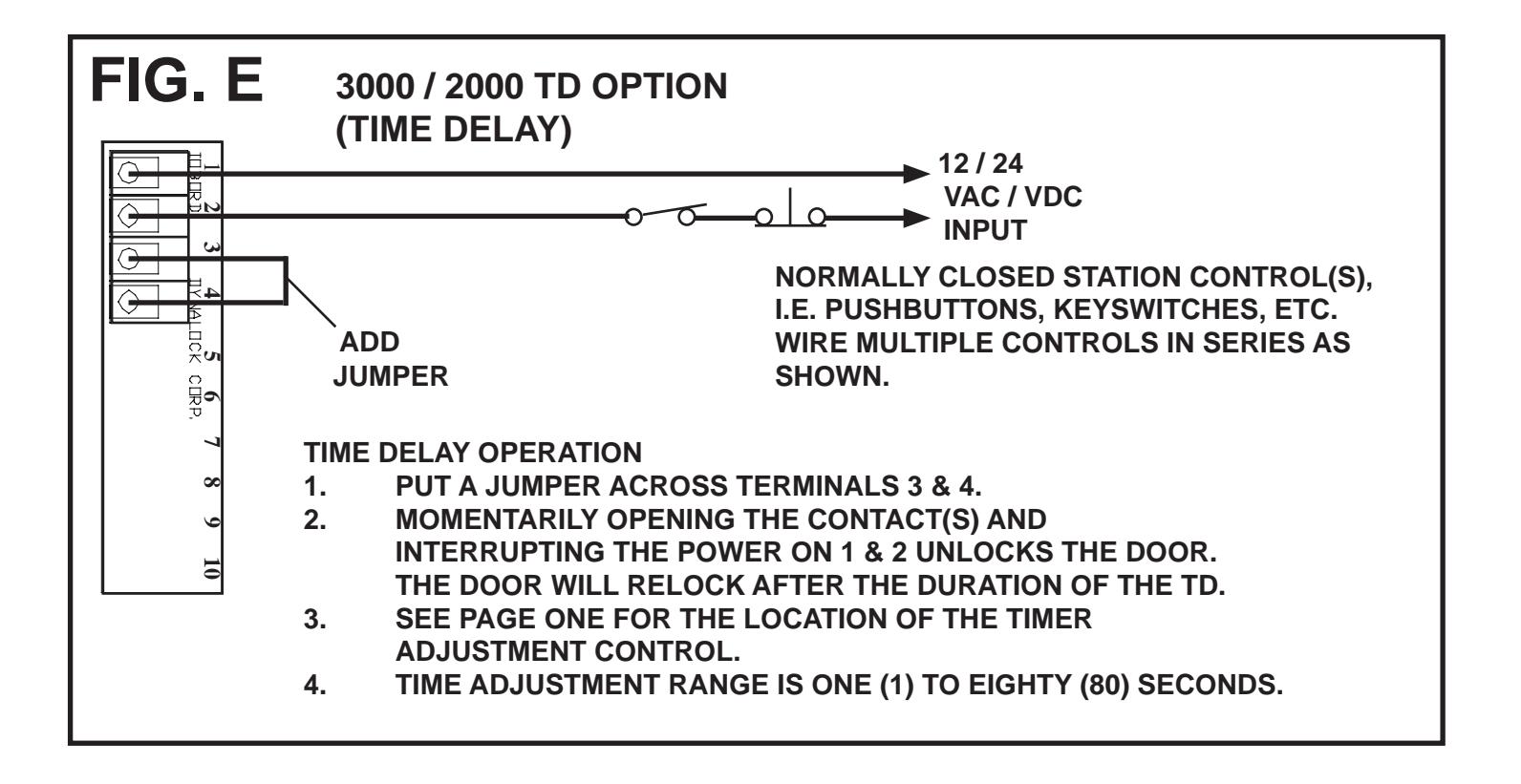

• 1. This lock may accept any one of 4 different input voltages and be furnished with a combination of options. Refer to page 1 for option location and pages 2 and 3, fi gure A thru E, for wiring instructions that apply to your specifi c installation.
• 2. For additional system wiring information, refer to the installation documentation furnished with the external hardware and / or peripheral devices (I.E. power supply, station controls, keypad, card readers, etc.) supplied by DynaLock and / or others.

TROUBLESHOOTING TIPS
SYMPTOM	POSSIBLE CAUSE	CHECK FOR
DOOR WILL NOT LOCK OR NO MAGNETIC HOLDING FORCE	NO INPUT POWER	CHECK ALL CONNECTIONS. CHECK FOR VOLTAGE AT POWER SOURCE AND LOCK TERMINAL STRIP.
	REVERSED POLARITY	IF A LOCK IS OPERATING ON DC VOLTAGE CHECK FOR REVERSED POLARITY. REFER TO FIG "A" PAGE 2.

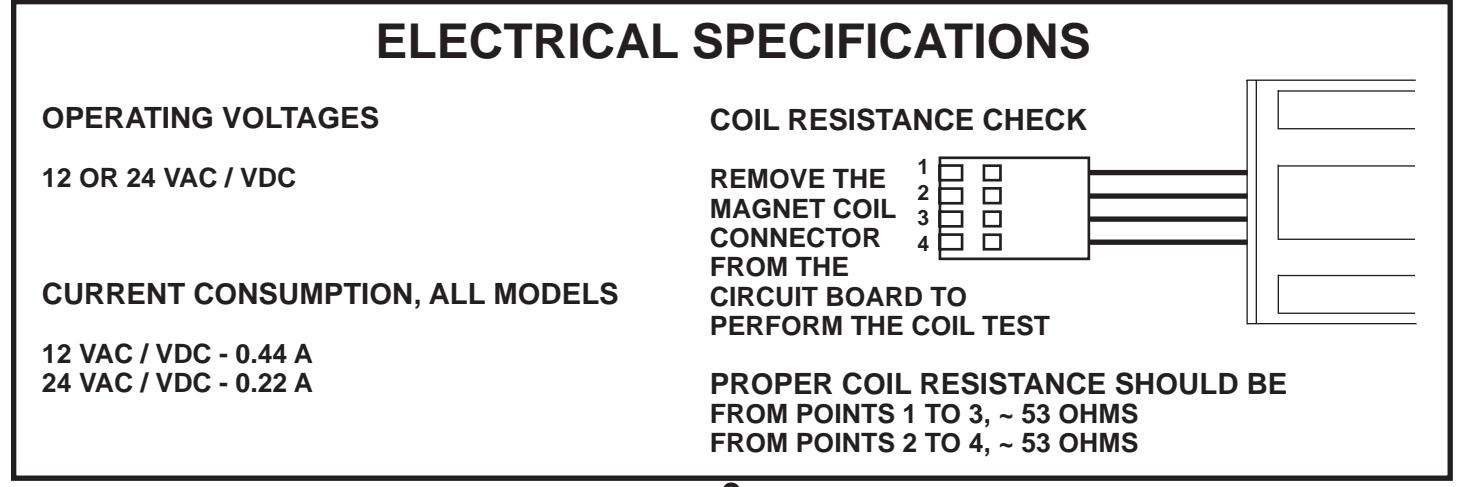

	AN OPEN CIRCUIT IN THE COIL	PERFORM THE COIL RESISTANCE CHECK. REFER TO BOTTOM OF THE PAGE 3.
LOW HOLDING FORCE	WRONG INPUT VOLTAGE	VERIFY INPUT VOLTAGE MATCHES JUMPER SETTING. SEE TOP OF PAGE 2.
	VOLTAGE SELECT JUMPERS SET WRONG	VERIFY THAT JUMPERS MATCH INPUT VOLTAGE. SEE TOP OF PAGE 2.
	ARMATURE MOUNTING TOO RIGID	CHECK ARMATURE MOUNTING FOR FREE PIVOTING AND FULL CONTACT BETWEEN THE MATING SURFACE OF THE LOCK AND ARMATURE.
MAGNET OVERHEATS AND / OR DRAWS EXCESS CURRENT	LOCK SET FOR 12V WITH 24V APPLIED	VERIFY THAT JUMPERS MATCH INPUT VOLTAGE. SEE TOP OF PAGE 2.
	POSSIBLE SHORTED COIL	PERFORM THE COIL RESISTANCE CHECK. REFER TO BOTTOM OF PAGE 3.

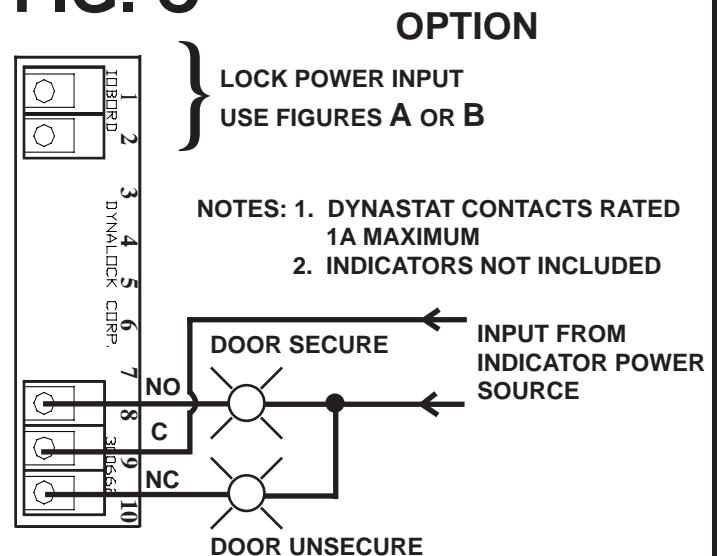

DYNASTAT BOND SENSOR NOT INDICATING DOOR SECURE WHEN CLOSED AND LOCKED (WHEN APPLICABLE)	INSUFFICIENT SUPPLY VOLTAGE	CHECK SUPPLY FOR PROPER INPUT VOLTAGE, SHOULD BE WITHIN 10%
	MAGNET AND / OR ARMATURE FACE DIRTY OR BURRED	CLEAN BOTH SURFACES WITH SCOTCH BRITE TYPE CLOTH AND APPLY WD-40. CHECK FOR BURRS.
	POOR LOCK / ARMATURE ALIGNMENT	CORRECT AS NECESSARY

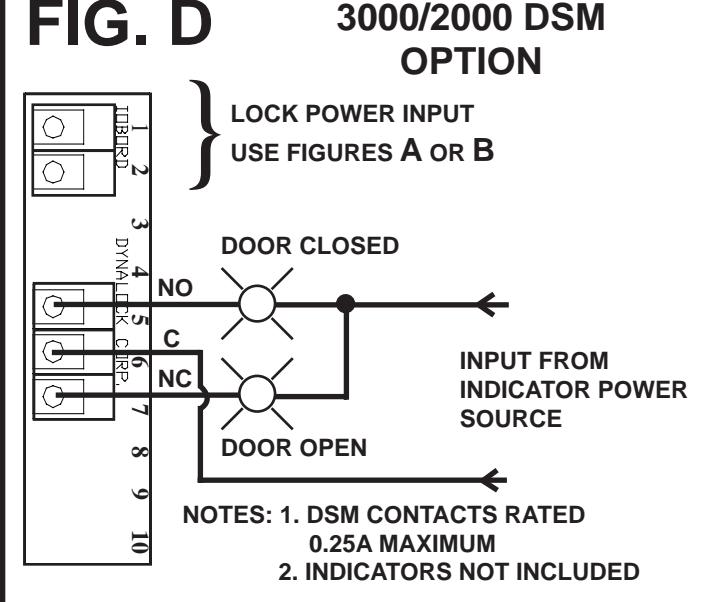

DSM (DOOR STATUS MONITOR) NOT INDICATING DOOR CLOSED / OPEN STATUS (WHEN APPLICABLE)	DSM MAGNETS NOT INSTALLED IN ARMATURE HOUSING	REPLACE / INSTALL AS NECESSARY
	POOR LOCK / ARMATURE ALIGNMENT	CORRECT AS NECESSARY

4 2000-3000 Wiring Manual 02-07

705 Emmett Street Bristol, CT 06011-2728 Phone:(860)582-4761 Fax:(860)585-0338

3000/3000LC/2000 SERIES LP - LOW POWER OPTION SUPPLEMENTAL INSTRUCTIONS

GENERAL INFORMATION

DynaLock 3000 and 2000 Series electromagnetic locks equipped with the LP - Low Power Option are confi gured to operate exclusively on 12V AC/DC input voltage. Current draw is 0.16 Amps for single models and 0.32 Amps for double models.

Damage may occur if input voltage exceeds 16V AC/DC. Do not attempt operation at higher voltages.

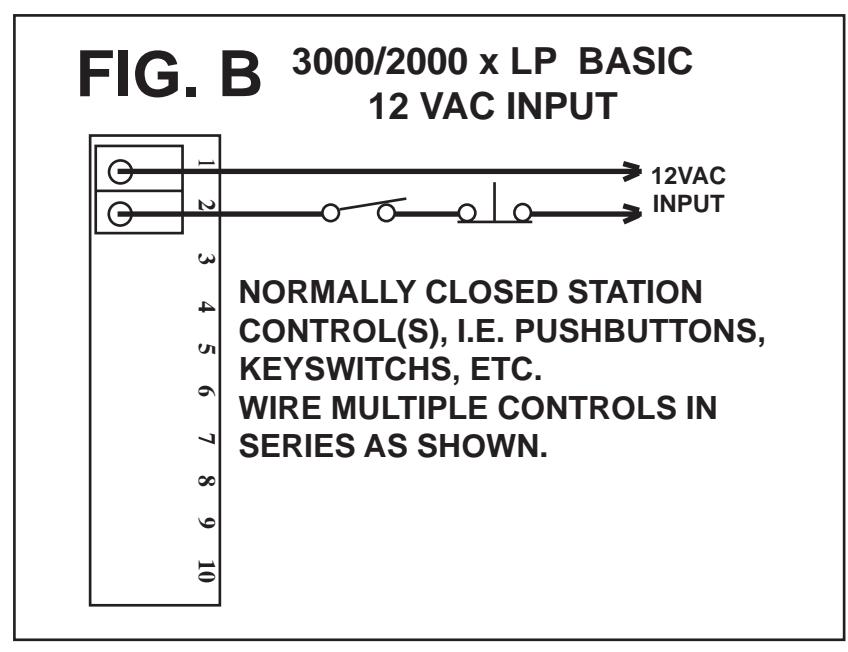

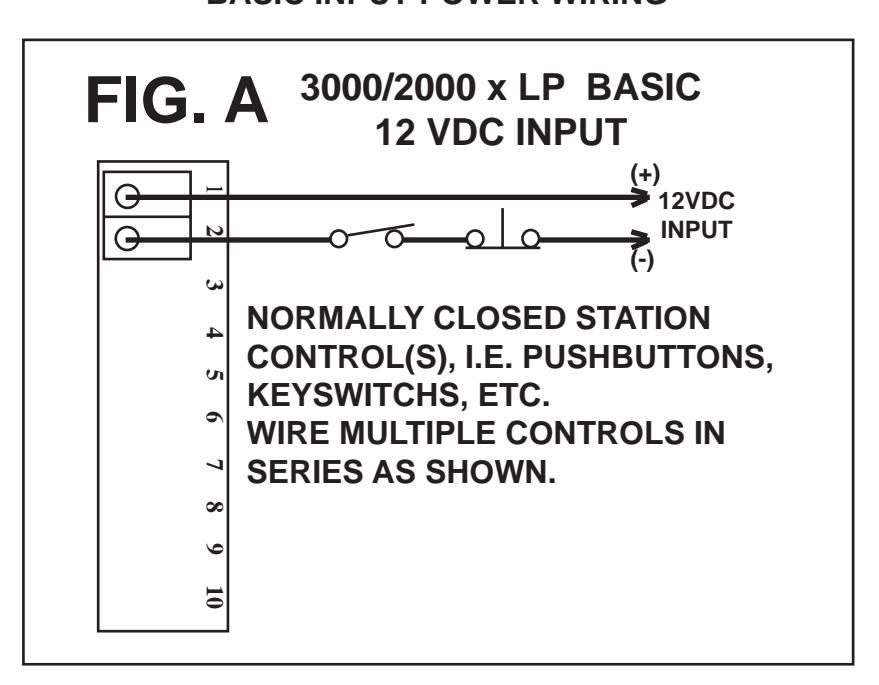

BASIC INPUT POWER WIRING

WIRING INSTRUCTIONS SERIES 2000/3000 x LCB ELECTROMAGNETIC LOCK

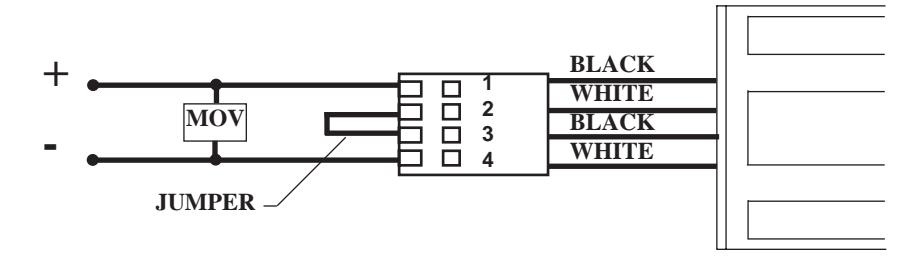

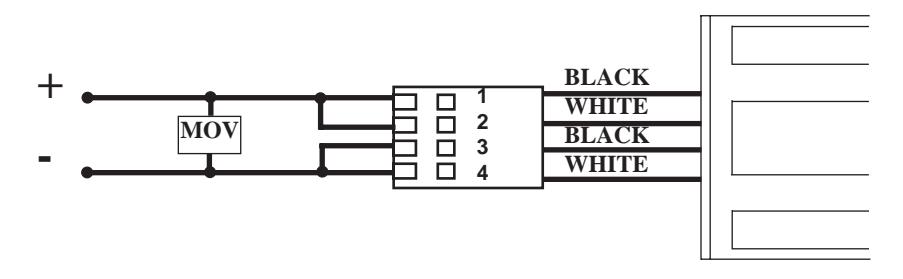

12 VOLT DC OPERATION

NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.

24 VOLT DC OPERATION

NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.

FOR UNITS USING THE CIRCUIT BOARD DISCARD THE MOV AND THIS PAGE.
