DynaLock 3000 3000LC 2000 Series LP Option Installation Instructions

705 Emmett Street Bristol, CT 06011-2728 Phone:(860)582-4761 Fax:(860)585-0338

3000/3000LC/2000 SERIES LP - LOW POWER OPTION SUPPLEMENTAL INSTRUCTIONS

GENERAL INFORMATION

DynaLock 3000 and 2000 Series electromagnetic locks equipped with the LP - Low Power Option are confi gured to operate exclusively on 12V AC/DC input voltage. Current draw is 0.16 Amps for single models and 0.32 Amps for double models.

Damage may occur if input voltage exceeds 16V AC/DC. Do not attempt operation at higher voltages.

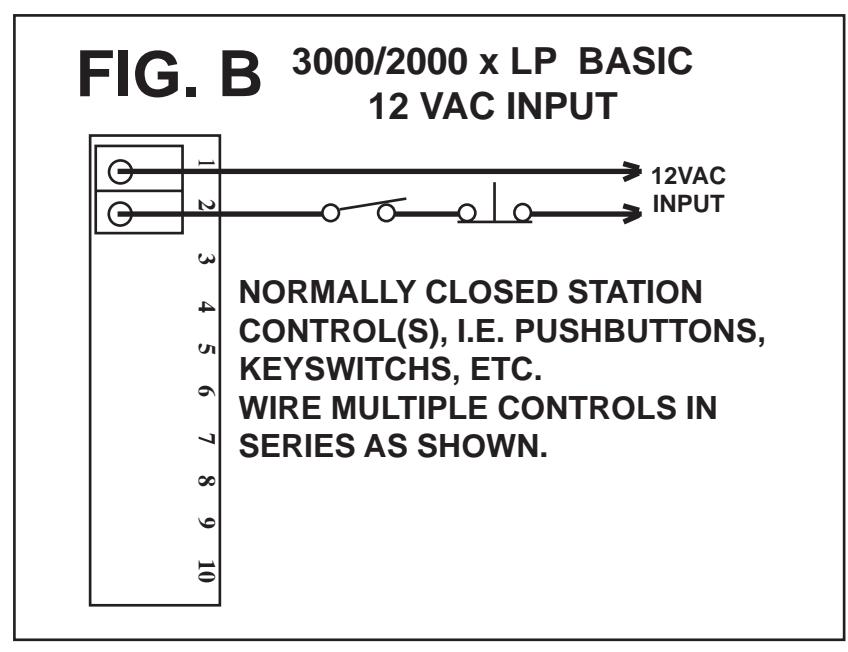

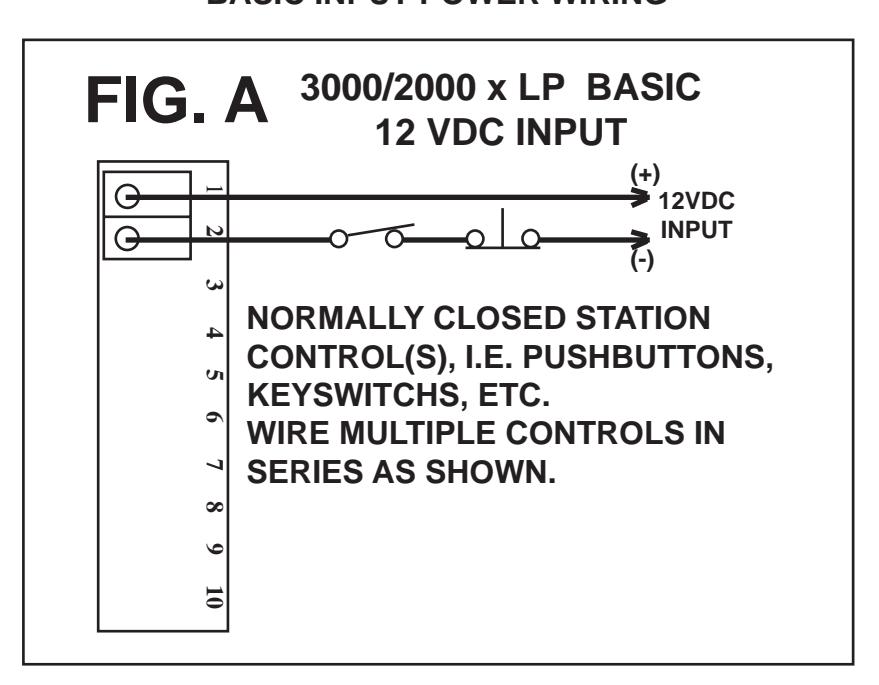

BASIC INPUT POWER WIRING
