Electromagnetic Door Holder Model 2810

M2810IN-01 06/2010 Page 1 of 2

Step #1 Locations of Magnet Box:

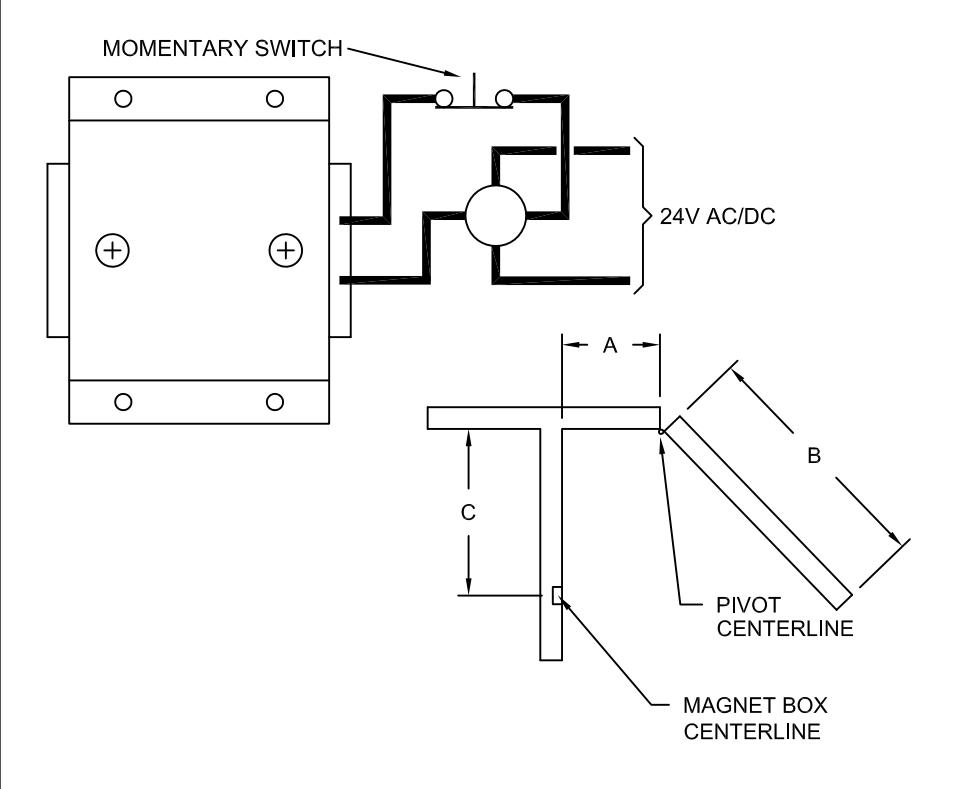

  • 1-1 Measure distance from pivot centerline to wall (DIM A)
  • 1-2 Determine door width (DIM B).
  • 1-3 To locate magnet box use Table below.
  • 1-4 DIM C is the distance from the pivot centerline to the magnet box centerline. Example: DIM A = 10" DIM B = 42" RESULT: DIM C = 39"
  • 1-5 If DIM A or DIM B intersect in the shaded area, DO NOT install magnet box: The Example 2: DIM A = 7" DIM B = 36" Estimated DIM C = 33-1/8"
  • 1-6 If DIM A and DIM B intersect in the shaded area, DO NOT install magnet box: The degree of door opening will not permit proper alignment between armature and wall magnet.
  • 1-7 Suggseted height 2'0" to 4'0" from the floor and/or not over 6'0".
  • 1-8 Check degree of door opening shown in table and coordinate with door closers and other door hardware.
  • 1-9 Total projection of door hardware must not be more than 4-1/2" on the pull side of door.

DIM B 3 28 30 32 34 36 38 40 42 44 46 48
DIM A DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG DIM C DEG
2 25-1/4 84 27-1/4 85 29-1/4 85 31-1/4 85 33-1/4 86 35-1/4 86 37-1/4 86 39-1/4 86 41-1/4 87 43-1/4 87 45-1/4 87
4 25-3/8 89 27-3/8 89 29-3/8 89 31-3/8 89 33-3/8 89 35-3/8 89 37-3/8 89 39-3/8 89 41-3/8 89 43-3/8 89 45-3/8 89
6 25-3/8 93 27-3/8 93 29-3/8 93 31-3/8 93 33-3/8 93 35-3/8 92 37-3/8 92 39-3/8 92 41-3/8 92 43-3/8 92 45-3/8 92
8 25-1/8 98 27-1/8 97 29-1/8 97 31-1/8 96 33-1/4 96 35-1/4 96 37-1/4 95 39-1/4 95 41-1/4 95 43-1/4 95 45-1/4 94
10 24-3/4 103 26-7/8 102 28-7/8 101 30-7/8 100 32-7/8 99 35 99 37 98 39 98 41 98 43 97 45 97
12 24-1/4 107 26-3/8 106 28-3/8 105 30-1/2 104 32-1/2 103 34-5/8 102 36-5/8 102 38-5/8 101 40-3/4 100 42-3/4 100 44-3/4 100
14 23-1/2 112 25-5/8 110 27-3/4 109 29-7/8 108 32 107 34-1/8 106 36-1/8 105 38-1/4 104 40-1/4 103 42-3/8 103 44-3/8 102
16 22-5/8 117 24-7/8 115 27 113 29-1/4 112 31-3/8 110 33-3/4 109 35-3/4 108 37-5/8 107 39-3/4 106 41-7/8 105 43-7/8 105
18 21-1/2 122 23-7/8 120 26-1/8 117 28-3/8 115 30-1/2 114 32-3/4 112 34-7/8 111 37 110 39-1/8 109 41-1/4 108 43-3/8 107
20 25 122 27-1/4 120 29-1/2 118 31-3/4 116 34 115 36-1/4 113 38-3/8 112 40-1/2 111 42-5/8 110
22 28-3/8 122 30-3/4 120 33 118 35-1/4 116 37-1/2 115 39-3/4 114 41-7/8 113
24 29-3/4 123 31-7/8 121 34-1/4 120 36-1/2 118 38-3/4 117 41 115
26 33 123 35-3/8 121 37-5/8 120 40 118

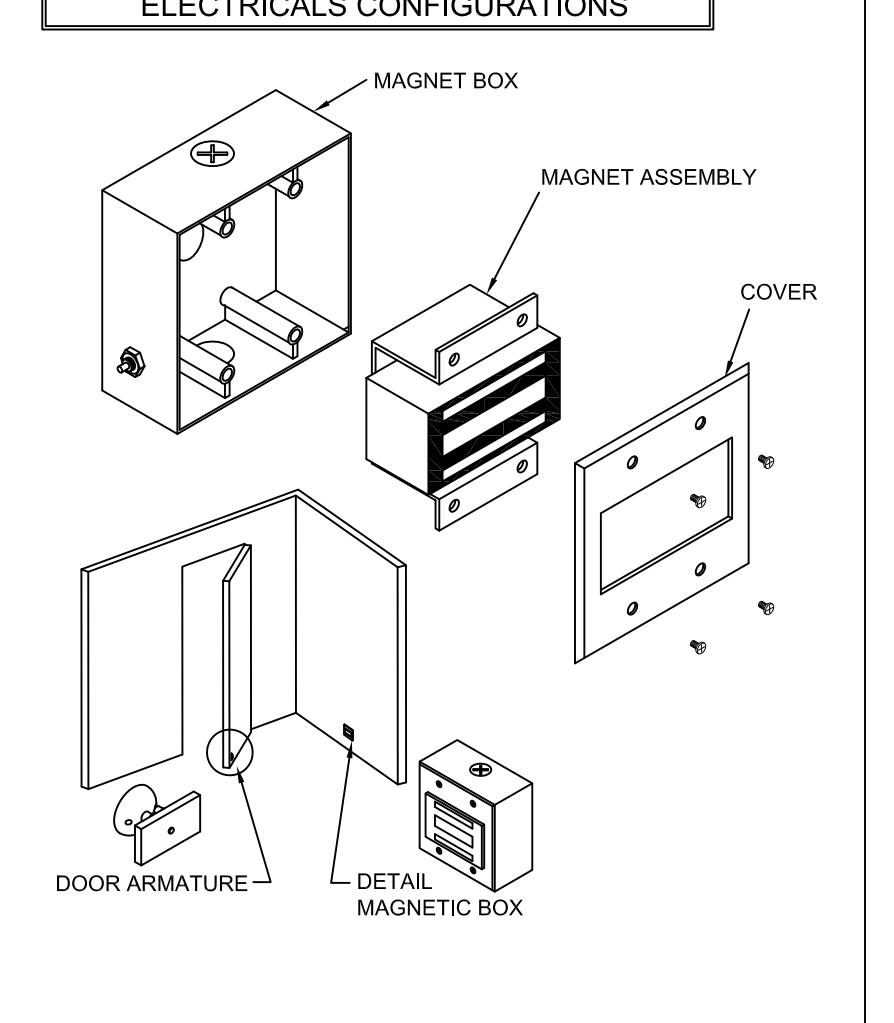

Step #2 INSTALLATION OF IN-WALL MAGNET BOX:

  • 2-1 Locate on the wall the dimension DIM C by tracing temporarily a vertical line at the distance DIM C (calculated in the previous page) from te corner of the wall.
  • 2-2 Proper electrical wire routing must be done before installing magnet box.

Step #2 Continued:

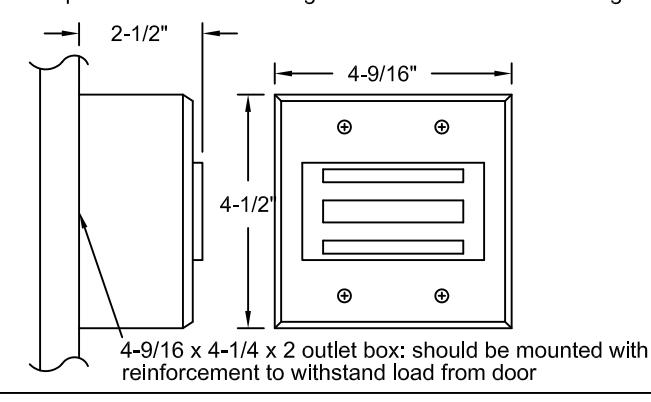

  • 2-3 The 4-9/16 x 4-1/4 x 2-1/2 outlet box must be installed in the wall in such a way that the center line of the outlet box coincides with the created in step 2-1.
  • 2-4 The box should be installed with reinforcement to withstand a minimum 400 lbs. pull.
  • 2-5 The height of the outlet box must be chosen so the door armature can be installed at the same height on the door without interfering with the other door hardware.
  • 2-6 Install and verify the proper bracket and cover alignement.
  • 2-7 For detail on electrical wiring, read the specific "Electrical Data Sheet" at the end of this documentation.

Step #3 INSTALLATION OF DOOR ARMATURE:

  • 3-1 With the magnet box secureely fastened, aligned and energized, place and center the door armature on the surface of the magnet with the two holes of the base aligned either vertically or horizontally.
  • 3-2 Gently close the door and adjust the angle of the door armature so the base lays flat againt the door.

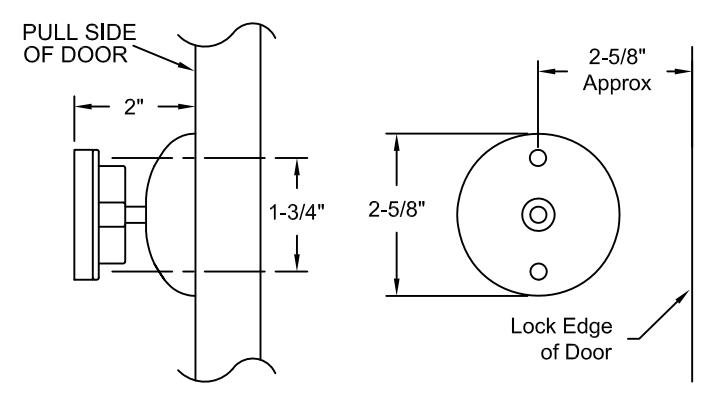

  • 3-3 While keeping slight pressure on the door, mark location of the door armature through the two base holes. The two marks should be 1-3/4" apart and the center line of the door armature should be approximately 2-5/8" from the lock edge of the door.
  • 3-4 Drill through the door where the two marks are located with a 5/16" drill.
  • 3-5 Mount the door armature on the door: Use two #10-32 screws with two #10-32 x 1-1/4" sex bolts.

Use Sex Bolt and #10-32 for thru bolt mounting
