Electromagnetic Door Holder Model 2805

M2805IN-01 06/2010 Page 1 of 2

Step #1 Locations of Magnet Box:

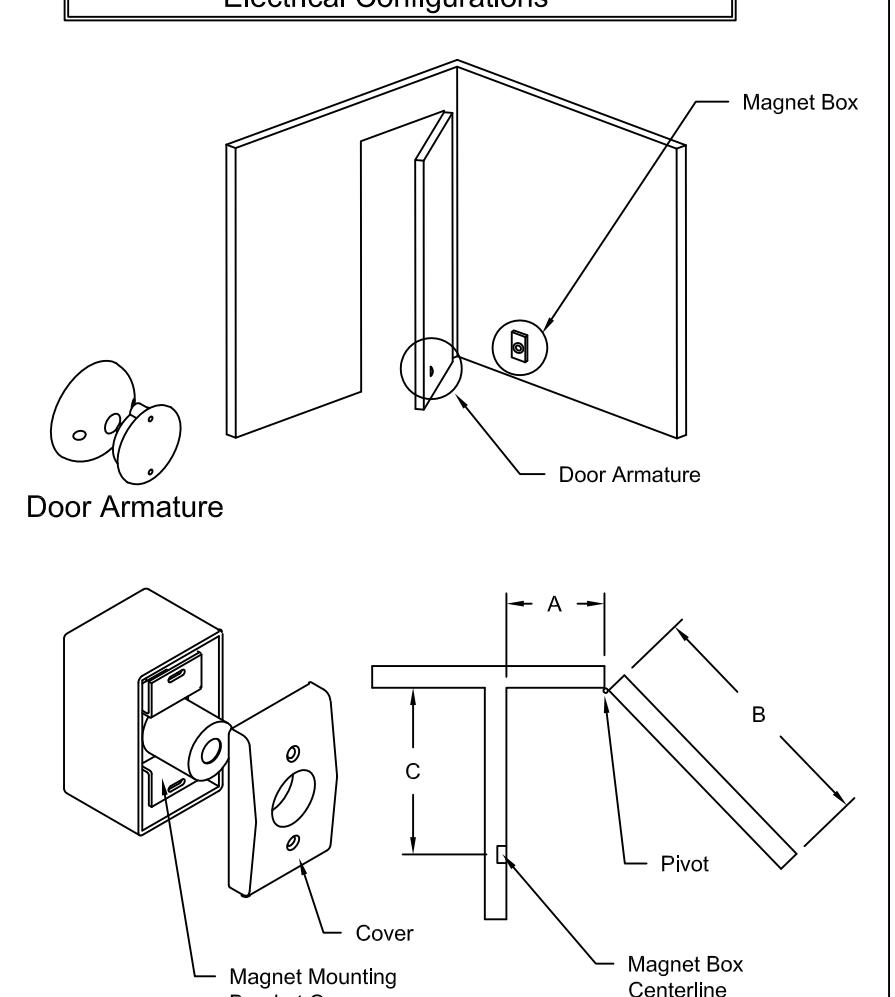

• 1-1 Measure distance from pivot centerline to wall (Dim A)
• 1-2 Determine door width (Dim B)
• 1-3 To locate magnet box use Table below.
• 1-4 Dim C is the distance from the pivot centerline to the magnet box centerline. Example: Dim A=10" Dim B=42" Result: Dim C=39"
• 1-5 If Dim A and Dim B falls between the numbers listed in the table allow for difference. Example: Dim A=7" Dim B=36" Estimated Dim C=33 7/16"
• 1-6 If Dim A and Dim B intersect in the shaded area, DO NOT INSTALL magnet box: The degree of door opening will not permit proper alignment between armature and wall magnet.
• 1-7 Suggested vertical location is on top rail approximately 5" from top of door.
• 1-8 Check degree of door opening shown in table and coordinate with door closers and other door hardware.
• 1-9 Total projection of door hardware must not be more than 4 1/8" on the pull side of door.

side of door.
Dim B	28	30	32	34	36	38	40	42	44	46	48
Dim A	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg	Dim C Deg
2	25 1/4 84	27 1/4 84	29 1/4 85	31 1/4 85	33 1/4 85	35 1/4 86	37 1/4 86	39 1/4 86	41 1/4 86	43 1/4 87	45 1/4 87
4	25 3/8 89	27 3/8 89	29 3/8 89	31 3/8 89	33 3/8 89	35 3/8 89	37 3/8 89	39 3/8 89	41 3/8 89	43 3/8 89	45 3/8 89
6	25 3/8 93	27 3/8 93	29 3/8 93	31 1/4 93	33 3/8 92	35 1/4 92	37 1/4 92	39 1/4 92	41 3/8 92	43 3/8 92	45 1/4 92
8	25 1/4 98	27 1/8 97	29 1/8 97	31 1/4 96	33 1/4 96	35 1/4 95	37 1/4 95	39 1/4 95	41 1/4 95	43 1/4 94	45 1/4 94
10	24 3/4 102	26 7/8 101	28 7/8 101	31 100	33 99	35 99	37 98	39 98	41 97	43 97	45 97
12	24 3/8 107	26 1/4 106	28 3/8 105	30 1/2 104	32 1/2 103	34 5/8 102	36 5/8 101	38 5/8 101	40 3/4 100	42 3/4 100	44 3/4 99
14	23 5/8 112	25 3/4 110	27 7/8 109	30 107	32 106	34 1/8 105	36 1/8 105	38 1/4 104	40 1/4 103	42 3/8 102	44 3/8 102
16	22 5/8 117	24 7/8 115	27 1/8 113	29 1/4 111	31 3/8 110	33 1/2 109	35 5/8 108	37 3/4 107	39 3/4 106	41 7/8 105	43 7/8 105
18	21 5/8 122	23 7/8 119	26 1/8 117	28 3/8 115	30 5/8 114	32 3/4 112	34 7/8 111	37 110	39 1/8 109	41 1/2 108	43 1/4 107
20		22 5/8 124	25 122	27 3/8 119	29 5/8 118	31 7/8 116	34 114	36 1/4 113	38 1/2 112	40 1/2 111	42 3/4 110
22				26 1/8 124	28 1/2 121	30 7/8 119	33 119	35 3/8 116	37 1/2 115	39 3/4 114	42 113
24						29 5/8 123	32 121	34 1/4 119	36 1/2 118	38 3/4 117	41 115
26								33 1/8 123	35 3/8 121	37 3/4 120	40 118

Step #2 Continued:

• 2-3 The 2 3/4 x 4 1/2 x 1 1/2 outlet box must be mounted on the wall in such a way that the center line of the outlet box coincides with the line created in 2-1.
• 2-4 The box should be installed with reinforcement to withstand a minimum 50 lb. pull.
• 2-5 The height of the outlet box must be chosen so the door armature can be installed at the same height on the door without interfering with the other door hardware.
• 2-6 Install and verify the proper bracket and cover alignment.

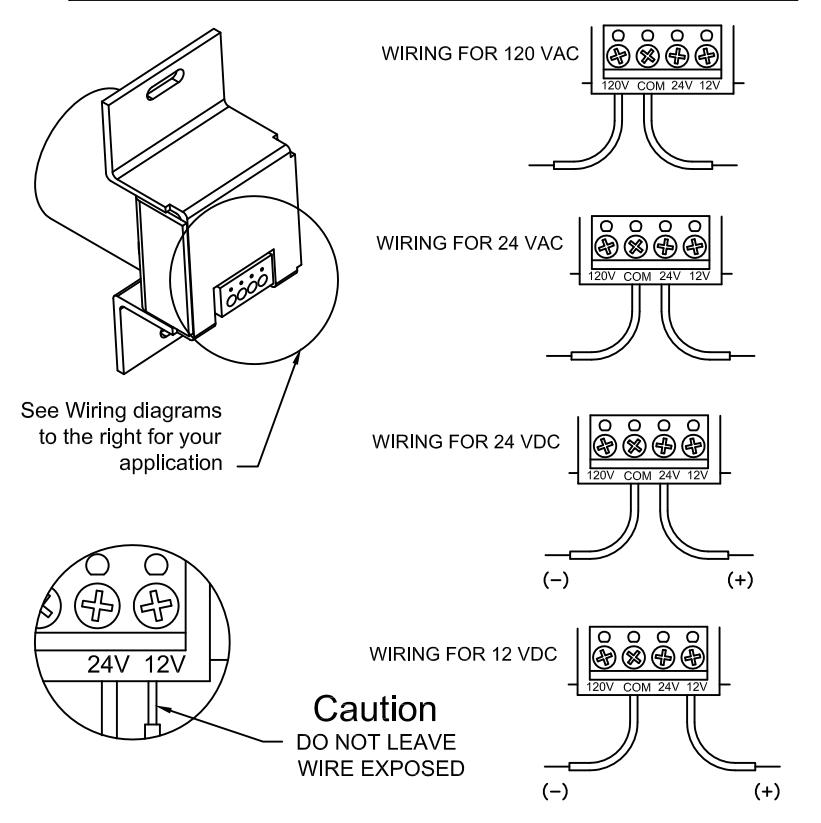

• 2-7 For detail on electrical wiring, read the specific "Electrical Data Sheet". at the end of this documentation.

IMPORTANT: Check that power voltage equals voltage labeled on back of magnet.

An outlet box should be mounted with reinforcement to withstand load from door

Step #2 Installation of Wall Magnet Box:

• 2-1 Locate on the wall the dimension DimC by tracing a temporary vertical line at the distance Dim C (calculated in the previous step) from corner of the wall.
• 2-2 Proper electrical wire routing must be done before installing magnet box

Step #3 Installation of door armature hardware:

• 3-1 With the magnet box securely fastened, aligned and energized, place and center the door armature on the surface of the magnet with the two holes of the base aligned either vertically or horizontally.
• 3-2 Gently close the door and adjust the angle of the door armature so the base lays flat against the door.

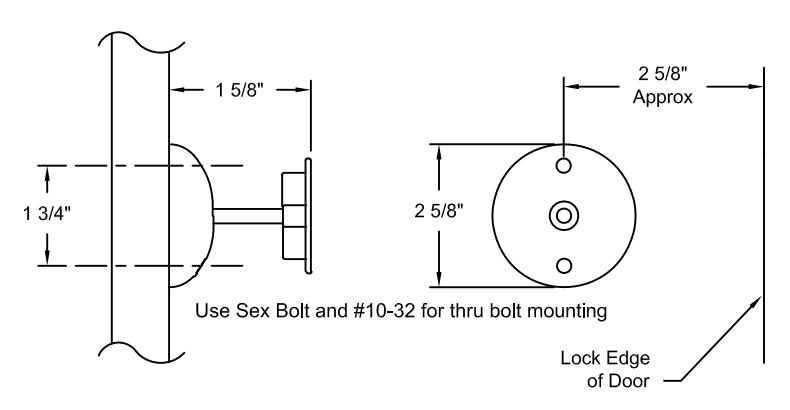

• 3-3 While keeping slight pressure on the door, mark location of door armature through the two base holes. The two marks should be 1 3/4" apart and the center line of the door armature should be approximately 2 5/8" form the lock edge of the door.
• 3-4 Depending of the mounting option that you choose:

For concealed Mounting

Drill a 1/2" deep hole where the two marks are located with a 1/16" maximum diameter drill as pilot holes for wood screws. In reinforced metal door, drill & tap for #10-32 screw

OR:

For through bolt Mounting

Drill through the door where the two marks are located with a 5/16" drill.

3-5 Mount the door armature on the door:

For concealed Mounting

Use two #10 pan head phillips wood screws or two #10-32 screws depending on type of door (See step 3-4)

OR:

For through bolt Mounting

Use two #10-32 screws with two #10-32 x 1 1/4" sex bolt.
