DynaLock 2803 2804 Series Installation Instructions

Open the original PDF document

View PDF

28
03
28
04

DynaLock Corporation 705 Emmett Street

Bristol, CT 06010 Ph/ 860.582.4761Fx/ 860.585.0338E-mail/ info@dynalock.com

WWW.DYNALOCK.COM

© 2010 DYNALOCK CORP. Printed in USA

Electromagnetic Door Holder Models 2803/2804

M28032804IN-01 06/2010 Page 1 of 2

Step #1 Locations of Magnet Box:

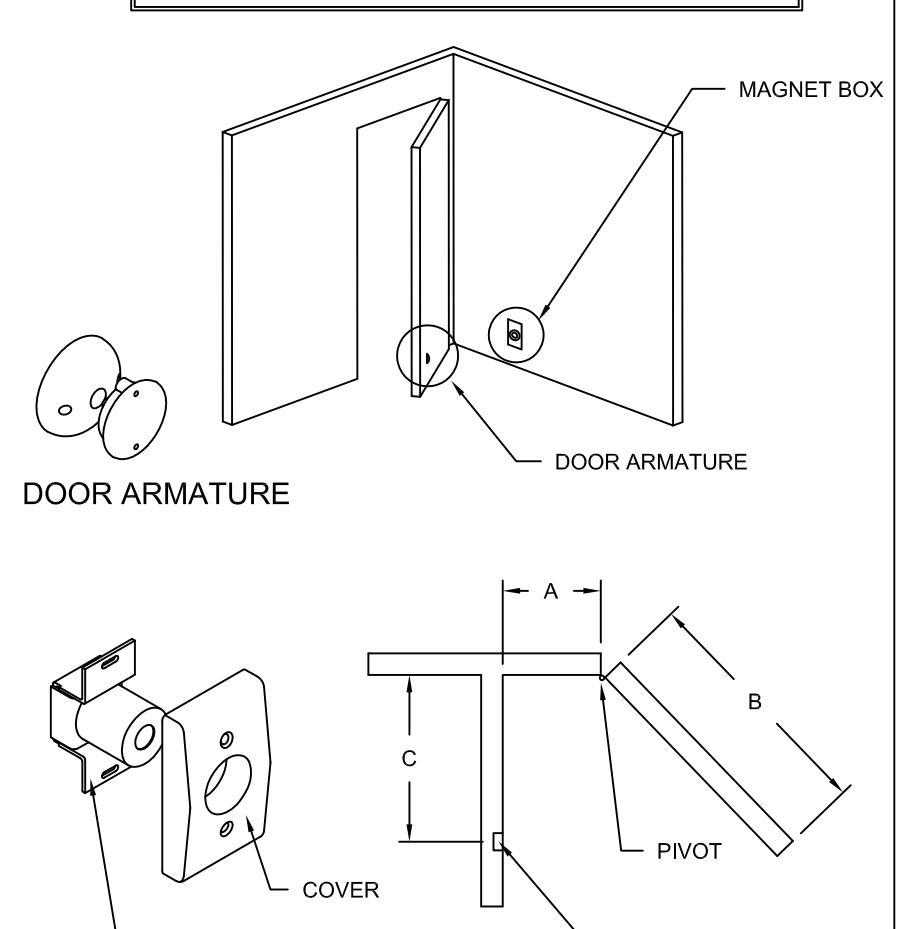

  • 1-1 Measure distance from pivot centerline to wall (Dim A)
  • 1-2 Determine door width (Dim B)
  • 1-3 To locate magnet box use Table below.
  • 1-4 Dim C is the distance from the pivot centerline to the magnet box centerline. Example: Dim A=10" Dim B=42" Result: Dim C=38 7/8"
  • 1-5 If Dim A and Dim B falls between the numbers listed in the table allow for difference. Example: Dim A=7" Dim B=36" Estimated Dim C=33 1/8
  • 1-6 If Dim A and Dim B intersect in the shaded area, DO NOT INSTALL magnet box: The degree of door opening will not permit proper alignment between armature and wall magnet.
  • 1-7 Suggested vertical location is on top rail approximately 5" from top of door.
  • 1-8 Check degree of door opening shown in table and coordinate with door closers and other door hardware.
  • 1-9 Total projection of door hardware must not be more than 3 5/8" on the pull side of door.

Dim B 3 28 30 32 34 36 38 40 42 44 46 48
Dim A Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg Dim C Deg
2 25 3/8 86 27 1/8 87 29 3/8 87 31 3/8 87 33 3/8 87 35 3/8 87 37 3/8 88 39 3/8 88 41 3/8 88 43 3/8 88 45 3/8 88
4 25 3/8 91 27 3/8 91 29 3/8 91 31 3/8 91 33 3/8 91 35 3/8 91 37 3/8 91 39 3/8 91 41 3/8 91 43 3/8 90 45 3/8 90
6 25 1/4 95 27 1/4 95 29 5/8 95 31 1/4 94 33 1/4 94 35 1/4 94 37 1/4 94 39 1/4 93 41 1/4 43 1/4 45 1/4
8 100 29 98 35 1/8 96 43 1/8 96 45 1/8 96
10 24 1/2 105 30 3/4 34 3/4 43 98 98
12 34 3/8 102 40 1/2 102 42 1/2 101 44 5/8 101
33 7/8 40 42 1/8
16 22 1/8 119 28 7/8 33 1/8 41 5/8 107 43 5/8 106
18 24 1/4 122 25 5/8 119 27 7/8 117 32 3/8 41 108
20 26 3/4 123 31 3/8 40 1/8
22 27 7/8 123 30 3/8 121 39 1/4
24 31 3/8 | 123 | 33 3/4 | 121 | 36 | 120 | 38 1/4 | 118 | 40 1/2 | 117

Step #2 Installation of In-Wall Magnet Box:

  • 2-1 Locate on the wall the dimension DimC by tracing a temporary vertical line at the distance Dim C (calculated in the previous step) from corner of the wall.
  • 2-2 Proper electrical wire routing must be done before installing magnet box

Use Sex Bolt and #10-32 for thru bolt mounting

* 2-5/8" (2803) / 1-5/8" (2804)

Step #2 Continued:

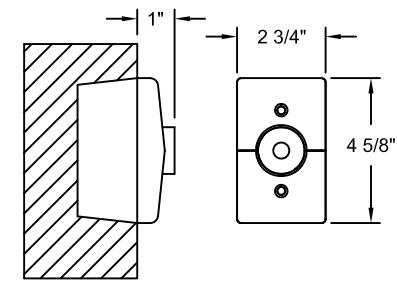

  • 2-3 The 2 3/4 x 4 1/2 x 1 1/2 outlet box must be inserted in the wall in such a way that the center line of the outlet box coincides with the line created in 2-1.
  • 2-4 The box should be installed with reinforcement to withstand a minimum 50 lb. pull.
  • 2-5 The height of the outlet box must be chosen so the door armature can be installed at the same height on the door without interfering with the other door hardware.
  • 2-6 Install and verify the proper bracket and cover alignment.

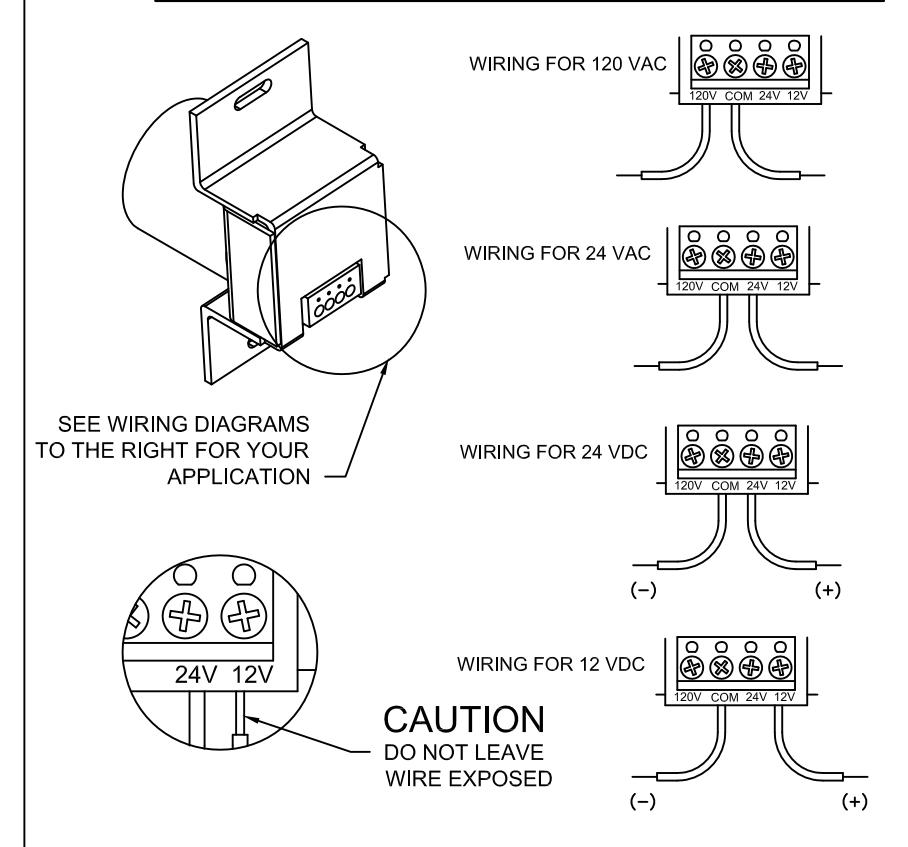

  • 2-7 For detail on electrical wiring, read the specific "Electrical Data Sheet". at the end of this documentation.

IMPORTANT: Check that power voltage equals voltage labeled on back of magnet.

An outlet box should be mounted with reinforcement to withstand load from door

Step #3 Installation of door armature hardware:

  • 3-1 With the magnet box securely fastened, aligned and energized, place and center the door armature on the surface of the magnet with the two holes of the base aligned either vertically or horizontally.
  • 3-2 Gently close the door and adjust the angle of the door armature so the base lavs flat against the door.

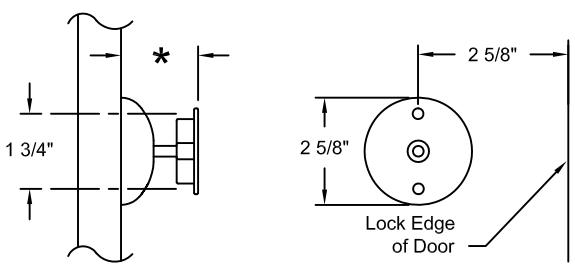

  • 3-3 While keeping slight pressure on the door, mark location of door armature through the two base holes. The two marks should be 1 3/4" apart and the center line of the door armature should be approximately 2 5/8" form the lock edge of the door.
  • 3-4 Depending of the mounting option that you choose:

For concealed Mounting

Drill a 1/2" deep hole where the two marks are located with a 1/16" maximum diameter drill as pilot holes for wood screws. In reinforced metal door, drill & tap for #10-32 screw

For through bolt Mounting

Drill through the door where the two marks are located with a 5/16" drill.

3-5 Mount the door armature on the door:

For concealed Mounting

Use two #10 pan head phillips wood screws or two #10-32 screws depending on type of door (See step 3-4) OR:

For through bolt Mounting

Use two #10-32 screws with two #10-32 x 1 1/4" sex bolt.

DynaLock Corporation 705 Emmett Street

Bristol, CT 06010 Ph/ 860.582.4761 Fx/ 860.585.0338 E-mail/info@dynalock.com

WWW.DYNALOCK.COM

© 2010 DYNALOCK CORP. Printed in USA

Electromagnetic Door Holder Models 2803/2804

M28032804IN-01 06/2010 Page 2 of 2
