2800 Series Door Holders

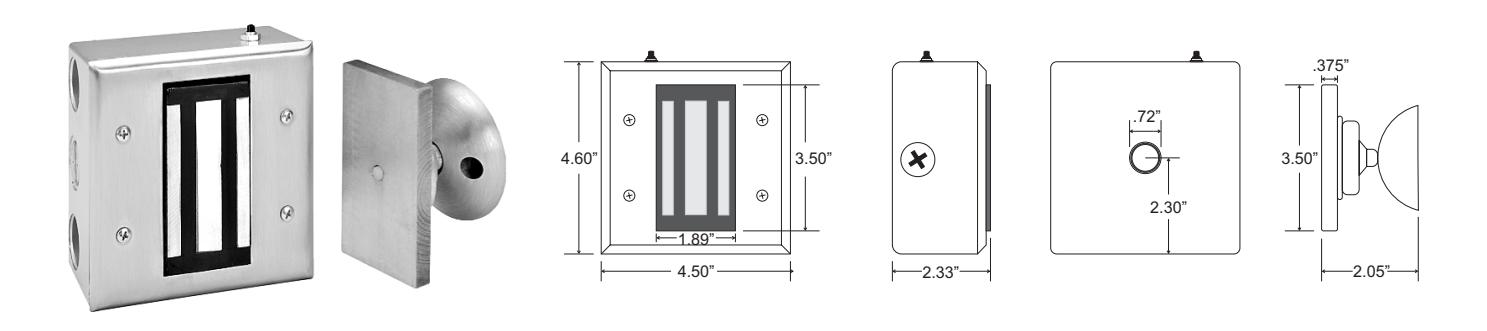

2810 Surface Wall Mount, 400 lbs. Holding Force

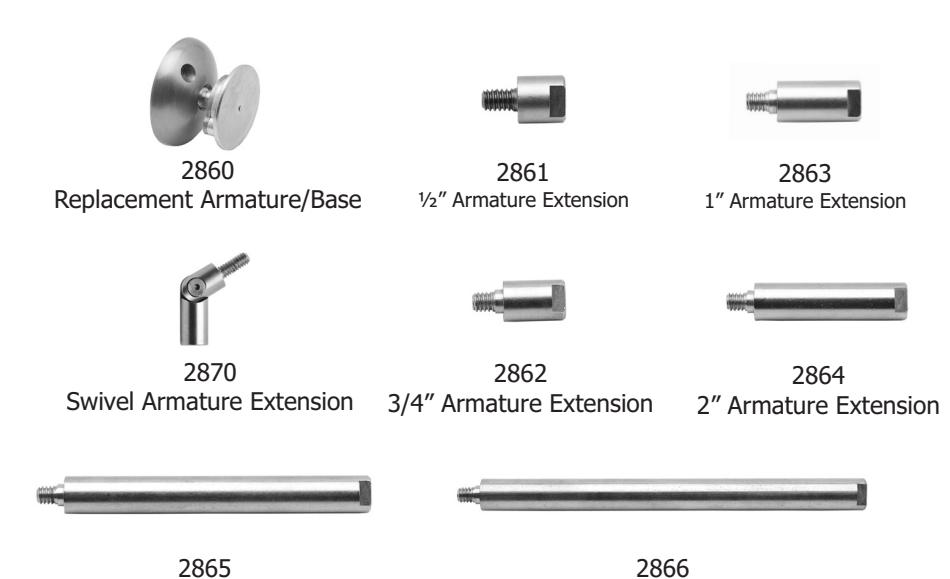

2800 Series Accessories & Electrical Specifications

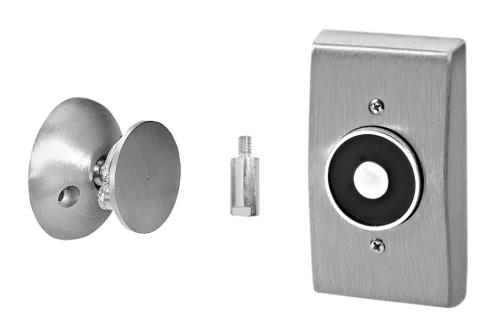

6" Armature Extension

ELECTRICAL SPECIFICATIONS
CURRENT DRAW	VOLTAGE INPUT
0.060 AMPS	12VDC
0.030 AMPS	24VDC / VAC
0.105 AMPS	24VDC / VAC (2810)
0.030 AMPS	120VAC

DYNALOCK CORPORATION

4" Armature Extension

705 EMMETT STREET / PO BOX 2728 BRISTOL, CT 06011-2728 PHONE: 877-DYNALOCK / FAX: 860-585-0338 E-MAIL: INFO@DYNALOCK.COM WEBSITE: WWW.DYNALOCK.COM

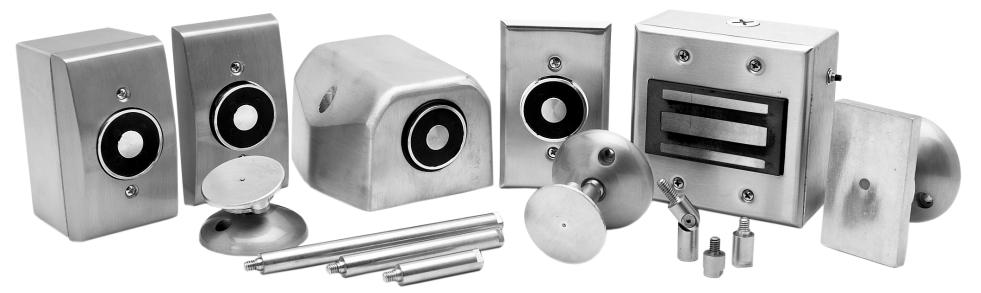

2800 Series

Electromagnetic Door Holders

LISTED 2810

2801-2806

Description

DynaLock 2800 Series Electromagnetic Door Holders are designed to hold self-closing fire or smoke barrier doors open until automatically released by fire alarm, smoke detection, or sprinkler systems. They can also be manually controlled wherever instant closing of doors is required for safety or convenience.

Each door holder assembly consists of a floor or wall mounted heavy-duty electromagnet, a self-adjusting and pivoting armature, and all necessary mounting hardware. All models are field selectable to operate on 12 VDC, 24 VAC/VDC, or 120 VAC input voltage. Convenient screw terminals are provided for field hook-up. All holder models are UL listed.

Optional Extension rods are available, to extend the armature projection, for installations where a wide standoff distance between the electromagnet and armature mounting locations exist.

DynaLock 2800 Door Holders each provide 30-45 lbs. of holding force, allowing manual door closure when electromagnets are energized.

Standard Features

• 30-45 Lbs. holding force per door.
• Low power consumption conserves energy, reduces operating costs and extends battery stand-by time.
• Tri-Voltage: 12 VDC, 24 VAC/VDC or 120 VAC/60Hz selectable operation.
• Fail-Safe Operation: Electromagnet releases instantly upon power loss.
• Self-adjusting and pivoting armature assembly.
• Built-in spike suppression protects other solid state components within the system from damage when the door holder is de-energized.
• Heavy-duty die cast metal housings & faceplates. (2806 & 2810 Stainless steel faceplates)
• Satin Aluminum US28 finish is standard. Optional sprayed finishes available. -Consult Factory-(2806 & 2810 - US32D)
• Lifetime Warranty: Made in the USA by DynaLock, with over 20 years experience in the manufacture of electronic security & access control products.

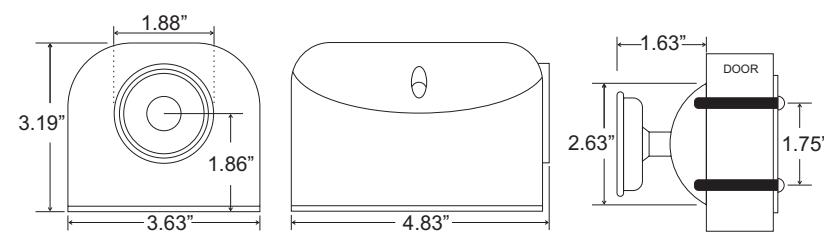

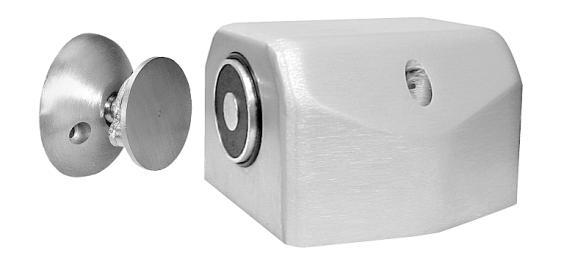

Floor Mount / Single Door

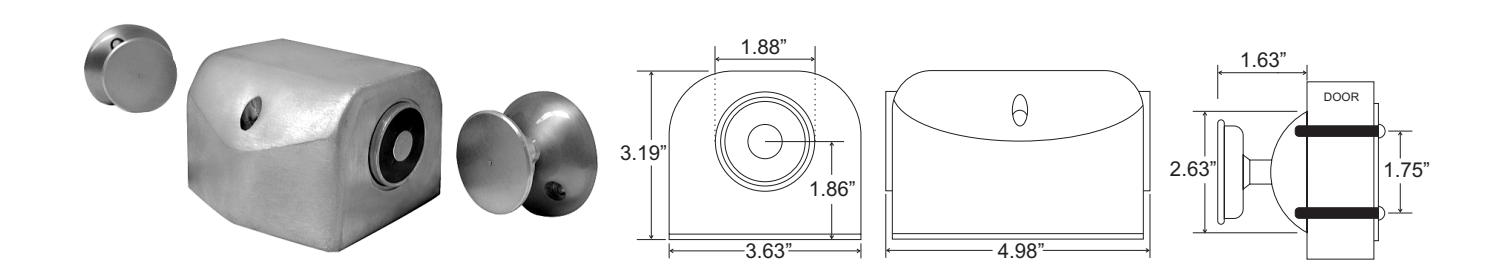

Floor Mount / Double Door

Flush Wall Mount / Extended Armature

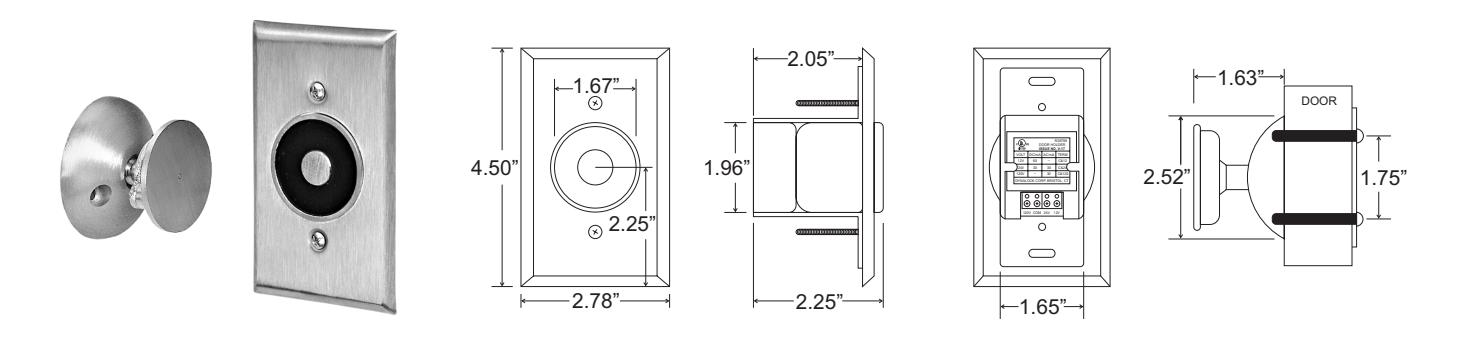

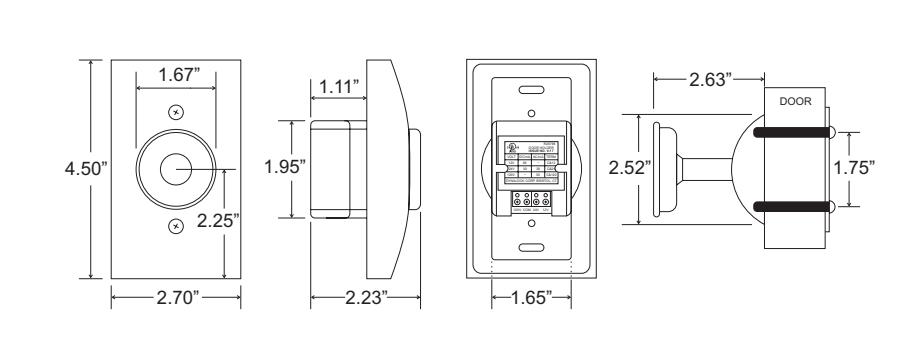

Flush Wall Mount / Standard Armature

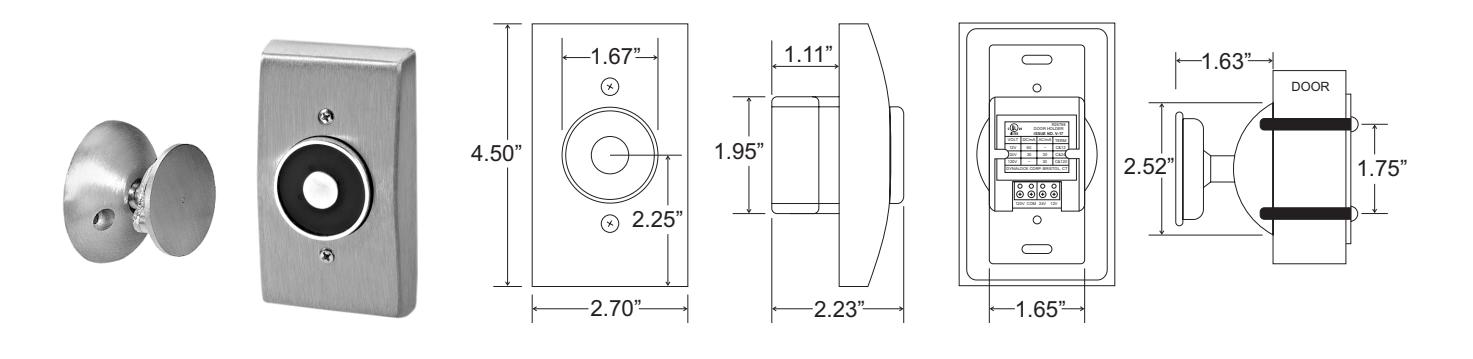

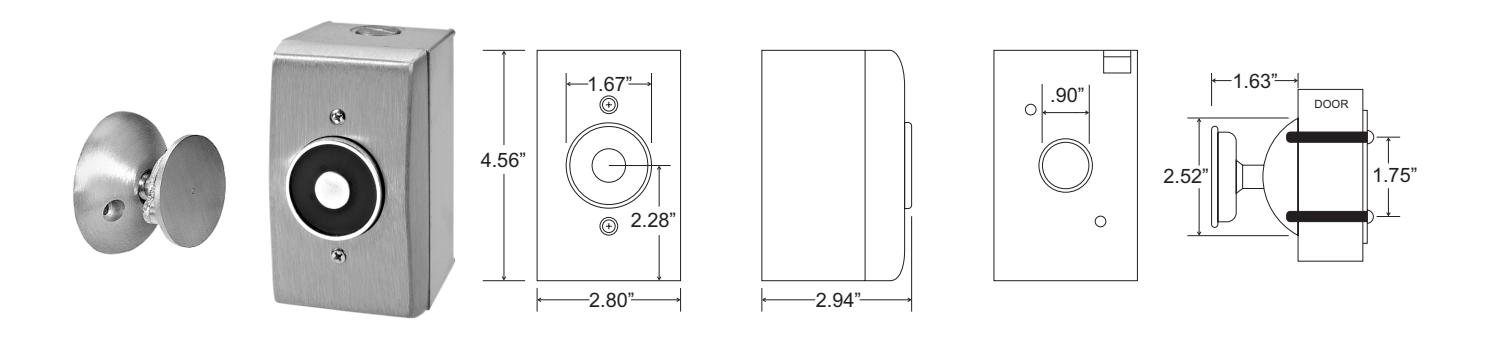

Surface Wall Mount

Low Profile Wall Mount
