2500 x LCB SERIES WIRING INSTRUCTIONS FOR UNITS NOT USING A CIRCUIT BOARD

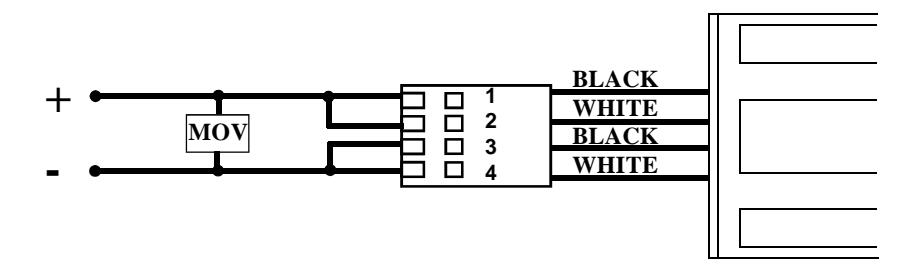

12 VOLT DC OPERATION

NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.

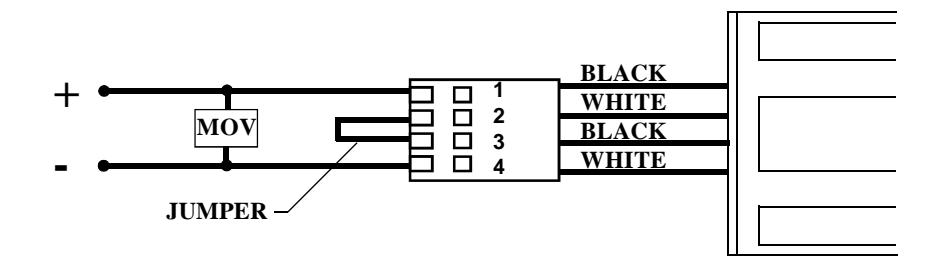

24 VOLT DC OPERATION

NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.

FOR UNITS USING THE CIRCUIT BOARD DISCARD THE MOV AND THIS PAGE.
