INSTALLATION INSTRUCTIONS

INSTALLATION DESCRIPTION

The Model 2282 is an electromagnetic lock designed to secure a pair of outswinging doors, with 1200 pounds holding force per leaf. The lock requires installation procedures as described herein and in the separate wiring instructions included.

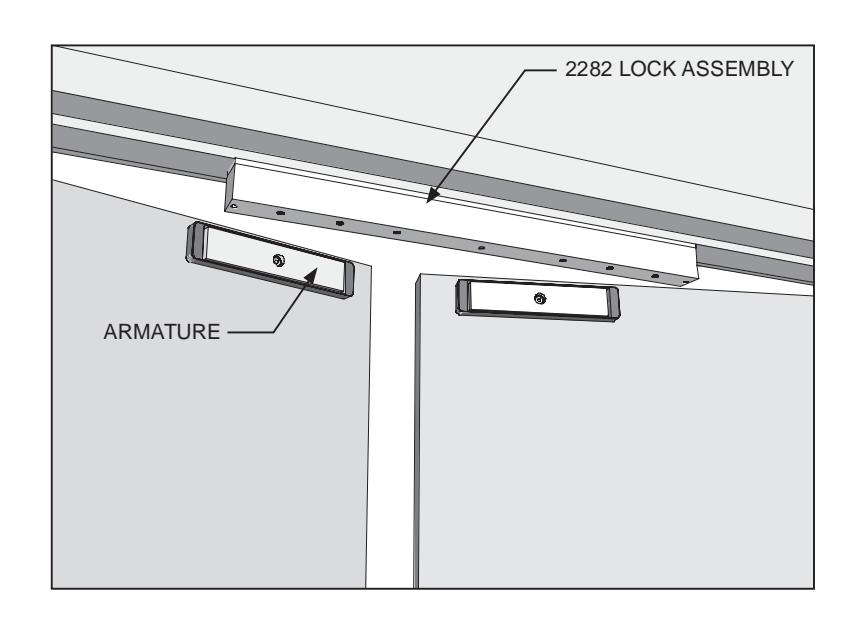

Typical installation of the lock on a double outswinging door:

HANDLING

Care must be taken that the lock and armature faces are kept free of dirt, rust, paint, or any other obstruction which may interfere with the lock and armatures making good contact. These faces may be cleaned with a non-abrasive pad and wiped with an oil dampened cloth.

MECHANICAL INSTALLATION

Familiarize yourself with the door and frame conditions. The lock must mount rigidly to the under side of the door frame header. The door mounted armatures are supplied with hardware that allow them to pivot slightly to compensate for reasonable misalignment.

NOTE: If this lock is supplied with the DSM2 option be certain that magnets are present inside the armature housings.

ELECTRICAL INSTALLATION

After mechanical installation is complete the locks need to be wired to a 12 or 24 VDC/VAC power source. Once low voltage power is supplied the unit is fully operational. All other wiring is for selected options. Refer to the separate wiring instructions included for further information.

1-877-DynaLock www.dynalock.com

MODEL 2282 DOUBLE/OUTSWING ELECTROMAGNETIC LOCK

INSTALLATION INSTRUCTIONS

General Information 1
Bill Of Materials	2
Mounting Considerations 3
Using The Template 3
Mounting The Armature 4
Mounting The Lock 5
Exploded Parts View 6
Exploded Parts Legend 7
Support 8

REQUIRED TOOLS

• (1) Electric Drill
• (1) #2 Phillips Screw Driver
• (1) Soft Faced Mallet
• (1) Hammer
• (1) Center Punch
• (1) Pencil & Tape

Drill Bits: 1/8", 17/64", 11/32", 1/2", 9/16", 21/32"

TABLE OF CONTENTS MODEL #2282 BILL OF MATERIALS

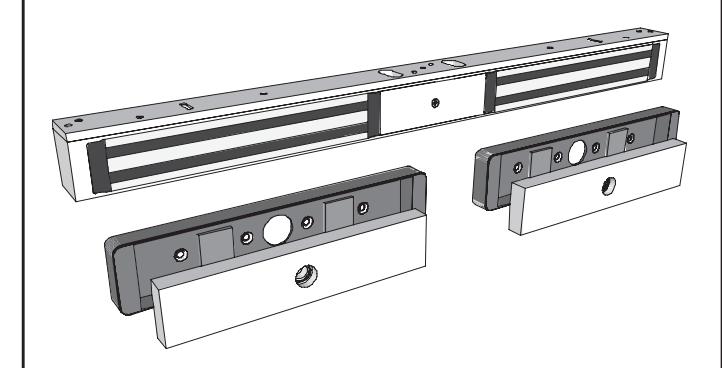

• (1) 2282 LOCK ASSEMBLY
• (2) ARMATURE
• (2) ARMATURE HOUSING
• (2) HARDWARE KIT
• (1) MOUNTING TEMPLATE
• (1) INSTALLATION MANUAL
• (1) WIRING MANUAL

HARDWARE KIT CONTENTS (P/N 301304 x 2)

QTY.	ITEM	DESCRIPTION
10	Baseplate Mounting Screws	#10x1" phillips pan head sheet metal screw
10	Baseplate Mounting Screws	#10-24x1/2" phillips pan head machine screw
2	Armature Mounting Screw	5/16-18x2" hex À at head machine screw, turned
8	Armature Housing Screws	#8x1" phillips À at head sheet metal screw
8	Armature Housing Screws	8-32x3/8" phillips À at head machine screw
2	Armature Spacer	3/8"Dx0.360"L spacer
2	Steel Washer	1/4" À at steel washer
2	Door Spacer	5/8"Dx1-11/16"L spacer
2	Sex Nut	5/16-18 sex nut
3	Anti-Tamper Plug
1	3/16" Hex Wrench

NOTE: For further parts clari¿ cation refer to the Exploded Parts View on page 6 or consult factory.

INSTALLATION INSTRUCTIONS

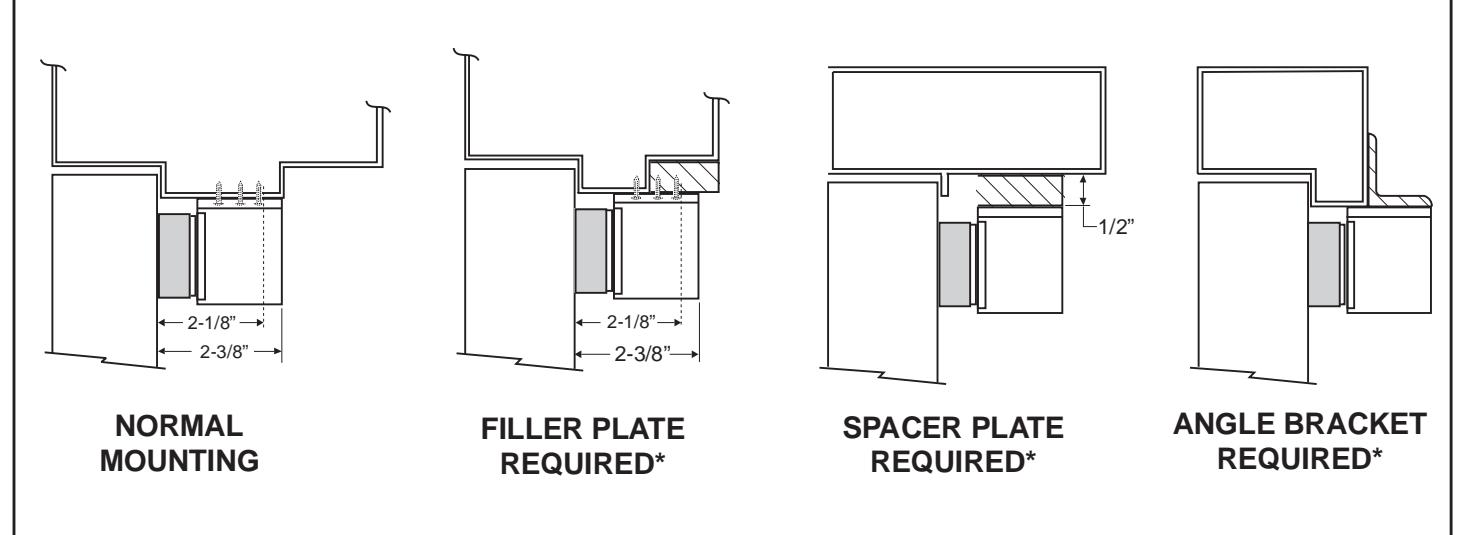

MOUNTING CONSIDERATIONS

Inspect the door frame and determine if an angle bracket, ¿ ller or spacer plate will be required for installation. Note: Remember to leave space so that the door hits the stop the maglock, to prevent loosening over time.

*See Price Book or visit www.dynalock.com - 4000 Series Mounting Accessories

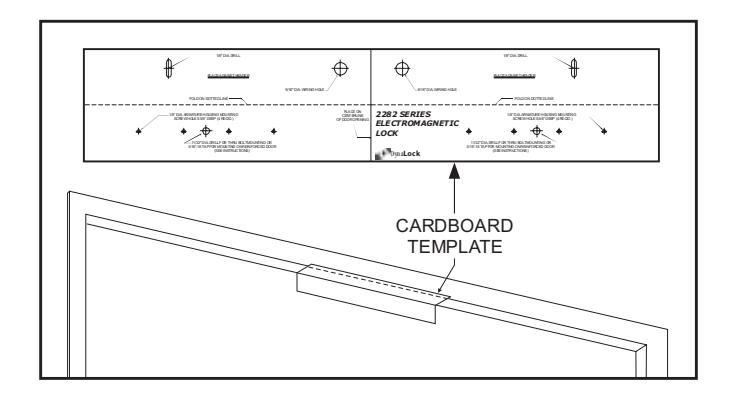

USING THE TEMPLATE

• Fold the template on the dotted line to form a 90 degree angle. Scoring the template with a straight edge and a screwdriver will make it fold easier. 1.
• With the doors in the closed and latched position, from the push side, place the template against the header and door, centered on the frame. 2.
• Transfer all hole locations to both the doors and header with a center punch, then remove the template. 3.

• 4. Referring to the template drill two 1/8" dia. lock mounting holes (or tap for 10-24) and one or two 9/16" dia. wiring hole(s) in the top of the frame, at the transferred locations. Remaining mounting holes will be drilled after lock is ¿ rst mounted and adjusted (page 5).
• Drill the remaining transferred holes in the face of the doors to accept the Armatures, following the instructions on page 4 for your speci¿ c door type. 5.

INSTALLATION INSTRUCTIONS

MOUNTING THE ARMATURES

From the three illustrations below, select the one that resembles your door type and follow the instructions for drilling the Armature Mounting Screw hole in each door leaf. (See Template)

In each door leaf drill four (4) 1/8" dia. holes for #8 x 1" sheet metal screws or drill and tap for #8-32 x 3/8" machine screws (See Template).

GLASS AND ALUMINUM OR HOLLOW METAL DOOR SOLID CORE DOOR REINFORCED DOOR

%61%896) 78))0 ;%7,)6 %61%896) 7'6); (336 74%')6 298 %61%896) ,397-2+ %61%896) 74%')6

Drill an 11/32" diameter hole through the door. From the sex nut side only enlarge the hole to 21/32" diameter.

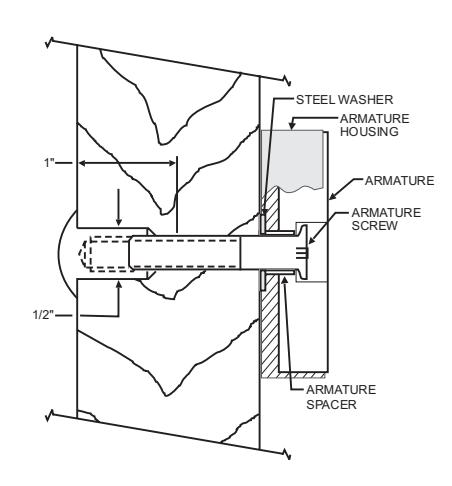

Drill an 11/32" diameter hole through the door. From the sex nut side drill 1/2" diameter hole to 1" depth.

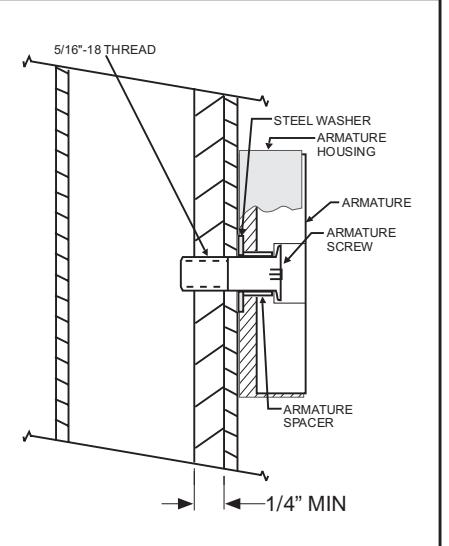

Drill a 17/64" diameter hole and tap for 5/16-18 thread

Mount the Armature Housing to the door using four (4) #8 x 1" sheet metal screws or #8-32 x 3/8" machine screws.

Place the Armature inside the Armature Housing and secure using the proper hardware, according to the above illustrations. Firmly tighten the Armature mounting screw with a 3/16" hex wrench.

Failure to properly secure the Armatures to the door could result in serious injury or possible security breach.

INSTALLATION INSTRUCTIONS

MOUNTING THE LOCK

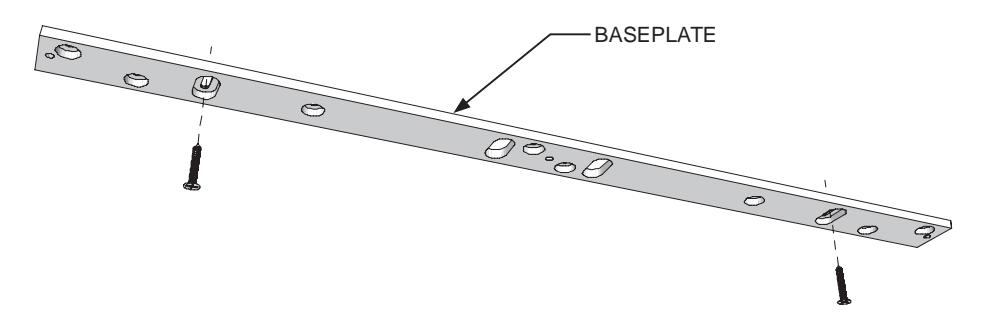

1. Mount the Baseplate to the header.

Separate the baseplate from the lock housing with a 3/16" Hex wrench. Place the Baseplate against the header with the counter sunk slots visible. Attach the baseplate to the header at both slotted locations using the holes drilled on page 3. Tighten the screws just snug enough to allow for ¿ nal adjustment.

• 2. Align the Lock and Armature. Close and latch the doors. Temporarily mount the lock to the baseplate and verify:
• a) the lock face and armature are making full contact for the entire length of the armature, for both sides
• b) the armature is horizontally centered on the lock face, for both sides
• c) the doors hit the frame just before the maglock (not slamming on the lock)

If any adjustment is required, gently tap the baseplate with a soft mallet until full contact is achieved. Mark two baseplate corner locations lightly with a pencil for reference. Remove the lock from baseplate and tighten both adjustment screws. Drive the remaining screws into the header using the baseplate as a physical template. Screw heads must not project above the baseplate.

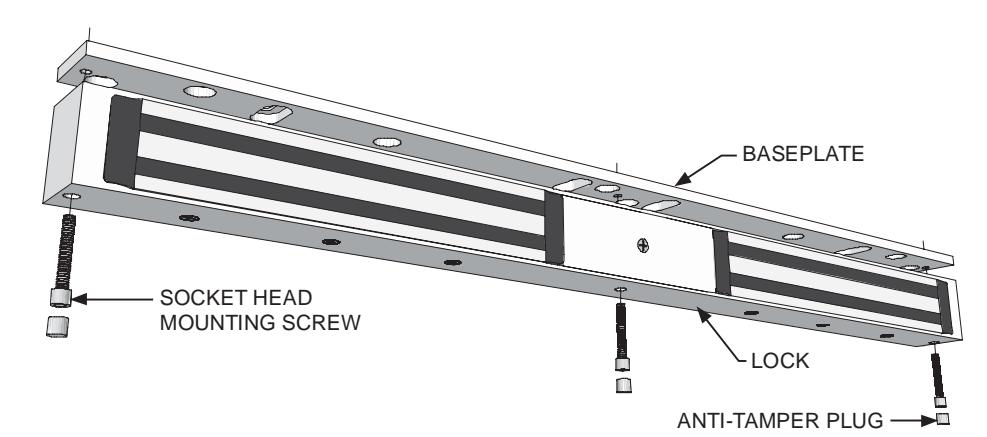

3. Attach the Lock to the Baseplate. With the 3/16" Hex wrench, permanently fasten the lock to the Baseplate with the three 1/4"-20 x 1-1/4" machine screws removed earlier.

4. Install the anti-tamper plugs. Gently tap the three Anti-Tamper Plugs into the Mounting Screw Holes using a soft faced mallet.

5. Complete Wiring. See separate wiring instructions.

INSTALLATION INSTRUCTIONS

EXPLODED PARTS VIEW LEGEND ON NEXT PAGE 1/4" 11/16" 1/2" 25-1/2"

INSTALLATION INSTRUCTIONS

PARTS LEGEND

ITEM	DESCRIPTION	PART #
1	Baseplate	301265
2	#10x1" Self-Tapping Screw	*
2	10-24x1/2" Machine Screw	*
3	Lock Housing	301299
4	Access Cover	301298
5	8-32x3/8" Machine Screw	300608
6	Anti-Tamper Plug	*
7	1/4-20x1-1/4" Socket Head Screw	300603
8	5/16-18x2" Arm. Screw, Turned	*
9	Armature	300968

ITEM	DESCRIPTION	PART #
10	#8x1" Self-Tapping Screw	*
10	8-32x3/8" Machine Screw	*
11	Armature Housing	301245
12	0.360"L Armature Spacer	*
14	Steel Washer	*
15	Door Spacer Tube	*
16	Sex Nut	*
17	Disc Magnet (DSM only)	301289

Refer to Page 6 for parts locations.

^* Part of Hardware Kit (301304 x 2)

INSTALLATION INSTRUCTIONS

PLEASE DELIVER THIS MANUAL TO THE END-USER UPON COMPLETION OF THE INSTALLATION

THE FOLLOWING LISTINGS ARE PENDING

GWXT Auxiliary Lock NYC Mea #23-92-E

FOR PRODUCT SUPPORT AND PARTS ORDERING INFORMATION CONTACT:

DynaLock Corp. 705 Emmett Street Bristol, CT 06010

Bus: (877) DYNALOCK, Toll-Free USA

(860) 582-4761 Fax: (860) 585-0338

DYNALOCK ON THE INTERNET:

E-mail: info@dynalock.com Website: www.dynalock.com
