Basic System Wiring

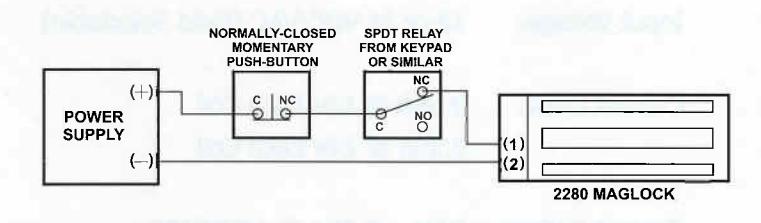

The figure below is an example of a simple circuit, showing a single door normally locked. DynaLock offers keypad control, exit bars, timers, and much more to suit your needs.

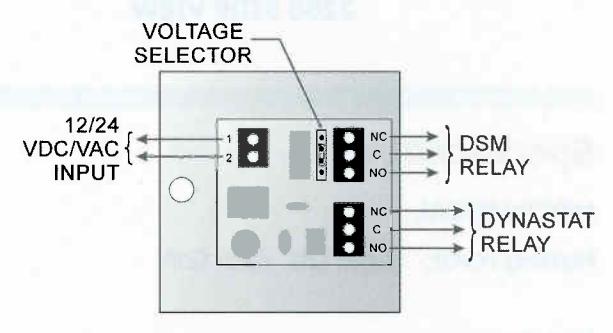

CIRCUIT BOARD (Shown with all options)

BI-COLOR LED

LED NOTE. Factory set for 24VDC. Remove outer resistor for 12VDC operation.

2280 Series Electromagnetic Lock

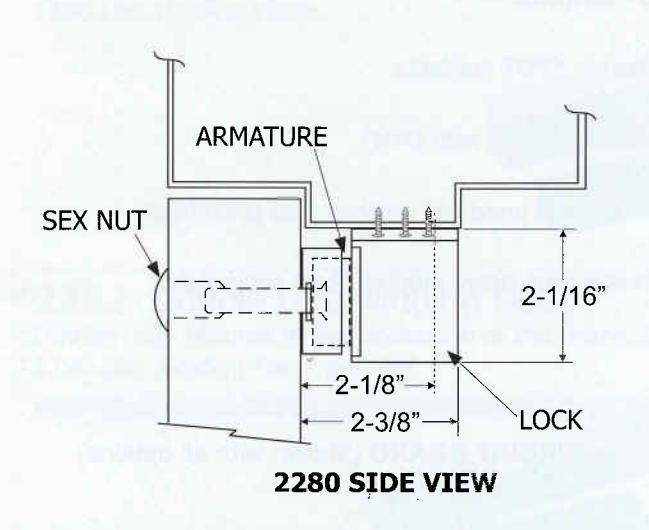

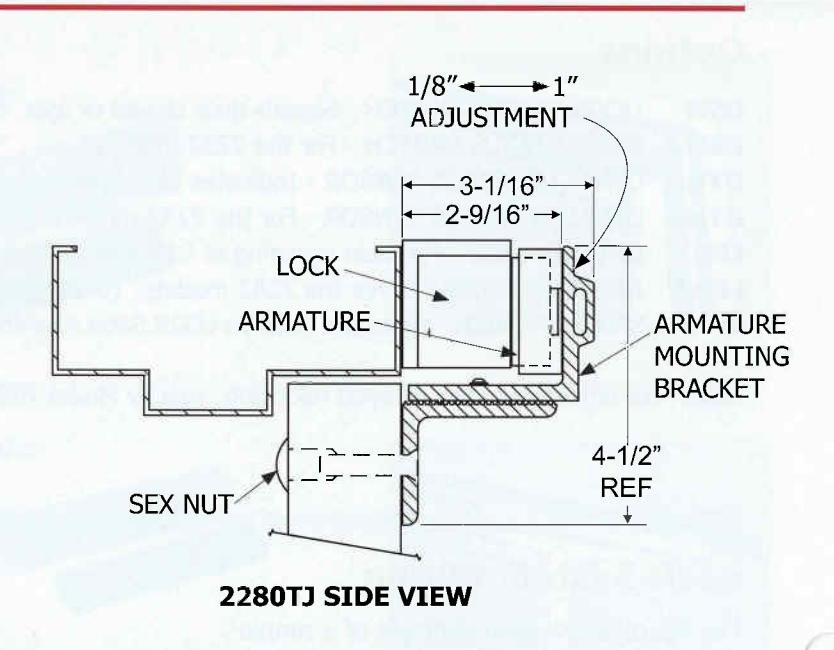

Mounting
