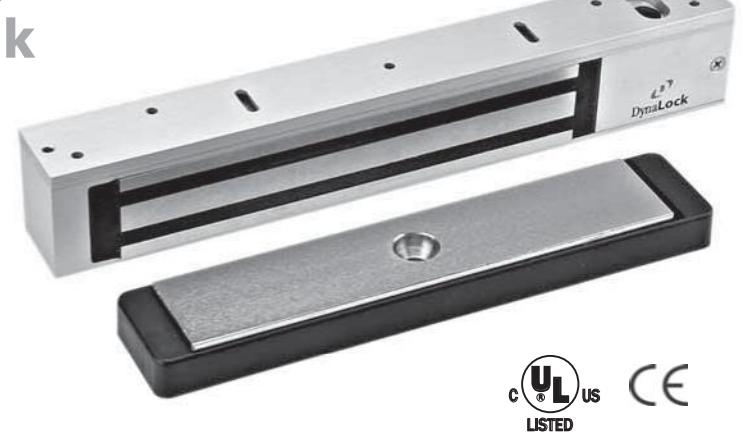

2280 Series

1200 Lb. Holding Force SlimLine MagLock

  • • An "Upscale" Low Pro¿ le Lock
  • • One-Piece Housing
  • • Quiet, Carefree Operation
  • • Enhanced Time Saving Installation
  • • Lifetime Warranty

Description

The new DynaLock 2280 Series joins our popular 2268 Series as an upscale, low pro¿ le 1,200 lb. holding force maglock. The 2280 features a reduced length, low pro¿ le seamless housing, milled from a solid aluminum billet. The one-piece housing offers superior resistance to moisture intrusion. An adjustable mounting plate offers staggered mounting screw holes to enhance mounted stability. Ease of wiring and selection of options is facilitated by a replaceable built-in circuit board.

Incorporated in the overall design is a new highimpact plastic armature housing. The housing includes concealed rare-earth disc magnets at each end, when the optional door status feature is ordered. This of the housing, when mounted. The housing fully captures the armature, . In addition, the housings incorporate foam pads to help of the armature engaging the lock face.

Typical applications for the 2280 include commercial, industrial and institutional openings where maximum security and durability is required. With a low 2-1/16"

pro¿ le, the 2280 is , to facilitate code compliance on designated egress doors.

  • • Field Selectable Voltage 12 or 24 VDC/VAC
  • • Seamless, One Piece Housing Provides superior moisture and tamper resistance.
  • • Adjustable Baseplate reduces installation time and insures proper alignment.
  • • Armature Housing Dampens noise and facilitates installation.
  • • Low Pro¿ le Provides maximum headroom clearance.
  • • Enhanced Top Jamb Mount Aesthetically pleasing full length armature bracket, with locking ribs to prevent slippage, and a lock mounting bracket with concealed wire chase.
  • • Built-In Spike Suppression protects other solid state components within the system from electrical damage.
  • • Choice of Options Door status, lock status, LED, and eight architectural ¿ nishes are available.

) P I G X V S Q E K R I X M G 0 S G O W ' S R X V S P W 4 S [ I V 7 Y T T P M I W

2280 Series Electromagnetic Lock

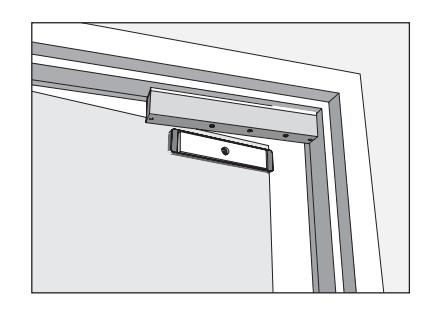

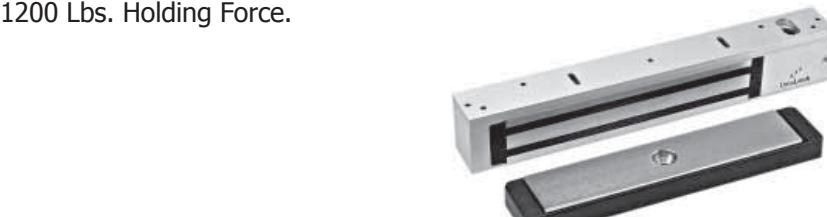

2280 Single Outswinging Door

Single coil. Mounts to the underside of the frame header.

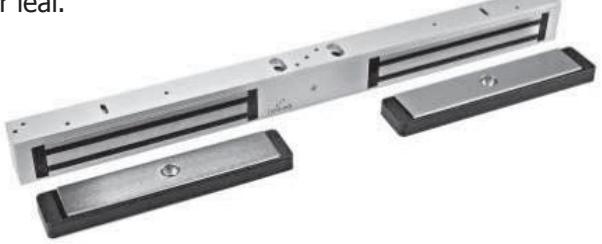

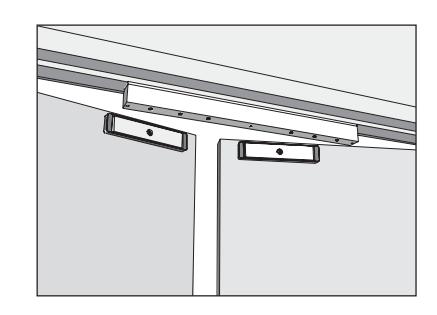

2282 Double Outswinging Door

Double coil. Mounts to the underside of the frame header. 1200 Lbs. Holding Force per leaf.

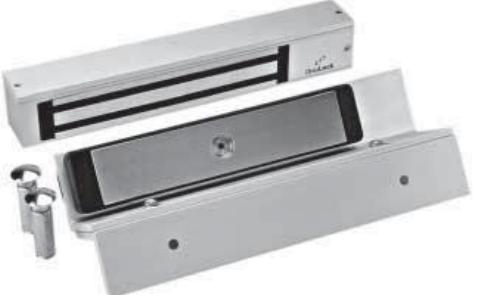

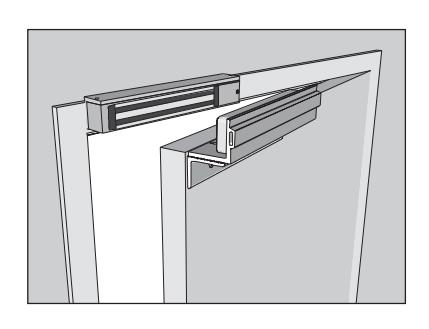

2280-TJ80 Single Inswinging Door

Single coil. Mounts to the face of the frame header. 1200 Lbs. Holding Force.

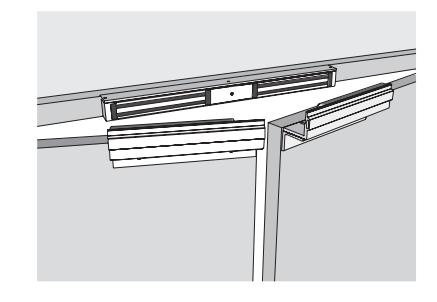

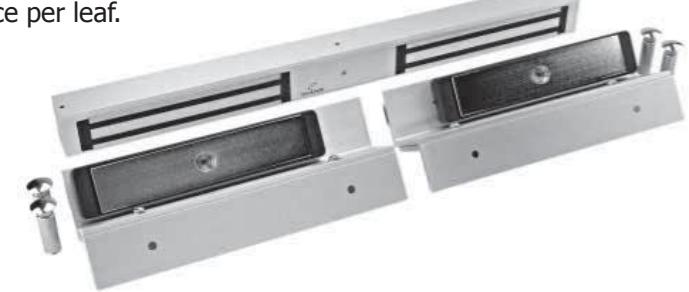

2282-TJ82 Double Inswinging Door

Double coil. Mounts to the face of the frame header. 1200 Lbs. Holding Force per leaf.

2280 Series Electromagnetic Lock

Options

DSM DOOR STATUS SWITCH - Signals door closed or ajar. SPDT contacts.

DSM2 DOOR STATUS SWITCH - For the 2282 models.

DYN DYNASTAT FORCE SENSOR - Indicates efficient magnetic bond. SPDT contacts.

DYN2 DYNASTAT FORCE SENSOR - For the 2282 models.

LED BI-COLOR LED - For local signaling of lock status. Flying leads. (order with DYN)

LED2 BI-COLOR LED'S(2) - For the 2282 models. (order with DYN2)

SF SPECIAL FINISH - Standard finish is US28 Satin Aluminum. Special anodized finishes, see price book.

Note: For adjustable time delayed relocking, specify Model 7080 in-line time delay module (sold separately).

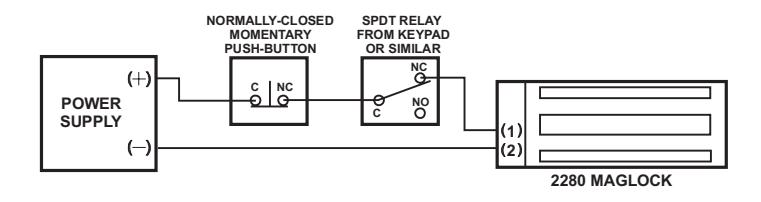

Basic System Wiring

The figure below is an example of a simple circuit, showing a single door normally locked. DynaLock offers keypad control, exit bars, timers, and much more to suit your needs.

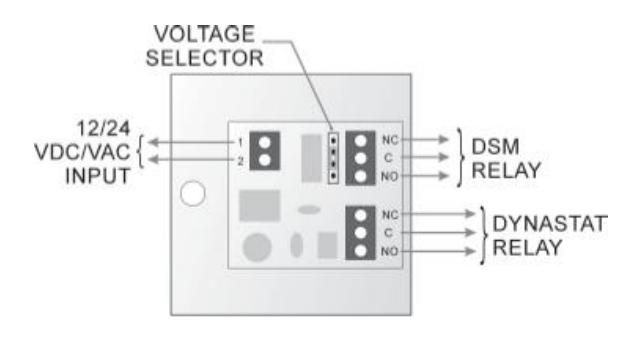

CIRCUIT BOARD (Shown with all options)

BI-COLOR LED

LED NOTE: Factory set for 24VDC. Remove outer resistor for 12VDC operation.

Accessories

  • 4000 Series Installation Accessories Spacer Plates: Lower the lock assembly Filler Plates: Extend the door stop Angle Brackets: Extend the header
  • 5000 Series Power Supplies Solid state power supplies provide proper voltage, time delay and battery backup if required.
  • 6000 Series Exit Controls Pushbuttons in a variety of switching configurations and exit sensor bars.

  • 7000 Series Keyswitches and Keypads Keyswitches accept most mortise cylinders for controlled access. Rugged digital entry keypads.
  • 8000 Series Consoles Desk Top, Slope Front and Rack Mount fabricated to customer specifications.

2280 Series Electromagnetic Lock

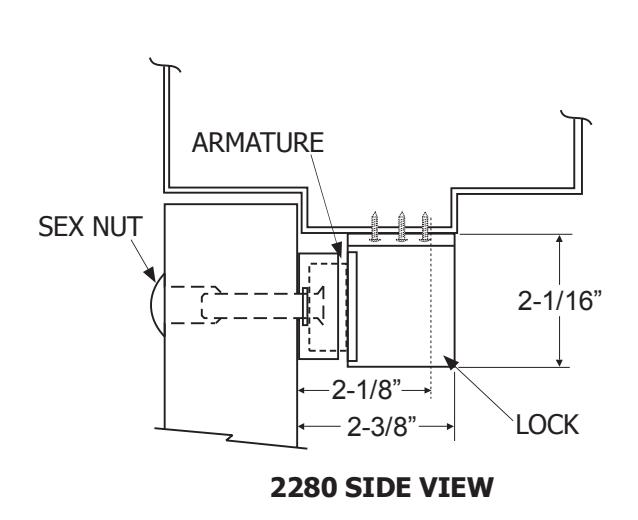

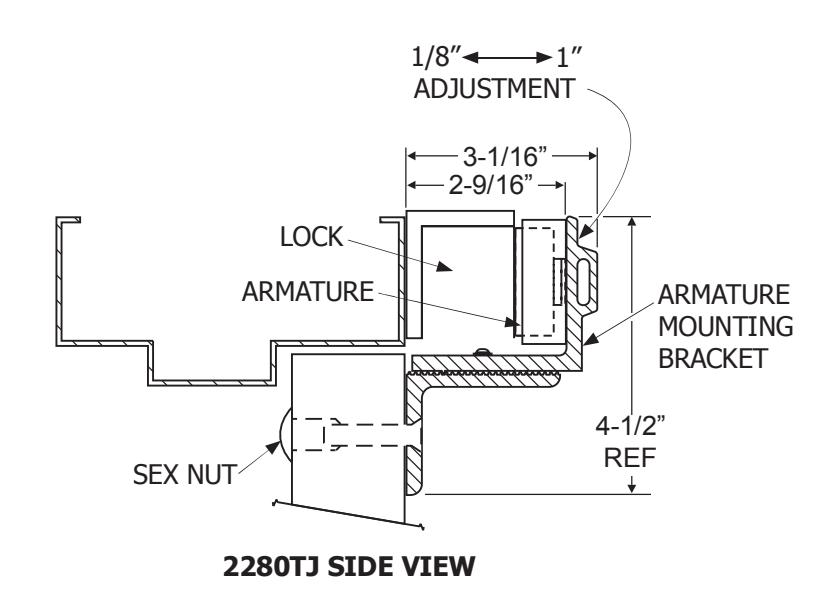

Mounting

Specifications

MECHANICAL

Holding Force: 1200 Lbs. Each Coil

Lock Size:

2280 1<sup>1</sup>/<sub>2</sub>"D x 2<sup>1</sup>/<sub>16</sub>"H x 12<sup>3</sup>/<sub>4</sub>"L 2282 1<sup>1</sup>/<sub>2</sub>"D x 2<sup>1</sup>/<sub>16</sub>"H x 25<sup>1</sup>/<sub>2</sub>"L

Armature Size: \frac{5}{8} "D x \frac{1^{3}}{4} "H x \frac{8^{5}}{8} "L

Lock Weight: 2280 10Lbs. / 2282 20Lbs.

Finish: US28 Satin Aluminum Standard

Other Finishes Available

ELECTRICAL

Input Voltage: 12 or 24 VDC/VAC (Field Selectable)

Current Draw: 0.68A @ 12V Each Coil

0.35A @ 24V Each Coil

Contact Ratings: DSM - 0.25A @ 24VAC/DC

DYN - 0.25A @ 24VAC/DC
