DynaLock 2268xDSE Series Installation Instructions

SERIES #2268xDSE ELECTROMAGNETIC LOCK WIRING INSTRUCTIONS

DYNASTAT FORCE SENSOR (DYNST) WIRING

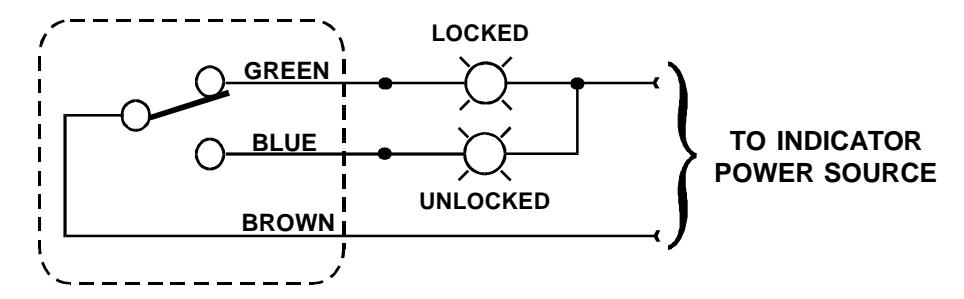

The 2268xDSE Dynastat Force Sensor provides a SPDT set of dry contacts to signal whether an efficient magnetic bond has occured between the mating surfaces of the magnetic lock and armature for remote monitoring purposes (i.e. - door 'locked' or door 'unlocked'). Typical system connections are shown below.

NOTE: Indicators are not included.

Dynastat contact rating - 0.25 Amp @ 24VAC/VDC

2268xDSE GENERAL SPECIFICATIONS

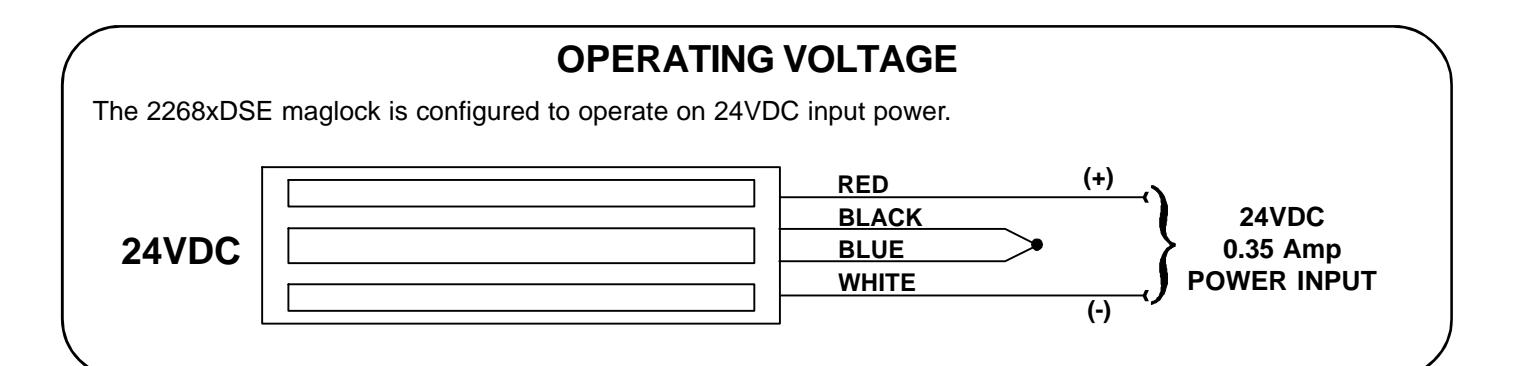

OPERATING VOLTAGE: 24VDC

POWER CONSUMPTION: 0.35 Amp @ 24 Volts

SURGE SUPPRESSION: Built-in

HOLDING FORCE: 1200 Lbs.

COIL RESISTANCE: 68 Ohms (+-10%) White / Red

TERMINATIONS: 12" Long Color-Coded Wire Leads
