DynaLock 2268-TJ20 Series – Templates
Open the original PDF document
View PDF
NOTES:
#1- LOCK HOUSING MOUNTS FLUSH WITH HEADER RABBET. #2- ABOVE INFORMATION IS FURNISHED TO IDENTIFY LOCATIONS FOR REINFORCEMENT, IF REQUIRED. SEE INSTALLATION INSTRUCTIONS FOR DOOR AND FRAME PREPARATION.
Template Drawing
|
DRWN:
CHK'D: |
MJL |
Date:
6/1/05 Date: |
Title:
22 |
|---|---|---|---|
| CHK'D: | Date: | Page |

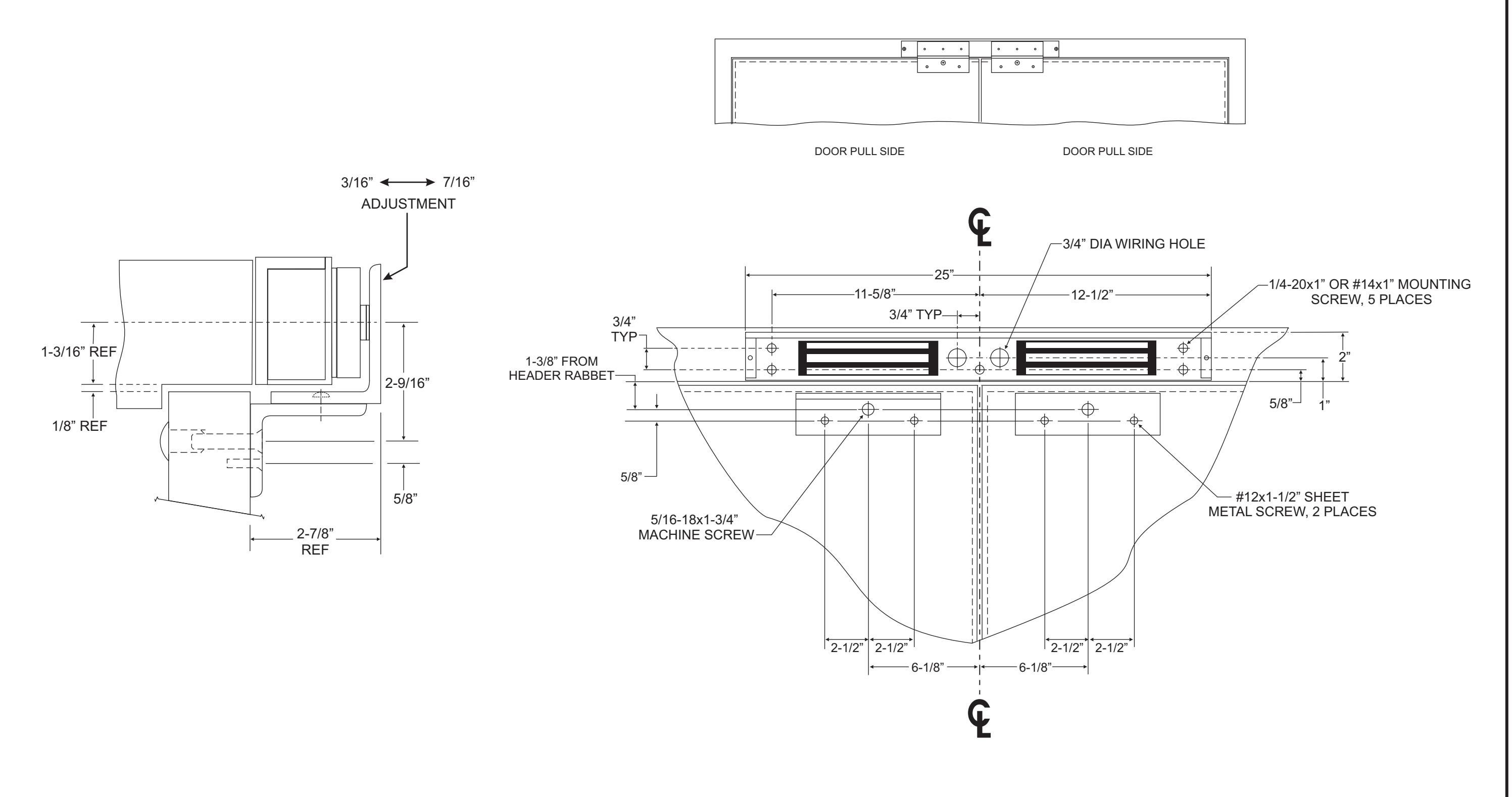

2268-TJ20 DOUBLE INSWING ELECTROMAGNETIC LOCK DOOR AND FRAME PREPARATION
В
Page 1 Of 1
301199
99 -
