DynaLock 2268 Series – Miscellaneous

Open the original PDF document

View PDF

Basic System Wiring

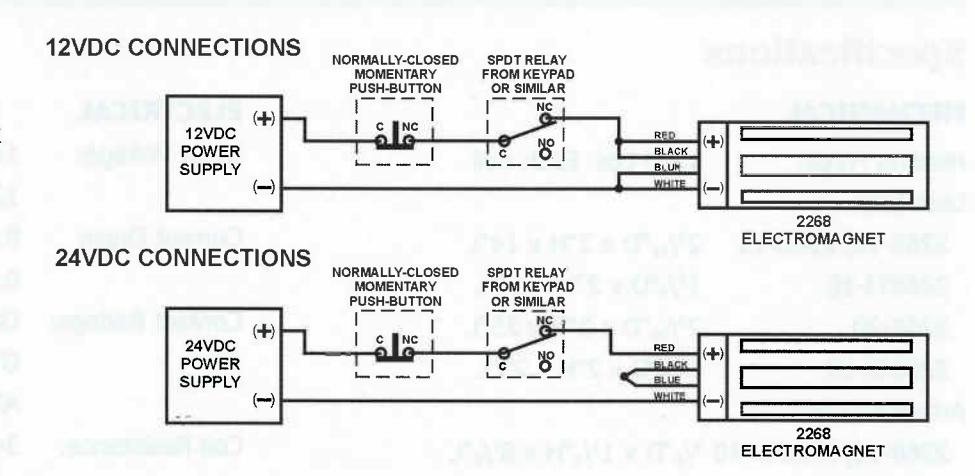

The figure shown is an example of a simple circuit including a single door locked continuously. DynaLock offers keypad control, exit bars, timers, and much more to suit your needs.

Mounting

27/8" ADJUSTABLE LOCK- ARMATURE ARMATURE MOUNTING SEX NUT- BRACKET 5"-

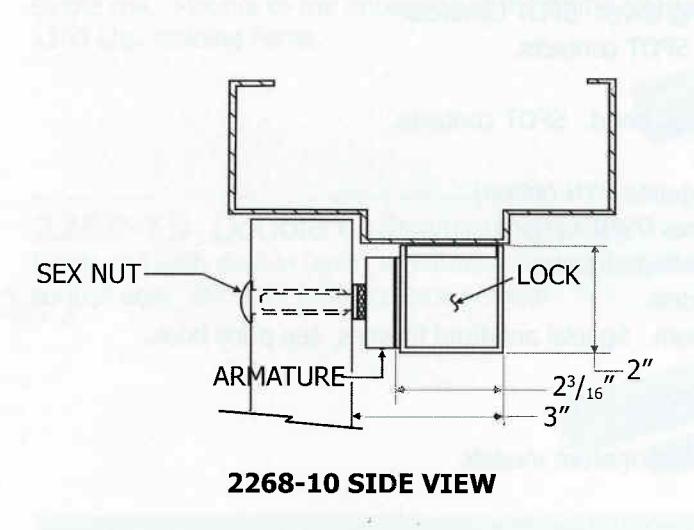

2268TJ-10 SIDE VIEW
