DynaLock 2022xTJ22 Series – Templates

REVISED TEMPLATE FOR USE WITH NEW PLASTIC ARMATURE HOUSINGS ONLY

NOTE:

ABOVE INFORMATION IS FURNISHED TO IDENTIFY HOLE LOCATIONS. SEE INSTALLATION INSTRUCTIONS FOR DOOR AND FRAME PREPARATION.

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Template Drawing

DRWN: Date: MJL 02/13/07 CHK'D: Date: JAS 02/27/07 CHK'D: Date: P

APPV'D:

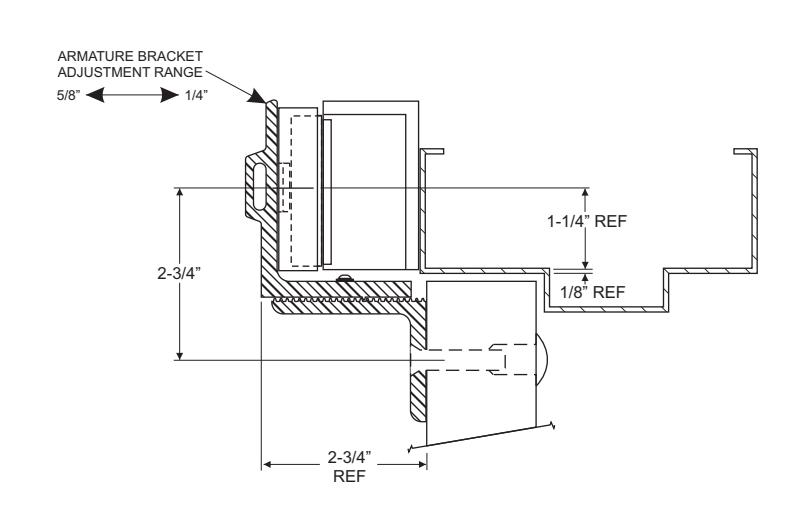

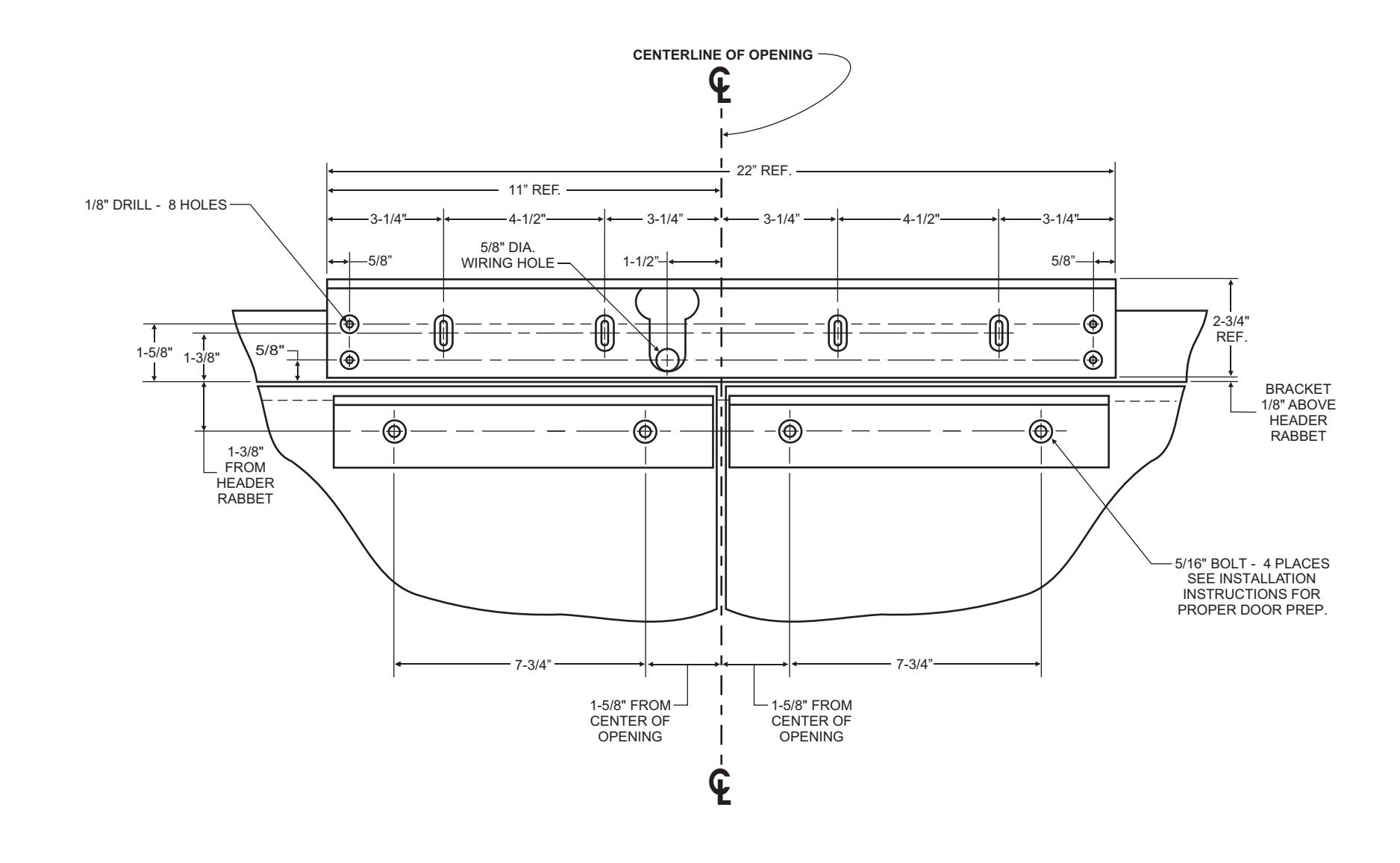

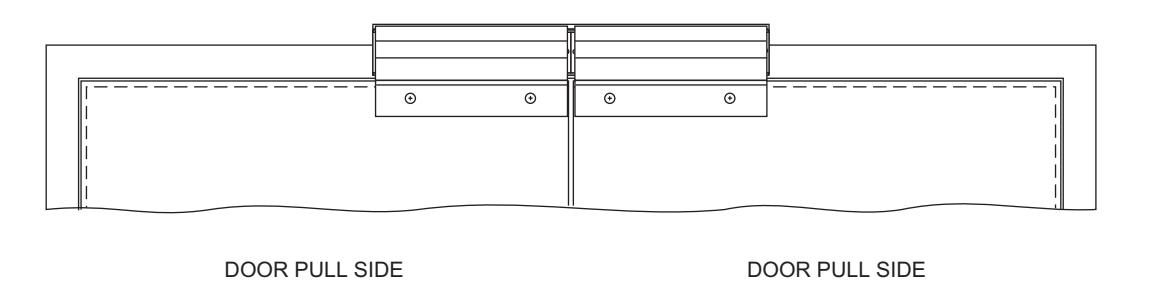

2022xTJ22 DOUBLE INSWING ELECTROMAGNETIC LOCK TEMPLATE DRAWING

Page Scale:

Size: Drawing #:

301091

REV:
