REVISED TEMPLATE FOR USE WITH NEW PLASTIC ARMATURE HOUSINGS ONLY

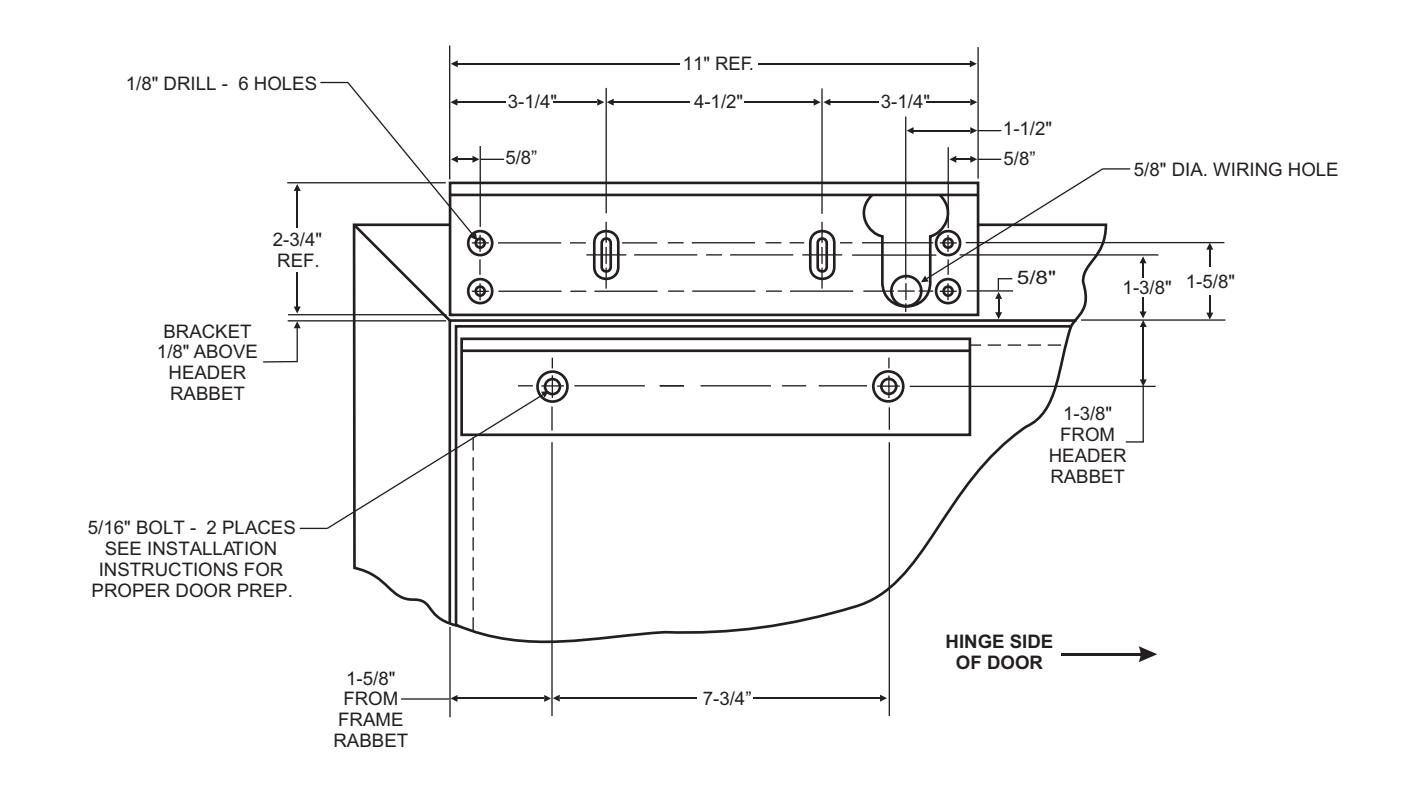

LEFT HAND DOOR PREP

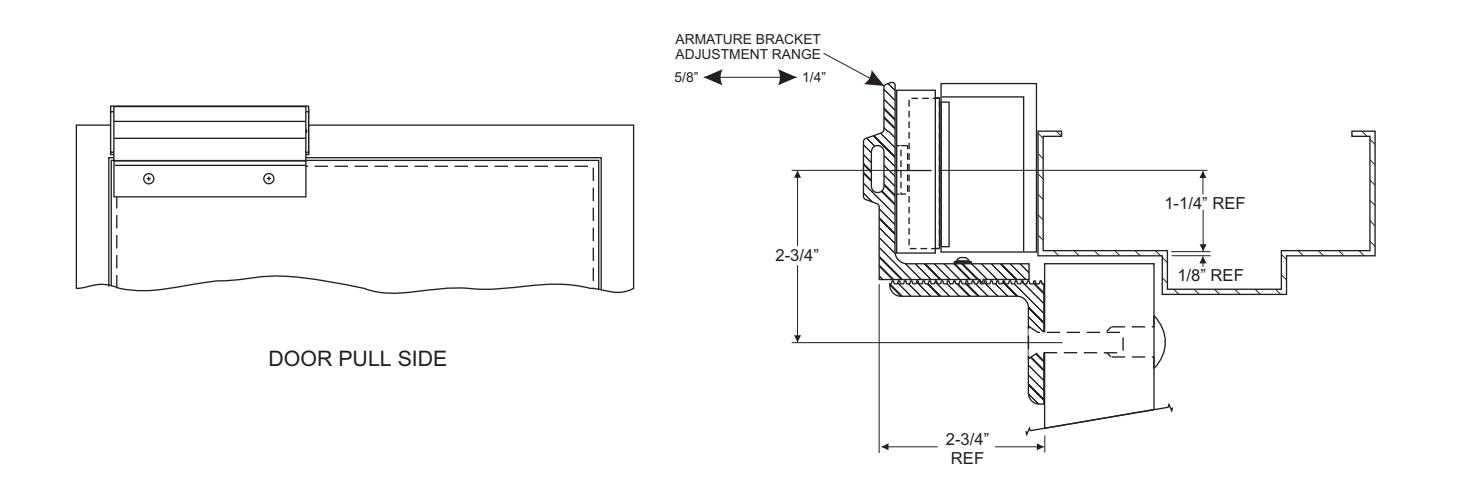

ARMATURE BRACKET ADJUSTMENT RANGE 1/4" 5/8" DOOR PULL SIDE

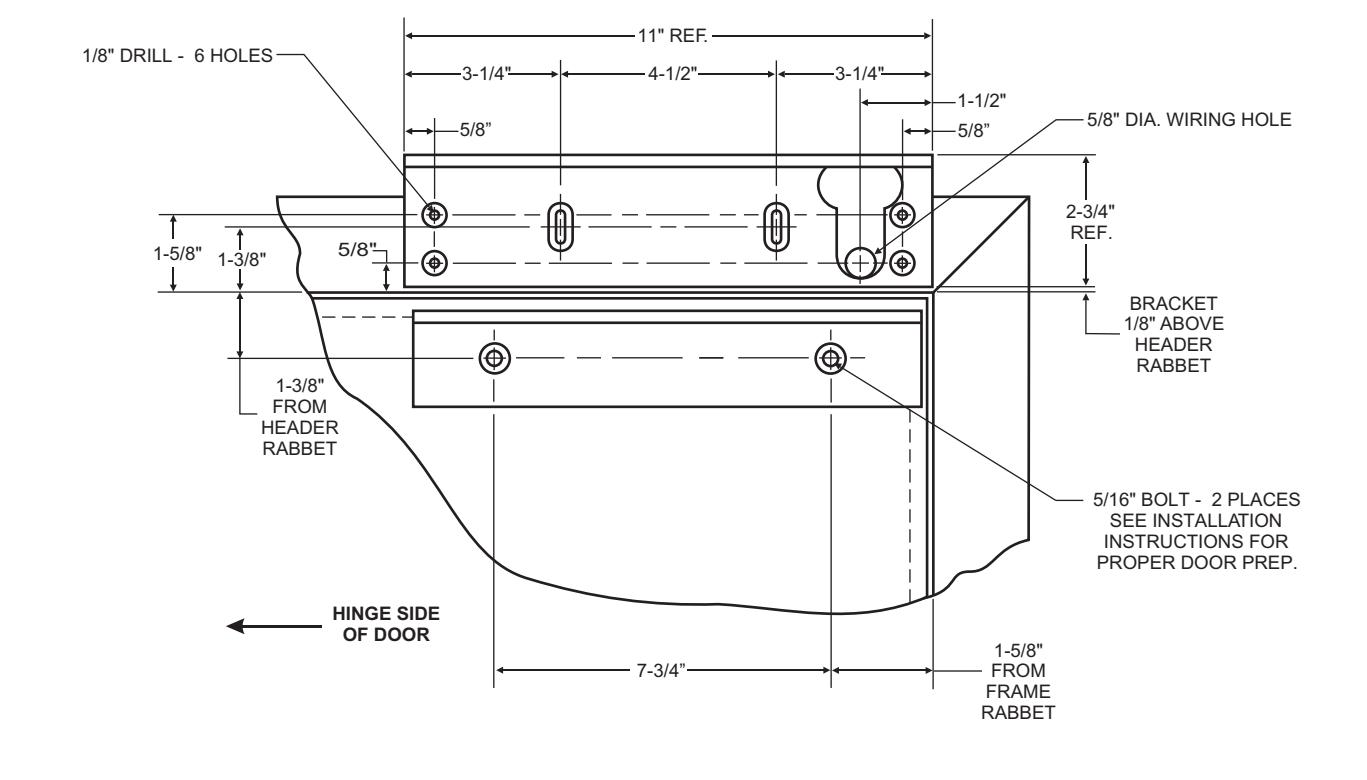

RIGHT HAND DOOR PREP

NOTE:

ABOVE INFORMATION IS FURNISHED TO IDENTIFY HOLE LOCATIONS. SEE INSTALLATION INSTRUCTIONS FOR DOOR AND FRAME PREPARATION.

DynaLock Corporation 705 Emmett Street • Bristol, CT 06010 Tel: (860) 582-4761 • Fax: (860) 585-0338

Template Drawing

DRWN:		Date:	Ti
	MJL	02/13/07
CHK'D:	JAS	Date: 02/27/07
CHK'D:		Date:	Pa

APPV'D:

2011xTJ20 SINGLE INSWING ELECTROMAGNETIC LOCK TEMPLATE DRAWING
