DynaLock 2011 Installation Instructions

Open the original PDF document

WIRING INSTRUCTIONS SERIES 2000/3000 x LCB ELECTROMAGNETIC LOCK

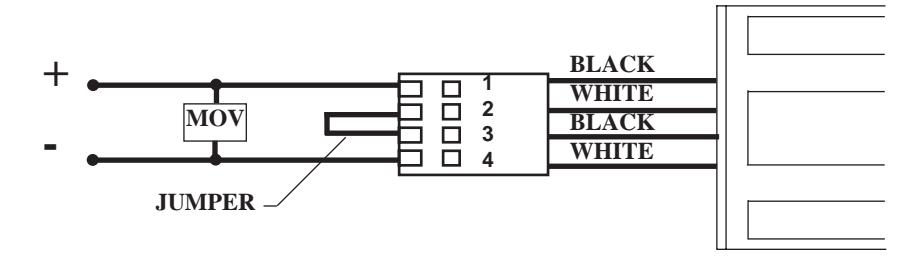

NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.

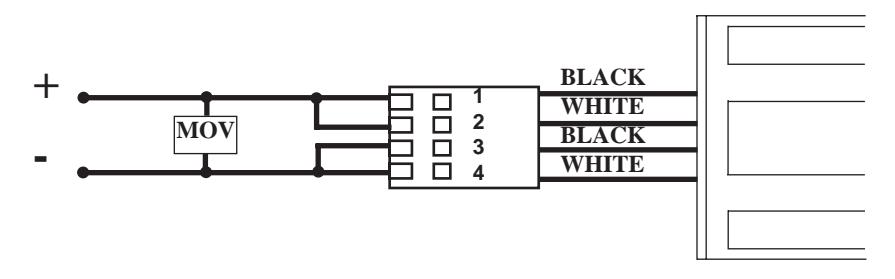

NOTE: TO PROTECT OTHER ELECTRONIC DEVICES IN SYSTEM CONNECT THE SUPPLIED MOV ACROSS THE LEADS AS SHOWN ABOVE.

FOR UNITS USING THE CIRCUIT BOARD DISCARD THE MOV AND THIS PAGE.
