1900 Series

ALL-IN-ONE ELECTRIC STRIKES

FEATURES:

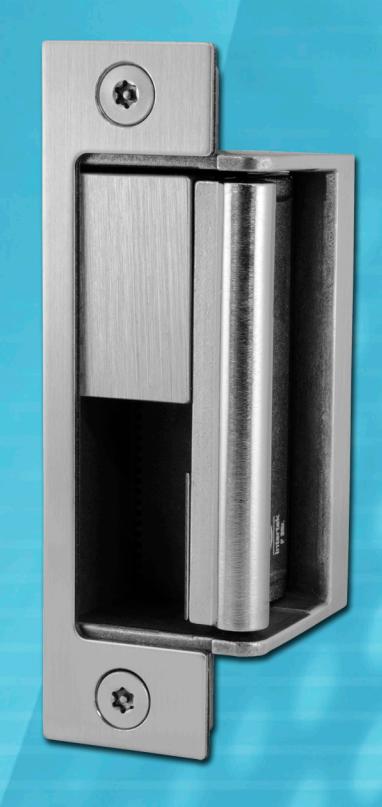

MODEL 1921

  • Modular Design Compatible with Most Locks
  • UL 10C Fire-Labeled (3 hr.)
  • UL 1034 Burglary-resistant
  • Meets ANSI/BHMA A156.31 Grade 1

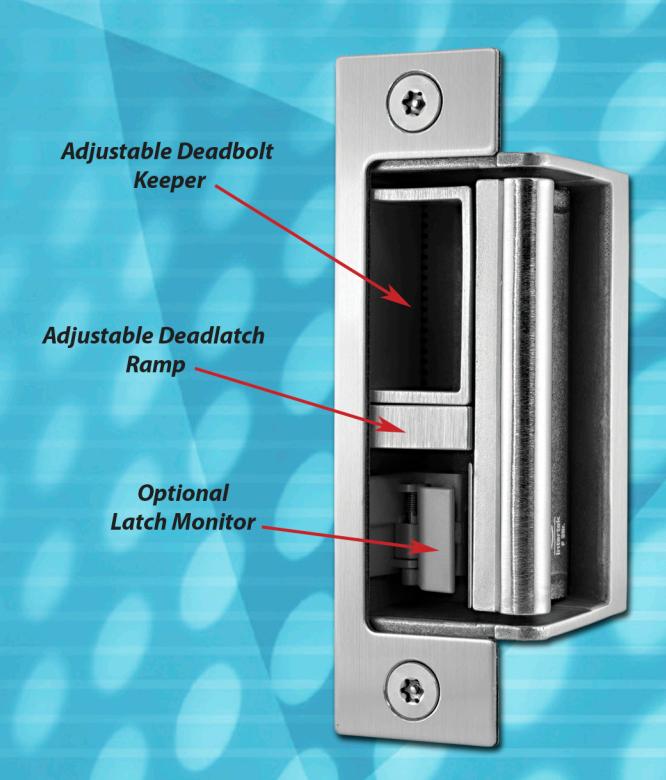

  • Adjustable Deadbolt Keeper & Deadlatch Ramp
  • Accommodates up to 3/4" Latch Projection
  • Accommodates up to 1" Deadbolt (Night Latch Function)
  • Adjustability 5/16" Vertical / 1/8" Horizontal
  • Fits HES 1006 (1003) Cutout (Hollow Metal)
  • Selectable Input 12 or 24VDC and 12 to 24VAC
  • 1,500 lbs. Static Strength
  • Optional Plug-in Latch Monitor Kit (Accessory)
  • Heavy-duty Construction US32D Finish
  • 5-Year Limited Warranty
