1 8 0 0 S e r i e s

F i r e - L a b e l e d H e a v y - D u t y E l e c t r i c S t r i k e s

Description

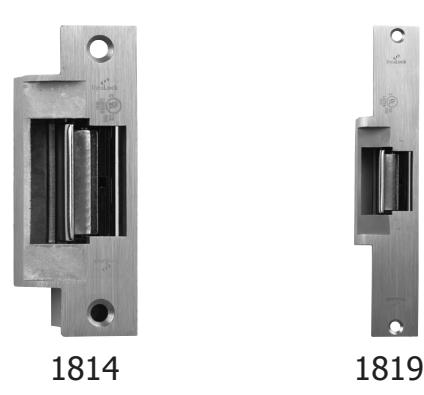

DynaLock 1800 Series Fire-Labeled Heavy-Duty Electric Strikes accomodate cylindrical, centerline mortise, and narrow-line aluminum locksets, along with mortise exit devices, with up to a 3/4" latch projection (non-Pullman type). All models are non-handed, feature horizontal adjustability (up to 1/4"), internal solenoid and a heavy duty, cast stainless steel (US32D) housing. Additionally a concealed pry-guard and saddle-mount housing design enhance strength, durability and tamper resistance. Fail-secure lock mode is standard and 12V and 24V models accept AC/DC input. Choice of ANSI 4-7/8" x 1-1/4" (1814) or 9" x 1-3/8" (1819) faceplates. All models are Fire-Labeled, UL 10C (1-1/2 hr) and UL 1034 Burgulary-resistant.

Typical applications include fire rated doors in most commercial, industrial, institutional, retail, health care facilities and office complexes.

Standard Features

• Fire-Labeled UL10C (1-1/2Hr.)
• UL 1034 Burglary Resisitant
• Non-Handed
• Meets ANSI/BHMA A156,31 Grade 1
• US32D Stainless Steel Cast Housing
• Intergral Tamper-Resistant Pry Guard
• Accommodates 3/4" Latch Projection (Non-Pullman)
• 12V and 24V Models Accept AC/DC Input
• Static Strength: 1500Lbs
• Endurance Rating: 250,000 Cycles
• Great For Heavy-Duty Applications
• Horizontal Adjustment Up To 1/4" (6.4mm)
• Unique Anti-Vibration Design
• 5 Year Limited Warranty

1800 Series Fire-Labeled Heavy Duty Electric Strikes Specifications

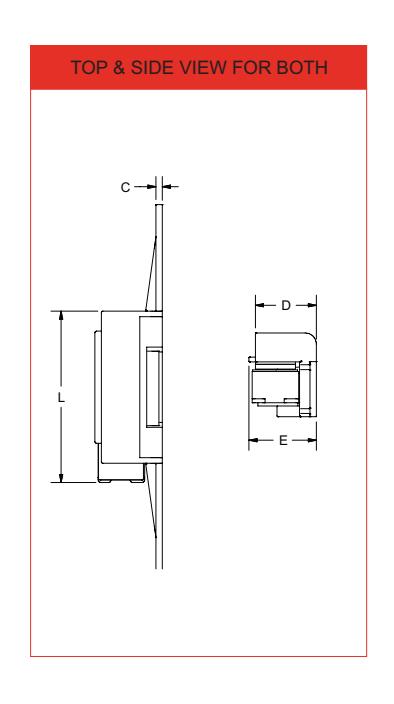

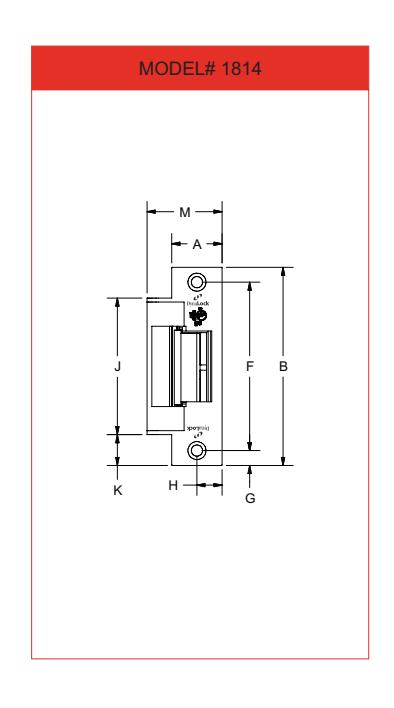

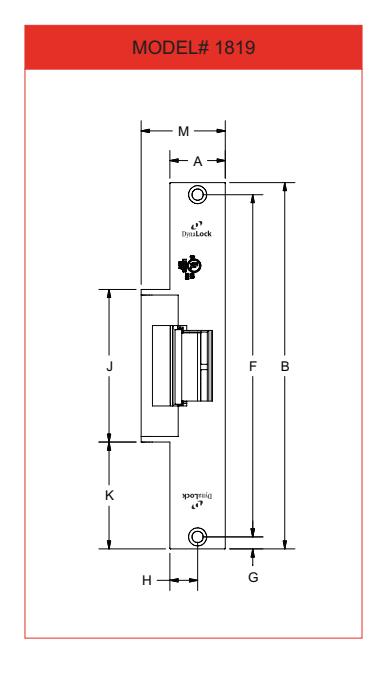

PROFILE MEASUREMENT	1814 INCHES	1819 INCHES	1814 METRIC (mm)	1819 METRIC (mm)
Α	1-1/4	1-3/8	31.3	34.3
В	4-7/8	9	123.3	228.0
С	1/8	3/16 3.2		4
D	1-1/2	1-1/2	38.0	38.0
E	1-5/8	1-5/8	42.0	42.0
F	4-1/8	8-3/8 104.8		213.0
G	3/8		9.3	7.5
Н	5/8	11/16	15.6	17.2
J	J 3-3/8		85.0	95.0
K	3/4	2-5/8	19.2	66.5
L	4	4-3/16	102.0	107.0
M	1-13/16	2-1/16	46.6	52.3

MODEL	MODE	VOLTAGE	CURRENT	DUTY	SOUND	AMPS*	OHMS**
1814-12	FAIL LOCKED	12V 12V	AC DC	INTERMITTENT CONTINUOUS	BUZZ SILENT	0.15 0.20	61 61
1814-24	FAIL LOCKED	24V 24V	AC DC	INTERMITTENT CONTINUOUS	BUZZ SILENT	0.07 0.11	215 215
1819-12	FAIL LOCKED	12V 12V	AC DC	INTERMITTENT CONTINUOUS	BUZZ SILENT	0.15 0.20	61 61
1819-24	FAIL LOCKED	24V 24V	AC DC	INTERMITTENT CONTINUOUS	BUZZ SILENT	0.07 0.11	215 215

*Ratings are based on maximum current draw at +10°C and include initial power-up current draw. **Nominal resistance at +25°C ± % tolerance. NOTE: Intermittent Duty = Energized less than 1 minute. Continuous Duty = Energized 1 minute or more. Duty Ratio 1:5.
