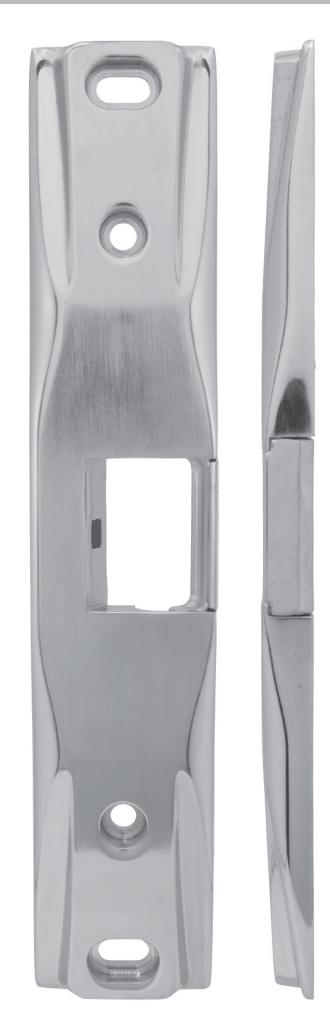

1663 S e r i e s 1/2" Surface Rim Strike

• • Field-Selectable Fail-Safe/Fail-Secure
• • Auto-Sensing 12-24VDC Input
• • Slim Adjustable Design
• • For Use With Pullman Latch Exit Devices

Description

The surface-mounted 1663 Series Rim Strike requires no frame cutting for installation and is designed to work with Pullman latch exit devices. Its ultra-slim 1/2" profile is ideally suited for tight-fitting installations.

Standard features include a 12-24VDC auto-sensing power input, field-selectable fail-safe/fail-secure lock mode and high-grade stainless steel construction. Continuous current draw is a PoE friendly 0.030 Amps.

The 1663 accomodates Pullman latch projections of 1/2"-3/4" . Two 1/8" spacers are included to accomodate 5/8" & 3/4" latch installations. A conventional keeper design (only one moving part) promotes even load distribution and horizontal adjustability up to 1/4" ensures proper latch positioning to compensate for minor door misalignment.

Standard Features

• Surface Mount Design No Frame Cutting
• UL 1034 Burglary Resistant
• 1,500 lbs. Static Strength / 70 ft-lbs. Dynamic
• Field-Selectable Fail-Safe/Fail Secure lock Mode
• Accomodates 1/2" 3/4" Latch Projections
• Includes Two 1/8" Spacers For 5/8" & 3/4" Installs
• Compatible With Most Pullman Latch Exit Devices
• Up To 1/4" Horizontal Adjustment
• Auto-Sensing 12-24VDC Power Input
• Low Current Draw: 0.030 Amps
• Plug-in Wire Connectors
• Non-handed
• Heavy-Duty Stainless Steel Construction
• Hex Socket Cap Mounting Screws
• 1-3/4" x 9" x 1/2" (45mm x 230mm x 13mm)
• 5 Year Limited Warranty

E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s

1663 Series 1/2" Surface Rim Strike

Dimensions: 1-3/4" x 9" x 1/2"

Key Features

Conventional Keeper (Only One Moving Part)

Lockdown Mounting Holes

Frame Type

Hollow Metal

Aluminum

Woo

Door Lock Type

Pullman Latch Rim Exit Device

Certifications & Testing

Listed to UL 1034 Burglary Resistant

Electrical Specifications

MODEL	MODE	VOLTAGE*	DUTY	SOUND	AMPS**
1663	Fail Secure or Fail Safe	12 to 24VDC	Continuous	Silent	0.030

^* Overheated or burnt electronics caused by incorrect input voltage will void warranty. Maximum voltage must not exceed 28V.

DYNALOCK CORPORATION

705 EMMETT STREET / PO BOX 2728 BRISTOL, CT 06011-2728

PHONE: 877-DYNALOCK / FAX: 860-585-0338 E-MAIL: INFO@DYNALOCK.COM WEBSITE: WWW.DYNALOCK.COM

^** Steady state current. 0.17AMP peak.
