1300 Series

Mortise Electric Deadbolt Lock

• • Dual-Voltage 12 or 24 VAC/VDC
• • Complete array of options
• • Compact Design
• • Lifetime Warranty

Description

The 1300 mortise electric deadbolt is designed for concealed mounting in areas where conventional locks do not fit. A mounting depth of only 1-5 /8" and the ability to install in door or frame regardless of position, make the 1300 the obvious choice for difficult installations. The lock is silent, rated continuous duty, and fail-safe. Not recommended on wood door installations or to be used with panic devices.

Models

1300 ELECTRIC DEADBOLT

Standard Features

• Dual Voltage: Power input is installer-configurable for 12 or 24 VAC/VDC input.
• Fail Safe: Bolt extends only when power is applied and lock is energized. Interruption of power causes the bolt to automatically spring retract.
• Narrow 15/8" Backset: Compact design allows for installation where most deadbolt locks cannot.

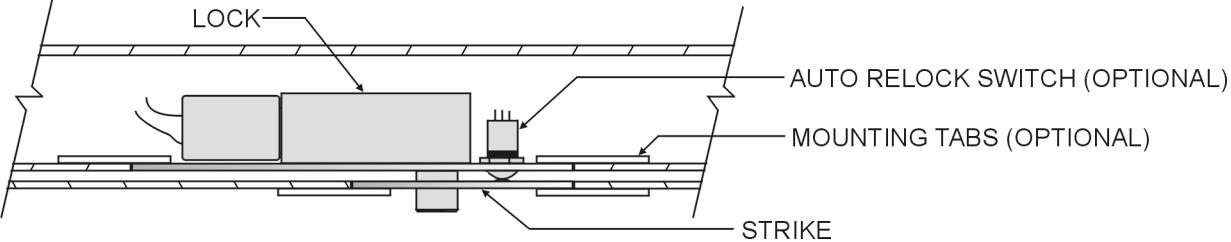

• Versatile Mounting: Mounts in header or lock jamb plus top, vertical, or bottom door stile when power is transferred to the door.
• Status Monitoring: Optional built-in door and/or bolt position status reporting with a choice of concealed or visible sensors.
• Silent: No buzzing when energized.
• Continuous Duty: Heavy duty low voltage solenoid is designed to withstand continuous duty operation. Built-in rectifier allows AC or DC voltage input.
• Circuit Board: Built-in to simplify wiring and option selection.

E l e c t r o m a g n e t i c L o c k s C o n t r o l s P o w e r S u p p l i e s

1300 Series Electric Deadbolt Lock

Options

ARSB AUTO-RELOCK SWITCH - Ball Type. Switch that insures the deadbolt will only project when the door is in the closed position.

ARSM AUTO-RELOCK SWITCH - Concealed. Switch with similar function as ARSB. Not recommended for steel doors.

BPS BOLT POSITION SWITCH - SPDT switch signals a bolt extended or bolt retracted condition. Popular uses include door interlocks and synchronizing bolt position with door location when using automatic door equipment.

DPSB DOOR POSITION SWITCH - Ball Type. SPDT switch signals a door closed/door ajar condition to a remote location. Useful for door interlocking.

DPSM DOOR POSITION SWITCH - Concealed. SPDT proximity type switch similar function as DPSB. Not recommended for steel doors.

MB MOUNTING BRACKET - 1 set (4 pieces) of predrilled mounting tabs to facilitate lock mounting when cutting into an existing metal frame.

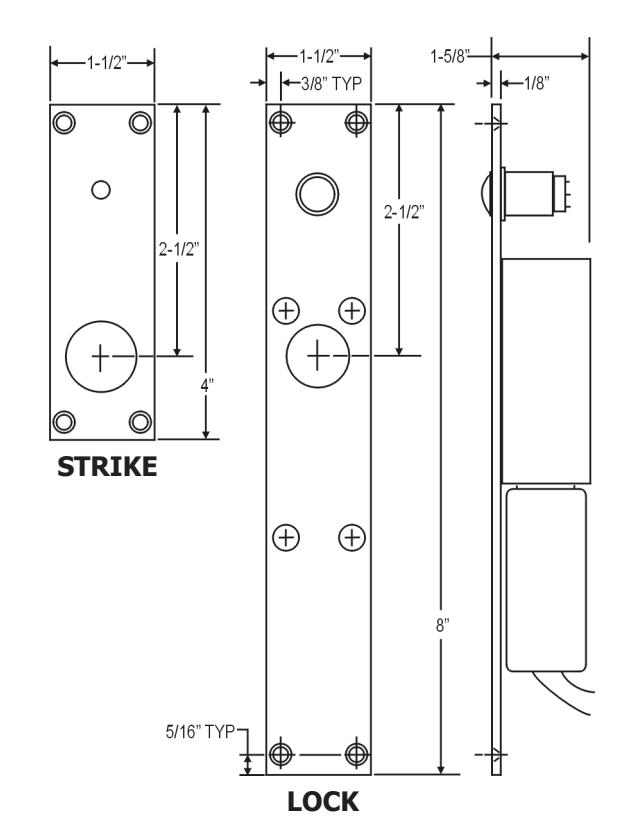

Specifications

MECHANICAL

Lock Front: Size 11 /2" x 8" x 1 /8"

Material Aluminum

Strike: Size 1-1 /2" x 4" x 1 /8"

Material Aluminum

Bolt: Size 3 /4" Diameter x ³ /4" Throw

Material Stainless Steel

Finish: US28 Satin Aluminum with clear anodize

Mounting Hardware: (8) #10 PNHD SST SMS 1" Long

Weight: 2 Lbs.

ELECTRICAL

Solenoid: Voltage 12VDC/VAC or 24VDC/VAC

Current 0.85A @ 12V

0.45A @ 24V

Continuous Duty

Relay Contacts:

BPS SPDT 4A @ 24V DPSB SPDT 4A @ 24V DPSM SPDT 0.25A @ 24V

^* NOT RECOMMENDED FOR INSTALLATION IN WOOD DOORS.
