Drop Leaf Hinge LH_RH Template – T-CT00174

Open the original PDF document

View PDF

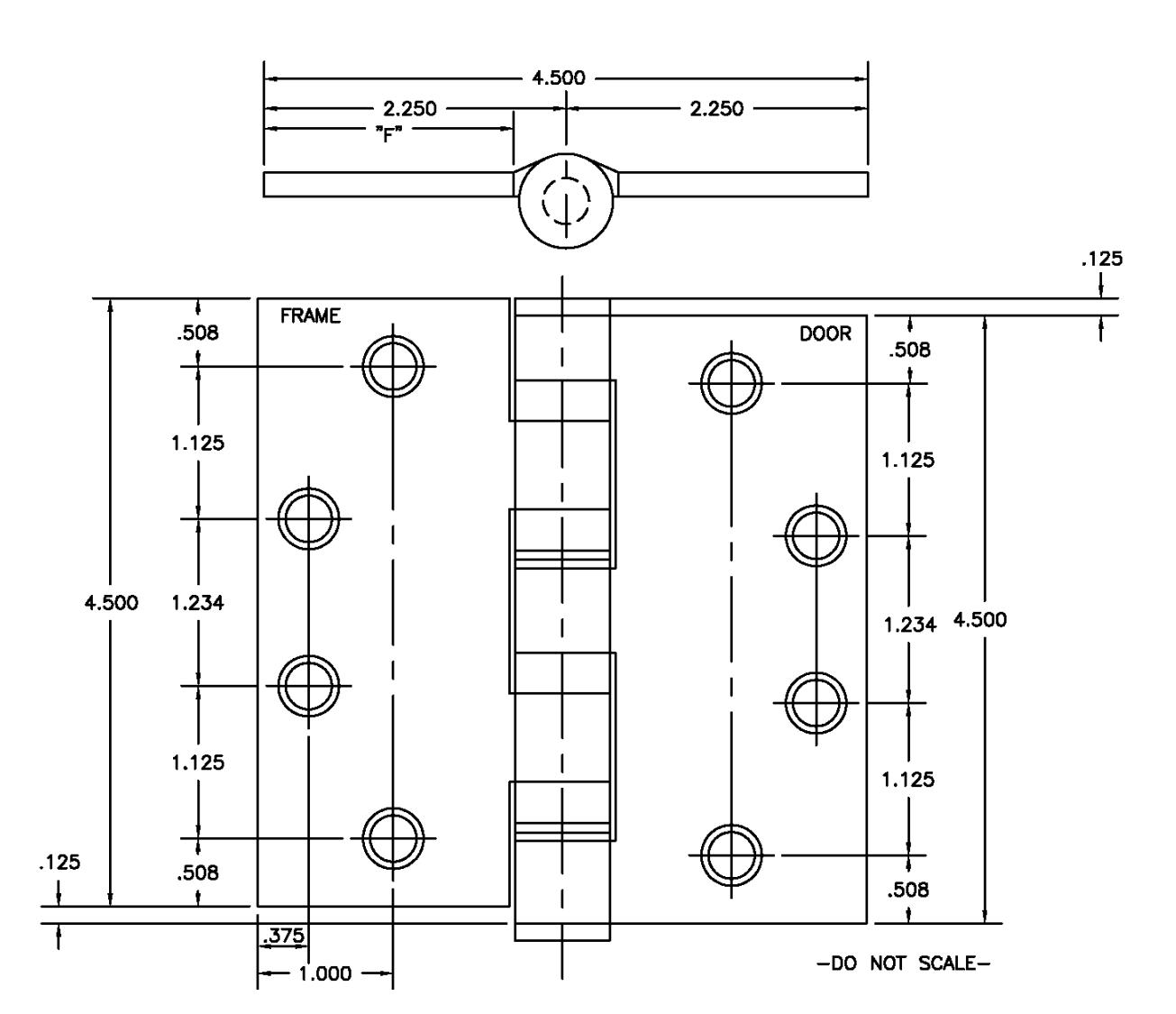

LH DROP LEAF FULL MORTISE TEMPLATE SIZE: 4.5 x 4.5

CATALOG NUMBER METAL
GAUGE 		KNUCKLE
DIAMETER 		(F) DISTANCE FROM
EDGE OF LEAF TO
SWAGE LINE
BB 1279 4.5 x 4.5 DROP LEAF 10 39/64 1 - 7/8
BB 1168 4.5 x 4.5 DROP LEAF 7 45/64 1 - 9/16
BB 1191 4.5 x 4.5 DROP LEAF 10 39/64 1 - 7/8
BB 1199 4.5 x 4.5 DROP LEAF 7 45/64 1 - 9/16

  • WOOD SCREW SIZE
    • No. 12 x 1—1/4" FPHW
  • MACHINE SCREW SIZE

12-24 x 1/2" FPHM

Hospital type (HT) and round corner (RC) template hinges conform to the above screw size and location.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

139 Victor Street St. Louis, MO 63104

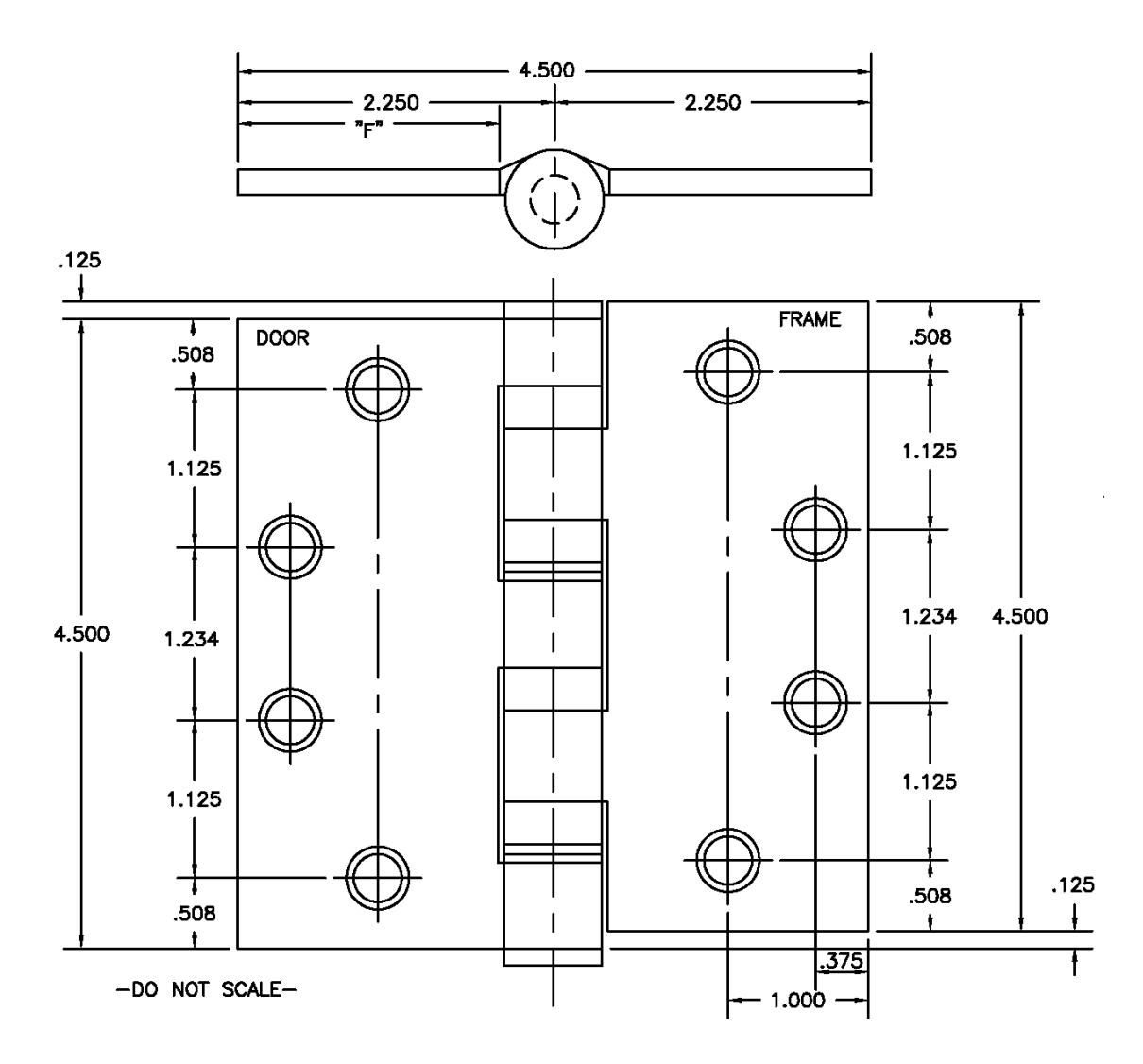

RH DROP LEAF FULL MORTISE TEMPLATE

SIZE: 4.5 x 4.5

CATALOG NUMBER METAL
GAUGE 		KNUCKLE
DIAMETER 		(F) DISTANCE FROM
EDGE OF LEAF TO
SWAGE LINE
BB 1279 4.5 x 4.5 DROP LEAF 10 39/64 1 - 7/8
BB 1168 4.5 x 4.5 DROP LEAF 7 45/64 1 - 9/16
BB 1191 4.5 x 4.5 DROP LEAF 10 39/64 1 - 7/8
BB 1199 4.5 x 4.5 DROP LEAF 7 45/64 1 - 9/16

  • WOOD SCREW SIZE
    • No. 12 x 1—1/4" FPHW
  • MACHINE SCREW SIZE

12-24 x 1/2" FPHM

Hospital type (HT) and round corner (RC) template hinges conform to the above screw size and location.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

139 Victor Street St. Louis, MO 63104
