Double Lip Strike for Center Hung DR Template – T364-Rev02
Open the original PDF document

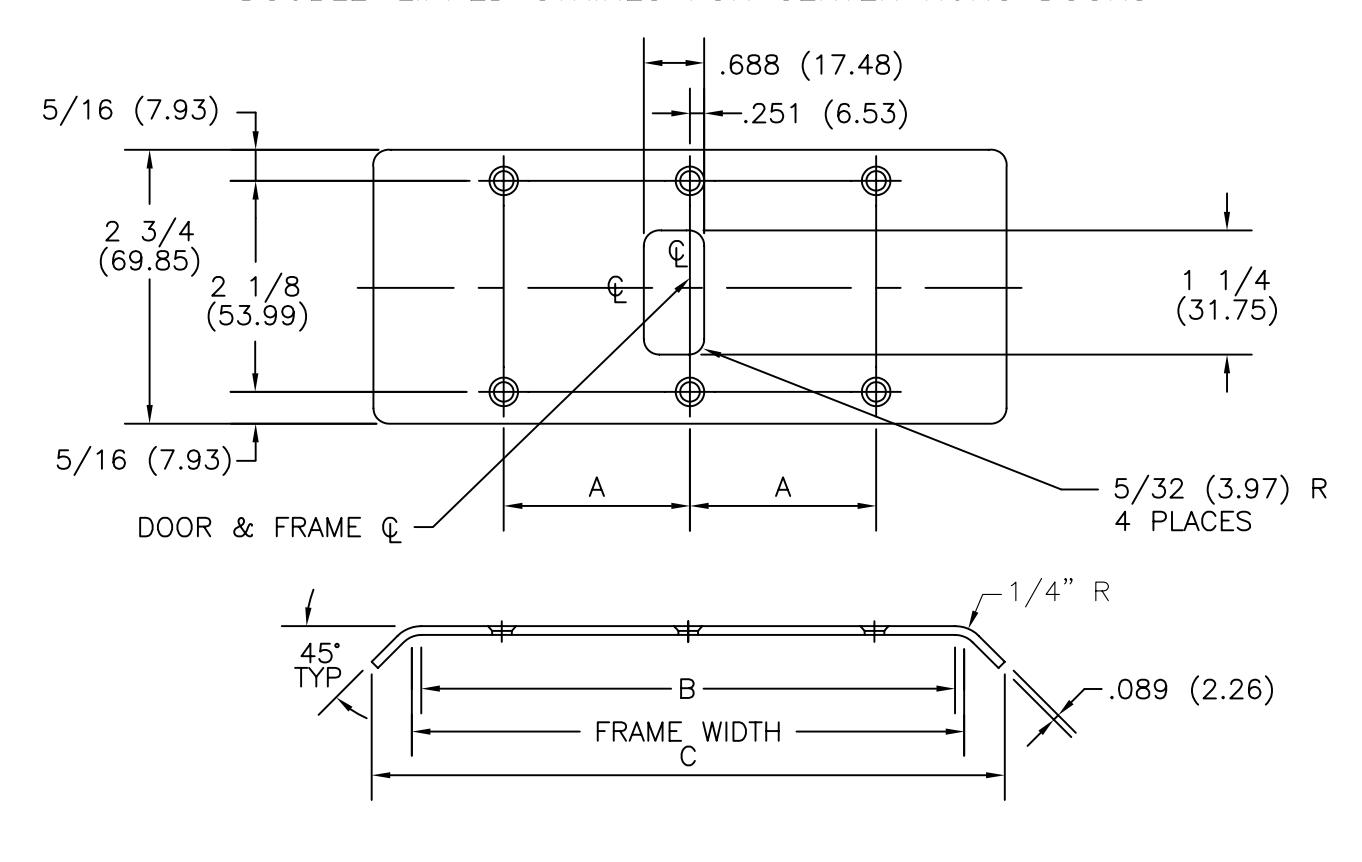

View PDFDOUBLE-LIPPED STRIKES FOR CENTER HUNG DOORS
-DO NOT SCALE-
|
CATALOG
NUMBER |
FRAME
WIDTH |
(A) | (B) | (C) | MATERIAL |
|---|---|---|---|---|---|
| 451 | 5 3/4 (146.05) | 1 7/8 (47.63) | 5 3/8 (136.53) | 6 3/8 (161.93) | BRASS |
| 452 | 6 3/4 (171.45) | 2 3/8 (60.33) | 6 3/8 (161.93) | 7 3/8 (187.33) | BRASS |
ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS. Machine screw size- " undercut F.H.
NOTE: For use with doors centered on 5 3/4 (146.05) or 6 3/4 (171.45) frames.

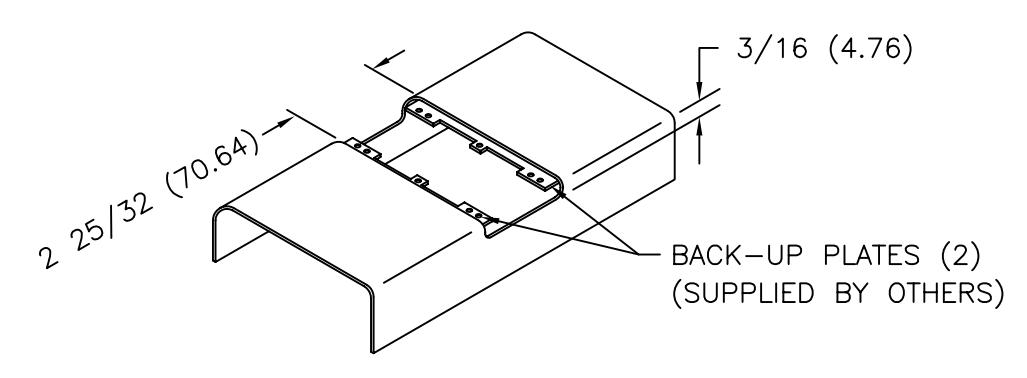

CUTOUT IN METAL JAMB FOR DOUBLE-LIPPED STRIKE
NOTE: Horizontal centerline of plate to coincide with horizontal centerline of cutout.
| HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. | DOUBLE—LIPPED STRIKES FOR CENTER HUNG DOORS | ||||
|---|---|---|---|---|---|
| HAGER COMPANIES | NO. | REVISION | BY | DATE | PART NO. |
|
St. Louis, MO 63104
1-800-325-9995 |
2 | UPDATED DWG | DH | 01-12-06 | 1364 |
