View PDFWood Door Praparation for SALTO DBolt Touch IC /SALTO DBolt Auto IC
Préparation des Portes en bois pour SALTO DBolt Touch IC / SALTO DBolt Auto IC Mec. Puerta de madera Escudo SALTO DBolt Touch IC /SALTO DBolt Auto IC
Wood Door Praparation for SALTO DBolt Touch IC /SALTO DBolt Auto IC
Préparation des Portes en bois pour SALTO DBolt Touch IC / SALTO DBolt Auto IC Mec. Puerta de madera Escudo SALTO DBolt Touch IC /SALTO DBolt Auto IC
| i | |
|---|---|
| MODEL | 4" |
| DOOR | WOOD |
|
DEADBOLT
FRONTPLATE |
SQUARE CORNER
1" (25,4mm) |
|
CARTRIDGE
FRONTPLATE |
SQUARE CORNER
1" (25,4mm) |
| BACKSET | 2-3/8" (60mm) |

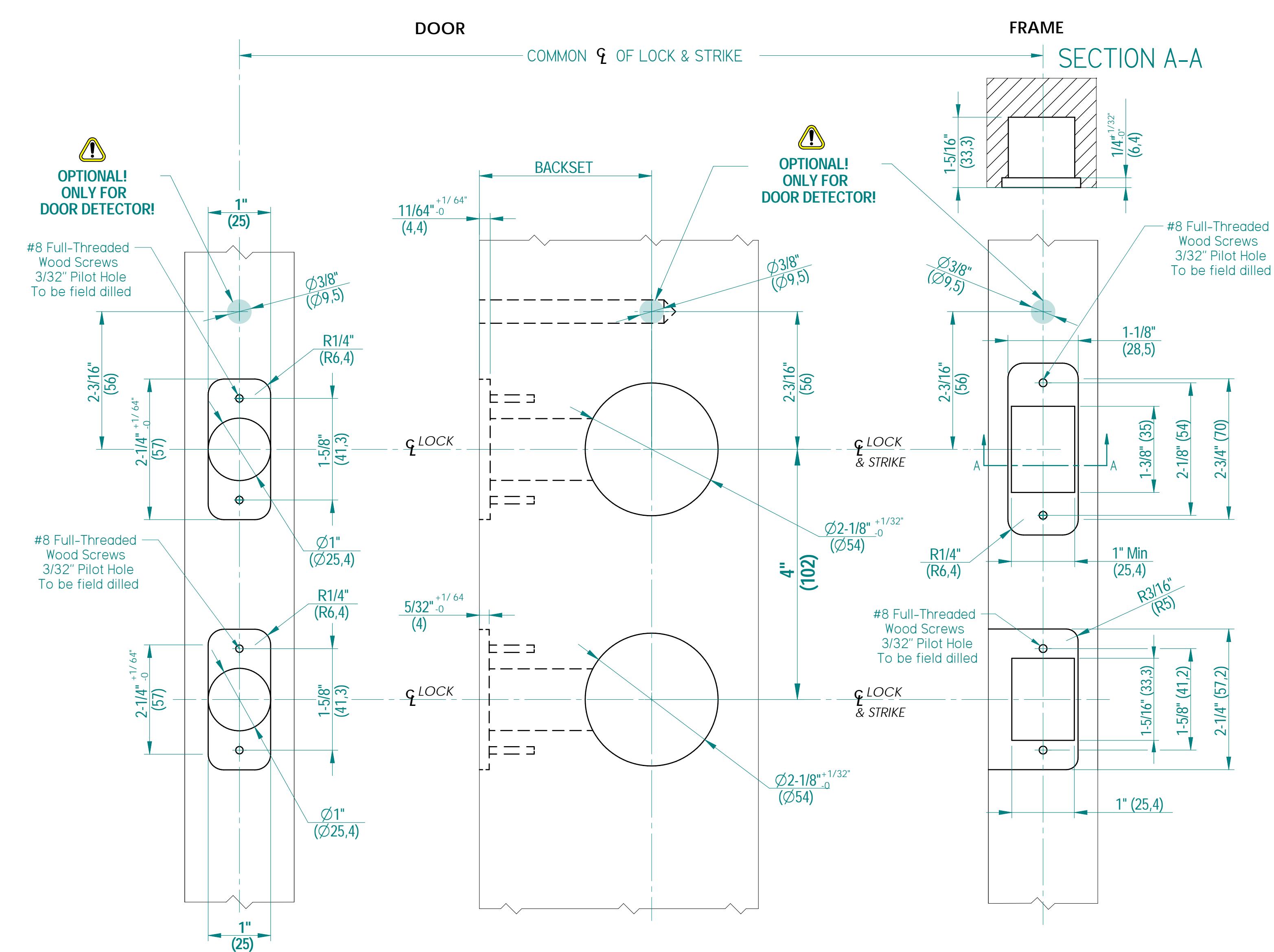

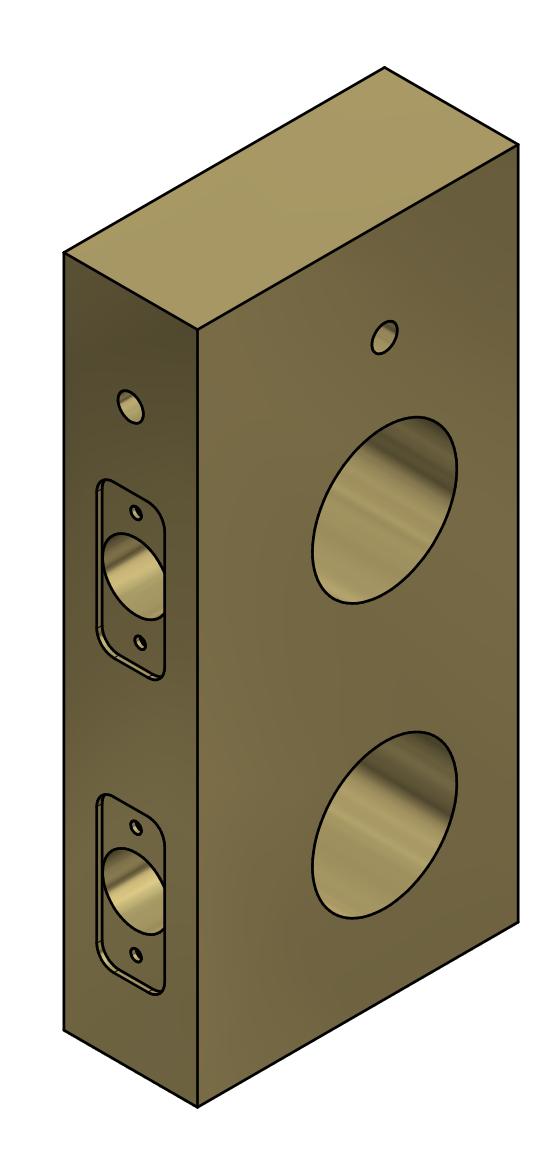

Wood Door Praparation for SALTO DBolt Touch IC /SALTO DBolt Auto IC
Préparation des Portes en bois pour SALTO DBolt Touch IC / SALTO DBolt Auto IC Mec. Puerta de madera Escudo SALTO DBolt Touch IC /SALTO DBolt Auto IC
| i | _ |
|---|---|
| MODEL | 4" |
| DOOR | WOOD |
|
DEADBOLT
FRONTPLATE |
R1/4" ROUND CORNER
1" (25,4mm) |
|
CARTRIDGE
FRONTPLATE |
R1/4" ROUND CORNER
1" (25,4mm) |
| BACKSET | 2-3/8" (60mm) |
