DOOR STOPS

1801 APPLIED STOP

• For use with single or double doors without stops
• Available in all BHMA finishes
• Supplied with machine & woodscrews

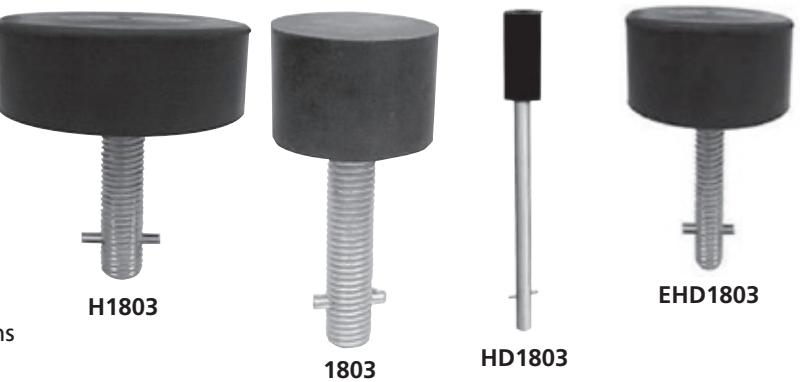

1803 FLOOR STOPS

1803 2"diameter x 1-3/8"high bumper rod

5/8"diameter x 3"long

H1803 4"diameter x 1-3/8"high bumper rod

5/8"diameter x 3"long

HD1803 Bumper diameter x height as required rod

1-1/4"diameter x 18"long

EHD1803 3-1/4"diameter x 2"high bum For use in

high abuse areas

• Ideal for correctional facilities, schools and institutions

• No exposed fasteners
• Installed with quick set cement

1803HO FLOOR STOP & HOLDER

• Ideal for high abuse installations like schools, heavy doors and correctional facilities.
• Installed with quick set cement
• Door is hooked to portion with a stainless steel hook

1804 PIPE STOP & HOLDER

• Heavy duty construction for use in schools, institutions and correctional facilities
• All stainless steel components with rubber bumper
• The rubber bumper on the door hits the portion when used as a stop
• Door is hooked to portion with stainless steel hook when used as holder
• Floor portion secured in cement
• Door portion installed with (4) #8 x 1-1/4"screws (supplied standard), sex bolts optional
• Floor portion is solid 1"diameter x 1'long stainless steel rod
