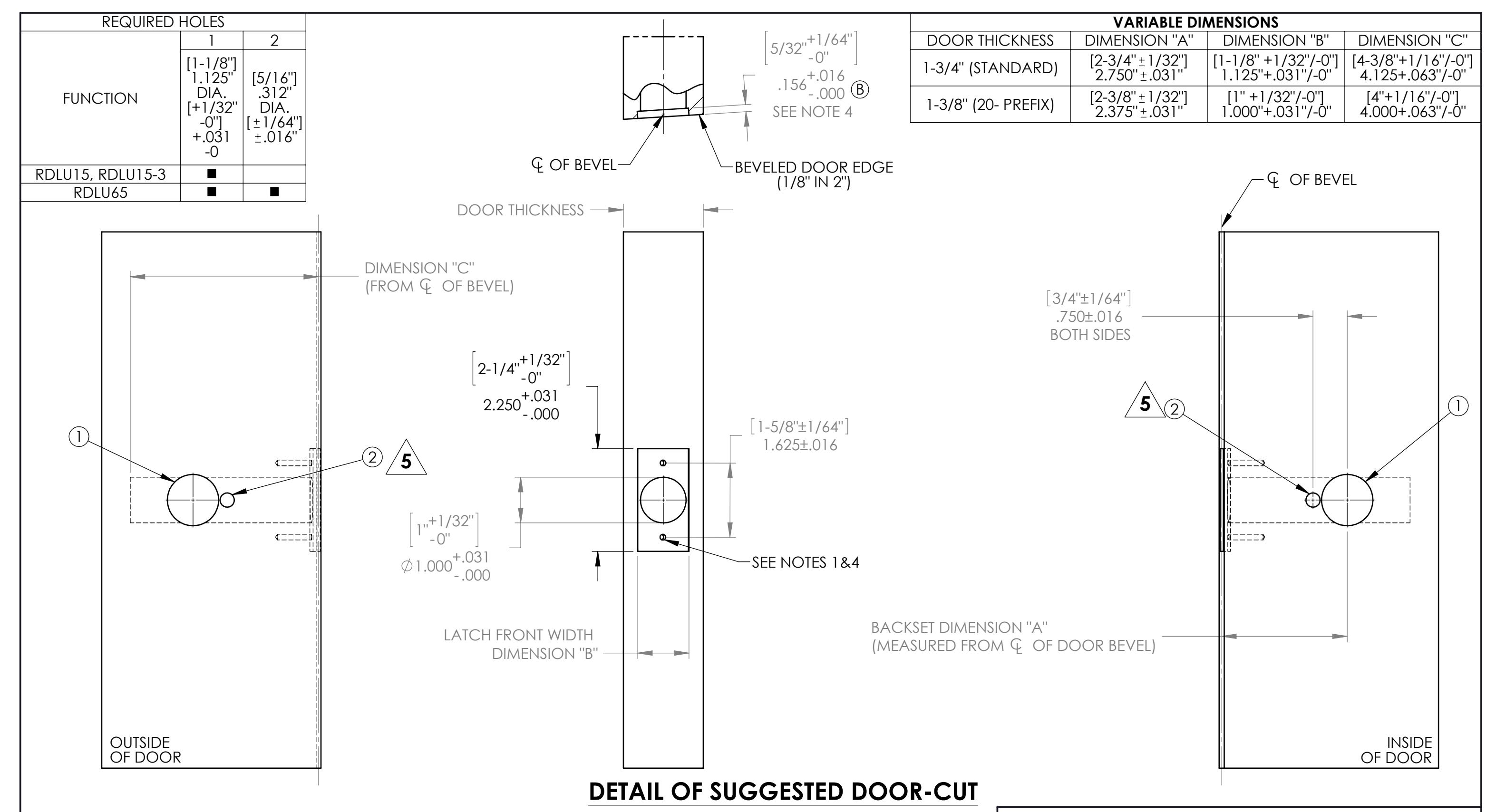

Door Manufacturer’s Template for RDL Tubular Lock

NOTES:

• 2. 3. 4.
• DRILL 1/8" DIAMETER BY 3/4" DEEP (WOOD) OR DRILL AND TAP FOR #8-32 UNC BY 3/4" DEEP (METAL). TWO HOLES REQUIRED. FOR PREPARATION DIMENSIONS NOT SHOWN, REFERENCE ANSI A115.2 STANDARD. FOR STRIKE PREPARATION TEMPLATE: 3911 (STANDARD), 4421 (14 PREFIX), 4049 (28 PREFIX). LATCH FRONT CUT IS PARALLEL WITH DOOR BEVEL AS SHOWN. DRILLED HOLES ARE PERPENDICULAR TO DOOR BEVEL. DENOTES HOLE REQUIRED FOR FUNCTION LISTED. (CHECK TABLE BEFORE CUTTING HOLE.) FOR RDLU93 & RDLU94 FUNCTIONS SEE TEMPLATE 4666.

ASSA ABLOY	Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511
ASSAABLUI	RELEASE DATE

TEMPLATE FOR RDL BORED LOCK ONLY

12-AUG-2013

TEMPLATE NO. 4646 B
