Door Closer Hole Spacing Guide

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	PDQ 3100 Door Closer Click Here To View Product	Cal Royal 300 Dorma 3800 Dor-O-Matic SC60 Hager 5300 LESS COVER Stanley Commercial QDC300 LCN 1260 Norton 1600 Sargent 1130 Stanley D-1650 Yale 50

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
31	00	BC	PA	689	-
	00 – Adjustable Size 3-6 01 – Adjustable Size BF - 4	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm HO – Hold Open, Tri-Pack	689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DP – Drop Plate NFB – Narrow Frame Bracket
			PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring		SDST – Self Drilling Self Tapping Screws
			Cushion Stop SCSHO – Spring Cushion Stop Hold open
			TA – Track Arm TAHO – Track Arm Hold Open

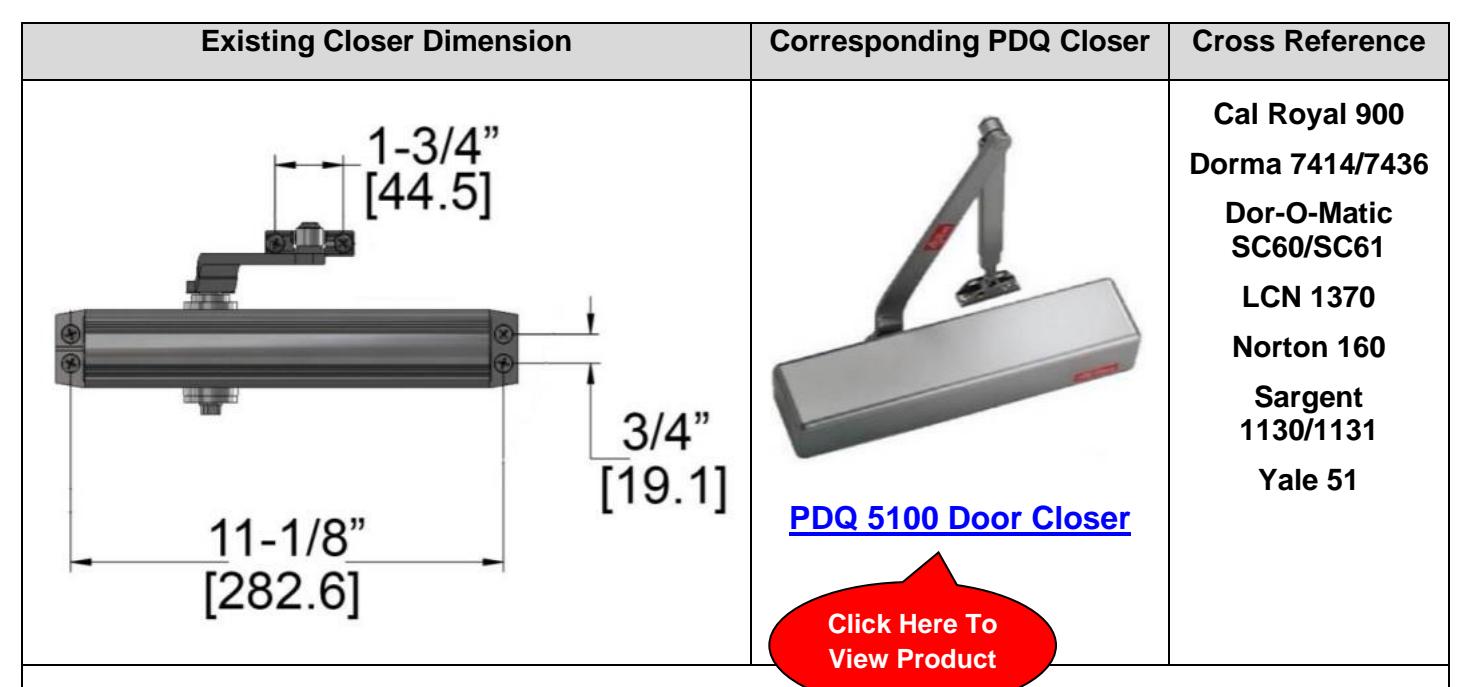

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
51	01	BC	PA	689	-
	01 – Non Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDA HO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open DA – Delayed Action	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

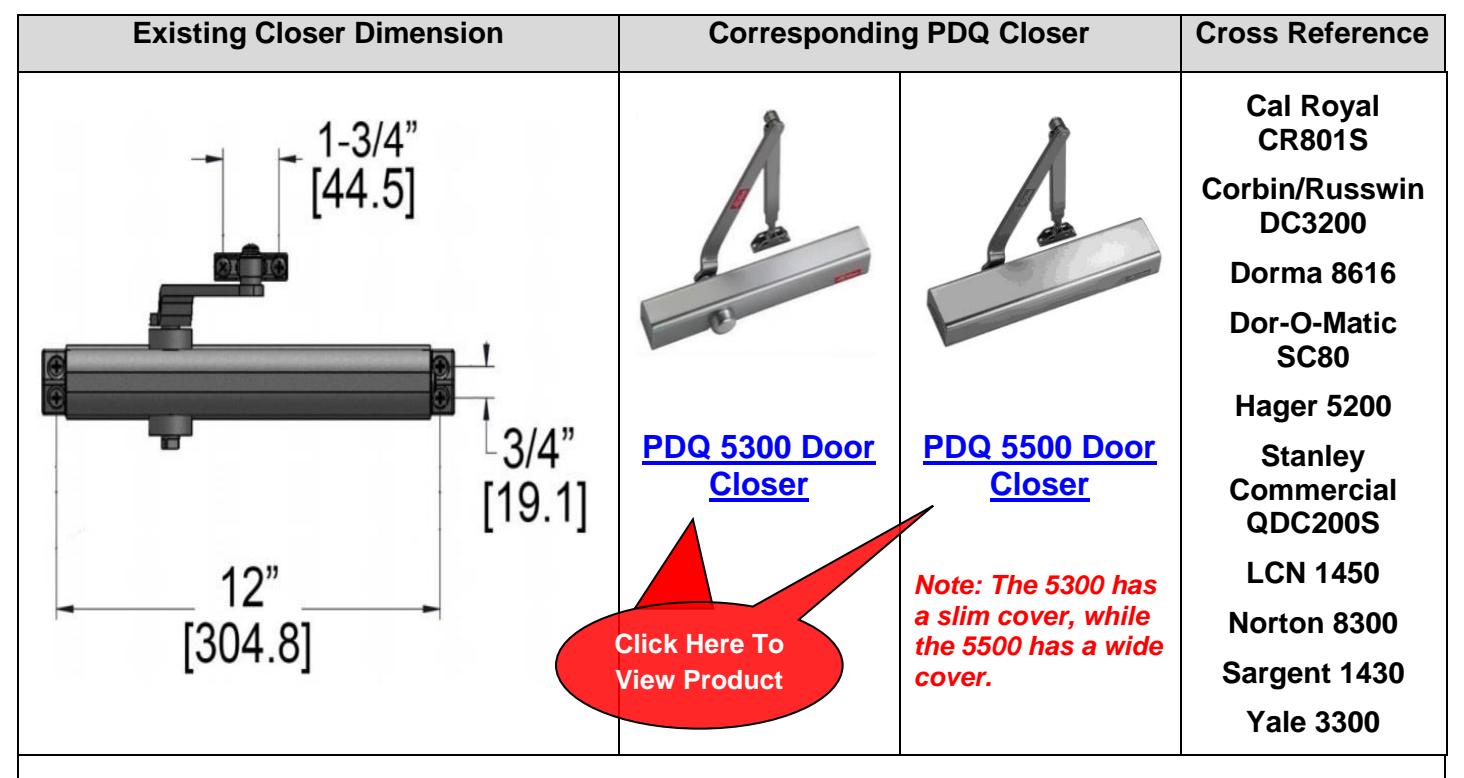

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
53	01	BC	PA	689	-
53 – Slim Cover 55 – Full Cover	01 – Non Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open DA – Delayed Action	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

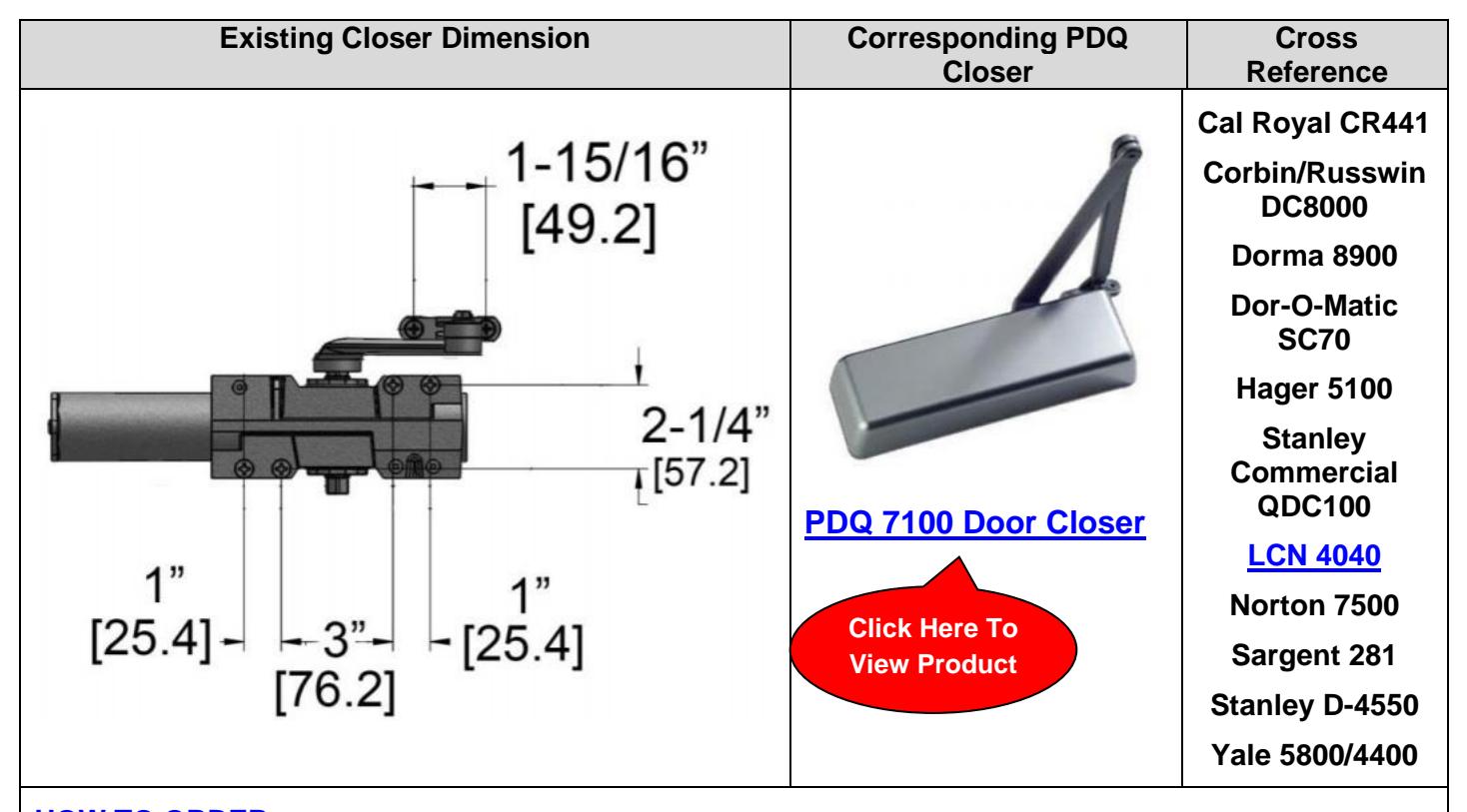

SERIES	SIZE	BACKCHECK	ARM TYPES	FINISH	ACCESSORIES
71	01	BC	PA	689	-
	01 – Non Delayed Action 41 – Delayed Action (In Addition To Backcheck)	BC – Adjustable Hydraulic Backcheck	DS – Door Saver Arm DSHO – Door Saver Hold Open Arm EDA – Extra Duty Arm EDAHO – Extra Duty Arm Hold Open HO – Hold Open, Tri-Pack PA – Tri-Pack (standard) RA – Regular Arm SCS – Spring Cushion Stop SCSHO – Spring Cushion Stop Hold open TA – Track Arm TAHO – Track Arm Hold Open	605 – Polished Brass 625 – Satin Chrome 689 – Aluminum 695 – Duro Bronze 696 – Gold	BP – Back Plate BS – Blade Stop Spacer DPPA – Parallel Arm Drop Plate DPTJ – Top Jamb Drop Plate FCM – Full Metal Cover specify hand NFB – Narrow Frame Bracket SDST – Self Drilling Self Tapping Screws

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	LCN 4050 Falcon SC71A Norton 7500 Yale 4400 Dexter DCH1000

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	LCN 1461

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	LCN 4011, LCN 4021, LCN 4111

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Dorma 8916

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Dorma 7414

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Cal-Royal N900PBF

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Corbin Russwin DC3210
		Corbin Russwin DC6210

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Sargent 1431

Existing Closer Dimension	Corresponding PDQ Closer	Cross Reference
	N/A	Sargent 281
