INSTALLATION INSTRUCTIONS

• Heavy-Duty Non-Hold Open Parallel Arm w/Removable Stop
• Heavy-Duty Hold Open Parallel Arm w/ Thumbturn and Removable Stop

Power sizes 1 thru 6

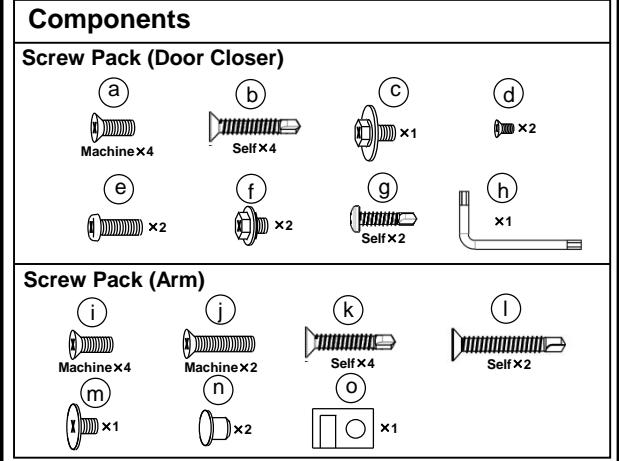

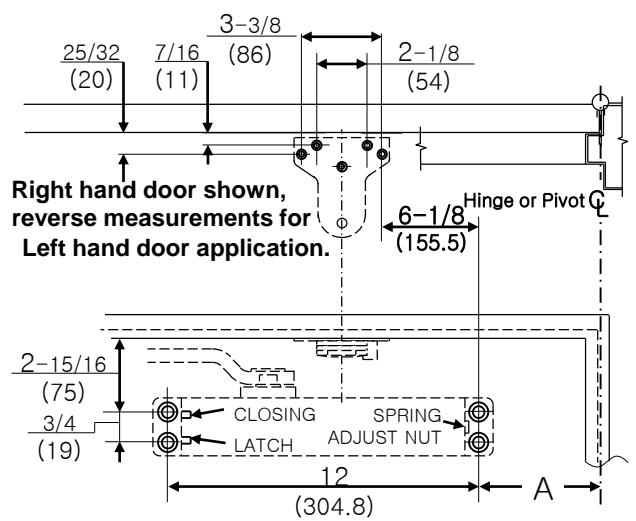

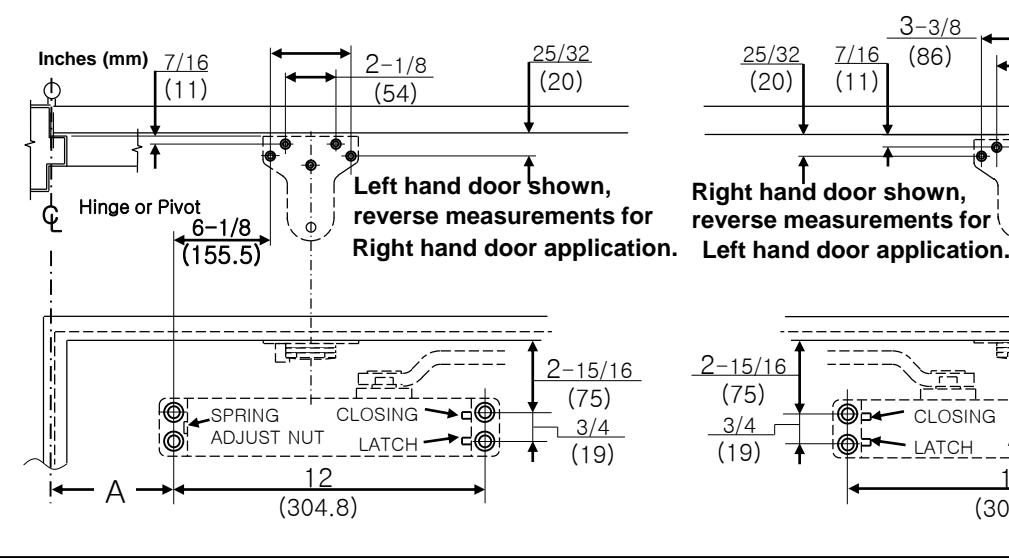

Using the measurements from diagram, mark screw hole center locations. Mark four (4) holes on door to mount door closer and five (5) holes on frame to mount parallel bracket. Drill 7/32" or drill #7 and tap for 1/4-20.

Metal	Wood
#7
1/4-20	3/16 "

Incorrect installation or adjustment could cause damage or injury. Read and follow instructions carefully.

OPENING	DIMENSION A
85°~ 90°	3 (76)
90°~ 95°	2-13/32 (61)
95°~ 100°	1-13/16 (46)
100°~ 105°	1-1/4 (31)

BRACKET ADJUSTMENT

All brackets are shipped assembled for left hand door. The following adjustments must be made before installing bracket to top frame.

FOR LEFT HAND DOOR!

Using the phillips screwdriver, turn the REMOVABLE ARM STOP clockwise to seat as tightly as possible. Push filler plug in firmly.

FOR RIGHT HAND DOOR: Remove filler plug from bracket. Using the phillips screwdriver turn the REMOVABLE ARM STOP counter-clockwise to remove it. Insert REMOVABLE ARM STOP into hole mark "R" and using the phillips screwdriver, turn clockwise to seat as tightly as possible. Push filler plug into the other hole firmly.

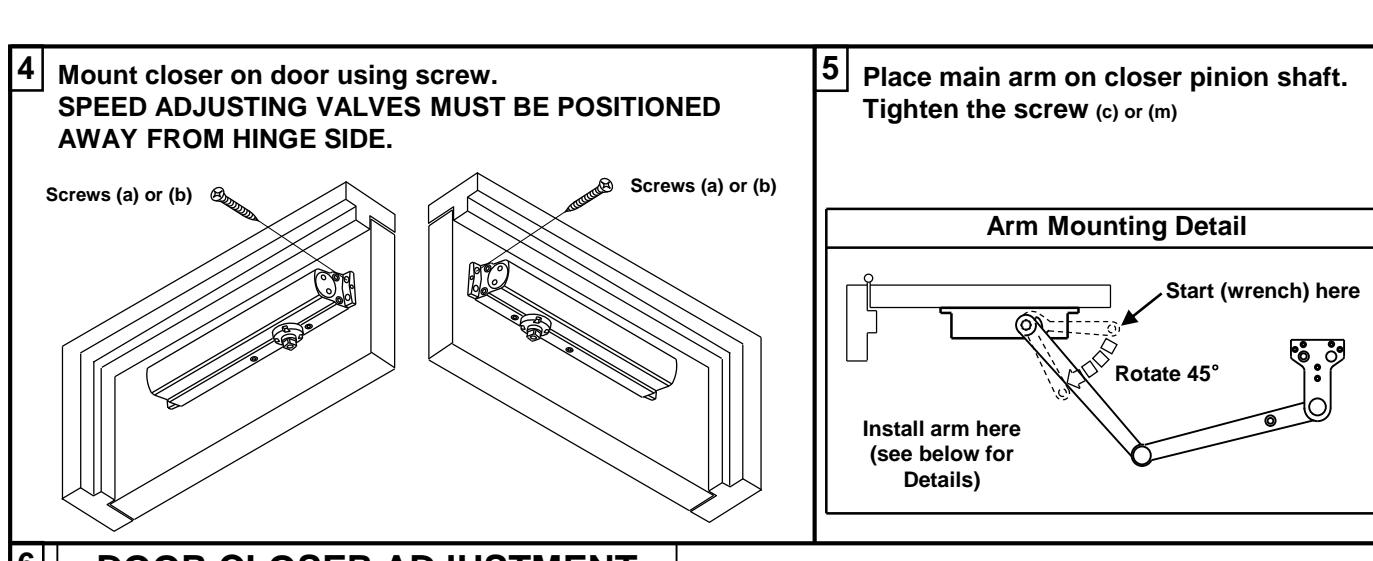

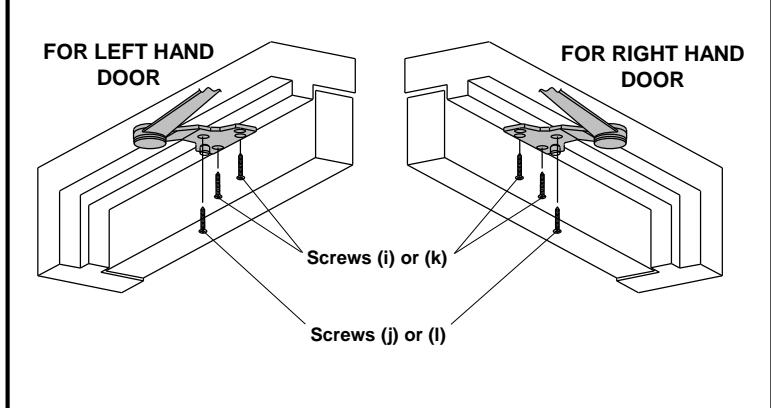

3 Installing bracket to top frame.

<del>\pproved</del>

197~26/1 BS

(85~120 Kg)

(120~150 Kg)

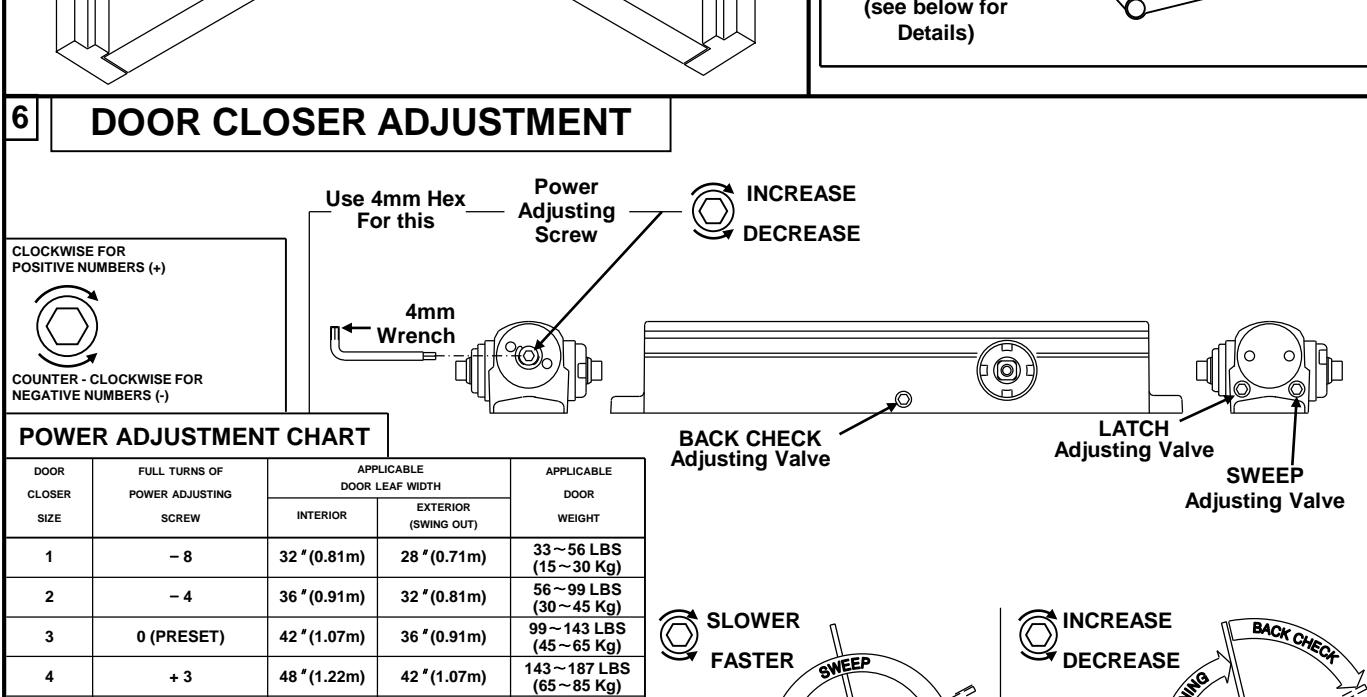

CAUTION!! Do not turn speed adjusting valve more than two(2) full turns counter-clockwise. Do not back valves out of closer or a leak will result.

54 " (1.37m)

58 " (1.47m)

48 "(1.22m)

54 "(1.37m)

Install full cover, using small screws.

+ 8

+ 11

5

6

7

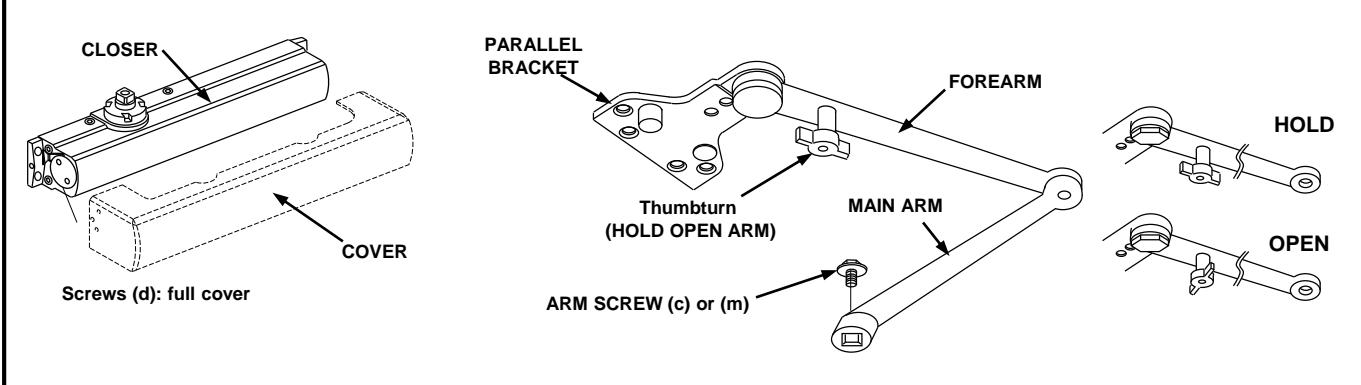

HOW TO ENGAGE THUMBTURN

Turn one quarter turn to engage or disengage.

CLOSING CYCLE

OPENING CYCLE
