ARCHITECTURAL HARDWARE & ACCESSORIES

WRAP-AROUND PLATES

DON-JO MFG., INC. P.O. Box 929 Sterling, MA 01564

PHONE: 978.422.3377 FAX: 978.422.3467 WATS: 800.628.8389 WATS FAX: 800.278.8202

WEB: www.don-jo.com E-mail: info@don-jo.com Section F, Version 1

INDEX —

Item#	Page#	ltem#	Page#	| Item#	Page#	Item#	Page#
I-CW	If	19-CW	7f	55A-CW	9f	261-CW	2f
2-CW	If	20-CW	4f	55A-2-CW	9f	264-CW	2f
3-CW	If	20-2-CW	4f	61-CW	lf	481-CW	2f
4-CW	If	20B-CW	4f	70-CW	3f	484-CW	2f
4-2-CW	4f	20C-CW	4f	71-CW	lf	486-CW	3f
4U-2-CW	8f	20-FE	9f	75-CW	4f	504-CW	8f
5-CW		21-CW		|	3f		10f
5K-CW	4f	22-CW	7f	81-CW	If	504AD-CW	7f
6-CW	If	23-CW	7f	81-2-CW	4f	504CO-CW	7f
7-CW	If	24-CW	7f	90-CW	3f	514-CW	8f
8-CW	If	25-CW	6f	93-KV-CW	6f	518-CW	6f
9-CW	5f	26AD-CW	7f	95-CW	4f	942-CW	3f
9K-CW	4f	26CO-CW	7f	151-CW	2f	943-CW	3f
10-FE	9f	27-CW	5f	154-CW	2f	946-CW	3f
12-CW	2f	28-CW	5f	200-CW	9f	4000-2-CW	5f
12-2-CW	2f	30-CW	3f	200C-CW	9f	4000-4-CW	5f
14-CW	7f	33-CW	9f	212-CW	9f	4500-CW	8f
14-2-CW	7f	33A-CW	9f	212C-CW	9f	4550-CW	8f
15-CW	5f	33A-2-CW	9f	214-CW	9f	5000-CW	5f
16-CW	6f	40-CW	3f	214C-CW	9f	5100-CW	6f
17-CW	6f	51-CW	lf	256-CW	2f	E2000-CW	5f
18-CW	6f	55-CW	9f	l 258-CW	2f

FASTENERS —

Product	Fastening Type
All Wrap-Arounds	Trim Screws: 4 ea. #8 $\backslash times$ 3/4" Phillips Truss Head Latch Screws: 2 ea. #8-32 $\backslash times$ 1/4" Flat Head (per latch)
CW-504 & CW-514	Trim Screws: 2 ea. $1/4-20\; \backslash times\; 3/4$ " MS Truss Head and $1/4-20\; \backslash times\; 1$ $1/2$ " Sex Nut Latch Screws: #12-24 x $1/2$ " FHMS

CLASSIC WRAP-AROUNDS

For CYLINDRICAL DOOR LOCKS with 2 1/8" hole

1-CW 2-CW 3-CW 4-CW

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

Display Package Size - 5 1/4" x 11"

NUMBER	BACKSET	DOOR	DIMENSIONS
1-CW	2 3/8"	1 3/8"	4" x 9"
2-CW	2 3/8"	1 3/4"	4" x 9"
3-CW	2 3/4"	1 3/8"	4 1/4" x 9"
4-CW	2 3/4"	1 3/4"	4 1/4" x 9"

SHELF PACK: 1 Box Size - 4 1/2" x 9 3/4"

GAUGE: 22 (.032) CW comes box packaged as standard.

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

For DEADBOLTS with 1 1/2" hole

5-CW 6-CW 7-CW 8-CW

NUMBER	BACKSET	DOOR	DIMENSIONS
5-CW	2 3/8"	1 3/8"	4" x 4 1/2"
6-CW	2 3/8"	1 3/4"	4" x 4 1/2"
7-CW	2 3/4"	1 3/8"	4 1/4" x 4 1/2"
8-CW	2 3/4"	1 3/4"	4 1/4" x 4 1/2"

SHELF PACK: 1 Box Size - 5 1/4" x 4 1/2"

GAUGE: 22 (.032) CW comes box packaged as standard.

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

Display Package Size - 5 1/4" x 6 1/2"

For CYLINDRICAL DOOR LOCKS with 2 1/8" hole

51-CW 61-CW 71-CW 81-CW

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

Display Package Size - 5 1/4" x 6 1/2"

NUMBER	BACKSET	DOOR	DIMENSIONS
51-CW	2 3/8"	1 3/8"	4" x 4 1/2"
61-CW	2 3/8"	1 3/4"	4" x 4 1/2"
71-CW	2 3/4"	1 3/8"	4 1/4" x 4 1/2"
81-CW	2 3/4"	1 3/4"	4 1/4" x 4 1/2"

SHELF PACK: 1 Box Size - 5 1/4" x 4 1/2"

GAUGE: 22 (.032) CW comes box packaged as standard.

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

www.don-jo.com

For DOUBLE LOCK COMBINATION LOCKSETS with 1 1/2" hole on top and 2 1/8" hole on bottom with 4" centers

154-CW 264-CW 484-CW

NUMBER	BACKSET	DOOR	DIMENSIONS
154-CW	2 3/8"	1 3/8"	4" x 9"
264-CW	2 3/8"	1 3/4"	4" x 9"
484-CW	2 3/4"	1 3/4"	4 1/4" x 9"

SHELF PACK: 1 Box Size - 4 1/2" x 9 3/4"

GAUGE: 22 (.032) CW comes box packaged as standard.

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

Display Package Size - 5 1/4" x 11"

For DOUBLE LOCK COMBINATION LOCKSETS with 2 1/8" holes with 5 1/2" centers

256-CW 258-CW

NUMBER	BACKSET	DOOR	DIMENSIONS
256-CW	2 3/8"	1 3/4"	4" x 12"
258-CW	2 3/4"	1 3/4"	4 1/4" x 12"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

For CYLINDER DOOR LOCKS with 2 1/8" hole, 12" height

NUMBER	BACKSET	DOOR	DIMENSIONS
12-CW	2 3/4"	1 3/4"	5 1/8" x 12"
12-2-CW	2 3/4"	1 3/4"	5 1/8" x 12"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), PB (605), S (630)

For DOUBLE LOCK COMBINATION LOCKSETS with 2 1/8" holes with 3 5/8" centers

151-CW 261-CW 481-CW

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

Display Package Size - 5 1/4" x 11"

NUMBER	BACKSET	DOOR	DIMENSIONS
151-CW	2 3/8"	1 3/8"	4" x 9"
261-CW	2 3/8"	1 3/4"	4" x 9"
481-CW	2 3/4"	1 3/4"	4 1/4" x 9"

SHELF PACK: 1 Box Size - 4 1/2" x 9 3/4"

GAUGE: 22 (.032) CW comes box packaged as standard.

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

For DOUBLE LOCK COMBINATION LOCKSETS with 2 1/8" holes with 4" centers

942-CW 943-CW

NUMBER	BACKSET	DOOR	DIMENSIONS
942-CW	2 3/8"	1 3/4"	4" x 9"
943-CW	2 3/4"	1 3/4"	4 1/4" x 9"

SHELF PACK: 1 Box Size - 4 1/2" x 9 3/4"

GAUGE: 22 (.032) CW comes box packaged as standard.

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

Display Package Size - 5 1/4" x 11"

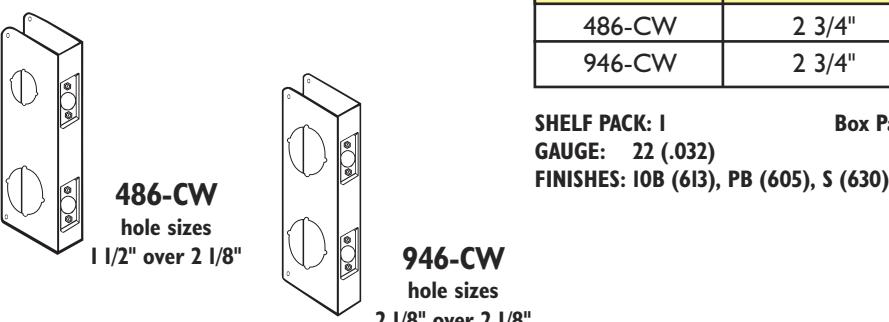

For DOUBLE LOCK COMBINATION LOCKSETS with 6" centers

NUMBER	BACKSET	DOOR	DIMENSIONS
486-CW	2 3/4"	1 3/4"	4 1/2" x 12"
946-CW	2 3/4"	1 3/4"	4 1/2" x 12"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

hole sizes 2 1/8" over 2 1/8"

BLANK WRAP-AROUND with TRIM SCREWS

30-CW 40-CW 70-CW 80-CW 90-CW

Display Packaged also available. When ordering indicate by replacing the letters "CW" with "V" after the item number.

30-CW 1 3/8" 4 1/4" x 9" 40-CW 1 3/4" 4 1/4" x 9" 70-CW 1 3/8" 4 1/4" x 4 1/2" 80-CW 1 3/4" 4 1/4" x 4 1/2" 90-CW 1 3/4" 5" x 12" NUMBER DOOR DIMENSIONS

SHELF PACK: 1 Box Size - 5 1/4" x 4 1/2" and 4 1/2" x 9 3/4" GAUGE: 22 (.032) CW comes box packaged as standard.

90-CW Box Pack Only

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

Display Package Size - 5 1/4" x 11" and 5 1/4" x 6 1/2"

www.don-jo.com

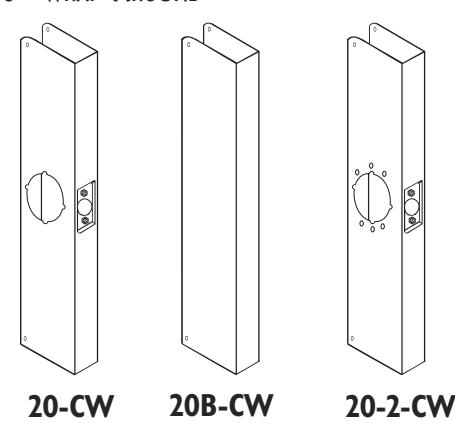

20" WRAP-AROUND

NUMBER	BACKSET	DOOR	DIMENSIONS
20-CW	2 3/4"	1 3/4"	5" x 20"
20B-CW	–	1 3/4"	5" x 20"
20C-CW	2 3/8"	1 3/4"	5" x 20"
20-2-CW	2 3/4"	1 3/4"	5 1/8" x 20"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032) FEATURES: • Non-handed

FINISHES: 10B (613), PB (605), S (630)

For installing the MARKS LEVERS

NUMBER	BACKSET	DOOR	DIMENSIONS
75-CW	2 3/4"	1 3/4"	4 3/4" x 5 1/2"
95-CW	2 3/4"	1 3/4"	4 3/4" x 9"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

For installing the BEST AND SARGENT LEVER LOCKS

9K-CW	2 3/4"	1 3/4"	4 3/4" x 9"
SHELF PACK: 1	Box Pack

5K-CW 2 3/4" 1 3/4" 4 3/4" x 5 1/2"

NUMBER BACKSET DOOR DIMENSIONS

GAUGE: 22 (.032)

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

For use with HEAVY DUTY GRADE 1 & GRADE 2 key-in-levers

NUMBER	BACKSET	DOOR	DIMENSIONS
4-2-CW	2 3/4"	1 3/4"	4 3/4" x 9"
81-2-CW	2 3/4"	1 3/4"	4 3/4" x 4 1/2"

SHELF PACK: 1 Box Pack GAUGE: 22 (.032)

FEATURES: Works with Schlage, Arrow, Yale, Sargent, Corbin Russwin and Falcon T

FINISHES: 10B (613), AB (609), BZ (612), PB (605), ^S (630) 4-2-CW 81-2-CW

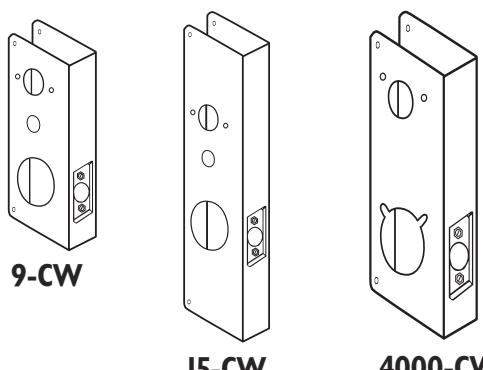

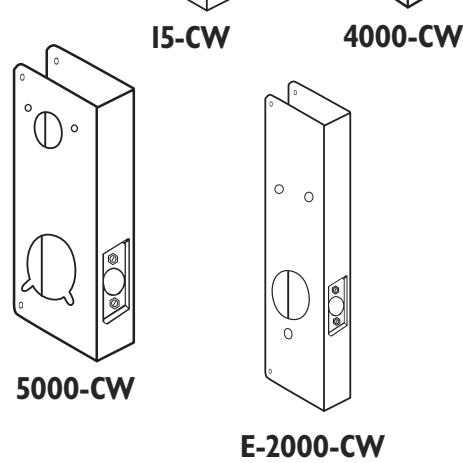

For KABA/SIMPLEX 1000, E-2000, 4000 & 5000 SERIES

NUMBER	BACKSET	DOOR	DIMENSIONS
9-CW	2 3/4"	1 3/4"	5" x 9"
15-CW	2 3/4"	1 3/4"	5" x 15"
4000-2-CW	2 3/8"	1 3/4"	5" x 15"
4000-4-CW	2 3/4"	1 3/4"	5" x 15"
5000-CW	2 3/4"	1 3/4"	5" x 15"
E2000-CW	2 3/4"	1 3/4"	5" x 15"

SHELF PACK: 1 Box Pack

FEATURES: ( 9-CW & 15-CW ) Works with Simplex 1000 Lock ( E2000-CW ) Works with Simplex E-2000 Lock

( 4000-CW ) Works with Simplex 4000 Lock ( 5000-CW ) Works with Simplex 5000 Lock

FINISHES: ( 9-CW, 15-CW, 4000-2-CW, 4000-4-CW ) 10B (613), AB (609),

PB (605), S (630)

( 5000-CW ) 10B (613), PB (605), S (630) ( E2000-CW ) 10B (613), PB (605), S (630)

For ALARM LOCK 2700/T2, 3000 & DL 4100 SERIES TRILOGY LOCK

NUMBER	BACKSET	DOOR	DIMENSIONS
27-CW	2 3/4"	1 3/4"	5" x 15"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: ( 27-CW ) 10B (613), AB (609), PB (605), S (630)

For SECURITRON SABLE LOCK

NUMBER	BACKSET	DOOR	DIMENSIONS
28-CW	2 3/4"	1 3/4"	5" x 15"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: Works with Securitron Sable Lock

FINISHES: ( 28-CW ) 10B (613), PB (605), S (630)

www.don-jo.com

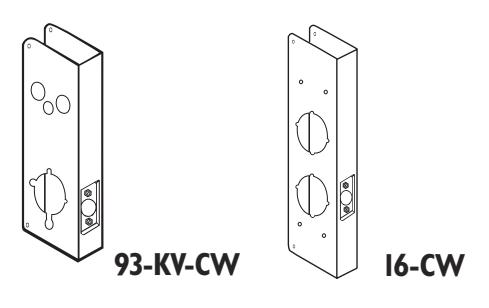

For BEST 93-KV LOCKS & MAS-HAMILTON POWER LEVERS

NUMBER	BACKSET	DOOR	DIMENSIONS
93-KV-CW	2 3/4"	1 3/4"	5 1/2" x 12 3/4"
16-CW	2 3/4"	1 3/4"	5" x 15"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), PB (605), S (630)

For ARROW REVOLUTION AND YALE IN TOUCH LOCKS

NUMBER	BACKSET	DOOR	DIMENSIONS
25-CW	2 3/4"	1 3/4"	5 1/8" x 15"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), PB (605), S (630)

For SCHLAGE COBRA LOCKS

SHELF PACK: 1 Box Pack

17-CW 2 3/4" 1 3/4" 5" x 12" 18-CW 2 3/4" 1 3/4" 5" x 15" 518-CW 2 3/4" 1 3/4" 5" x 12"

NUMBER BACKSET DOOR DIMENSIONS

GAUGE: 22 (.032)

FEATURES: Works with Schlage King Cobra Cylindrical and Mortise Lock

FINISHES: ( 17-CW, 18-CW ) 10B (613), BZ (612), PB (605), S (630)

( 518-CW ) 10B (613), PB (605), S (630)

For SCHLAGE PRO SERIES

NUMBER	BACKSET	DOOR	DIMENSIONS
5100-CW	2 3/4"	1 3/4"	5 1/8" x 15"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: Works with Schlage/Locknetics pro series

FINISHES: 10B (613), PB (605), S (630)

For SCHLAGE AD & CO LOCKETS

NUMBER	BACKSET	DOOR	DIMENSIONS
26AD-CW	2 3/4"	1 3/4"	5" x 16"
504AD-CW	2 3/4"	1 3/4"	5" x 16"
26CO-CW	2 3/4"	1 3/4"	5" x 16"
504CO-CW	2 3/4"	1 3/4"	5" x 14"

SHELF PACK: 1 Box Pack GAUGE: 22 (.032) FINISHES: DU, PB, S

For MARKS I-Q LOCKS

NUMBER	BACKSET	DOOR	DIMENSIONS
19-CW	2 3/4"	1 3/4"	5" x 15"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), PB (605), S (630)

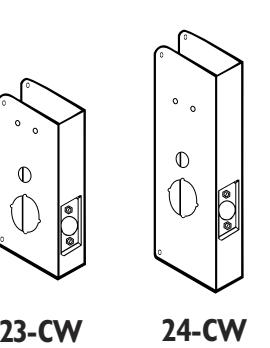

For CODELOCKS 2010, 4010 & 5000 SERIES

21-CW 22-CW

21-CW 2 3/8" 1 3/4" 5" x 9" 22-CW 2 3/8" 1 3/4" 5" x 15" 23-CW 2 3/4" 1 3/4" 5" x 9" 24-CW 2 3/4" 1 3/4" 5" x 15" NUMBER BACKSET DOOR DIMENSIONS

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: ( 21-CW, 22-CW ) Works with 2010 and 4010 series lock

( 23-CW, 24-CW ) Works with 5000 series lock

FINISHES: 10B (613), PB (605), S (630)

For conversion of SIMPLEX 1000 SERIES & ALARM LOCK DL2500, 2700/T2 & 3000 SERIES

to key-in-knob lock

NUMBER	BACKSET	DOOR	DIMENSIONS
14-CW	2 3/4"	1 3/4"	5" x 14"
14-2-CW	2 3/4"	1 3/4"	5" x 14"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), AB (609), PB (605), S (630)

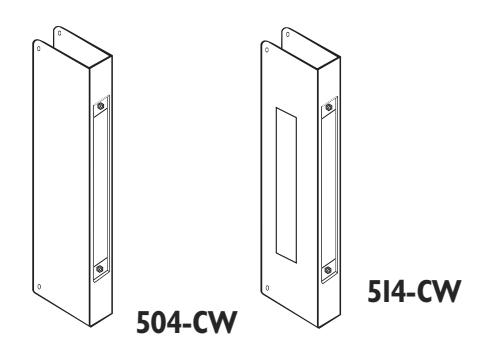

MORTISE LOCK wrap-around plate for 86 cut-out

NUMBER	BACKSET	DOOR	DIMENSIONS
504-CW	–	1 3/4"	5" x 12"
514-CW	2 3/4"	1 3/4"	5" x 12"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: • 8" x 1 1/4" Recess

• Drill spindle and thumb turn holes in field

• Rectangle size 1 5/8" x 7 5/16"

• 8" x 1 1/4" Recess

FINISHES: 10B (613), BZ (612), PB (605), S (630)

For CONVERTING UNIT LOCKS to LEVER LOCKS

NUMBER	BACKSET	DOOR	DIMENSIONS
4U-2-CW	2 3/4"	1 3/4"	4 1/2" x 5"

SHELF PACK: 1 Box Pack

GAUGE: 13 (.095) heavy gauge material FEATURES:•Converts unit locks to lever locks

• Prepped to accept grade 1 & 2 levers

• Sex bolts used to secure plate to door

FINISHES: BP, DU, S

For MOUNTING DON-JO HOSPITAL PUSH/PULL LATCHES

4500-CW 4550-CW

NUMBER	BACKSET	DOOR	DIMENSIONS
4500-CW	2 3/4"	1 3/4"	4 3/4" x 9"
4550-CW	5"	1 3/4"	6 1/2" x 9"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: Also works with ABH 6100 Series, Glenn Johnson HL6 & Hager 311

FINISHES: 10B (613), PB (605), S (630)

For LOCKS with EXTENDED or CONVERTED BACKSETS

Extended 33-CW 55-CW

33A-CW 55A-CW

Converted 33A-2-CW 55A-2-CW

33-CW 3 3/4" 1 3/4" 5 1/2" x 9" 33A-2-CW 2 3/4" 1 3/4" 6 1/2" x 9" 33A-CW 2 3/4" 1 3/4" 6 1/2" x 9" 55-CW 5" 1 3/4" 6 1/2" x 9" 55A-2-CW 2 3/4" 1 3/4" 6 1/2" x 9" 55A-CW 2 3/4" 1 3/4" 6 1/2" x 9" NUMBER BACKSET DOOR DIMENSIONS

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FINISHES: 10B (613), AB (609), BZ (612), PB (605), S (630)

For THICKER DOORS

200-CW 200C-CW 212-CW 212C-CW 214-CW 214C-CW

NUMBER	BACKSET	DOOR	DIMENSIONS
200-CW	2 3/4"	2"	4 1/4" x 9"
200C-CW	2 3/8"	2"	4 1/4" x 9"
212-CW	2 3/4"	2 1/2"	4 1/4" x 9"
212C-CW	2 3/8"	2 1/2"	4 1/4" x 9"
214-CW	2 3/4"	2 1/4"	4 1/4" x 9"
214C-CW	2 3/8"	2 1/4"	4 1/4" x 9"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: • Latch hole centered in door

• Available with lever Prep. - Custom order only

FINISHES: 10B (613), PB (605), S (630)

DOOR REINFORCER for deadbolts & key-in-knob locks

10-FE 20-FE

NUMBER	BACKSET	DOOR	DIMENSIONS
10-FE	–	1 3/8"	4 1/2" x 1"
20-FE	–	1 3/4"	4 1/2" x 1"

SHELF PACK: 10 Display Package Size - 4" x 7 3/4"

GAUGE: 22 (.032)

FINISHES: 10B (613), AB (609), PB (605), S (630)

MORTISE LOCK wrap-around plate for 86 cut-out

NUMBER	BACKSET	DOOR	DIMENSIONS
504-FE	–	1 3/4"	12" x 1"

SHELF PACK: 1 Box Pack

GAUGE: 22 (.032)

FEATURES: 8" x 1 1/4" Recess FINISHES: 10B (613), S (630)

INTERIOR WRAP-AROUNDS

DON-JO MFG., INC. offers a line of Interior Wrap-Arounds. Each is manufactured from high quality

prefinished steel brass plated material and is recommended for INTERIOR use only. Available for: 1, 2, 3, 4, 5, 6, 7 ,8, 51, 61, 71, 81, 30, 40, 70, 80, 154, 264, 484, 151, 261, 481, 258, 942, 943

How to Order: ie: 1-PB-IW

FLAT FRONT WRAP-AROUNDS

DON-JO MFG., INC. also offers a complete line of "original" Flat Front Wrap-Arounds. They are perfect for repairing, reinforcing or remodeling doors. Speed nuts are supplied with all Flat Front Wrap-Arounds and can be used in certain conditions when door is severely damaged or when replacing a mortise lock.

Available for: 1, 2, 3, 4, 5, 6, 7 ,8, 51, 61, 71, 81, 30, 40, 70, 80, 154, 264, 484, 151, 261, 481, 258, 942, 943

How to Order: ie: 1-PB-VF
