Don-Jo Architectural Hardware & Accessories Mounting Options 2

www.don-jo.com

DON-10 MFG., INC.

MOUNTING - THRU BOLE (WOOD OR METAL DOORS)

All pulls: 1/4-20 w/Finish Washer Offset Pulls: 3/8-24 (Finish washer not supplied.)

4 Mounting - Thru Bolt (Glass Doors)

3/8-24 decorative thru bolt w/newprene washers 5/8* Plexiglass bushing

2 MOUNTING - SURFACE CONCEALED (WOOD DOORS)

6 MOUNTING - BACK TO BACK (GLASS DOORS)

3/8-24 Bolt w/set screw 5/8° Plexiglass bushing w/Neoprene washers

MOUNTING - BACK TO BACK (WOOD OR METAL DOORS)

6 MOUNTING - SURFACE CONCEALED (METAL DOORS)

MOUNTING - CONCEALED (WOOD OR METAL DOORS)

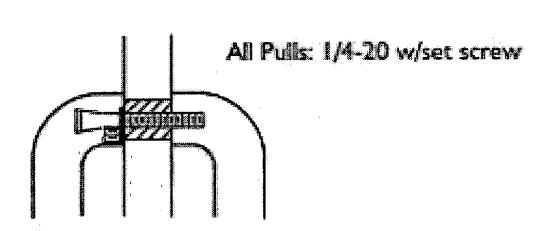

1/4-20 w/set screw

Offset Pulls: 3/8-24 w/set screw

I/4-20 w/set screw Concealed studs welded to back of Push Plate *Must mount studs to I/8" thick plates only! Thinner gauge cannot be used!
