View PDFARCHITECTURAL HARDWARE & ACCESSORIES
DON-JO MFG., INC. P.O. Box 929 Sterling, MA 01564
PHONE: 978.422.3377 FAX: 978.422.3467 WATS: 800.628.8389 WATS FAX: 800.278.8202
WEB: www.don-jo.com E-mail: info@don-jo.com Section G, Version 1
INDEX
|
Item#
Page# |
Item# | Page# | Item# | Page# | Item# | Page# |
|---|---|---|---|---|---|---|
|
92113g
9211-EBF 3g AL-211 8g ALP-206 5g ALP-210 5g BLP-107 5g BLP-110 5g BLP-207 5g BLP-210 5g CLP-106 4g CLP-110 4g ELP-208 7g ELP-208-EBF 7g ELP-208P 7g ELP-208P-EBF7g FLP-1117g FLP-2117g GLP-307-LHR 1g |
KLP-110-RHR
LELP-208 LP-107 LP-207 LP-207-EBF LP-111 LP-111-EBF LP-211 LP-307 LP-312 LP-312P |
ILP-2121g
KLP-110-LHR6g 6g 7g LELP-208-EBF7g 4g LP-107-EBF4g 4g 4g 3g 3g 3g LP-211-EBF3g 1g 8g LP-312-EBF8g 8g LP-312P-EBF8g |
MELP-210-EBF
MLP-111 MLP-111-EBF2g MLP-211 MLP-211-EBF2g NELP-207 NLP-106 NLP-110 NLP-2065g NLP-210 OLP-26502g OLP-2651 OSLP-107 OSLP-107-EBF6g OSLP-110 OSLP-110-EBF6g OSLP-207 OSLP-207-EBF |
7g
2g 2g 2g 5g 5g 5g 2g 6g 6g 6g 6g |
PLP-111
PLP-111-EBF PLP-211 PMLP-111 PMLP-211 PULP-111 PULP-211 SLP-106 SLP-206 ULP-111 ULP-211 |
4g
4g 4g PLP-211-EBF4g 3g PMLP-111-EBF3g 3g PMLP-211-EBF3g 4g 4g 6g SLP-106-EBF6g 6g SLP-206-EBF6g 2g 2g WSLP-1046g WSLP-2046g |
|
GLP-307-RHR
1g ILP-2061g |
LP-2878
MELP-210 |
8g
7g |
OSLP-210
OLSP-210-EBF6g |
6g |
- * Special Fasteners to prevent interference with the frame
- * Available on selected Latch Protectors as an option
FASTENERS
| Product |
Fastening
Type |
|---|---|
| ILP-206 &ILP-212 | 3 ea. #10 x 1 1/4" one way screws, 3 ea. #8 x 1 1/4" WS Flat Head |
|
LP-307
GLP-307, OLP-2650, OLP-2651 |
1 ea. 5/16-18 x 2 1/4" Carriage bolt w/Acorn nut & washer
1 ea. Drive in Rivet |
| LP-111 & LP-211 | 4 ea. 5/16-18 x 2 1/4" Carriage bolts w/Acorn nuts & washers |
|
MLP-111 & MLP-211, PLP-111 & PLP-211, PMLP-111 &
PMLP-211, LP-107 & LP-207, ELP-208 & ELP-208P, LELP-208, MELP-210, SLP-106-SLP-206, OSLP-107 & OSLP-207, OSLP-110 & OSLP-210, LP-312 & LP-312P |
2 ea. 5/16-18 x 2 1/4" Carriage bolts w/Acorn nuts & washers |
|
CLP-106 & CLP-110, NLP-106 & NLP-206, NLP-110 &
NLP-210, BLP-107 & BLP-207, BLP-110 & BLP-210, KLP-110, FLP-111 & FLP-211, LP-2878 |
2 ea. 1/4-20 x 1 3/4" Flat Head MS w/Finish Washer |
| ALP-206 & ALP-210 | 4 ea. #10-1 1/2 Phillips SMS |
The INTERLOCK for inswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| ILP-206 | 6" | Steel |
| ILP-212 | 12" |
SHELF PACK: 10 Display Package Size - 4" x 12" and 4" x 16"
GAUGE: 14 (.075)
FEATURES: • 6" version for use with key-in-knob and deadbolt locks
• 12" version for use with Mortise Locks, Simplex 1000 series, Alarm Lock DL-2500, DL-2700 & 3000, Card Access Systems, etc.
FINISHES: BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated), SL (Silver Coated)

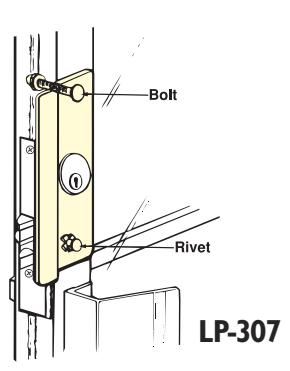

For ALUMINUM ENTRANCE doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| LP-307 | 2 5/8" x 7" |
Steel
Stainless Steel |
SHELF PACK: 10 Polybagged / Display Package Size 4" x 12"
GAUGE: 12 (.104) FEATURES: • Reversible • Fits over cylinder - lock removal NOT required
• Hand carriage bolt and rivet supplied • No specific tools required
• 3/8" offset
FINISHES: 630, DU (Duro Coated), SL (Silver Coated)

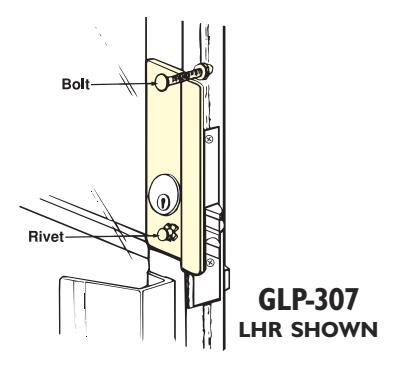

For ALUMINUM ENTRANCE doors- solves pull handle interference
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| GLP-307 LHR | 2 5/8" x 7" | Steel |
| GLP-307 RHR | 2 5/8" x 7" | Stainless Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • Fits over cylinder - lock removal NOT required
• Hand carriage bolt and rivet supplied • No specific tools required
• 3/8" offset
• Center of cylinder hole is 2 1/2" from end of plate
FINISHES: 630, DU (Duro Coated), SL (Silver Coated)
www.don-jo.com
EBF Fasteners available with selected Latch Protectors.
For use with ALUMINUM ENTRANCE DOORS
NELP-207
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| NELP-207 | 7" | Steel |
SHELF PACK:
GAUGE:
FEATURES: • Works with Adams Rite locks
• Protects electric strikes from attach
• Protects cylinder collar from wrenching
• Stops crowbar attacks FINISHES: DU (Duro Coated), SL (Silver Coated)

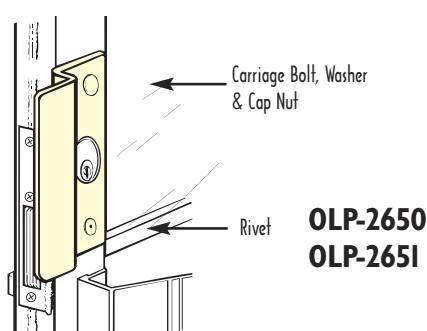

For use with CENTER HUNG OUTSWINGING ALUMINUM DOORS
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| OLP-2650 | 2 5/8" x 6 1/2" | Steel |
| OLP-2651 | 2 5/8" x 6 1/2" |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • ( OLP-2650 ) available in 1 1/8" offset
• ( OLP-2651 ) available in 1 3/8" offset FINISHES: DU (Duro Coated), SL (Silver Coated)

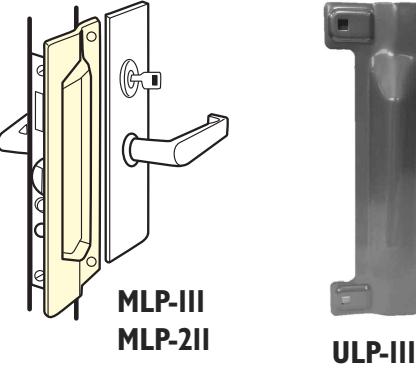

America's favorite for OUTSWINGING DOORS - completely covers
the strike plate
| ULP-211 |
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| MLP-111 | 3" x 11" | Stainless Steel |
| MLP-211 | 3" x 11" | Steel |
| MLP-111-EBF | 3" x 11" | Stainless Steel |
| MLP-211-EBF | 3" x 11" | Steel |
| ULP-111 | 3.5" x 11.75" | Stainless Steel |
| ULP-211 | 3.5" x 11.75" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: ( MLP-111, MLP-211 ) Furnished with carriage bolts, washers & acorn
cap nuts for safety and strength
( MLP-111-EBF, MLP-211-EBF ) Furnished w/carriage bolt & sex nut
( ULP-111, ULP-211 ) Cut out size: 8.75"
FINISHES: ( MLP-111, ULP-111 ) 630
( MLP-211 ) BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated),
SL (Silver Coated)
( ULP-211 ) BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated),
SL (Silver Coated), 626
EBF Fasteners available with selected Latch Protectors.

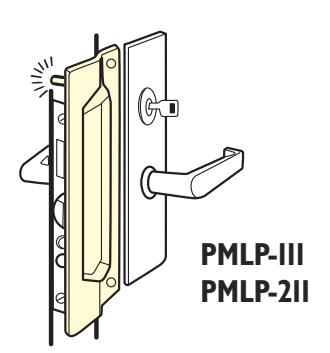

Pin Latch protectors for OUTSWINGING DOORS
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| PMLP-111 | 3" x 11" | Stainless Steel |
| PMLP-211 | 3" x 11" | Steel |
| PMLP-111-EBF | 3" x 11" | Stainless Steel |
| PMLP-211-EBF | 3" x 11" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: ( PMLP-111, PMLP-211 )
Solid steel pin prevents spreading of door from frame
Pin is welded on back leaving no visible point of attack from outside
FINISHES: ( PMLP-111 ) 630
( PMLP-211 ) BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated),
SL (Silver Coated)
( PULP-211 ) BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated),
SL (Silver Coated), 626
America's favorite for OUTSWINGING DOORS - completely covers
the strike plate
LP-111 LP-211
9211
SAVE $! Product available polybagged To order, replace "LP" with "9". (i.e., LP-211 will become 9211)
|
NUMBER
NUMBER |
DIMENSIONS | MATERIAL |
|---|---|---|
| LP-111 | 3" x 11" | Stainless Steel |
| LP-211 | 3" x 11" | Steel |
| 9211 (*Polybagged) | 3" x 11" | Steel |
| LP-111-EBF | 3" x 11" | Stainless Steel |
| LP-211-EBF | 3" x 11" | Steel |
| 9211 (*Polybagged)-EBF | 3" x 11" | Steel |
SHELF PACK: 10 Display Package Size - 4" x 16" ( 9211, LP-111 ) Polybagged
GAUGE: 12 (.104)
FEATURES: • Furnished with carriage bolts, washers & acorn cap nuts
for safety and strength
• Fits 2 3/4" and 2 3/8" backsets
FINISHES: ( LP-111 ) 630
( LP-211 ) BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated),
PC (Prime Coated), SL (Silver Coated)
EBF Fasteners available with selected Latch Protectors.

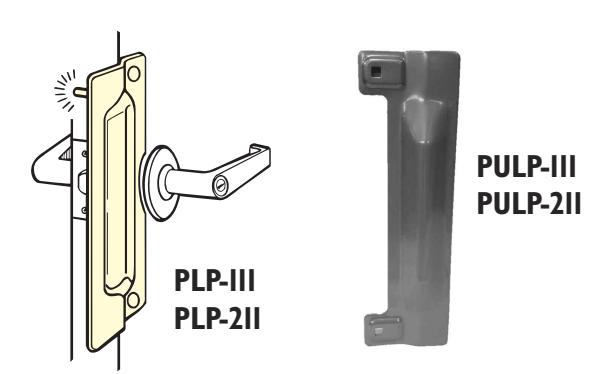

Pin Latch protectors for OUTSWINGING DOORS
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| PLP-111 | 3" x 11" | Stainless Steel |
| PLP-211 | 3" x 11" | Steel |
| PLP-111-EBF | 3" x 11" | Stainless Steel |
| PLP-211-EBF | 3" x 11" | Steel |
| PULP-111 | 3.5" x 11.75" | Stainless Steel |
| PULP-211 | 3.5" x 11.75" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • Solid steel pin prevents spreading of door from frame
• Pin is welded on back leaving no visible point of attack from outside • Fits 2 3/4" and 2 3/8" backsets
( PULP-111, PULP-211 ) Cut out size: 8.75"
FINISHES: ( PLP-111, PULP-111 ) 630
( PLP-211, PULP-211 ) 626, BP (Brass Plated),
CP (Chrome Plated), DU (Duro Coated), SL (Silver Coated)
For Outswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| LP-107 | 2 3/4" x 7" | Stainless Steel |
| LP-207 | 2 3/4" x 7" | Steel |
| LP-107-EBF | 2 3/4" x 7" | Stainless Steel |
| LP-207-EBF | 2 3/4" x 7" | Steel |
SHELF PACK: 10 Display Package Size - 4" x 12"
GAUGE: 12 (.104)
FEATURES: Furnished with carriage bolts, washers & acorn cap nuts for
safety and strength
FINISHES: ( LP-107 ) 630
( LP-207 ) BP (Brass Plated), CP (Chrome Plated),
DU (Duro Coated), SL (Silver Coated)
COMMERCIAL TYPE for outswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| CLP-106 | 2 1/8" x 6" | |
| CLP-110 | 2 1/8" x 10" | Stainless Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • 6" for key-in-knobs
• 10" for Mortise Locks • Architectural design
• Concealed welded studs with fasteners
FINISH: 630

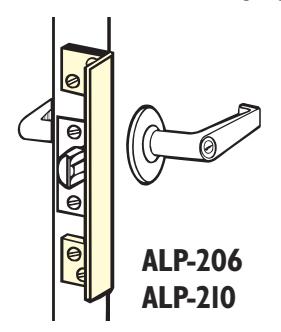

ANGLE TYPE for outswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| ALP-206 | 6" | |
| ALP-210 | 10" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 10 (.134)
FEATURES: • 6" for key-in-knobs
• 10" for Mortise Locks
• 1 1/2" sheet metal screws for wood or metal
FINISHES: BC (Brass Coated), DU (Duro Coated), SL (Silver Coated)
NARROW COMMERCIAL TYPE for outswinging doors
NLP-210
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| NLP-106 | 1 1/2" x 6" | |
| NLP-110 | 1 1/2" x 10" | Stainless Steel |
| NLP-206 | 1 1/2" x 6" | |
| NLP-210 | 1 1/2" x 10" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FINISHES: ( NLP-106, NLP-110 ) 630
FEATURES: • 6" for key-in-knobs • 10" for
( NLP-206, NLP-210 ) DU (Duro Coated), PC (Prime Coated), SL (Silver Coated)
Mortise Locks
• Narrow type for outswinging doors

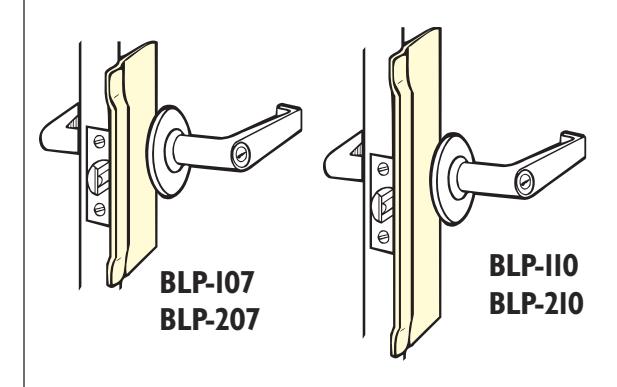

For KEY-IN-LEVER Locks with up to 3 3/4" ESCUTCHEON
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| BLP-107 | 3 1/4" x 7" | |
| BLP-110 | 3 1/4" x 10" | Stainless Steel |
| BLP-207 | 3 1/4" x 7" | |
| BLP-210 | 3 1/4" x 10" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • Works with up to 3 3/4" rose
• Concealed welded studs with fasteners
FINISHES: ( BLP-107, BLP-110 ) 630
( BLP-207, BLP 210 ) BP (Brass Plated), DU (Duro Coated),
SL (Silver Coated)
www.don-jo.com
EBF Fasteners available with selected Latch Protectors.
SLIPPER LATCH PROTECTOR
WSLP-104 WSLP-204
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| WSLP-104 | 5" x 4" | Stainless Steel |
| WSLP-204 | 5" x 4" | Stainless Steel |
SHELF PACK: 10 Polybagged
GAUGE:
FEATURES: • Sleek design allows for easy install
• Mounts under the lock set
• Works with most grade 1 & 2 levers & knobs
• Prepped for most commercial locks
FINISHES: 630, DU, SL

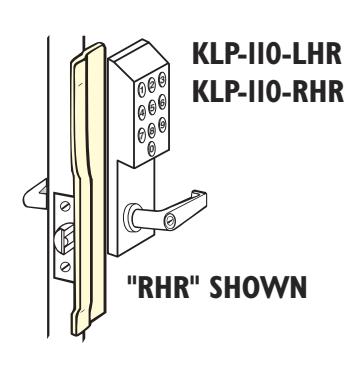

For ELECTRONIC LOCKS
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| KLP-110-LHR | 1 1/2" x 10" | |
| KLP-110-RHR | 1 1/2" x 10" | Stainless Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • Works with ILCO 1000, 4000
• Alarm Lock Trilogy Locks • Mas-Hamilton Power Levers
• Schlage Cobra
• Marks I-Q
FINISH: 630

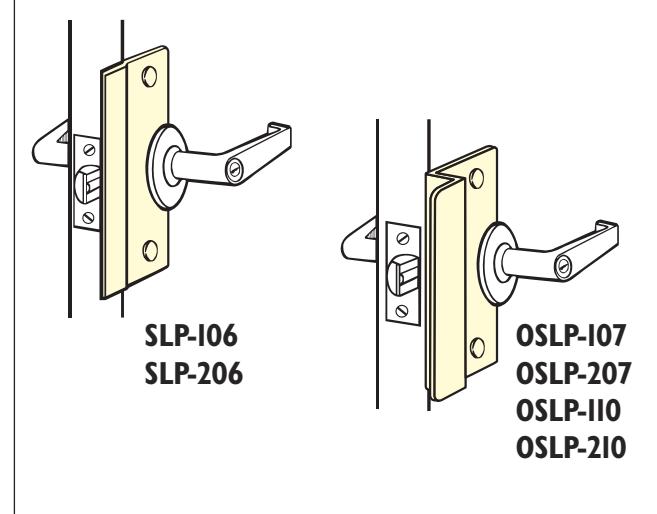

SHORT TYPE for outswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| SLP-106 | 2 5/8" x 6" | Stainless Steel |
| SLP-206 | 2 5/8" x 6" | Steel |
| OSLP-107 | 2 5/8" x 7" | Stainless Steel |
| OSLP-207 | 2 5/8" x 7" | Steel |
| OSLP-110 | 2 5/8" x 10" | Stainless Steel |
| OSLP-210 | 2 5/8" x 10" | Steel |
| SLP-106-EBF | 2 5/8" x 6" | Stainless Steel |
| SLP-206-EBF | 2 5/8" x 6" | Steel |
| OSLP-107-EBF | 2 5/8" x 7" | Stainless Steel |
| OSLP-207-EBF | 2 5/8" x 7" | Steel |
| OSLP-110-EBF | 2 5/8" x 10" | Stainless Steel |
| OSLP-210-EBF | 2 5/8" x 10" | Steel |
SHELF PACK: 10 Display Package Size - 4" x 12"
GAUGE: 12 (.104)
FEATURES: • ( SLP ) Display Packaged • May be used on hollow metal door/frame using ANSI strike
• (O SLP ) Polybagged • Works with up to 3 3/4" rose • Furnished with carriage bolts, washers • SLP - 3/8" offset / OSLP - 3/4" offset & acorn cap nuts for safety and strength
FINISHES: ( SLP-106, OSLP-107, OSLP-110 ) 630
( SLP-206, OSLP-207, OSLP-210 ) BP (Brass Plated), CP (Chrome Plated), DU (Duro Coated), SL (Silver Coated),
EBF Fasteners available with selected Latch Protectors.

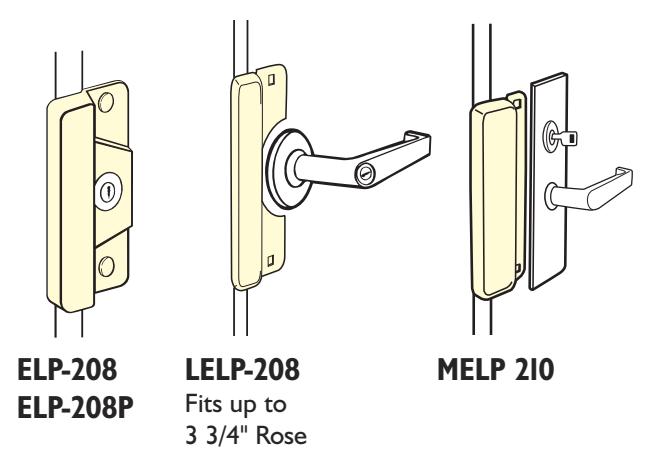

For use with ELECTRIC STRIKES
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| ELP-208 | 3 1/2" x 8" | |
| ELP-208P | 3 1/2" x 8" | |
| LELP-208 | 3 1/2" x 8" | |
| MELP-210 | 2 5/8" x 10" | Steel |
| ELP-208-EBF | 3 1/2" x 8" | |
| ELP-208P-EBF | 3 1/2" x 8" | |
| LELP-208-EBF | 3 1/2" x 8" | |
| MELP-210-EBF | 2 5/8" x 10" |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: • Available with or without cylinder hole
- • Designed to fit most electric strikes
- • Completely encases the keeper for maximum protection
- • Use with Mortise, Keyless Locks & Exit Devices
- • ELP-208P No Cylinder Hole
FINISHES: DU (Duro Coated), SL (Silver Coated)
Fits FOLGER ADAMS ELECTRIC STRIKE for outswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| FLP-111 | 1 3/4" x 11 1/4" | Stainless Steel |
| FLP-211 | 1 3/4" x 11 1/4" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FEATURES: Works with Folger Adams 310 & 710 models
FINISHES: ( FLP-111 ) 630
( FLP-211 ) BP (Brass Plated), DU (Duro Coated)
www.don-jo.com
EBF Fasteners available with selected Latch Protectors.
For outswinging ALUMINUM ENTRANCE DOORS
AL-211
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| AL-211 | 3 1/2" x 12" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104)
FINISHES: DU (Duro Coated), SL (Silver Coated) FEATURES: Sex nuts and bolts for secure mounting and
professional appearance
Fits ADAMS RITE LATCH LOCK for outswinging doors
LP-312 LP-312P
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| LP-312 | 2 5/8" x 12" | |
| LP-312P | 2 5/8" x 12" | |
| LP-312-EBF | 2 5/8" x 12" | Steel |
| LP-312P-EBF | 2 5/8" x 12" |
SHELF PACK: 10 Polybagged
GAUGE: 12 (.104) FEATURES: • Reversible
• 3/8" offset - 1 7/16" hole - 1 1/8" backset
• LP-312P No Center Hole
FINISHES: DU (Duro Coated), SL (Silver Coated)
SLIMLINE for outswinging doors
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| LP-2878 | 1 1/2" x 8 7/8" | Steel |
SHELF PACK: 10 Polybagged
GAUGE: 5/16" thick (.3125)
FEATURES: Sleek appearance
FINISHES: DU (Duro Coated), PC (Prime Coated), SL (Silver Coated)
ONLINE ORDERING
Earn additional discount for online ordering!
New Online Features:
Improved Searches Order Status
Templates • Pricing
ENTIRE ORDER!
EVERY ORDER!
www.don-jo.com
ARCHITECTURAL HARDWARE
www.don-jo.com
