LADDER PULLS AND OFFSET LADDER PULLS

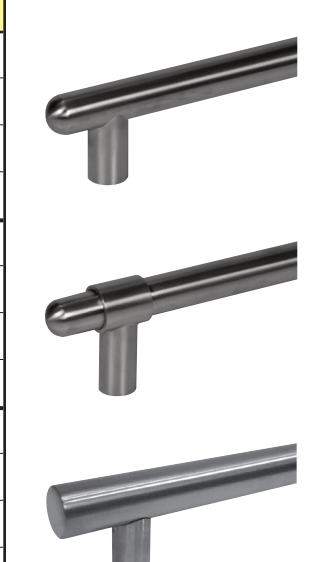

LADDER PULLS
|
PART
# |
CTC | DIAMETER | OVERALL | PROJECTION | CLEARANCE | MATERIAL |
|---|---|---|---|---|---|---|
| PL5110 | 36" | 1-1/4" | 48" | 3" | 1-3/4" | Stainless Steel |
| PL5111 | 48" | 1-1/4" | 60" | 3" | 1-3/4" | Stainless Steel |
| PL5112 | 60" | 1-1/4" | 72" | 3" | 1-3/4" | Stainless Steel |
| PL5113 | 72" | 1-1/4" | 84" | 3" | 1-3/4" | Stainless Steel |
| PL5120 | 36" | 1-1/4" | 48" | 3" | 1-3/4" | Stainless Steel |
| PL5121 | 48" | 1-1/4" | 60" | 3" | 1-3/4" | Stainless Steel |
| PL5122 | 60" | 1-1/4" | 72" | 3" | 1-3/4" | Stainless Steel |
| PL5123 | 72" | 1-1/4" | 84" | 3" | 1-3/4" | Stainless Steel |
| PL5160 | 36" | 1-1/4" | 48" | 3-1/4" | 2" | Stainless Steel |
| PL5161 | 48" | 1-1/4" | 60" | 3-1/4" | 2" | Stainless Steel |
| PL5162 | 60" | 1-1/4" | 72" | 3-1/4" | 2" | Stainless Steel |
| PL5163 | 72" | 1-1/4" | 84" | 3-1/4" | 2" | Stainless Steel |
SHELF PACK: 1 Box Pack
FINISHES: 629, 630
*Other finishes available, special order
*Split finishes available, special order
OPTIONS: See Mounting Options on back of this page
Special sizes and CTC available,
special order
*Center post is recommended for pulls over 60" in CTC

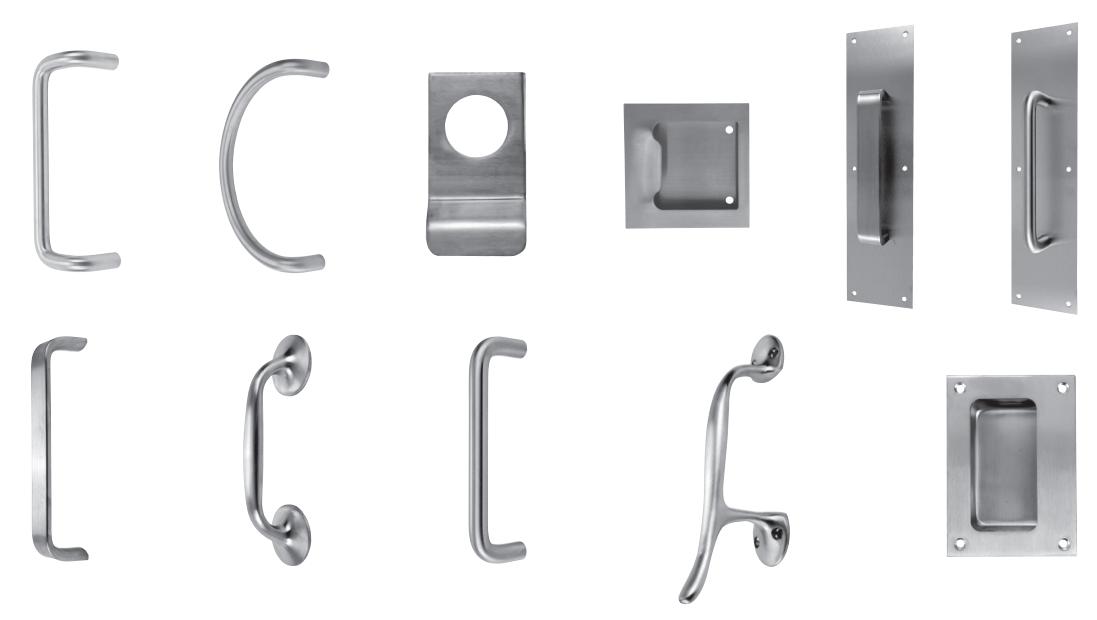

ADDITIONAL PULLS AVAILABLE FROM DON-JO
LADDER PULLS AND OFFSET LADDER PULLS

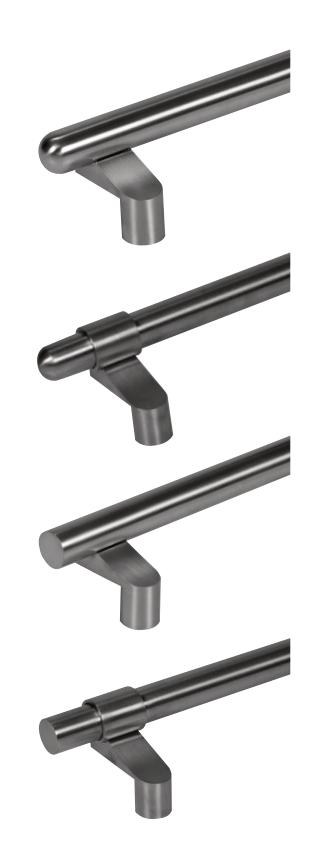

OFFSET LADDER PULLS
|
PART
# |
CTC | DIAMETER | OVERALL | PROJECTION | CLEARANCE | MATERIAL |
|---|---|---|---|---|---|---|
| OPL5140 | 36" | 1-1/4" | 48" | 3" | 1-3/4" | Stainless Steel |
| OPL5141 | 48" | 1-1/4" | 60" | 3" | 1-3/4" | Stainless Steel |
| OPL5142 | 60" | 1-1/4" | 72" | 3" | 1-3/4" | Stainless Steel |
| OPL5143 | 72" | 1-1/4" | 84" | 3" | 1-3/4" | Stainless Steel |
| OPL5150 | 36" | 1-1/4" | 48" | 3" | 1-3/4" | Stainless Steel |
| OPL5151 | 48" | 1-1/4" | 60" | 3" | 1-3/4" | Stainless Steel |
| OPL5152 | 60" | 1-1/4" | 72" | 3" | 1-3/4" | Stainless Steel |
| OPL5153 | 72" | 1-1/4" | 84" | 3" | 1-3/4" | Stainless Steel |
| OPL5190 | 36" | 1-1/4" | 48" | 3" | 1-3/4" | Stainless Steel |
| OPL5191 | 48" | 1-1/4" | 60" | 3" | 1-3/4" | Stainless Steel |
| OPL5192 | 60" | 1-1/4" | 72" | 3" | 1-3/4" | Stainless Steel |
| OPL5193 | 72" | 1-1/4" | 84" | 3" | 1-3/4" | Stainless Steel |
| OPL5200 | 36" | 1-1/4" | 48" | 3" | 1-3/4" | Stainless Steel |
| OPL5201 | 48" | 1-1/4" | 60" | 3" | 1-3/4" | Stainless Steel |
| OPL5202 | 60" | 1-1/4" | 72" | 3" | 1-3/4" | Stainless Steel |
| OPL5203 | 72" | 1-1/4" | 84" | 3" | 1-3/4" | Stainless Steel |
SHELF PACK: 1 Box Pack
FINISHES: 629, 630
*Other finishes available, special order
*Split finishes available, special order
OPTIONS: See Mounting Options below
Special sizes and CTC available,
special order
*Center post is recommended for pulls over 60" in CTC
1 Thru Bolt (Wood or Metal Doors) 3 Back to Back (Wood or Metal Doors) 4 Thru Bolt (Glass Doors) 5 Back to Back (Glass Doors)
