INDEX

Item#	Page#	Item#	Page#	Item#	Page#	Item#	Page#
BB745402k BB745452k BB845452k BB945452k CP745454k CP945454k		HRP-1 HRP-26k HWBB745453k HWBB750453k HWBB845453k HWBB850453k	6k	HWBB950453k PB745402k PB745452k PB945452k RPB73535-14 RPB73535-58	5k 5k	RPB74040-58 SH745453k SH945453k	5k
ELECTRIC	HINGE4k	HWBB945453k		RPB74040-14	5k

DON-JO HINGE CONVERSION CHART

DON-JO #	Bommer	Hager	Stanley	McKinney	PBB	ANSI
PB74540	5000	1279	F179	T2714	PB81	A8133
PB74545	5000	1279	F1979	T2714	PB81	A8133
PB94545	5002	1191	*F191	*T2314	PB51	A5133
BB74540	BB5000	BB1279	FBB179	TA2714	BB81	A8112
BB74545	BB5000	BB1279	FBB179	TA2714	BB81	A8112
BB84545	BB5001	BBI191	FBB191	TA2314	BB21	A2112
BB94545	BB5002	BB1191	*FBB191	*TA2314	BB51	A5112
SH74545	LB4310C	1250	2060	1502	SP81	K8107-1F
SH94545	LB4390C	1150	2060	1552		K51007-1F
HWBB74545	BB5004	BB1168	FBB168	T4A3786	4B81	A8111
HWBB84545	BB5005	BB1199	FBB199	T4A3386	4B21	A2111
HWBB94545	BB5006	BB1199	*FBB199	*T4A3386	4B5 I	A5111
HWBB75045	BB5004	BB1168	FBB168	T4A3786	4B81	A8111
HWBB85045	BB5005	BB1199	FBB199	T4A3386	4B21	A2111
HWBB95045	BB5006	BB1199	*FBB199	*T4A3386	4B5 I	A5111

^* Use as a prefix to note Stainless Steel, 630

FINISH DESCRIPTIONS

BHMA Finish Code	U.S. Equivalent	Finish Description	Base Material
600	US P	Primed for Painting	Steel
626	US 26D	Satin Chrome Plated	Brass
630	US 32D	Satin Stainless Steel	Stainless Steel
632	US 3	Bright Brass Plated, Clear Coated	Steel
633	US 4	Satin Brass Plated, Clear Coated	Steel
639	US 10	Satin Bronze Plated, Clear Coated	Steel
640	US 10B	Satin Bronze Plated, Dark Anodized, Oil Rubbed	Steel
651	US 26	Bright Chrome Plated	Steel
652	US 26D	Satin Chrome Plated	Steel

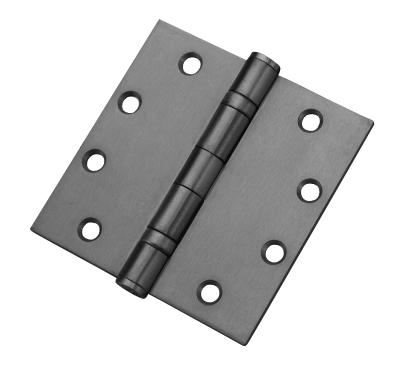

FULL MORTISE PLAIN BEARING

Template Hinges – Standard Weight For Medium Weight Doors/Low Frequency All Hinges are ANSI Template

NUMBER	SIZE	GAUGE	ANSI	MATERIAL

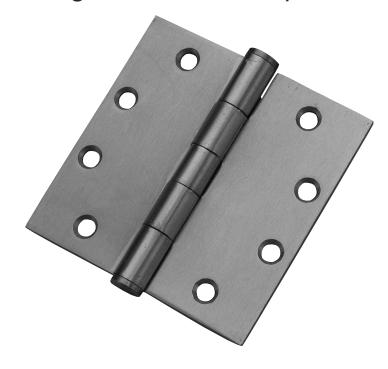

PB74540	4 1/2" x 4"	.134	A8133	Steel
PB74545	4 1/2" x 4 1/2"	.134	A8133	Steel
PB94545	4 1/2" x 4 1/2"	.134	A5133	Stainless Steel

SHELF PACK: 3 hinges per box w/screws Box Pack

24 hinges per case

FASTENERS: 8 ea. FHMS 12-24 x 1/2 (per hinge)

8 ea. FHWS 12 x 1 1/4 (per hinge)

FEATURES: 5 knuckle FINISHES: ( PB74540 ) 652

( PB74545 ) 600, 632, 633, 639, 640, 651, 652

( PB94545 ) 630

OPTION: Non-Removable Pin Available. Please specify NRP as a prefix

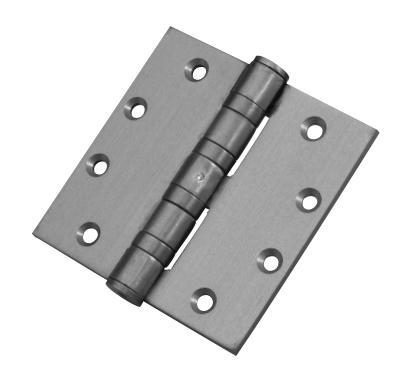

FULL MORTISE BALL BEARING

Template Hinges – Standard Weight For Medium Weight Doors/Average Frequency All Hinges are ANSI Template

NUMBER	SIZE	GAUGE	ANSI	MATERIAL
BB74540	4 1/2" x 4"	.134	A8112	Steel
BB74545	4 1/2" x 4 1/2"	.134	A8112	Steel
BB84545	4 1/2" x 4 1/2"	.134	A2112	Brass
BB94545	4 1/2" x 4 1/2"	.134	A5112	Stainless Steel

SHELF PACK: 3 hinges per box w/screws Box Pack

24 hinges per case

FASTENERS: 8 ea. FHMS 12-24 x 1/2 (per hinge)

8 ea. FHWS 12-24 x 1 1/4 (per hinge)

FEATURES: 5 knuckle

FINISHES: ( BB74540 ) 652

( BB74545 ) 600, 632, 633, 639, 640, 651, 652

( BB84545 ) 626

( BB94545 ) 630

OPTION: Non-Removable Pin Available. Please specify NRP as a prefix

when ordering (i.e. NRPBB74545-652)

Don-Jo Mfg. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)

FULL MORTISE BALL BEARING

Template Hinges – Heavy Weight For Heavy Doors/High Frequency All Hinges are ANSI Template

NUMBER	SIZE	GAUGE	ANSI	MATERIAL
HWBB74545	4 1/2" x 4 1/2"	.180	A8111	Steel
HWBB84545	4 1/2" x 4 1/2"	.180	A2111	Brass
HWBB94545	4 1/2" x 4 1/2"	.180	A5111	Stainless Steel
HWBB75045	5" x 4 1/2"	.190	A8111	Steel
HWBB85045	5" x 4 1/2"	.190	A2111	Brass
HWBB95045	5" x 4 1/2"	.190	A5111	Stainless Steel

SHELF PACK: 3 hinges per box w/screws Box Pack

24 hinges per case

FASTENERS: 8 ea. FHMS 12-24 x 1/2 (per hinge)

8 ea. FHWS 12 x 1 1/4 (per hinge)

FEATURES: • All Heavyweight hinges come with Non-Removable Pin (NRP) as standard

• 4 ball bearings

• 5 knuckle

FINISHES: ( HWBB74545, HWBB75045 ) 632, 633, 640, 651, 652

( HWBB84545, HWBB85045 ) 626 ( HWBB94545, HWBB95045 ) 630

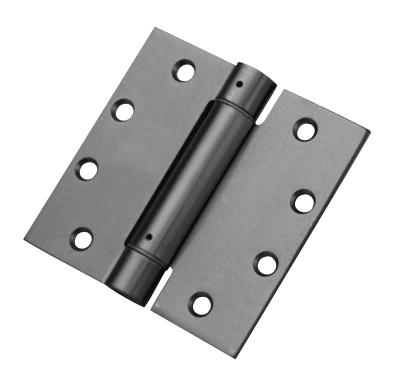

FULL MORTISE SPRING HINGE

Template Hinges – Standard Weight All Hinges are ANSI Template

NUMBER	SIZE	GAUGE	ANSI	MATERIAL
SH74545	4 1/2" x 4 1/2"	.134	K81071F	Steel
SH94545	4 1/2" x 4 1/2"	.134	K51071F	Stainless Steel

SHELF PACK: 2 hinges per box w/screws Box Pack

16 hinges per case

FASTENERS: 8 ea. FHMS 12-24 x 1/2 (per hinge)

8 ea. FHWS 12 x 1 1/4 (per hinge)

FEATURES: • Listed - Grade 1

• Single acting

• Self lubricating bearings

• Easy spring tension adjustment

• Non-handed

FINISHES: ( SH74545 ) 600, 632, 633, 640, 651, 652

( SH94545 ) 630

Don-Jo Mfg. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)

DON-JO MFG., INC.

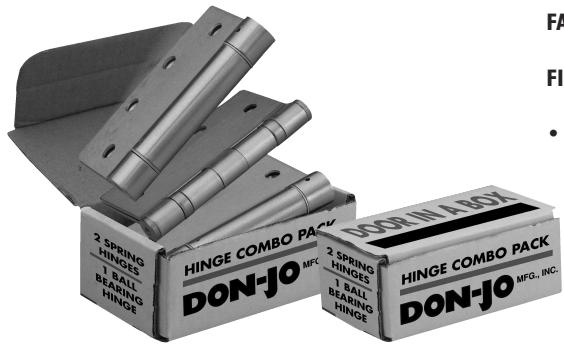

COMBO PACK -

2 Spring Hinges - 1 Ball Bearing Hinge All Hinges are ANSI Template

NUMBER	SIZE	GAUGE	ANSI	MATERIAL
CP74545	4 I/2" x 4 I/2"	.134	K81071F (Spring) A8112 (Ball Bearing)	Steel
CP94545	4 I/2" x 4 I/2"	.134	K51071F (Spring) A5112 (Ball Bearing)	Stainless Steel

SHELF PACK: 3 hinges per box w/screws

Box Pack

36 hinges per case

FASTENERS: 8 ea. FHMS 12-24 x 1/2 (per hinge)

8 ea. FHWS 12 x I I/4 (per hinge)

FINISHES: (CP74545) 600, 632, 633, 640, 651, 652

(CP94545) 630

• NFPA 80 recommends the use of a Ball Bearing Hinge with Spring Hinges

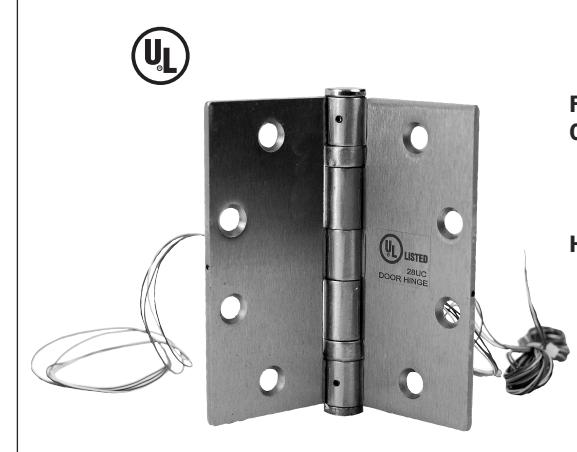

ELECTRIFIED HINGES -

SHELF PACK: I

Box Pack

FEATURES: • UL Listed

• Rated 3.5 amps

• NRP provided w/all wired hinges

• Templates available

• 12" lead on one leaf, 36" lead on the other leaf!

• 28 gauge wire

• 20 gauge wire for 2 wire hinges

FINISHES: OPTIONS:

600, 632, 633, 639, 640, 651, 652 • Available w/ 2, 4, 6, 8, 10 & 12 wires

• Longer leads available upon request

• Concealed electronic monitor available

• 7" mortar guard

HOW TO ORDER: Specify: Number of wires, type of hinge and finish

Example: E4W-BB74545-652

RESIDENTIAL HINGES

RPB73535-58 (Shown) RPB73535-14

NUMBER	SIZE	RADIUS	GAUGE	MATERIAL
RPB73535-58	3 1/2" x 3 1/2"	5/8"	.085	Steel
RPB73535-14	3 1/2" x 3 1/2"	1/4"	.085	Steel

SHELF PACK: 2 per box / CASE: 50 pcs. Box Pack

FASTENERS: Screws: #9 x 3/4" flat head Phillips FINISHES: 632, 633, 640, 646, 647, 651, 652 OPTION: Square corner availiable per special order

RESIDENTIAL HINGES

RPB74040-58 RPB74040-14 (Shown)

NUMBER	SIZE	RADIUS	GAUGE	MATERIAL
RPB74040-58	4" x 4"	5/8"	.097	Steel
RPB74040-14	4" x 4"	1/4"	.097	Steel

SHELF PACK: 2 per box / CASE: 50 pcs. Box Pack

FASTENERS: Screws: #9 x 1" flat head Phillips FINISHES: 632, 633, 640, 646, 647, 651, 652

OPTION: Square corner availiable per special order

Don-Jo Mfg. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)

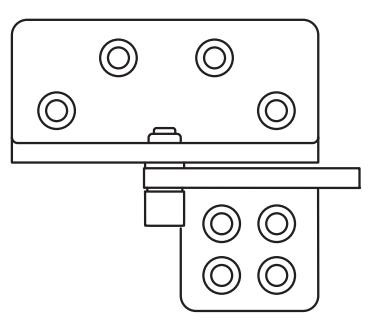

HINGE REINFORCING PIVOT

NUMBER	SIZE	PIVOT OFFSET	HINGE SIZE	MATERIAL
	Frame: 1 11/16" x 3 5/8"		4 1/2" x 4 1/2"
HRP-1	Door: 1 11/16" x 1 11/16"	3/4"	5" x 4 1/2"	Steel
	Frame: 1 11/16" x 3 5/8"		4" x 4"
HRP-2	Door: 1 11/16" x 1 11/16"	1/2"	4 1/2" x 4" / 5" x 4 1/2"	Steel

HRP-1 HRP-2

SHELF PACK: 1 Box Pack FASTENERS: 8 ea. 1/4-20 x 3/4" FHMS

8 ea. #14 x 1 1/4" FHWS

2 ea. Sex nuts FEATURE: Helps to repair and prevent sagging doors

FINISH: 626
