DOOR STOPS, HOLDERS & BUMPERS
DON-JO MFG., INC. P.O. Box 929 Sterling, MA 01564
PHONE: 978.422.3377 FAX: 978.422.3467 WATS: 800.628.8389 WATS FAX: 800.278.8202
WEB: www.don-jo.com E-mail: info@don-jo.com Section C, Version 1
INDEX -
| ltem# | Page# | ltem# | Page# | ltem# | Page# | Item# | Page# |
|---|---|---|---|---|---|---|---|
| 1400 | lc | 1448 | 3c | 1473 | 3c | 1507 | 8c |
| 1401 | lc | 1449 | 3c | 1474 | 3c | 1508 | 8c |
| 1402 | lc | 1449P | 3c | 1475 | 3c | 1509 | 8c |
| 1406 | lc | 1450 | 4c | 1476 | 3c | 1510 | 8c |
| 1407 | lc | 1452 | 4c | 1477 | 3c | 1511 | 8c |
| 1410 | lc | 1453 | 4c | 1478 | 3c | 1512 | 8c |
| 1412 | lc | 1455 | 5c | 1480 | 3c | 1513 | 8c |
| 1413 | lc | 1457 | 6c | 1486 | 4c | 1514 | 7c |
| 1420 | 9c | 1458 | 6c | 1487 | 4c | 1517 | 7c |
| 1430 | 9c | 1462 | 5c | 1488 | 4c | 1520 | 6c |
| 1432 | 9c | 1463 | 5c | 1490 | 7c | 1521 | 6c |
| 1440 | 2c | 1464 | 5c | 1492 | 7c | 1522 | 6c |
| 1441 | 2c | 1465 | 5c | 1500 | 8c | 1523 | 6c |
| 1442 | 2c | 1466 | 5c | 1501 | 7c | 1608 | 8c |
| 1443 | 2c | 1467 | 5c | 1502 | 8c | 1609 | 8c |
| 1444 | 2c | 1468 | 5c | 1503 | 8c | 1610 | 8c |
| 1445 | 2c | 1469 | 5c | 1504 | 7c | ||
| 1446 | 2c | 1471 | 3c | 1505 | 8c | ||
| 1447 | 2c | 1472 | 3c | 1506 | 7c | |
WROUGHT WALL BUMPERS
1400
1402
1406
1407
| NUMBER | TYPE | PROJ. | DIA. | ANSI A156.16 | MATERIAL |
|---|---|---|---|---|---|
| 1400 | Convex | 1/2" | Ι" | L02101 | Brass |
| 1402 | Concave | I I/8" | I I/2" | - | Solid Brass |
| 1406 | Convex | I I/8" | 2 1/2" |
L22101,
L52101 |
Wrought |
| 1407 | Concave | Ι" | 2 1/2" |
L22251,
L52251 |
Wrought |
SHELF PACK: (1400, 1406, 1407) 50
Polybagged
(1402) 10
FASTENERS: (1400) I ea. #8 x I" SMS, I ea. Brad Nail, I ea. Plastic Anchor
(1402) I ea. #10 x I I/4" SMS, I ea. Plastic Anchor &
Plastic Drywall Anchor
(1406, 1407) I ea. #8 x I I/4" SMS, I ea. Plastic Anchor &
Plastic Drywall Anchor
FINISHES: (1400) 605, 606, 613, 625, 626
(1402) 626
(1406) 605, 606, 612, 613, 619, 620, 625, 626, 630 (1407) 605, 606, 612, 613, 619, 620, 625, 626, 630
CAST WALL BUMPERS
1412
| NUMBER | ТҮРЕ | PROJ. | DIA. | ANSI A156.16 | MATERIAL |
|---|---|---|---|---|---|
| 1410 | Convex | 7/8" | 3 7/8" | - | Cast Brass |
| 1412 | Convex | I" | 2 1/2" | L12101 | Cast Brass |
| 1413 | Concave | I" | 2 1/2" | L12251 | Cast Brass |
SHELF PACK: 10
FASTENERS: (1412, 1413) I ea. #10 x I 1/4" SMS, I ea. Plastic Anchor &
Plastic Drywall Anchor
(1410) I ea. I/4-20 x I I/4" MS, 3 ea. #8-32 x I/4" MS, I ea.
Polybagged
Lead Expansion Shield
FINISHES: (1412, 1413) 605, 606, 613, 626
(1410) 626
OPTIONS: (1410) Torx screws available
RUBBER WALL BLIMPERS
| NUMBER | TYPE | PROJ. | DIA. | MATERIAL |
|---|---|---|---|---|
| 1401 | Concave | 9/16" | 1 13/16" | Rubber |
SHELF PACK: 10 FASTENER: Adhesive
Polybagged
FINISHES: White & Gray
Proj. = Projection, Dia. = Diameter
CONTEMPORARY FLOOR STOP
1441
| NUMBER | HEIGHT | BASE |
ANSI
A156.16 |
MATERIAL |
|---|---|---|---|---|
| 1441 | 1 1/2" | 1 1/4" | L02131 | Cast Brass |
SSHELF PACK: 10 Polybagged FINISHES: 626
FLOOR STOPS
1440
1442
1447
1440 1" 1/8" x 1 3/4" L12141 Cast Brass 1442 1 1/4" 3/8" x 1 3/4" L12161 Cast Brass 1447 1 5/8" 1/4" x 1 3/4" L02161 Cast Brass NUMBER HEIGHT BASE MATERIAL ANSI A156.16
SHELF PACK: ( 1440, 1442 ) 20 ( 1447 ) 10 Polybagged
FASTENERS: ( 1440, 1442 ) 1 ea. 1/4-20 x 1 1/4" MS, 1 ea. 1/4" x 1 1/4" SMS, 1 ea. Plastic Anchor and 1 ea. Lead Expansion Shield
FINISHES: ( 1440, 1442 ) 605, 606, 612, 613, 619, 620, 625, 626
( 1447 ) 605, 613, 625, 626
RISERS
1446
| NUMBER | HEIGHT | BASE | MATERIAL |
|---|---|---|---|
| 1446 | 1/2" | 1 3/4" | Cast Brass |
SHELF PACK: 50 Polybagged
FINISHES: 605, 612, 613, 625, 626
FLOOR STOPS
1445
| NUMBER | HEIGHT | BASE | MATERIAL |
|---|---|---|---|
| 1445 | 1 1/2" | 5/8" x 1 3/4" | Cast Brass |
SHELF PACK: 20 Polybagged
FASTENERS: 1 ea. 1/4-20 x 1 1/4" MS, 1 ea. 1/4" x 1 1/4" SMS,
1 ea. Plastic Anchor and 1 ea. Lead Expansion Shield
FEATURES: 1445 is made by combining the 1440 & 1446
FINISHES: 605, 612, 613, 625, 626
FLOOR STOPS
| NUMBER | HEIGHT | BASE | MATERIAL |
|---|---|---|---|
| 1443 | 1" | 1/8" x 4" | Cast Brass |
| 1444 | 1 3/8" | 1/2" x 4" | Cast Brass |
SHELF PACK: ( 1443, 1444 ) 10 Polybagged
FASTENERS: ( 1443, 1444 ) 2 ea. 1/4-20 x 1 1/4" MS, 2 ea. 1/4" x 1 1/4" SMS,
2 ea. Plastic Anchor and 2 ea. Lead Expansion Shield
FINISHES: ( 1443, 1444 ) 605, 613, 626
DOOR STOPS
1473 (shown) 1474
1471 (shown), 1472
1475 (shown),
1477 (shown) 1478
SHELF PACK: 10 Polybagged
FASTENERS: ( 1471, 1475 ) 1 ea. 5/16-18 x 2 5/8" MS Stud, 1 ea. 1/16-18 x 2 5/8" SMS Stud,
1 ea. #10 x 1" SMS, 1 ea. Plastic Anchor, 1 ea. Lead Expansion Shield
( 1472, 1476 ) 3 ea. #10 x 1" SMS, 3 ea. Plastic Anchors
( 1473, 1477 ) 1 ea. 5/16-18 x 2 5/8" MS Stud, 1 ea. 5/16-18 x 2 5/8" SMS Stud, 3 ea. #10 x 1" SMS, 3 ea. Plastic Anchors, 1 ea. Lead Expansion Shield
( 1474, 1478 ) 5 ea. #10 x 1" SMS, 3 ea. Plastic Anchors
FEATURES: ( 1471, 1473, 1475, 1477 ) concealed mounting
( 1472, 1474, 1476, 1478 ) surface mounting
FINISHES: ( 1471, 1477 ) 605, 613, 626
( 1472, 1474, 1476, 1478 ) 626 ( 1473, 1475 ) 605, 613, 626

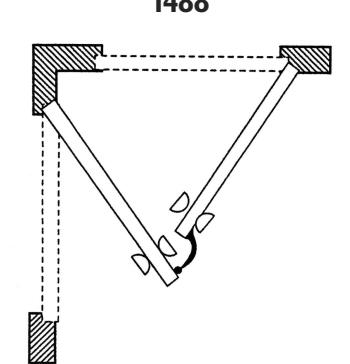

ANGLE STOP
| RUBBER | ||||
|---|---|---|---|---|
| NUMBER | BASE | HEIGHT | WIDTH | |
| 1480 | 2 1/2" x 1" | 2 5/8" | 1 1/2" | |
SHELF PACK: 10 Polybagged
FASTENERS: 2 ea. 1/4" x 1 1/2" SMS, 2 ea. Plastic Anchors
FINISH: 626

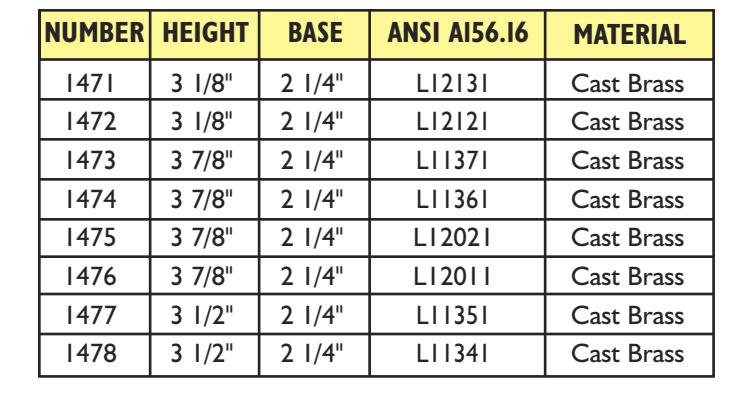

DOOR STOPS
| NUMBER | HEIGHT | BASE | MATERIAL |
|---|---|---|---|
| 1448 | 1 5/8" | 2 1/4" x 1 5/8" | Cast Brass |
| 1449 | 2 1/2" | 2 1/4" x 1 5/8" | Cast Brass |
| 1449P | 3 3/4" | 2 11/16" dia. | Cast Aluminum |
SHELF PACK: 10 Polybagged
FASTENERS ( 1448, 1449 ) 3 ea. 8/32 x 1" MS, 3 ea. #8 x 1 1/4" SMS,
3 ea. Plastic Anchors, 3 ea. Lead Expansion Shields
FINISHES: ( 1448, 1449 ) 605, 613, 626
(1449P) 628
DOOR STOPS
| NUMBER | HEIGHT | BASE |
ANSI
A156.16 |
MATERIAL |
|---|---|---|---|---|
| 1450 | 2 1/8" | 2 5/8" x 1 5/8" | L12131 | Cast Brass |
| 1452 | 2 3/4" | 2 1/2" x 1 1/2" | L12131 | Cast Brass |
| 1453 | 3" | 2 1/2" x 1 1/2" | L13171 | Cast Brass |
SHELF PACK: 10 Polybagged
FASTENERS: ( 1450, 1452 ) 1 ea. 5/16-18 x 2 5/8" MS Stud, 1 ea. 5/16-18 x 2 5/8" SMS
Stud, 1 ea. #10 x 1" SMS, 1 ea. Plastic Anchor, 1 ea. Lead
Expansion Shield
( 1453 ) 1 ea. 5/16-18 x 2 5/8" MS Stud, 1 ea. 5/16-18 x 2 5/8" SMS Stud, 2 ea. #8 x 1" SMS, 1 ea. 14-20 x 1 1/4" MS, 1 ea. 1/4 x 1 1/2" SMS,
3 ea. Plastic Anchors, 1 ea. Lead Expansion Shields
FINISHES: ( 1450, 1452 ) 605, 613, 619, 620, 626
( 1453 ) 605, 613, 626

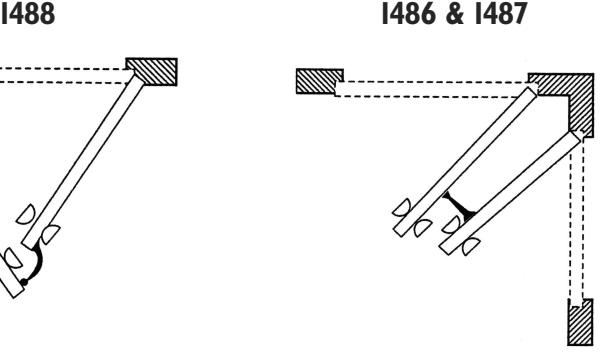

ROLLER BUMPERS
| NUMBER | BASE | PROJECTION |
ANSI
A156.16 |
MATERIAL |
|---|---|---|---|---|
| 1486 | 2" dia. | 4 1/2" | L12191 | Cast Brass |
| 1487 | 2" dia. | 6" | L12201 | Cast Brass |
| 1488 | 1 5/8" x 2 1/4" | 2 3/4" | L12211 | Cast Brass |
SHELF PACK: 10 Polybagged FASTENERS: 3 ea. #10 x 1" SMS, 3 ea. Plastic Anchors
FINISHES: 605, 613, 626
info@don-jo.com • 1.800.628.8389 • 1.800.278.8202 fax
DETENTION STOP
| NUMBER | HEIGHT | BASE |
MOUNTING
BOLT |
|---|---|---|---|
| 1462 | 4 1/2" | 1 1/2 x 2" | 1/2" x 3" |
| 1463 | 6" | 3 1/2 x 2" | 1/2" x 2 1/2" |
SHELF PACK: ( 1462 ) 20, ( 1463 ) 10 Polybagged
FINISH: Black

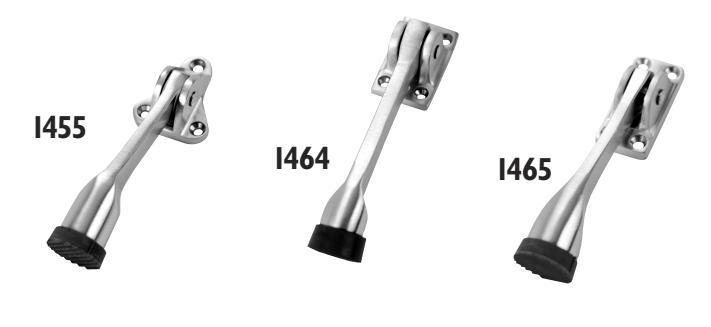

DOOR HOLDERS
| NUMBER | PROJECTION |
ANSI
A156.16 |
MATERIAL |
|---|---|---|---|
| 1455 | 4" | L11382 | Cast Aluminum |
| 1464 | 4" | L11382 | Solid Brass |
| 1465 | 4" | L11382 | Solid Brass |
| 1466 | 4" | – | Cast Iron |
| 1467 | 5" | L11382 | Solid Brass |
| 1468 | - | – | Rubber |
| 1469 | - | – | Rubber |
1467 1466
SHELF PACK: 10 Polybagged FASTENERS: ( 1455 ) 3 ea. #8 x 1" SMS
( 1464, 1465, 1466, 1467 ) 4 ea. #8 x 1" SMS
( 1469 ) 1 ea. #8-32 x 7/8" MS
FINISHES: ( 1455 ) 626, BP (Brass Plated), BZ (Bronze Sprayed),
CP (Chrome Plated), DU (Duro Coated)
( 1465 ) 605, 613, 625, 626
( 1466 ) Sprayed Brass, Sprayed Bronze, Sprayed Aluminum, Sprayed Durocoat
( 1464 ) ( 1467 ) 605, 613, 626
( 1468 ) Gray Rubber ( 1469 ) Gray Rubber
DON-JO MFG., INC.
PLUNGER STOP
| NUMBER | PROJECTION | BASE | ANSI AI56.16 | MATERIAL |
|---|---|---|---|---|
| 1457 | I I/4" | 6 3/16" x 1 7/16" | L11401 | Cast Aluminum |
| 1458 | I 7/8" | I 3/8" x 5 3/8" | L01411 | Brass |
SHELF PACK: 10 Polybagged FASTENERS: (1457) 2 ea. #8 x I" SMS
(1458) 3 ea. #IO x 3/4" OHSMS
FINISH: (1457) 628 (1458) 626

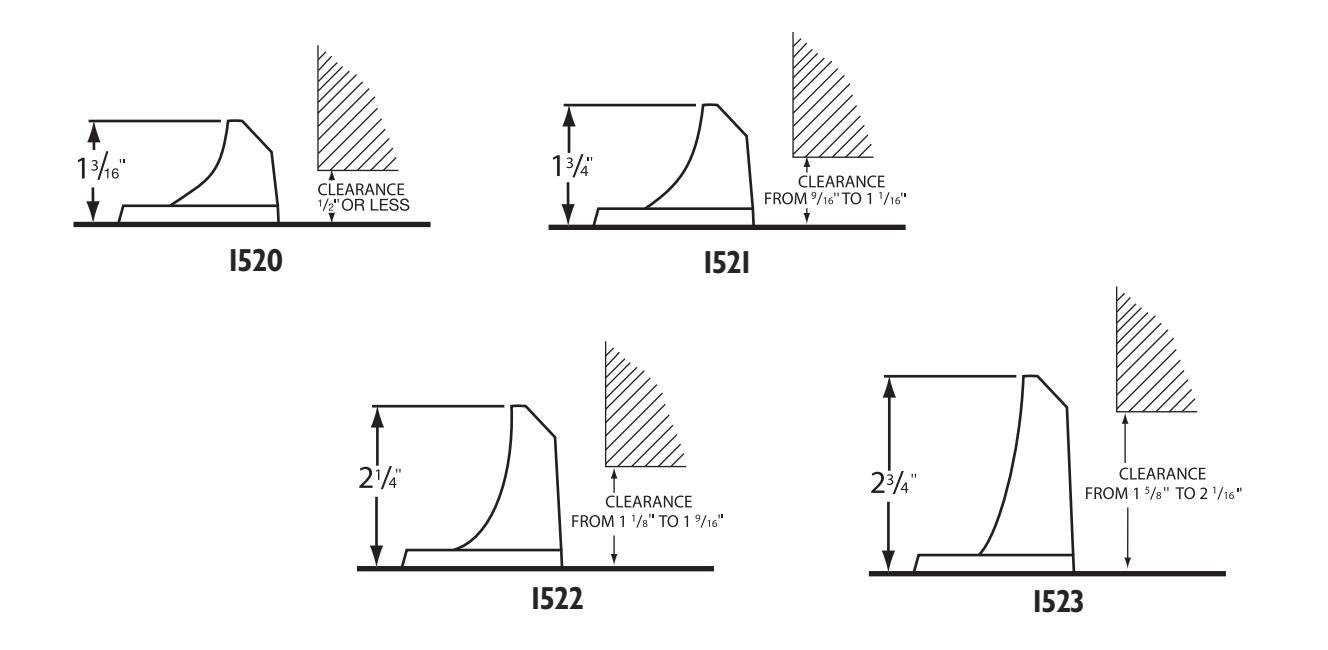

Door Holder
| NUMBER |
DOOR TO FLOOR
CLEARANCE |
HOLDER
DIMENSIONS |
ANSI A156.16 | MATERIAL |
|---|---|---|---|---|
| 1520 | 1/2" or less | 3"W x 3 I/2"H | L11301 | Cast Brass |
| 1521 | 9/16" – 1 1/16" | 3"W x 3 I/2"H | L11301 | Cast Brass |
| 1522 | 1 1/8" – 1 9/16" | 3"W x 3 I/2"H | L11301 | Cast Brass |
| 1523 | 1 5/8" – 2 1/16" | 3"W x 3 I/2"H | L11301 | Cast Brass |
SHELF PACK: I Box Pack
FASTENERS: 3 ea. I/4-20 x 3/4" MS, 3 ea. I/4 x I I/4" SMS, 4 ea. #12-24 x I" MS,
4 ea. #12 x I" SMS, 3 ea. Lead Expansion Shields
FINISH: 626
info@don-jo.com • 1.800.628.8389 • 1.800.278.8202 fax
DOOR HOLDER
1517
| NUMBER | HEIGHT | BASE DIMENSIONS |
ANSI
A156.16 |
MATERIAL |
|---|---|---|---|---|
| 1517 | 3 1/2" | 2" x 3 1/2" | L11241 | Brass |
SHELF PACK: 1 Polybagged
FASTENERS: 2 ea. Plastic Anchors, 1 ea. 1/2-13" x 3 1/4" Stud, 1 ea. Lead Anchor,
2 ea. 1/4 x 1 1/2" FHSMS, 1 ea. 1/4-20 x 1 1/4" FHMS, 1 ea. Lead Anchor
FINISH: 626
DOOR HOLDER
| NUMBER | PROJECTION | HOLDER DIMENSIONS |
ANSI
A156.16 |
MATERIAL |
|---|---|---|---|---|
| 1514 | 3 1/2" | 2 1/2"H x 2 1/4" W | L11291 | Cast Brass |
SHELF PACK: 10 Polybagged
FASTENERS: 2 ea. #10-24 x 1 1/4" MS, 5 ea. #10 x 1" SMS, 3 ea. Plastic Anchors
FINISH: 626
DOOR STOPS
| NUMBER | HEIGHT | LENGTH | MATERIAL |
|---|---|---|---|
| 1490 | 3" | 3 3/4" | Cast Brass |
| 1492 | 3" | 3 3/4" | Cast Brass |
SHELF PACK: 10 Polybagged
FASTENERS: ( 1490 ) 3 ea. 1/4-20 x 3/4" MS, 3 ea. 1/4 x 1 1/2" SMS, 3 ea. Plastic
Anchors, 3 ea. Lead Expansion Shield
( 1492 ) 1 ea. 5/16-18 x 2 5/8" SMS Stud, 1 ea. 1/4 x 1 1/2" SMS,
1 ea. Plastic Anchor, 1 ea. Lead Expansion Shield
FINISH: 626
RIGID BASE STOPS
| NUMBER | BASE | PROJECTION ANSI | A156.16 | MATERIAL |
|---|---|---|---|---|
| 1501 | 3/4" | 3" | L32031 | Cast Zinc |
| 1504 | 1" | 3" | L32031 | Cast Aluminum |
| 1506 | 1" | 31/4" | L12031 | Cast Brass |
SHELF PACK: ( 1501 ) 50 Polybagged
( 1504, 1506 ) 10
FASTENERS: #10 SMS
FINISHES: ( 1501 ) 605, 609, 625 ( 1504, 1506 ) 605, 609, 613, 619, 620, 622, 625, 626
SPRING BASE STOPS
| 1509 |
|---|
| 1510 |
| 1511 |
| NUMBER | BASE | PROJECTION | MATERIAL |
|---|---|---|---|
| 1508 | 3/4" | 3" | Spring Steel |
| 1509 | 1" | 31/8" | Spring Steel |
| 1510 | 1" | 33/4" | Spring Steel |
| 1511 | 1" | 31/8" | Spring Steel |
SHELF PACK: 50 Polybagged
FASTENERS: ( 1508 ) #8 SMS
( 1509, 1510 ) #8 x 1" SMS ( 1511 ) #8 x 1 1/4" SMS FINISHES: 605, 609, 613, 619, 620, 625, 626

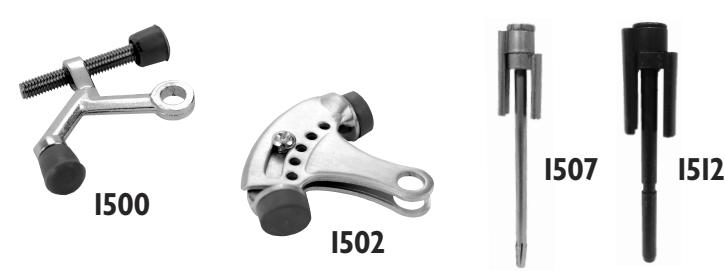

HINGE STOP
| NUMBER | DOOR OPEN ADJ. | MATERIAL |
|---|---|---|
| 1500 | 70° - 100° | Cast Zinc |
| 1502 | 70° - 100° | Steel |
| 1503 | 70° - 100° | Cast Brass |
| 1505 | 70° - 100° | Cast Zinc |
| 1507 | Opens to 170° | |
| 1512 | Opens to 170° | |
| 1513 | Opens to 170° |
SHELF PACK: ( 1500 ) 100, ( 1502, 1503, 1505, 1507 ) 20 Polybagged
( 1512, 1513 ) 10
FINISHES: ( 1500 ) 605, 619, 620, 625
( 1502 ) 605, 613, 619, 620, 626 ( 1503 ) 605, 609, 619, 620, 625
( 1505 ) 605, 609, 613, 619, 620, 622, 626
( 1507 ) 605, 613, 619, 625 ( 1512 ) 613, 619, CP, BP
( 1513 ) 613, 619, CP
FEATURES: ( 1500, 1502, 1503, 1505, 1507 ) Works w/ 1/4" hinge
pins only!
( 1512, 1513 ) Works with commercial grade standard
weight hinges
DOOR SILENCERS
1608 For metal frame
1609 For wood frame
1610 Adhesive mounting
| NUMBER |
ANSI
A156.16 |
|---|---|
| 1608 | L03011 |
| 1609 | L03021 |
| 1610 | – |
SHELF PACK: 100 Polybagged
FINISHES: Gray Rubber
(1610 also available in clear)
DOOR STOPS
1432
| NUMBER | HEIGHT | BASE |
NUMBER
ANSI A156.16 |
FASTENER
MATERIAL |
|---|---|---|---|---|
| 1430 | 1 5/16" | 1 1/4" | – | Cast Brass |
| 1432 | 1 5/16" | 1 1/4" | L32181 | Cast Aluminum |
SHELF PACK: 10 Polybagged
FASTENERS: ( 1430 ) #8 x 1 SMS
( 1432 ) 2 ea. #8 x 3/4" SMS
FINISHES: 605, 613, 619, 620, 626
APPLIED STOP
1420
| NUMBER | WIDTH | HEIGHT | LENGTH |
|---|---|---|---|
| 1420 | 1 1/2" | 3/4" | 3 1/2" |
SHELF PACK: 10 Polybagged
FASTENERS: 2 ea. #12 x 1 1/2" FHWS and
2 ea. 12-24 x 3/4" FHWS
FEATURES:
• For use with single or double doors without stops
• Supplied with machine & wood screws
FINISHES: 605, 613, 626
ARCHITECTURAL HARDWARE

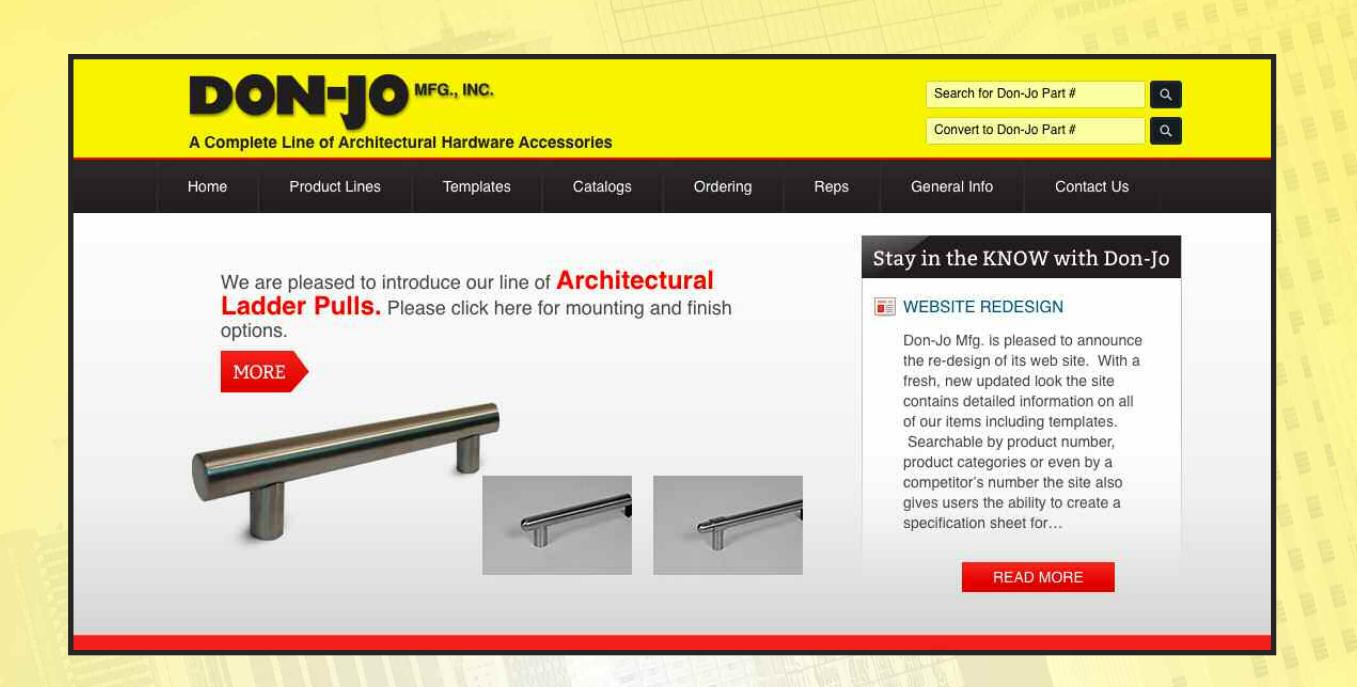

Check out our website at www.don-jo.com to take advantage of these great conveniences:
- On-line Ordering
- Checking Status of Open Orders
- Templates
- Plus Many Other Features
Please contact DON-JO for a username and password to access all of these features on the DON-JO website.
