View PDFARCHITECTURAL HARDWARE & ACCESSORIES
DOOR PROTECTION PLATES & DOOR EDGES
DON-JO MFG., INC. P.O. Box 929 Sterling, MA 01564
PHONE: 978.422.3377 FAX: 978.422.3467 WATS: 800.628.8389 WATS FAX: 800.278.8202
WEB: www.don-jo.com E-mail: info@don-jo.com Section A, Version 1
INDEX -
| Item# | Page# | Item# | Page# | ltem# | Page# | ltem# | Page# |
|---|---|---|---|---|---|---|---|
| 81 | 5a | 1287 | 2a | 1310 | 3a | 1321 | 3a |
| 83 | 5a | 1288 | 2a | 1311 | 3a | KP-628 | 5a |
| 85 | 5a | 1289 | 2a | 1312 | 3a | KP-630 | 5a |
| 87 | 5a | 1290 | 2a & 5a | 1313 | 3a | KP-632 | 5a |
| 90 | la | 1292 | 2a | 1314 | 3a | KP-634 | 5a |
| 91 | la | 1293 | 2a | 1315 | 3a | KP-828 | 5a |
| 92 | la | 1294 | 2a | 1316 | 3a | KP-830 | 5a |
| 93 | la | 1295 | 2a | 1317 | 3a | KP-832 | 5a |
| 1284 | 2a | 1297 | 2a | 1318 | 3a | KP-834 | 5a |
| 1285 | 2a | 1298 | 2a | 1319 | 3a | RS2430 | 6a |
| 1286 | 72 | 1799 | 72 | 1320 | 32 |
COMMERCIAL KICK PLATES
ANSI: J102 Metal / J106 Plastic 8" to 16"h x 48"w
ANSI: J103 Metal / J107 Plastic under 8"h to 48"w
FASTENERS: •Individually packaged with screws #6 x 5/8" SMS
•Full threaded to the head stainless steel sheet metal screws with plated finish
FEATURES:
- • Beveled 3 or 4 sides optional
- • Commercial grade thickness
- • Other thicknesses available on special order
- • Furnished with grain or satin finish running horizontally to door
- • Finishes: 605, 606, 609, 612, 613, 619, 620, 626, 628, 629, 630, 670, Brass Tone (BT), Dark Anodized Aluminum (DB), Kydex, and Endurance. ™
- • Plastic colors include: Black, Brown, Gray, Beige, White, Clear ORDERING: Specify height x width x finish – add options (e.g.: 8" X 34" - 630, Tek)
OPTIONS:
- • MAG - Magnetic backing for metal doors
- • SM - Double face 3M Tape (Scotch Mount)
- • Tek - Self drilling screws
- • CSK - Countersunk holes
- • C/O - Cutout for locks, louvers & windows
- • Torx - Security torx screws
- • WH - Warnock Hersey listed armor plates for fire rated 3 hour metal doors*
- * Only available on .050 thick 630 plates Labeling only required when the top of the plate exceeds 16" in height
- ** Some options carry additional charges.
| NUMBER | MATERIAL |
|---|---|
| 90 | .050 Metal |
| 91 | .038 Metal |
| 92 | .125 Plastic |
| 93 | .125 Clear Plastic |

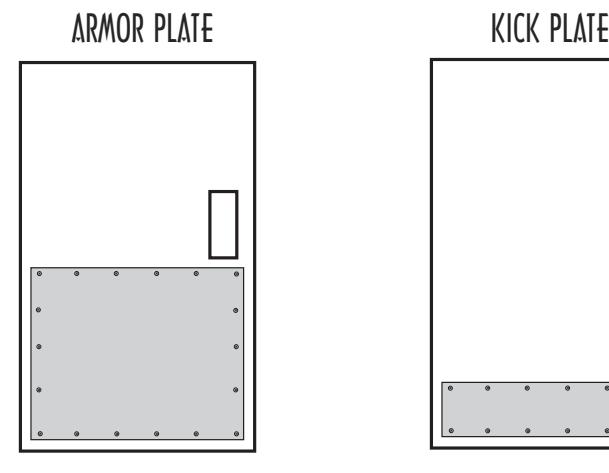

New WARNOCK HERSEY LISTED ARMOR PLATES Warnock Hersey
We now offer Armor Plates for fire rated 3 hour metal doors. Please specify prefix "WH" when ordering (i.e. WH-48" x 48"-630). Screw mount only. There is a $5.00 per plate additional charge.

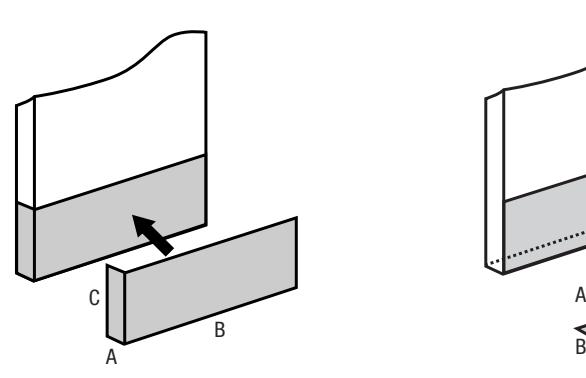

ANGLE PLATES
#1284 - Scotch Mount #1285 - Screw Mount
#1286 - Scotch Mount #1287 - Screw Mount
TWO-SIDE ONE-SIDE BOTTOM SIDE
#1288 - Scotch Mount #1289 - Screw Mount
ORDERING:
2 SIDES: PART # x A (Leg Width) x B (Door Width) x C (Leg Width) x D (Height) x Finish
ONE SIDE: PART # x A (Leg Width) x B (Door Width) x C (Height) x Finish BOTTOM SIDE: PART # x A (Height) x B (Bottom Width) x C (Door Width) x Finish
MATERIAL: .050" Thick Aluminum, Brass, Bronze, Stainless Steel
FASTENER: #6 x 5/8 FH SMS
FINISHES: Available in standard architectural finishes, prime painted steel

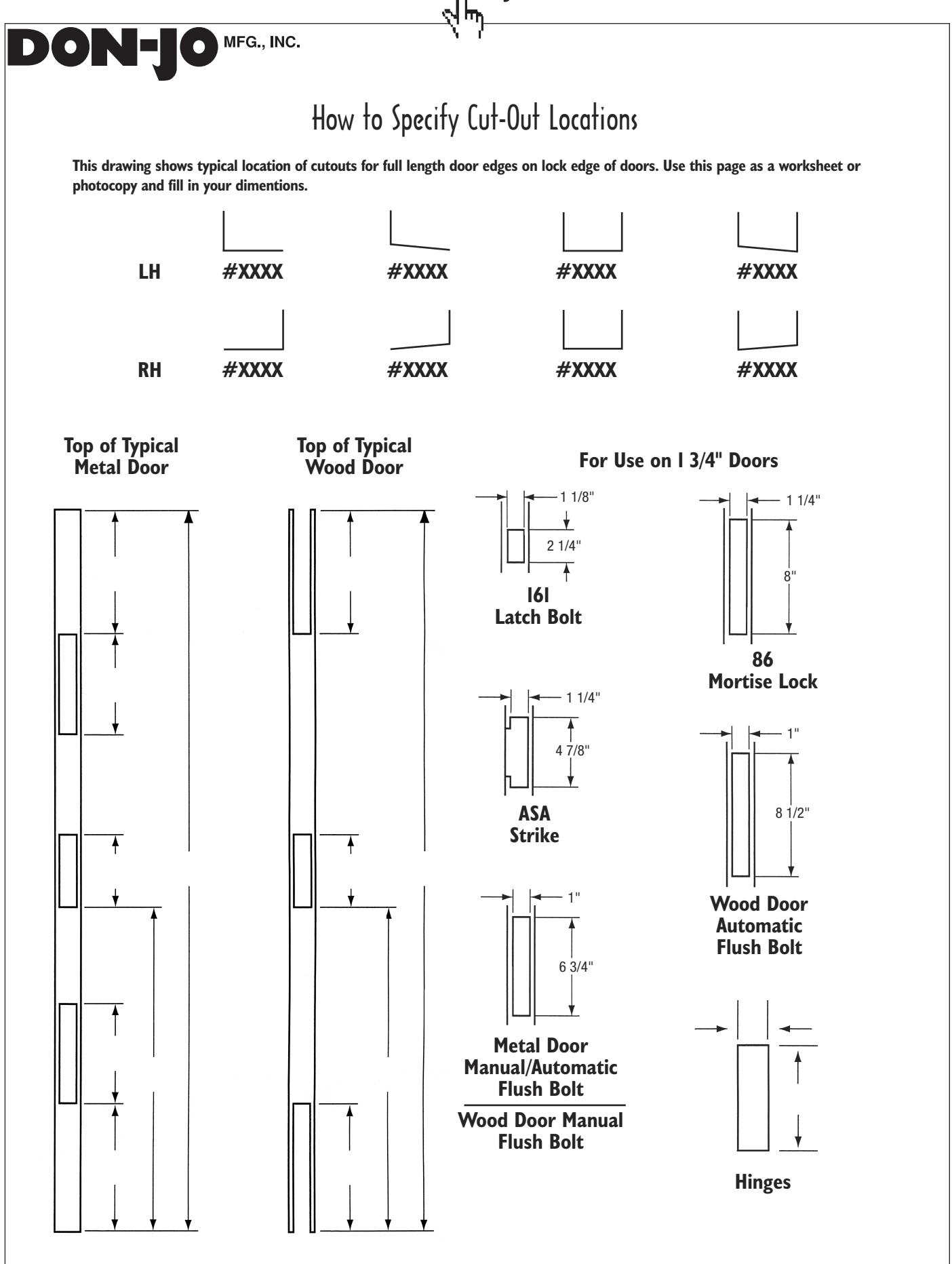

OPTIONS: Cutouts for flush bolts, lock strikes, locks, and hinges (see worksheet on page 4a for details
on how to order.)

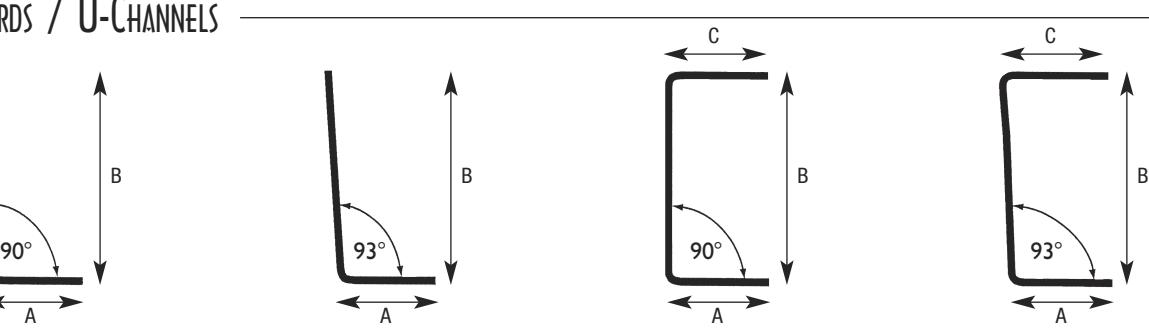

CORNER GUARDS / U-CHANNELS
#1290 - Scotch Mount #1295 - Screw Mount ANSI 156.6 - J204
B
#1292 - Scotch Mount #1293 - Screw Mount ANSI 156.6 - J205
#1298 - Scotch Mount #1299 - Screw Mount ANSI 156.6 - J210
#1294 - Scotch Mount #1297 - Screw Mount ANSI 156.6 - J211
ORDERING:
CORNER GUARDS: PART # x A x B x HEIGHT U-CHANNELS: PART # x A x B x C x HEIGHT
MATERIAL: .050" Thick Aluminum, Brass, Bronze, Stainless Steel
FASTENER: #6 x 5/8 FH SMS
FINISHES: Available in standard architectural finishes, prime painted steel
OPTIONS: • Cutouts for flush bolts, lock strikes, locks, and hinges (see worksheet on page 4a)
• 10° return on legs available upon request

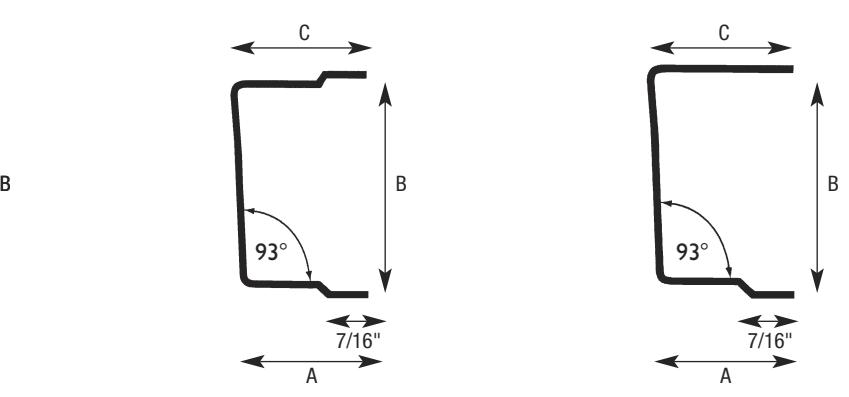

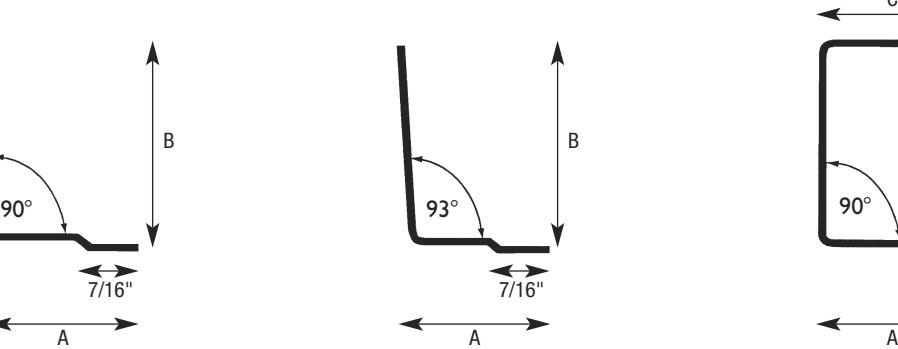

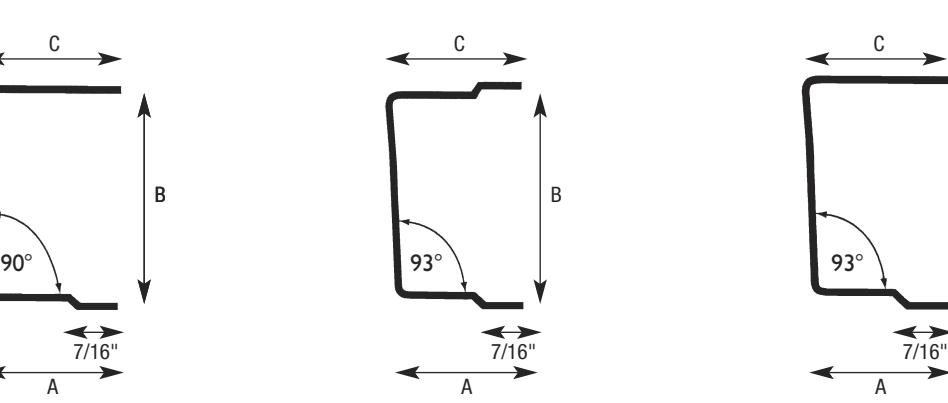

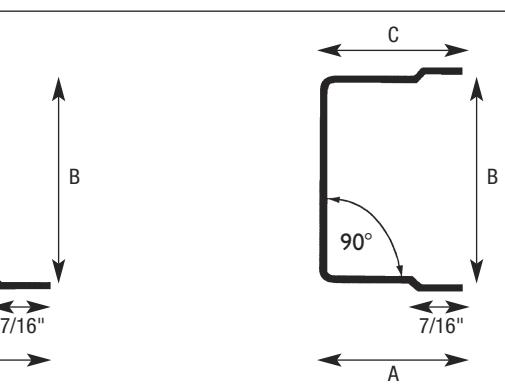

OVERLAPPING CORNER GUARDS / U-CHANNELS
#1310 - Scotch Mount #1311 - Screw Mount ANSI 156.6 - J201
#1312 - Scotch Mount #1313 - Screw Mount ANSI 156.6 - J202
#1314 - Scotch Mount #1315 - Screw Mount ANSI 156.6 - J207
#1316 - Scotch Mount #1317 - Screw Mount ANSI 156.6 - J207
#1318 - Scotch Mount #1319 - Screw Mount ANSI 156.6 - J208
#1320 - Scotch Mount #1321 - Screw Mount ANSI 156.6 - J208
ORDERING:
CORNER GUARDS: PART # / A x B x HEIGHT U-CHANNELS: PART # / A x B x C x HEIGHT
OVERLAPPING OFFSET: 1/16"
MATERIAL: .050" Thick Aluminum, Brass, Bronze, Stainless Steel
FASTENER: #6 x 5/8 FH SMS
FINISHES: Available in standard architectural finishes, prime painted steel
OPTIONS: • Cutouts for flush bolts, lock strikes, locks, and hinges (see worksheet on page 4a)
• 10° return available upon request
www.don-jo.com
info@don-jo.com • 1.800.628.8389 • 1.800.278.8202 fax
CORNER GUARDS TAPE MOUNT
| NUMBER | DIMENSIONS | MATERIAL |
|---|---|---|
| 1290-630 | 1.5" x 1.5" x 42" | Stainless steel |
| 1290-630 | 1.5" x 1.5" x 48" | Stainless steel |
| 1290-630 | 2" x 2" x 42" | Stainless steel |
| 1290-630 | 2" x 2" x 48" | Stainless steel |
SHELF PACK: Box Pack GAUGE: .050 Stainless Steel FASTENERS: Scotch Mount Tape
FEATURES: Furnished with grain running vertical
Beveled 4 edges
FINISH: 630

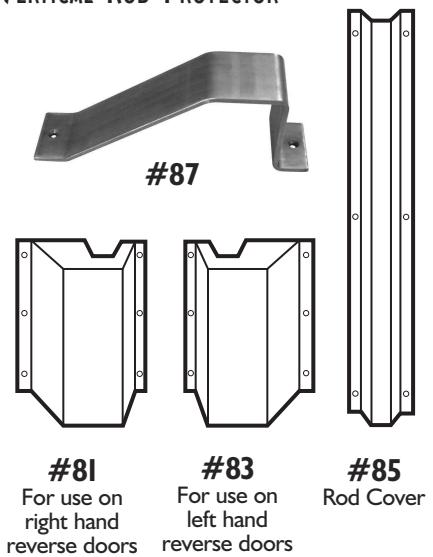

VERTICAL ROD PROTECTOR
| NUMBER | DESCRIPTION | WIDTH | HEIGHT |
NUMBER
PROJECTION |
FASTENER
MATERIAL |
|---|---|---|---|---|---|
| 81 | Latch bolt cover | 6 3/4" | 10" | 2 1/8" | Stainless steel |
| 83 | Latch bolt cover | 6 3/4" | 10" | 2 1/8" | Stainless steel |
| 85 | Rod cover | 3 1/8" | 24" | 1 1/8" | Stainless steel |
| 87 | Protection Bar | 3 1/4" | 8 3/4" | 2" | Stainless steel |
SHELF PACK: 1 Box Pack
GAUGE: 18 (.050)
(87): 7
FASTENERS: #6 X 3/4"
FEATURES: • Assist in handicap conformance
• Use in hospitals, schools, etc.
• Installs on any type of wood, metal or plastic door, any thickness. Covers the latching bolt and lower portion of the vertical rod assembly.
FINISH: 630

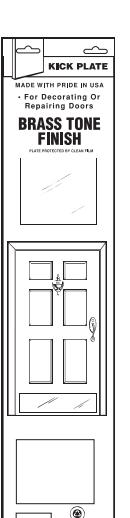

DISPLAY PACKAGED KICK PLATES
Innovative packaging includes an outer corrugation that insures the inner package will remain fresh for display. Package allows for hanging or stacking.
- • Furnished with grain or satin finish running horizontally to door
- • Finishes: 605, 628, 630, Brass Tone (BT)
- • Individually packaged with screws #6 x 5/8 SMS
- • Full threaded to the head stainless steel sheet metal screws with plated finish
| NUMBER | DIMENSIONS |
|---|---|
| KP-628 | 6" x 28" |
| KP-630 | 6" x 30" |
| KP-632 | 6" x 32" |
| KP-634 | 6" x 34" |
| KP-828 | 8" x 28" |
| KP-830 | 8" x 30" |
| KP-832 | 8" x 32" |
| KP-834 | 8" x 34" |
SHELF PACK: 1
Display Packaged Size - 8 1/4" x 38 1/2"
www.don-jo.com
RANGE SHIELDS
| NUMBER | DIMENSIONS |
|---|---|
| RS2430 | 24" x 30" |
SHELF PACK: 4 Box Pack
GAUGE: 22 (.032) FASTENERS: #6 x 5/8" SMS RS2430 FINISHES: White, Almond
DON-JO posters available for you and your customers to display in your show room. Contact DON-JO for posters and details.
