View PDFARCHITECTURAL HARDWARE & ACCESSORIES
DOOR PIVOTS
DON-JO MFG., INC. P.O. Box 929 Sterling, MA 01564
PHONE: 978.422.3377 FAX: 978.422.3467 WATS: 800.628.8389 WATS FAX: 800.278.8202
WEB: www.don-jo.com E-mail: info@don-jo.com Section L, Version 1
www.don-jo.com
INDEX
| Item# | Page# | Item# | Page# |
|---|---|---|---|
| BP-1-34-LHR2L | IP-34-RHR | 1L | |
| BP-1-34-RHR | 2L | TP-34 | 1L |
|
BP-2-34
3L |
PS-13L | ||
| E8WIP-34-LHR2L | PS-24L | ||
| E8WIP-34-RHR2L | PS-34L | ||
| IP-34-LHR1L | PS-45L |
DON-JO PIVOT CROSS REFERENCE CHART
|
DON-JO
# |
ABH | RIXSON | IVES | DORMA |
|---|---|---|---|---|
| TP-34 | 0180 | 180/H180 | 75120 | |
| IP-34 | 019 | M19/M190 |
7215
INT |
75220 |
| E8WIP-34 | E019 | EM19 | ||
| BP-1-34 | ||||
| BP-2-34 | ||||
| PS-1 | 0195 | 195 | 7215 | OPJ350 |
| PS-2 | 0147 | 147 | ||
| PS-3 | ||||
| PS-4 |

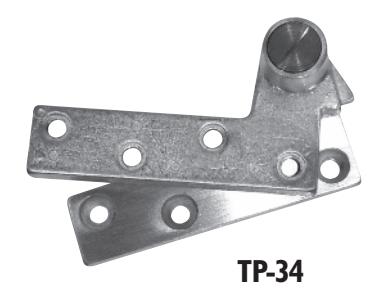

TOP PIVOT
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| TP-34 |
4
1/4" x 1 1/16" |
3/4" | 1/4" | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
FEATURES: • Can be used on exterior and interior doors
• Can be used w/ intermediate and bottom pivots
• Non-handed
• For doors up to 600lbs
SHELF PACK: 1 per box w/ screws
FASTENERS: 8 ea Wood Screws
8 ea Machine Screws
FINISHES: 605, 606, 612, 613, 626
INTERMEDIATE PIVOT
IP-34-LHR IP-34-RHR
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| IP-34-LHR |
5"
x 4 1/4" |
3/4" | 5/16" | CO7321 | Non-Ferrous |
| IP-34-RHR |
5"
x 4 1/4" |
3/4" | 5/16" | CO7321 | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
FEATURES: • Can be used on exterior and interior doors
• Can be used w/ top and bottom pivots
• Units are handed
• Not load bearing
• Maintains door alignment and aids in installing bottom pivots
• Doors 60" to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
• Vertical adjustment up to 3/16"
SHELF PACK: 1 per box w/ screws
Fasteners: 8 ea Wood Screws
8 ea Machine Screws
FINISHES: 605, 606, 612, 613, 626
© Don-Jo Mfg. 2015 1L

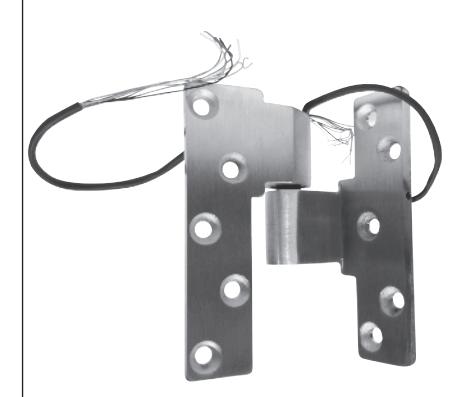

ELECTRIFIED INTERMEDIATE PIVOT
E8WIP-34-LHR E8WIP-34-RHR
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| E8WIP-34-LHR |
5"
x 4 1/4" |
3/4" | 5/16" | CO7321 | Non-Ferrous |
| E8WIP-34-RHR |
5"
x 4 1/4" |
3/4" | 5/16" | CO7321 | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
Features: • 8, 28 gauge wires
• Can be used on exterior and interior doors • Can be used w/ top and bottom pivots
• Units are handed
• Not load bearing
• Maintains door alignment and aids in installing bottom pivots • Doors 60" to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
• Vertical adjustment up to 3/16"
Shelf pack: 1 per box w/ screws
Fasteners: 8 ea Wood Screws
8 ea Machine Screws
Finishes: 605, 606, 612, 613, 626
BOTTOM PIVOT
BP-I-34-LHR BP-I-34-RHR
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| BP-1-34-LHR |
5
1/2" x 4 3/4" |
3/4" | 11/32" | Non-Ferrous | |
| BP-1-34-RHR |
5-1/2"
x 4 3/4" |
3/4" | 11/32" | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
Features: • Can be used on exterior and interior doors
• Can be used w/ top and intermediate pivots
• Units are handed
• For doors up to 600lbs
• Suitable for door sizes up to 4'0" to 8'0" • Bottom pivot mortised into side jamb
• Vertical adjustment up to 3/16"
Shelf pack: 1 per box w/ screws
Fasteners: 8 ea Wood Screws
8 ea Machine Screws
BOTTOM PIVOT
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| BP-2-34 |
8
7/16" x 1 3/16" |
3/4" | 3/8" | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
Features: • Can be used on exterior and interior doors
• Can be used w/ top and intermediate pivots
• Units are non-handed
• For doors up to 600lbs
• Heel edge of door must be beveled
• Vertical height adjustment and will accommodate
3/16" to 3/4" door clearance
Shelf pack: 1 per box w/ screws
Fasteners: 9 ea Machine Screws, 1/4-20 X 3/4" FPHMS
3 ea Lead Expansion Shied anchors
Finishes: 605, 606, 612, 613, 626

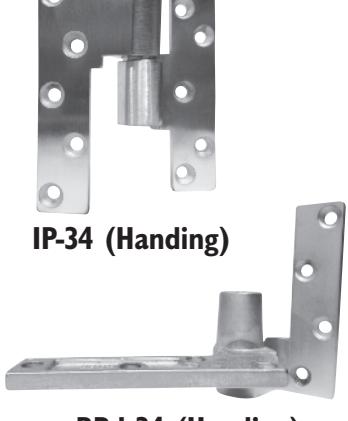

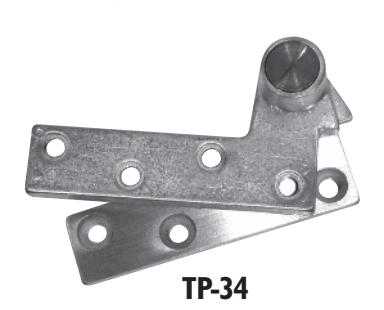

PIVOT SETS
Part# PS-1-(Handing), contains one each of the following:
TP-34
BP-1-34 (Handing)

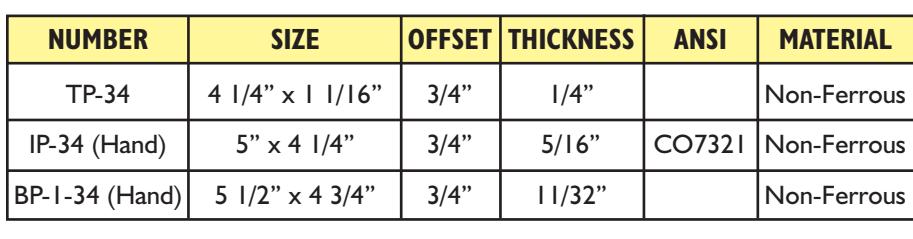

| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| TP-34 |
4
1/4" x 1 1/16" |
3/4" | 1/4" | Non-Ferrous | |
|
BP-1-34
(Hand) |
5
1/2" x 4 3/4" |
3/4" | 11/32" | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
Features: • Can be used on exterior and interior doors
• Can be used w/ intermediate pivots
• Units are handed
• For doors up to 600lbs
• Suitable for door sizes up to 4'0" to 8'0"
• Bottom pivot mortised into side jamb
• Vertical adjustment up to 3/16"
Shelf pack: 1 per box w/ screws
Fasteners: 16 ea Wood Screws
16 ea Screws
PIVOT SETS
Part# PS-2, contains one each of the following:
BP-2-34
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| TP-34 |
4
1/4" x 1 1/16" |
3/4" | 1/4" | Non-Ferrous | |
| BP-2-34 |
8
7/16" x 1 3/16" |
3/4" | 3/8" | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
Features: • Can be used on exterior and interior doors
• Can be used w/ intermediate pivots
• Units are non-handed
• For doors up to 600lbs
• Heel edge of door must be beveled
• Vertical height adjustment and will accommodate 3/16" to 3/4" door clearance
Shelf pack: 1 per box w/ screws
Fasteners: 8 ea Wood Screws
8 ea Machine Screws
9 ea Machine Screws, 1/4-20 X 3/4" FPHMS 3 ea Lead Expansion Shied anchors
Finishes: 605, 606, 612, 613, 626
Part# PS-3-(Handing), contains one each of the following:
*For medium and heavy wood and metal doors in high traffic areas
Features: • Can be used on exterior and interior doors
• Units are handed
• For doors up to 600lbs
• Maintains door alignment and aids in installing bottom pivots
• doors 60" to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
• Vertical adjustment up to 3/16"
• Suitable for door sizes up to 4'0" to 8'0"
• Bottom pivot mortised into side jamb
• Vertical adjustment up to 3/16"
Shelf pack: 1 per box w/ screws
Fasteners: 24 ea Wood Screws
24 ea Machine Screws
BP-1-34 (Handing)
PIVOT SETS
PART# PS-4-(Handing), contains one each of the following:
| NUMBER | SIZE | OFFSET | THICKNESS | ANSI | MATERIAL |
|---|---|---|---|---|---|
| TP-34 |
4
1/4" x 1 1/16" |
3/4" | 1/4" | Non-Ferrous | |
|
IP-34
(Hand) |
5"
x 4 1/4" |
3/4" | 5/16" | CO7321 | Non-Ferrous |
| BP-2-34 |
8
7/16" x 1 3/16" |
3/4" | 3/8" | Non-Ferrous |
*For medium and heavy wood and metal doors in high traffic areas
-
Features: • Can be used on exterior and interior doors
- • Units are handed
-
- • For doors up to 600lbs
- • Maintains door alignment and aids in installing bottom pivots
- • Doors 60" to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot.
- • Vertical adjustment up to 3/16"
- • Heel edge of door must be beveled
- • Vertical height adjustment and will accommodate 3/16" to 3/4" door clearance
Shelf pack: 1 per box w/ screws
Fasteners: 16 ea Wood Screws
16 ea Machine Screws
9 ea Machine Screws, 1/4-20 X 3/4" FPHMS
3 ea Lead Expansion Shied anchors
BP-2-34
IP-34 (Handing)
