COORDINATORS SERIES —

PART #	DOOR FRAME OPENING	COORDINATOR SIZE	FILLER BAR SIZE	ANSI AI56.3	MATERIAL
2011	52" or less	I 5/8" x 32"	I 5/8" x 25"	Туре 21	Aluminum
2012	52 I/I6" to 56"	I 5/8" x 32"	I 5/8" x 32"	Type 21	Aluminum
2021	56 I/I6" to 72"	I 5/8" x 52"	I 5/8" x 20"	Type 21	Aluminum
2022	72 I/I6" to 84"	I 5/8" x 52"	I 5/8" x 32"	Type 21	Aluminum
2023	84 I/I6" to 96"	I 5/8" x 52"	I 5/8" x 44"	Type 21	Aluminum
2033	96 I/I6" to 104"	I 5/8" x 60"	I 5/8" x 44"	Type 21	Aluminum
	over 104"	Call Factory

SHELF PACK: I

Box Pack

FASTENERS: 8 ea. #12-24 x I 1/4" MS, 6 ea. #8 x 3/4" Combo Screw FEATURES:

For use on pair of doors when one door must close before the other
Safety override allows active door to close first when extreme force applied
Filler bar available when coordinator does not fill entire length of opening
Mounting brackets available when stop mounted hardware used

FINISH: 628 (2021 also available in Dark Brown DB)

Universal Coordinator

NUMBER	SIZE	ANSI AI56.3	MATERIAL
2040	20 I/4" x I 5/8"	Type 21	Steel

SHELF PACK: I Box Pack

FASTENERS: 6 ea. #10-32 x 1 1/2" MS, 6 ea. #10 x 1 3/4" SMS FEATURES: • One size for all pairs of doors up to 8' wide

Non-handedStop mounted
Meets ANSI 156.3, Type 2I requirements (when used with carry bar)
Mounting brackets not required when using stop mounted hardware

FINISH: 622

MOUNTING BRACKETS -

NUMBER	NUMBER STOP WIDTH		MATERIAL

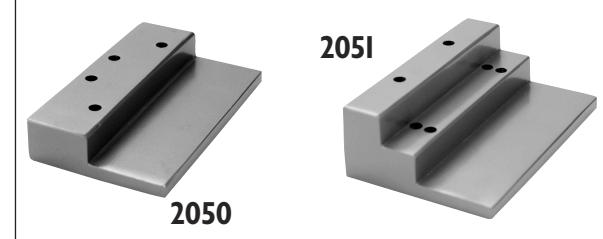

2050	over 2 I/2"	5" x 3"	Aluminum
2051	under 2 I/2"	5" x 3 1/4"	Aluminum

SHELF PACK: I Box Pack FASTENERS: (2050) 4 ea. #10-32 X | 1/2" M/S

(2051) 6 ea. #10-32 X I I/2" M/S

FEATURES: • For stop mounted hardware

• Ready to paint aluminum, plated finishes available

FINISH: 628

CARRY BAR

NUMBER	SIZE	MATERIAL
2060	4 1/4" x 1 5/8"	Steel

SHELF PACK: 1 Box Pack

FASTENERS: 3 ea. #10-32 x 1" MS, 3 ea. #10-32 x 1 9/16" Sex Nut

FEATURES: • For pair of doors, where inactive door can be opened before active door

• Mounted on inactive door

FINISH: 622

GRAVITY COORDINATOR

SHELF PACK: 1 Box Pack

FASTENERS: 2 ea. #12 x 1" SMS, 5 ea. #6 x 3/4" SMS

FEATURES: • Drop arm type

• Adjustable

• Field reversible

FINISH: 626

HEAVY-DUTY CRASH CHAINS

NUMBER	SIZE	ANSI A156.3	MATERIAL
HDCC-2012	20 1/2"	LB2231	Steel
HDCC-2512	25 1/2"	LB2231	Steel
HDCC-3012	30 1/2"	LB2231	Steel

SHELF PACK: 10 Polybagged

FASTENERS: 8 ea. #10 x 1" SMS FEATURE: Gray Vinyl Cover

FINISH: 626

OPTION: Available with thru bolts, Contact factory

www.don-jo.com

CONCEALED STOP

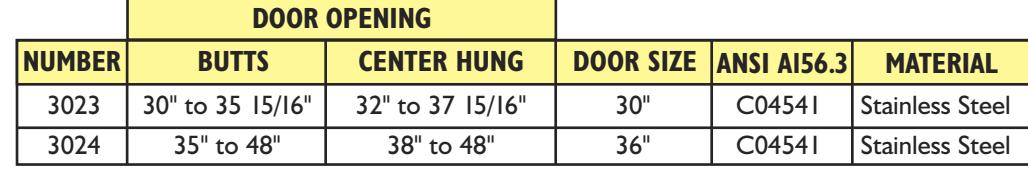

3023 3024

SHELF PACK: 1 Box Pack

FASTENERS: 2 ea. #10 x 1 1/2" MS, 4 ea. #10-32 x 1/2" MS, 4 ea. #10 x 1 1/2" WS

FEATURES: • Non Handed Medium-duty overhead stop

• For interior door, single or double acting

FINISH: 630

SURFACE STOP

3123 3124

	DOOR	OPENING
NUMBER	BUTTS	CENTER HUNG	NUMBER DOOR SIZE	FASTENER ANSI A156.3	MATERIAL
3123	30" to 35 15/16"	33-1/2" to 38 15/16"	30"	C05541	Stainless Steel
3124	36" to 48"	39" to 48"	36"	C05541	Stainless Steel

SHELF PACK: 1 Box Pack

FASTENERS: 2 ea. #10 x 1 1/2" MS, 4 ea. #10-32 x 1/2" MS,

4 ea. #10 x 1 1/2" WS, 2 ea. #10-32 x 1 9/16" Sex Nut

FEATURES: • Non Handed Medium-Duty overhead stop

• For interior door, single acting

FINISH: 630

SURFACE HOLDER

3212 35" to 40 15/16" 38 1/2" to 44 3/16" C08511 Stainless Steel NUMBER BUTTS CENTER HUNG ANSI A156.3 MATERIAL DOOR OPENING

3212

SHELF PACK: 1 Box Pack

FASTENERS: 4 ea. #14 x 1 1/2" WS, 4 ea. 1/4-20 x 3/4" MS, 3 ea. 1/4-20 x 3/4" truss MS,

3 ea. 1/4-20 grommet nut

FEATURES: • Heavy-duty overhead door holder

• For exterior, vestibule and interior doors, single acting

FINISH: 630

www.don-jo.com

SURFACE STOP

® US

	DOOR	OPENING
NUMBER	BUTTS	CENTER HUNG	NUMBER DOOR SIZE	ANSI A156.3	FASTENER MATERIAL
3323	32" to 35 15/16"	36" to 38 15/16"	30"	C02541	Stainless Steel
3324	36" to 39 15/16"	39" to 40 15/16"	36"	C02541	Stainless Steel

SHELF PACK: 1 Box Pack

FASTENERS: ( 3323, 3324 ) 2 ea. 5/16-18 x 2" MS, 4 ea. 1/4-20 x 3/4" MS,

4 ea. 1/4 x 1 1/2" WS, 2 ea. 5/16-18 x 1 1/2" Set Nut

FEATURES: • Non Handed Heavy-duty overhead door stop

• For exterior, vestibule or interior doors, single acting

FINISH: 630

HOSPITAL LATCH

4500 4550

NUMBER	BACK SET	SIZE	MATERIAL
		Body: 4 1/2" x 2 3/4"	Brass
		Latch: 2 1/4" x 1 1/4"	Brass
4500		2 3/4" ASA Strike: 1 1/4" x 4 7/8"
		"T" Strike: 1 1/8" x 2 3/4"	Brass
4550		Body: 4 1/2" x 2 3/4"	Brass
		Latch: 2 1/4" x 1 1/4"	Brass Brass
	5"	ASA Strike: 1 1/4" x 4 7/8"	Brass
		"T" Strike: 1 1/8" x 2 3/4"	Brass

SHELF PACK: 1 Box Pack

FASTENERS: • 4 ea. 1/4-20 x 2 3/8" MS, 8 ea. #8-32 x 3/8" MS,

2 ea. #6 x 3/4" WS, 4 ea. 1/4-20 Nut w/nylon washer

FEATURES: • Push/pull latch can be mounted with the handles up, down or horizontal without any modification.
- • UL listed for all fire doors.•Meets ADA requirements
- • Works with 1 3/4 doors
- • Packed with ANSI strike and T strike as standard
- • Lever projection 3 1/4"
- • Bolt 1/2" throw with anti-friction nylon insert
- • Non-handed ( except for engraved models ).
