ARCHITECTURAL HARDWARE & ACCESSORIES

DON-JO MFG., INC. P.O. Box 929 Sterling, MA 01564

PHONE: 978.422.3377 FAX: 978.422.3467 WATS: 800.628.8389 WATS FAX: 800.278.8202

WEB: www.don-jo.com E-mail: info@don-jo.com Section J, Version 1

INDEX

Item# Page#	Item#	Page#	Item#	Page#	Item#	Page#
104 6j	1611	6j	PBDSP-1351j			RP-135452j
106 6j 125 5j	1613 AP-34	6j 3j	PBSP-1351j PDL-1001j		RP-13545-2 RP-26AD	2j 2j
130 4j 135 4j	BN-46j BN-66j		PDL-1011j RHP-100	4j	RP-26CO	2j RPE2000-142j
3004j 302 4j	CC-1005j CHP-100	4j	RP-14-2 RP-152j	2j	RPK-109 SP-135	2j 1j
3044j 350 6j	DSP-1351j DV-90	3j	RP-182j RP-27	2j	ULDV-90 ULDV-180	3j 3j
1590 4j 1603 3j	DV-180 DVC3j	3j	RP-135092j RP-13509-2	2j		WB-1124j WP-343j
1604 3j 1607 3j	EM-2 EM-45j	5j	RP-13515 RP-13515-2	2j 2j

FASTENERS

Product	Fastening Type
PDL-100, PDL-101	2 ea. #6 x 1" OHSMS, 2 ea. #6 x 1/2" OHSMS
RP-13509, RP-13509-2, RP-13515, RP-13515-2, RP-13545, RP-13545-2, RP-14-2, RP-15, RP-18, RP-27, RP-28, RP-109	4 ea. #8 x 3/4" Truss Head SMS
130, 135	3 ea. #10 x 1 1/2" SMS
1603, 1604	2 ea. #6 x 3/4" SMS, 2 ea. #8 x 1" SMS
1607	6 ea. #8 x 1" SMS
1590	4 ea. #5 x 3/4" SMS
300, 302	2 ea. #6 x 5/8" SMS
EM-2, EM-4	4 ea. #8 x 3/4" Truss Head SMS
CC-100	4 ea. #8 x 3/4" SMS
104, 106	2 ea. #6 x 3/4" SMS
BN-4, BN-6	2 ea. #8 x 1" SMS
1611, 1613	2 ea. #8-32 x 2" SMS
350	2 ea. #6 x 5/8" SMS

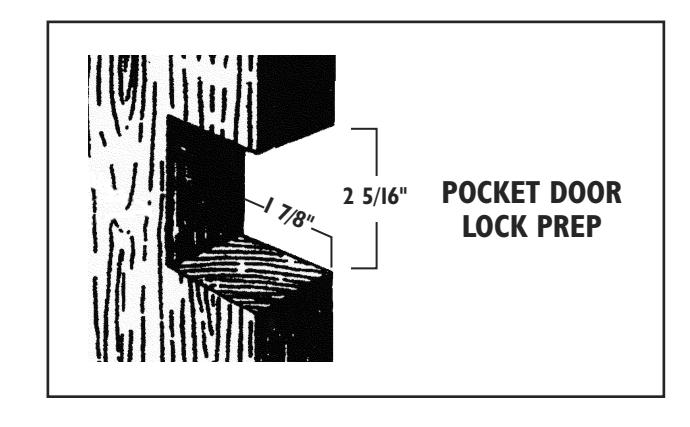

POCKET DOOR LOCKS

NUMBER	DIMENSIONS	ANSI

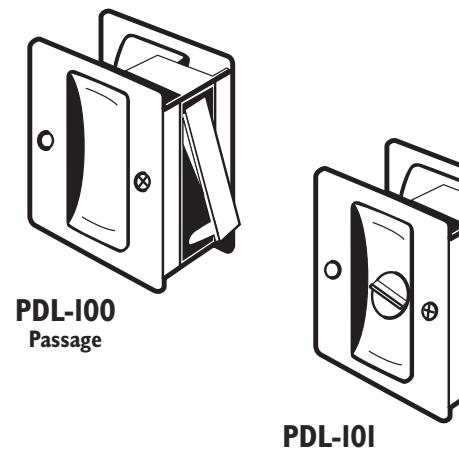

PDL-100	2 1/2" x 2 3/4"	D0821
PDL-101	2 1/2" x 2 3/4"	D0831

SHELF PACK: 10 Box Pack

FEATURES: •Field Reversible

•Adjustable for various door thickness

•Includes pin & screws for 1 3/4" door width

FINISHES: 605, 609, 613, 619, 620, 622, 625, 626, 605x625

SCAR PLATES used to convert 2 3/8" to 2 3/4" backset

Privacy

SP-135 3 1/2" O.D - 2 1/8" I.D DSP-135 3 1/2" O.D. - 1 1/2" I.D PBSP-135 3 1/2" O.D - 2 1/8" I.D PBDSP-135 3 1/2" O.D. - 1 1/2" I.D NUMBER DIMENSIONS

SHELF PACK: 10 Display Package Size - 5 1/4" x 6 1/2"

FEATURES: • SP-135 fits under rose of key-in-knob

or deadbolt locks

• DSP-135 fits under deadbolt collars

• SPs & DSPs are display packed

• PBSPs & PBDSPs are polybagged

FINISHES: 605, 609, 612, 630

SAVE $!

Product available polybagged To order, add prefix "PB". (i.e., SP-135 will become PBSP-135)

www.don-jo.com

REMODELER PLATES for modernizing or decorating

RP-13509

RP-13509-2

RP-13515

RP-13515-2

RP-E2000-14

Kit Contains: (2) RP-13509 (1) CV-86-C & all fasteners

RP-13545 RPK-109 RP-13545-2

NUMBER	DIMENSIONS
RP-13509	3 1/2" x 9"
RP-13509-2	3 1/2" x 9"
RP-13515	3 1/2" x 15"
RP-13515-2	3 1/2" x 15"
RP-13545	3 1/2" x 4 1/2"
RP-13545-2	3 1/2" x 4 1/2"
RPK-109	3 1/2" x 9"
RPE2000-14	5" x 14"
RP-15	5" x 14"
RP-18	5" x 14"
RP-27	5" x 14"
RP-14-2	5" x 14"
RP-26AD	5" x 16"
RP-26CO	5" x 16"

SHELF PACK: 10 Polybagged

RPK-109 Display Packaged Size - 7 1/2" x 13"

GAUGE: .032 thick

FINISHES: ( RP-13509, RP-13509-2, RP-13545, RP-13545-2 )

605, 609, 612, 630

( RP-13515, RP-13515-2, RP-109, RPE2000-14, RP-15, RP-18, RP-27, RP-14-2 , RP-26AD, RP-26CO)

605, 630

RP-18 RP-15 RP-27 RP-14-2 RP-26AD RP-26CO

Door Viewers

Door Viewer Cover

Size: 7/8"

NUMBER VIEW DIMENS. ANSI DV-90 L21372 160 Degrees 180 Degrees L21371 DV-180 ULDV-90 160 Degrees L23222 ULDV-180 180 Degrees 123221 DVC

DV-90 ULDV-90 I/2" installation hole

DV-180 ULDV-180 9/I6" installation hole

SHELF PACK: (DV-90, DV-180, ULDV-90, UDV-180) 10 (DVC) 50

Polybagged

FEATURES:

• For doors I 3/8" to 2" thickness
• DV-90 and DV-180 with plastic lens
• ULDV-90 and ULDV-180 with glass lens are UL rated
• (DVC) Works with all Don-Jo viewers Mounts to door viewer with no special tools Works with other door viewers that require a

max. 9/16" installation hole FINISHES: 605, 626, (DVC) 605, 626

DOOR FLIP GUARDS

NUMBER	ANSI	MATERIAL

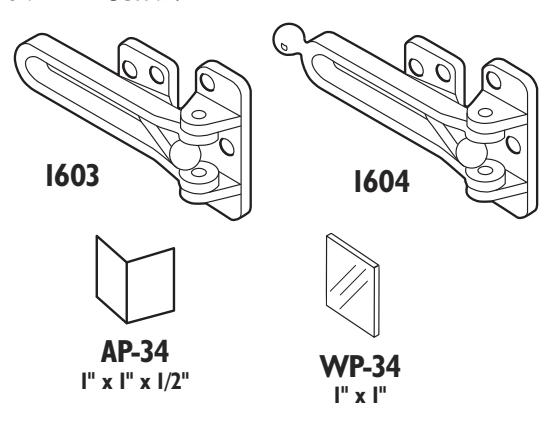

1603	L33042	Aluminum
1604	L13042	Brass
AP-34	-	-
WP-34	_	_

SHELF PACK: (1603, 1604) 10

Polybagged

(AP-34, WP-34) 100

FEATURES: • Black rubber shim available for 1603 and 1604

• AP-34 included with item 1604

• Both models feature Ball Bearing Design

FINISHES: (1603, 1604) 605, 606, 613, 625, 626 (AP-34) 605, 606, 625, 626 (WP-34) 605, 606, 625, 626, Clear

CHAIN GUARD

NUMBER	MATERIAL

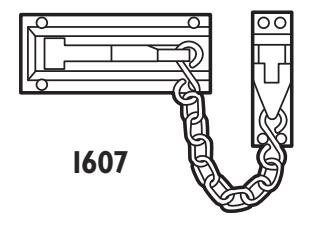

1607	Cast Brass

SHELF PACK: 20 Polybagged FINISHES: 605, 625, 626

www.don-jo.com

ELBOW CATCH

NUMBER	MATERIAL
1590	Cast

SHELF PACK: 10 Polybagged FINISHES: 605, 613, 625, 626

HANDRAIL BRACKETS

NUMBER	ANSI	MATERIAL

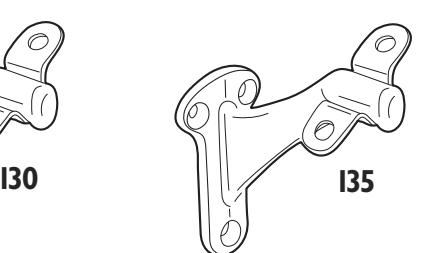

130	L33061	Cast Aluminum
135	L13061	Solid Brass

SHELF PACK: ( 130 ) 20, ( 135 ) 10 Polybagged

FEATURES: ( 130 ) Base 2 13/16" x 1 1/2" ( 135 ) Base 2 1/4" x 1 1/4"

FINISHES: ( 130 ) 605, 609, 613, 619, 620, 625, 626

( 135 ) 605, 613, 619, 620, 626

HINGE PINS/WINDOW BOLTS

WB-112

CHP-100 RHP-100

NUMBER	DIMENSIONS
CHP-100	#12 Head
RHP-100	#10 Head
WB-112	Contains: 8 Bolts, 4 Tools

SHELF PACK: ( CHP-100, RHP-100 ) 10 pack of 2 each Polybagged

( WB-112 ) 10

FINISHES: ( CHP-100, RHP-100 ) BP (Brass Plated), CP (Chrome Plated)

( WB-112 ) ZINC

COAT HOOKS

NUMBER	MATERIAL

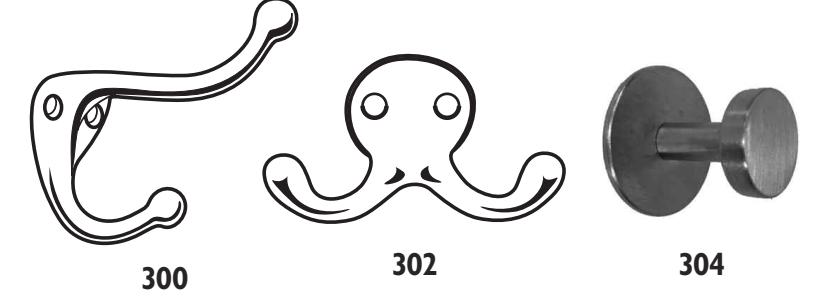

300	Die Cast
302	Die Cast
304	Brass

SHELF PACK: ( 300, 302 ) 20 Polybagged

( 304 ) 10

FINISHES: ( 300, 302 ) 605, 613, 619, 620, 625, 626

( 304 ) 626

FINGER PULL

NUMBER	DIMENSIONS	MATERIAL
125	2 1/8"	Zinc

SHELF PACK: 50 Polybagged FINISHES: 605, 609, 613, 619, 620, 625, 626, Black

SCAR PLATE for door damaged by prying

NUMBER	DIMENSIONS
EM-2	9" x 4" x 2 3/8"
EM-4	9" x 4 1/4" x 2 3/4"

SHELF PACK: 10 Polybagged

FEATURES: • Fits one side of door with curved lip

• Fits under key-in-knob

FINISHES: 605, 630

CRASH CHAIN

NUMBER	LENGTH

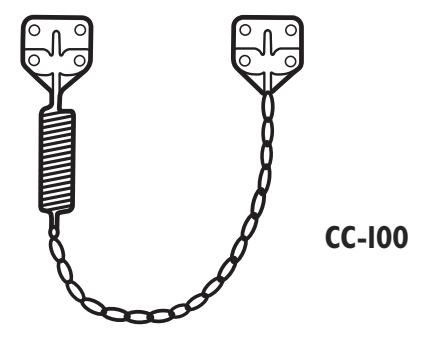

CC-100	21 3/4"

SHELF PACK: 20 Polybagged FEATURE: Vinyl Cover FINISH: Zinc

www.don-jo.com

EDGE PULLS

NUMBER	DIMENSIONS

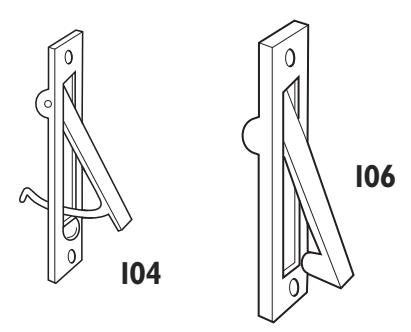

104	3 7/8" x 3/4"
106	6" x 1 1/4"

SHELF PACK: 10 Polybagged FINISHES: 605, 613, 619, 620, 626

WINDOW LOCK

	DIMENSIONS
NUMBER	BASE	STRIKE	MATERIAL
350	15/16" x 2 5/8"	5/8" x 2 5/8"	Steel

SHELF PACK: 10 Polybagged FINISHES: 605, 613, 619, 626

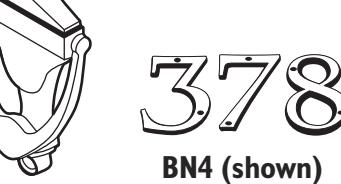

NUMBERS/DOOR KNOCKERS

How to Order: eg: BN4-2-605

- BN6

NUMBER	DIMENSIONS	ANSI
1611	6 7/8" x 3 1/2"	L13151
1613	3 7/8" x 2 1/4"	L13151
BN4	4"	–
BN6	6"	–

SHELF PACK: 10 Polybagged

FEATURE: Forged Brass

FINISH: 605
