Deadbolt solutions
Featuring drive-in deadbolts for hollow metal doors
Overview
Dexter Commercial Hardware® provides you with affordable product solutions for locks, exits and closers for price sensitive projects.
Value priced deadbolt options to suit your needs

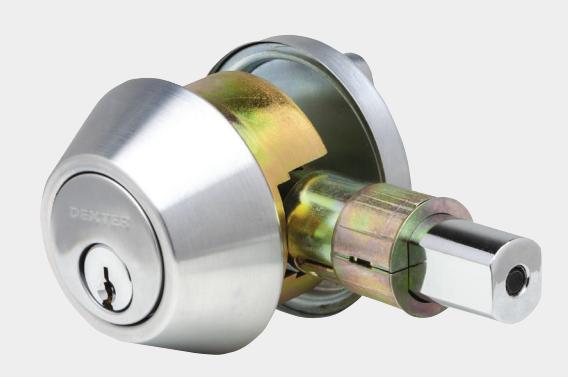

The new, grade 2 drive-in deadbolt is the latest in the Dexter line of quality products offered at a competitive price point. It provides "one-box" flexibility on the job, featuring an adjustable universal latchbolt backset length and both drive-in style collar for metal door applications and square corner faceplate for wood doors. Like all Dexter deadbolts, they come standard with keyed different, 6-pin cylinders in the Schlage C keyway. A drive-in latchbolt conversion kit is also available for use on any DB1000 Series deadbolt.
Grade 1
- + Meets or exceeds 1 million cycle testing
- + integrated anti-pry shield for added security and quicker installation
Grade 2
- + Meets or exceeds 400,000 cycle testing
- + Removable anti-pry shield
- + Grade 2 drive-in includes drive-in style collar and standard faceplate
Shared features
- § UL listed for use as auxiliary locks on 3-hour fire doors
- § Universal latch adjusts from 2 3⁄8" to 2 3⁄4" backset
- § Tapered front resists wrenching
- § 1" throw stainless steel 5⁄8" x 3⁄4" deadbolt
- § 1 3⁄8" 1 3⁄4" standard cylinder door range
- § 1 5⁄8" 2" SFIC door range
- § Conventional 6-pin cylinder in Schlage C keyway (standard) with less SFIC cylinder option
- § 1 1 ⁄8" x 2 3⁄4" lipless strike
- § ADA compliant thumb turn on single cylinder models
- § 5-year limited warranty
Grade 1 deadbolts
| Product | Finish | Cylinder | Function | List price |
|---|---|---|---|---|
| DB1000-SCT-626-KDC | 626 | 6-pin, Schlage C, KD | $95.54 | |
| DB1000-SCT-626-SFIC | 626 | Less SFIC, 6- or 7-pin length | Single cylinder x Turn | |
| DB1000-SCT-613-KDC | 613 | 6-pin, Schlage C, KD | $107.01 | |
| DB1000-SCT-613-SFIC | 613 | Less SFIC, 6- or 7-pin length | Single cylinder x Turn | |
| DB1000-DCT-626-KDC | 626 | 6-pin, Schlage C, KD | $123.36 | |
| DB1000-DCT-626-SFIC | 626 | Less SFIC, 6- or 7-pin length | Double cylinder | |
| DB1000-DCT-613-KDC | 613 | 6-pin, Schlage C, KD | Double cylinder | $138.16 |
| DB1000-DCT-613-SFIC | 613 | Less SFIC, 6- or 7-pin length |
NEW! Grade 1 drive-in deadbolt conversion kits
| Product | Finish | Cylinder | Function | List price |
|---|---|---|---|---|
| DB2000-4WB-KIT-626 | 626 | N/A | Any | $15.00 |
| DB2000-4WB-KIT-613 | 613 | N/A | Any | $15.00 |
Please note: These kits do not fit DB2000 Series deadbolts.
Grade 2 deadbolts
| Product | Finish | Cylinder | Function | List price |
|---|---|---|---|---|
| DB2000-SCT-626-KDC | 626 | 6-pin, Schlage C, KD | $59.67 | |
| DB2000-SCT-626-SFIC | 626 | Less SFIC, 6- or 7-pin length | Single cylinder x Turn | |
| DB2000-SCT-605-KDC | 605 | 6-pin, Schlage C, KD | ||
| DB2000-SCT-605-SFIC | 605 | Less SFIC, 6- or 7-pin length | Single cylinder x Turn | $66.83 |
| DB2000-SCT-613-KDC | 613 | 6-pin, Schlage C, KD | ||
| DB2000-SCT-613-SFIC | 613 | Less SFIC, 6- or 7-pin length | ||
| DB2000-DCT-626-KDC | 626 | 6-pin, Schlage C, KD | $77.24 | |
| DB2000-DCT-626-SFIC | 626 | Less SFIC, 6- or 7-pin length | Double cylinder | |
| DB2000-DCT-605-KDC | 605 | 6-pin, Schlage C, KD | ||
| DB2000-DCT-605-SFIC | 605 | Less SFIC, 6- or 7-pin length | $86.52 | |
| DB2000-DCT-613-KDC | 613 | 6-pin, Schlage C, KD | Double cylinder | |
| DB2000-DCT-613-SFIC | 613 | Less SFIC, 6- or 7-pin length |
NEW! Grade 2 drive-in deadbolts
| Product | Finish | Cylinder | Function | List price |
|---|---|---|---|---|
| DB2000-4WB-SCT-626-KDC | 626 | 6-pin, Schlage C, KD | Single cylinder x Turn | $70.00 |
| DB2000-4WB-SCT-613-KDC | 613 | 6-pin, Schlage C, KD | Single cylinder x Turn | $77.00 |
