Cylindrical locks and deadbolts

2 • Dexter • Full line catalog

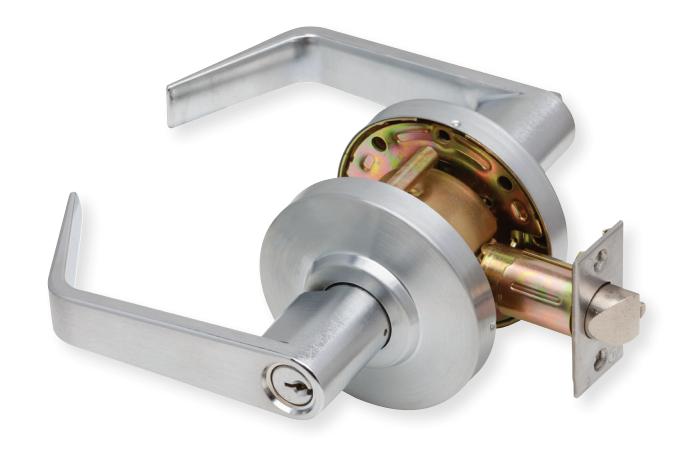

C1000 Series

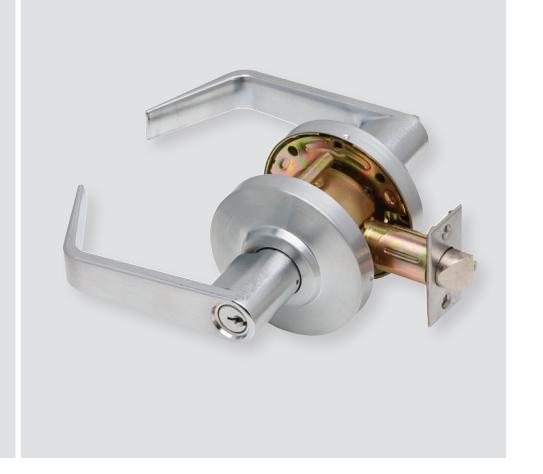

Grade 1 cylindrical locks

Specifications

  • Grade 1, UL listed 3-hour
  • 1<sup>3</sup>/<sub>8</sub>" to 2" door range standard
  • All functions include 1 1/8" x 2 1/4" square-corner beveled latch with 2 3/4" backset and ANSI 1^{1}/_{4} " x 4 ^{7}/_{8} " curved lip strike
  • Accommodates Schlage conventional 6-pin (keyed 6) cylinders in Schlage C keyway, keyed different
  • Accommodates SFIC to accept 6-pin/7-pin

How to order

Prod uct nu mber Trim Keying
1 2 3 4 5
Series Function Design Finish Cylinder
C1000 - PASS С - 626 -
C1000 - CLRM - R - 613 - SFIC
Grade 1 cylindrical locks Trim Keying
Series Function a and lever features Designs Finishes Cylinders
PASS F75 Passage (non-clutching) R = Regular 613 N/A
PRIV F76 Privacy (non-clutching) C = Curved 626 IN/A
ENTR F109 Entry/office (clutching)
NC-ENTR F109 Entry/office (non-clutching) 612 KDC = Conventional
C1000 CLRM F84 Classroom (clutching)
  • R = Regular
  • C = Curved
613
626 		6-pin, Schlage C, KD
CSEC Classroom security - C - Curveu 020 SFIC = Less SFIC
STRM Storeroom (clutching)
NC-STRM Storeroom (non-clutching) R = Regular 613 VDC - 6 nin Cablesa C
ASYL Asylum (clutching) C = Curved 626 KDC = 6-pin, Schlage C

Designs

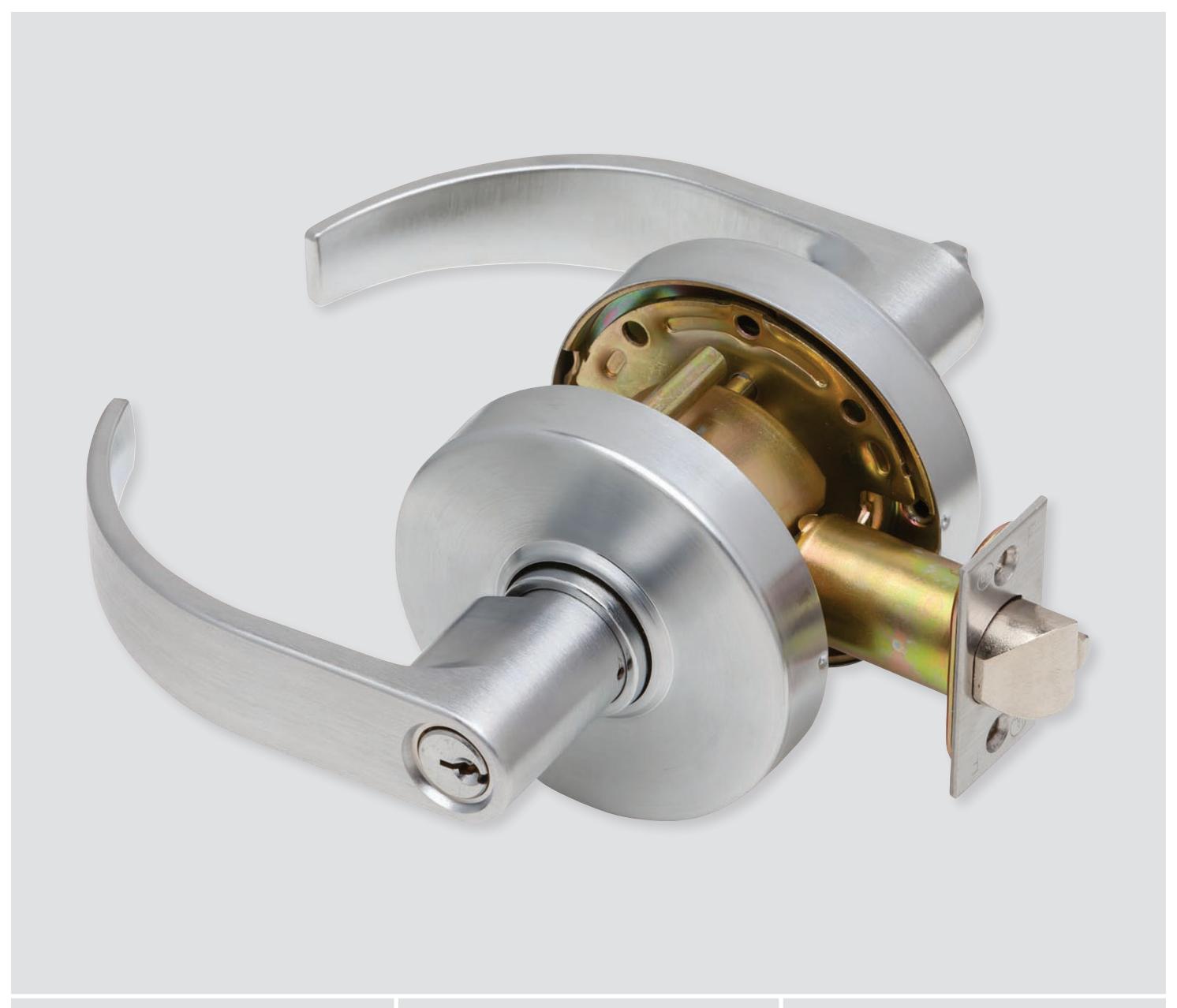

Regular lever

Curved lever

626

C1000 Series Grade 1 cylindrical locks

Accessories

Latches: All latches are square corner with 1 1 ⁄8" x 2 1 ⁄4" faceplate. Grade 1 latches are square corner with 2 3⁄8" and 2 3⁄4" backsets available. Products with "234" in the description represent a 2 3⁄4" backset.

Product description Function Backset Latch type Finish
C1000-SL-630 Passage, privacy 2 3⁄8" Springlatch 630
C1000-SL-234-630 Passage, privacy 2 3⁄4" Springlatch 630
C1000-DL-630 Entry/office, classroom,
classroom security, storeroom 		2 3⁄8" Deadlatch 630
C1000-DL-234-630 Entry/office, classroom,
classroom security, storeroom 		2 3⁄4" Deadlatch 630

Strikes: Radius corner, full lip strike. 1 3⁄4" x 2 1 ⁄4".

Product description Function Finish
C1000-RCFLS-626 Radius corner, full lip strike 630

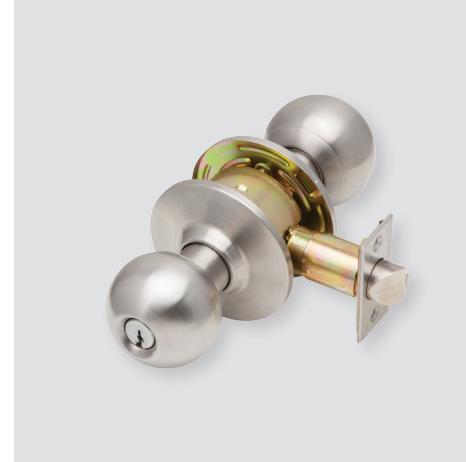

C2000 Series

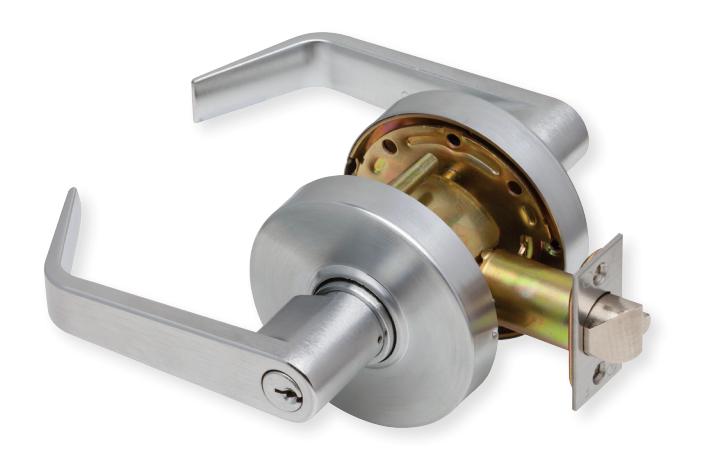

Grade 2 cylindrical locks

Specifications

  • Grade 2, UL listed 3 hour
  • 13/8" to 13/4" door range standard
  • Brass (605) ball knobs come packaged with square-corner beveled latch with 2 3/4" backset and ANSI 11/4" x 21/4" T-Strike standard.
  • All other functions (except dummy) include 1 1/8" x 2 1/4" square-corner beveled latch with 2 3/4" backset and ANSI 1^{1}/_{4} " x 4^{7}/_{8} " curved lip strike (30-148)
  • Accommodates Schlage conventional 6-pin (keyed 6) in Schlage C keyway, keyed different and SFIC cylinders

How to order

Prod uct nui mber Trim Keying
1 2 3 4 5
Series Function Design Finish Cylinder
C1000 - PASS С - 626 -
C1000 - CL-CLRM - R - 605 - SFIC
Grade 2 2 cylindrica l locks Trim Keying
Series Function a and lever features Designs Finishes Cylinders
PASS F75 Passage (non-clutching) R = Regular 605¹
PRIV F76 Privacy (non-clutching) C = Curved C = Curved 613 N/A
SDUM Single dummy (non-clutching) B = ball (knob) 626/630 2
CL-ENTR F109 Entry/office (clutching)
C2000 ENTR F109 Entry/office (non-clutching)
CL-CLRM F84 Classroom (clutching) R = Regular 605 1 KDC = Conventional
6-pin, Schlage C, KD
CLRM F84 Classroom (non-clutching)
  • C = Curved
  • B = ball (knob)
613
626/630 2 		. , ,
CL-STRM Storeroom (clutching) _ b - ball (kilob) 020/030 SFIC = Less SFIC
STRM STRM Storeroom (non-clutching)

  • 605 finish not available on Curved lever design. Use 626 finish when ordering lever designs and 630 finish for Ball design.

Designs

Curved lever

Ball knob

Finishes

626

630

Regular lever

C2000 Series Grade 2 cylindrical locks

Accessories

Latches: All latches are square corner with 1 1 ⁄8" x 2 1 ⁄4" faceplate. Grade 2 latches are square corner with 2 3⁄8" and 2 3⁄4" backsets available. Products with "234" in the description represent a 2 3⁄4" backset.

Product description Function Backset Latch type Finish
C2000-SL-630 Passage, privacy 2 3⁄8" Springlatch 630
C2000-SL-234-630 Passage, privacy 2 3⁄4" Springlatch 630
C2000-SL-613 Passage, privacy 2 3⁄8" Springlatch 613
C2000-SL-605 Passage, privacy 2 3⁄8" Springlatch 605
C2000-SL-234-605 Passage, privacy 2 3⁄4" Springlatch 605
C2000-DL-630 Entry/office, classroom, storeroom 2 3⁄8" Deadlatch 630
C2000-DL-234-630 Entry/office, classroom, storeroom 2 3⁄4" Deadlatch 630
C2000-DL-613 Entry/office, classroom, storeroom 2 3⁄8" Deadlatch 613
C2000-DL-605 Entry/office, classroom, storeroom 2 3⁄8" Deadlatch 605
C2000-DL-234-605 Entry/office, classroom, storeroom 2 3⁄4" Deadlatch 605

Strikes:

Product description Function Finish
C2000-RCFLS-630 Radius corner, full lip strike, 1 5⁄8" x 2 1
⁄4" 		630
C2000-RCFLS-613 Radius corner, full lip strike, 1 5⁄8" x 2 1
⁄4" 		613
C2000-ACLS-605 ANSI, curved lip strike, 1 1
⁄4" x 4 7
⁄8" 		605
C2000-TS-605 T-strike, 1 1
⁄4" x 2 3⁄4" 		605

Tailpieces:

Product description Function Finish Cylinder
C2000-TP-SFIC SFIC 6- and 7-pin with shielding spacer N/A N/A

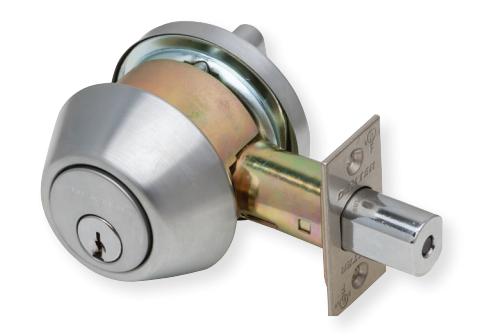

DB1000 Series

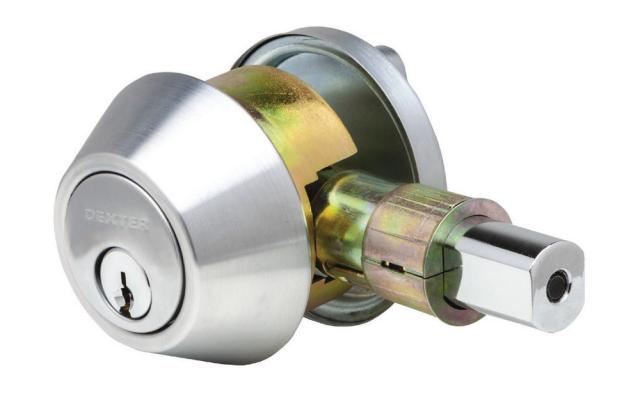

Grade 1 deadbolts

Specifications

  • § Grade 1, UL listed 3-hour
  • § 1 3⁄8" 1 7 ⁄8" Conventional cylinder door range; 1 5⁄8" - 2" SFIC door range
  • § All functions include 2 3⁄8" 2 3⁄4" universal square corner latch (30-253) and 1 1 ⁄8" x 2 3⁄4" square corner lipless strike
  • § Accommodates Schlage conventional 6-pin (keyed 6) in Schlage C keyway, keyed different and SFIC cylinders

How to order

Product number Trim Keying
1 2 3 4
Series Function Finish Cylinder
DB1000 - SCT - 626 - SFIC
Grade 1 deadbolts Trim Keying
Series Functions Finishes Cylinders
SCT Single cylinder x thumbturn 613 KDC = Conventional 6-pin, Schlage C, KD
DB1000 DCT Double cylinder 626 SFIC = Less SFIC

Finishes

613 626

Accessories

Drive-in conversion kits

Product description Function Finish Cylinder
DB2000-4WB-KIT-626 Drive-in replacement latch 626 N/A
DB2000-4WB-KIT-613 Drive-in replacement latch 613 N/A

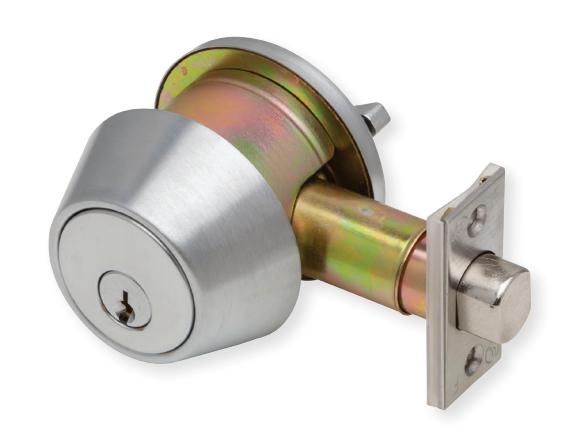

DB2000 Series

Grade 2 deadbolts

Specifications

  • Grade 2, UL listed 3-hour
  • 1<sup>3</sup>/<sub>8</sub>" 1<sup>3</sup>/<sub>4</sub>" Conventional cylinder door range; 1<sup>5</sup>/<sub>8</sub>" 2" SFIC door range
  • All functions include 2 <sup>3</sup>/<sub>8</sub>" 2 <sup>3</sup>/<sub>4</sub>" universal square corner latch (30-253) and 1 <sup>1</sup>/<sub>8</sub>" x 2 <sup>3</sup>/<sub>4</sub>" square corner lipless strike
  • Accommodates Schlage conventional 6-pin (keyed 6) in Schlage C keyway, keyed different and SFIC cylinders

How to order

P roduct i number Trim Keying
1 2 3 4
Series Function Finish Cylinder
DB2000 - DCT - 605 - KDC
Grade 2 deadbol lts Trim Keying
Series Functio ons Finishes Cylinders
DD3000 SCT Single cylinder x thumbturn 605 KDC = Conventional 6-pin, Schlage C, KD
DB2000 DCT Double cylinder — 613
626 		SFIC = Less SFIC

Finishes

* Available Q1 2020

Accessories

Tailpieces

Product description Function Finish Cylinder
DB2000-TP-SFIC SFIC Tailpiece kit including fork for G2 DB N/A N/A
DB2000-TP SFIC Tailpiece for G2 DB N/A N/A

DB2000 Series

Grade 2 drive-in deadbolts

Specifications

  • § Grade 2, UL listed 3-hour
  • § 1 3⁄8" 1 3⁄4" Conventional cylinder door range; 1 5⁄8" - 2" SFIC door range
  • § 4WB (4-way bolt) function includes square corner faceplate and drive-in style collar is installed out of box
  • § 4WB-KIT contains an adjustable latch with both square corner faceplate and drive-in style collar in the box
  • § Accommodates Schlage conventional 6-pin (keyed 6) in Schlage C keyway, keyed different

How to order

Product number Trim Keying
1 2 3 4
Series Function Finish Cylinder
DB2000 - 4WB-SCT - 626 - KDC
Drive-in deadbolts Trim Keying
Series Function and lever features Finishes Cylinders
DB2000 4WB-SCT Single cylinder x thumbturn drive-in 613
626 		KDC = Conventional 6-pin, Schlage C, KD

613 626

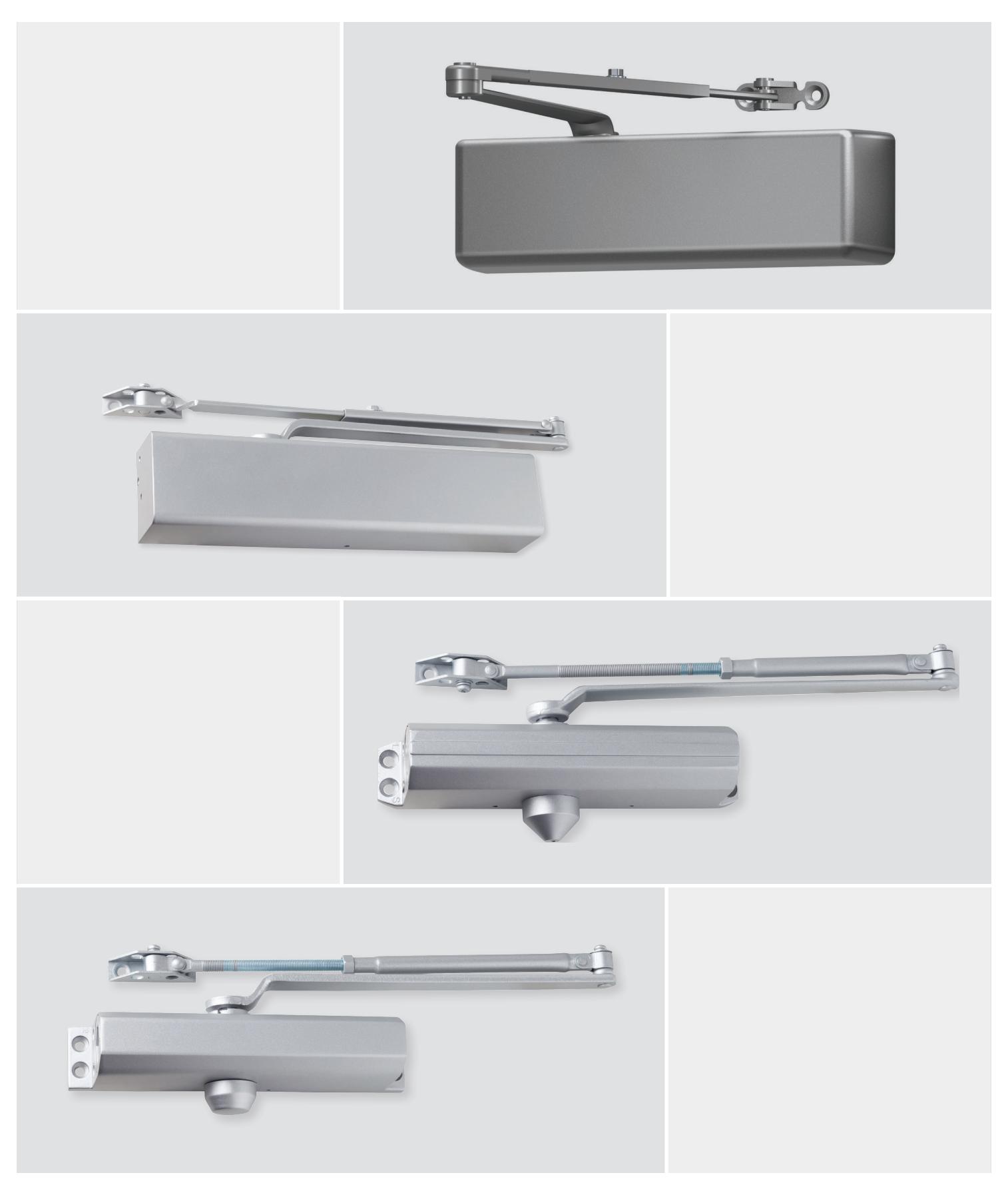

Surface door closers

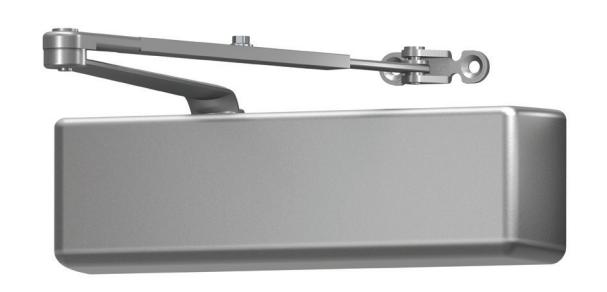

DCH4000 Series

Heavy duty surface door closers

Specifications

  • § Grade 1, UL / UL 10C listed (non-hold open arms), ADA compliant at size 1
  • § Adjustable spring size 1-6
  • § 5" x 2 1 ⁄4" mounting hole pattern

  • § Staked, independent adjustment values: sweep speed, latch speed and back-check
  • § Single piece, cast iron body
  • § Universal hardware pack

Closers

Product description Cylinder type Cover Arm function Finish
DCH4000-STD-FULL-RW/PA-ALUM STD Full Rw/PA ALUM
DCH4000-STD-FULL-HW/PA-ALUM STD Full Hw/PA ALUM
DCH4000-STD-FULL-DS-ALUM STD Full DS ALUM
DCH4000-STD-FULL-DS/HO-ALUM STD Full DS/HO ALUM
DCH4000-STD-FULL-RW/PA-DKBRZ STD Full Rw/PA DKBRZ
DCH4000-STD-FULL-HW/PA-DKBRZ STD Full Hw/PA DKBRZ
DCH4000-STD-FULL-DS-DKBRZ STD Full DS DKBRZ
DCH4000-STD-FULL-DS/HO-DKBRZ STD Full DS/HO DKBRZ

Arm types

Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Dead stop arm (DS): Non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Dead stop hold-open arm (DS/HO): Non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold open function.

ALUM/689 DKBRZ/695

DCH1000 Series

Heavy duty surface door closers

Specifications

  • § Grade 1, UL / UL 10C listed (non-hold open arms), ADA compliant at size 1
  • § Adjustable spring size 1-6
  • § 6 3⁄4" x 2 3⁄8" mounting hole pattern

  • § Staked, independent adjustment values: sweep speed, latch speed, and back-check
  • § Single piece, cast aluminum body
  • § Universal hardware pack

Closers

Product description Cylinder type Cover Arm function Finish
DCH1000-STD-FULL-RW/PA-ALUM STD Full Rw/PA ALUM
DCH1000-STD-FULL-RW/PA-DKBRZ STD Full Rw/PA DKBRZ
DCH1000-STD-FULL-HW/PA-ALUM STD Full Hw/PA ALUM
DCH1000-STD-FULL-DS-ALUM STD Full DS ALUM
DCH1000-STD-FULL-DS/HO-ALUM STD Full DS/HO ALUM

Arm types

Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Dead stop arm (DS): Non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Dead stop hold-open arm (DS/HO): Non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold open function.

ALUM/689 DKBRZ/695

DCM1000 Series

Medium duty surface door closers

Specifications

  • § Grade 1, UL / UL 10C listed (non-hold open arms), ADA compliant at size 1
  • § Adjustable spring size 1-6
  • § 12" x 3⁄4" mounting hole pattern

  • § Staked, independent adjustment values: sweep speed, latch speed, and back-check
  • § Single piece, cast aluminum body
  • § Universal hardware pack

Closers

Product description Cylinder type Cover Arm function Finish
DCM1000-STD-SLIM-RW/PA-ALUM STD Slim Rw/PA ALUM
DCM1000-STD-SLIM-RW/PA-DKBRZ STD Slim Rw/PA DKBRZ
DCM1000-STD-FULL-RW/PA-ALUM STD Full Rw/PA ALUM
DCM1000-STD-FULL-RW/PA-DKBRZ STD Full Rw/PA DKBRZ
DCM1000-STD-SLIM-HW/PA-ALUM STD Slim Hw/PA ALUM
DCM1000-STD-SLIM-HW/PA-DKBRZ STD Slim Hw/PA DKBRZ
DCM1000-STD-FULL-HW/PA-ALUM STD Full Hw/PA ALUM
DCM1000-STD-FULL-HW/PA-DKBRZ STD Full Hw/PA DKBRZ

Arm types

Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

ALUM/689 DKBRZ/695

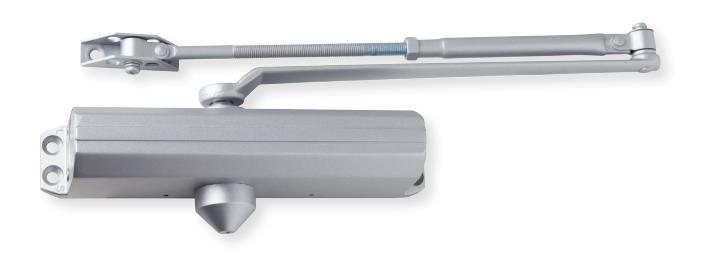

DCL2000 Series

Light duty surface door closers

Specifications

  • § Grade 1, UL / UL 10C listed (non-hold open arms), ADA compliant at size 1
  • § Adjustable spring size 1-6
  • § 9 1 ⁄16" x 3⁄4" mounting hole pattern

  • § Independent adjustment values: sweep speed, latch speed, and back-check
  • § Single piece, cast aluminum body
  • § Universal hardware pack

Closers

Product description Cylinder type Cover Arm function Finish
DCL2000-STD-LESS-RW/PA-ALUM STD Less Rw/PA ALUM
DCL2000-STD-LESS-RW/PA-DKBRZ STD Less Rw/PA DKBRZ
DCL2000-STD-LESS-HW/PA-ALUM STD Less Hw/PA ALUM
DCL2000-STD-FULL-RW/PA-ALUM STD Full Rw/PA ALUM

Arm types

Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

Hold-open arm (Hw/PA): Non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

ALUM/689 DKBRZ/695

DCR8000 Series

Residential duty surface door closers

Specifications

  • § Grade 1, UL / UL 10C listed (non-hold open arms) ADA compliant at size 1, (180 deg - TJ and Pull Side)
  • § Adjustable spring size 1-4
  • § 9 1 ⁄16" x 3⁄4" mounting hole pattern

  • § Independent adjustment values: sweep speed, latch speed, and back-check
  • § Single piece, cast aluminum body
  • § Universal hardware pack

Closers

Product description Cylinder type Cover Arm function Finish
DCR8000-STD-LESS-RW/PA-ALUM STD Less Rw/PA ALUM
DCR8000-STD-LESS-RW/PA-DKBRZ STD Less Rw/PA DKBRZ

Arm types

Regular arm (Rw/PA): Non-handed, regular arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.

ALUM/689 DKBRZ/695

DCH1000, DCM1000, DCL2000 and DCR8000 Series Drop plates

Drop plates

Product description Plate type Finish
DCH1000P-DP18-ALUM Pull side/Top jamb ALUM
DCH1000P-DP18-DKBRZ Pull side/Top jamb DKBRZ
DCH1000P-DP18PA-ALUM Parallel arm ALUM
DCH1000P-DP18PA-DKBRZ Parallel arm DKBRZ
DCM1000P-DP18TJ-ALUM Pull side/Top jamb ALUM
DCM1000P-DP18TJ-DKBRZ Pull side/Top jamb DKBRZ
DCM1000P-DP18PA-ALUM Parallel arm ALUM
DCM1000P-DP18PA-DKBRZ Parallel arm DKBRZ
DCL2000P-DP18TJ-ALUM Top jamb ALUM
DCL2000P-DP18TJ-DKBRZ Top jamb DKBRZ
DCL2000P-DP18PA-ALUM Parallel arm ALUM
DCL2000P-DP18PA-DKBRZ Parallel arm DKBRZ

Note: DCL2000P drop plates are also compatible with DCR8000 series closers.

DCH1000 Pull side/top jamb

DCH1000 Parallel arm

DCM1000 Pull side/Top jamb

DCM1000 Parallel arm

DCH1000 Series DCM1000 Series DCL2000 Series

DCL2000 Top jamb

DCL2000 Parallel arm

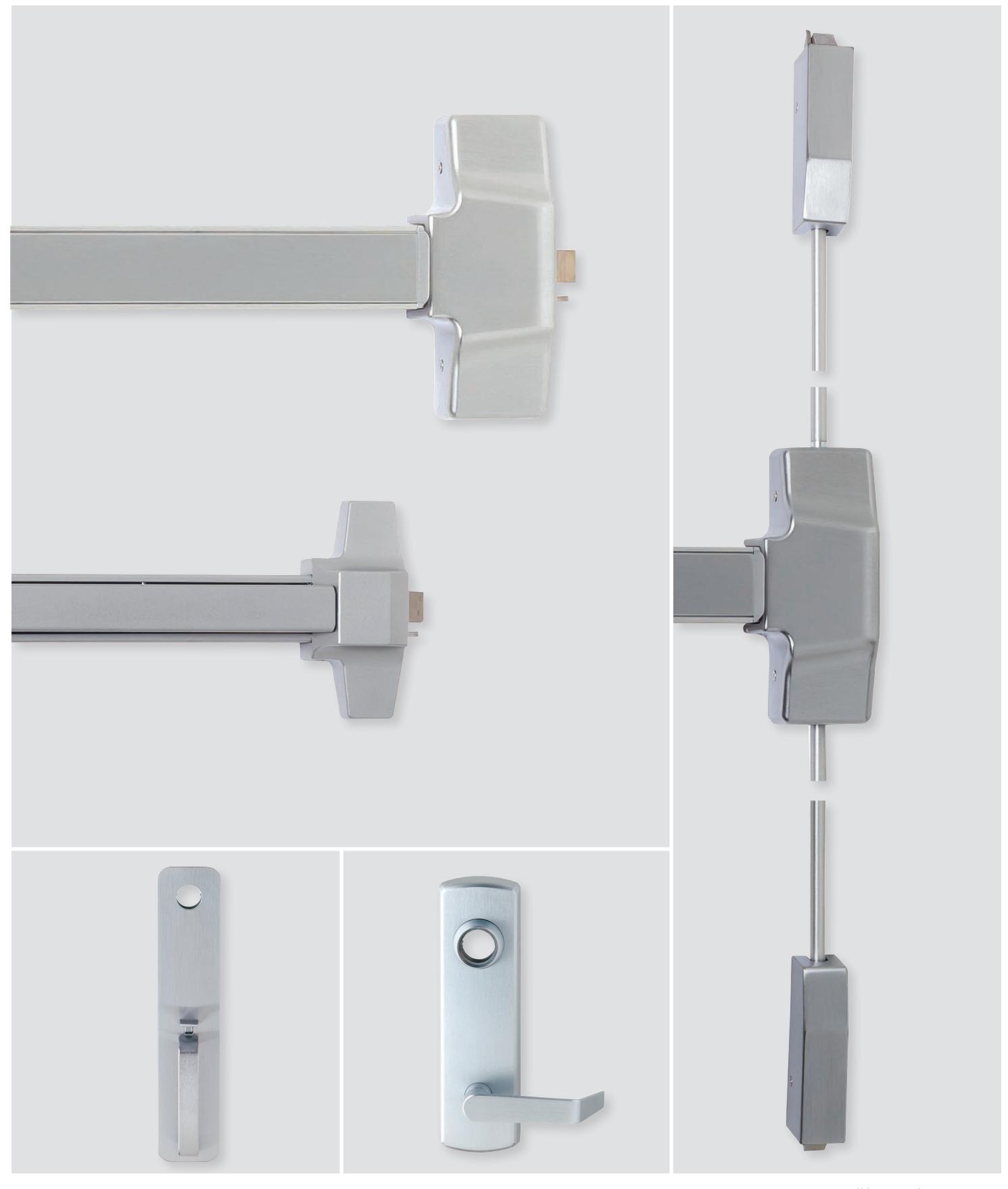

Exit devices

ED1000 Series

Specifications

  • § Grade 1, UL listed panic device, UL listed 3-hour fire device
  • § Durable, aluminum mechanism case construction
  • § Deadlatching standard
  • § Devices fit standard 1 3⁄4" thick door
  • § 4 1 ⁄4" minimum stile width

  • § Hex key dogging standard on all panic devices
  • § All devices and trim are non-handed
  • § Universal hardware pack for wood and hollow metal
  • § Door widths: 36" device fits 29" to 36" door size; 48" device fits 33" to 48" door size

ED1000-R Series rim panic device

Product description Trim function Device length Finish
ED1000-R-EO-3 FT-US26D Exit Only 3' US26D
ED1000-R-EO-4 FT-US26D Exit Only 4' US26D
ED1000-R-EO-3 FT-US32D Exit Only 3' US32D
ED1000-R-EO-4 FT-US32D Exit Only 4' US32D
ED1000-R-EO-3 FT-US10B Exit Only 3' US10B
ED1000-R-EO-4 FT-US10B Exit Only 4' US10B

ED1000-R-F Series rim fire exit hardware

Product description Trim function Device length Finish
ED1000-R-F-EO-3 FT-US26D Exit Only 3' US26D
ED1000-R-F-EO-3 FT-US10B Exit Only 3' US10B

ED1000-V Series surface vertical rod panic device

Product description Trim function Device length Door height Finish
ED1000-V-EO-3 FT-7'DH-US26D Exit Only 3' 7' US26D
ED1000-V-EO-3 FT-7'DH-US10B Exit Only 3' 7' US10B

ED1000 Series Trim and accessories

Trim

Product description Function Cylinder Finish
ED1000T-CLRM-R-ESC-NC-US26D Escutcheon lever - Classroom NC (requires mortise1
) 		US26D
ED1000T-CLRM-R-ESC-NC-US10B Escutcheon lever - Classroom NC (requires mortise1
) 		US10B
ED1000T-NL-R-ESC-NC-US26D Escutcheon lever - Night latch NC (requires rim) US26D
ED1000T-NL-R-ESC-NC-US10B Escutcheon lever - Night latch NC (requires rim) US10B
ED1000T-PASS-R-ESC-US26D Escutcheon lever - Passage blank escutcheon - US26D
ED1000T-PASS-R-ESC-US10B Escutcheon lever - Passage blank escutcheon - US10B
ED1000T-CLRM-TP-NC-US26D Thumbpiece pull plate - Classroom NC (requires mortise1
) 		US26D
ED1000T-CLRM-TP-NC-US10B Thumbpiece pull plate - Classroom NC (requires mortise1
) 		US10B
ED1000T-NL-HPUL-NC-US26D Handle pull plate - Night latch NC (requires rim) US26D
ED1000T-NL-HPUL-NC-US10B Handle pull plate - Night latch NC (requires rim) US10B

NC = No cylinder included

1 Mortise cylinder with standard cam similar to Schlage B502-191 cam

Escutcheon lever - Classroom

Escutcheon lever - Night latch

Escutcheon lever - Passage blank escutcheon

Thumbpiece pull plate - Classroom

Handle pull plate - Night latch

Finishes

US26D US10B

US32D

Extension rods

Product description Length Finish
ED1000-EXTRD-US26D 12" US26D
ED1000-EXTRD-US10B 12" US10B

ED1500 Series

Specifications

  • § Grade 1, UL listed panic device, UL listed 3-hour fire rim device
  • § Durable, steel mechanism case construction
  • § Deadlatching standard
  • § Devices fit standard 1 3⁄4" thick door
  • § 3 1 ⁄2" minimum stile width

  • § Hex key dogging standard on all panic devices
  • § Rim devices and trim are non-handed; Surface vertical devices easily field reversible
  • § Universal hardware pack for wood and hollow metal
  • § Door widths: 36" device fits 29" to 36" door size; 48" device fits 33" to 48" door size

ED1500-R Series rim panic device

Product description Trim function Device length Finish
ED1500-R-EO-3 FT-SP28 Exit only 3' SP28
ED1500-R-EO-4 FT-SP28 Exit only 4' SP28
ED1500-R-EO-3 FT-SP313 Exit only 3' SP313
ED1500-R-EO-4 FT-SP313 Exit only 4' SP313

ED1500-R-F Series rim fire exit device

Product description Trim function Device length Finish
ED1500-R-F-EO-3 FT-SP28 Exit only 3' SP28
ED1500-R-F-EO-3 FT-SP313 Exit only 3' SP313

ED1500-V Series surface vertical rod panic device

Product description Trim function Device length Door height Finish
ED1500-V-EO-3 FT-7'DH-SP28 Exit only 3' 7' SP28
ED1500-V-EO-3 FT-7'DH-SP313 Exit only 3' 7' SP313

ED1500 Series Trim and accessories

Trim

Product description Function Cylinder Finish
ED1500T-CLRM-R-ESC-NC-SP28 Escutcheon lever - Classroom NC (requires mortise1
) 		SP28
ED1500T-CLRM-R-ESC-NC-SP313 Escutcheon lever - Classroom NC (requires mortise1
) 		SP313
ED1500T-NL-R-ESC-NC-SP28 Escutcheon lever - Night latch NC (requires mortise1
) 		SP28
ED1500T-NL-R-ESC-NC-SP313 Escutcheon lever - Night latch NC (requires mortise1
) 		SP313
ED1500T-NL-PULL-NC-SP28 Raised lip pull plate - Night latch NC (requires rim) SP28
ED1500T-NL-PULL-NC-SP313 Raised lip pull plate - Night latch NC (requires rim) SP313
ED1500T-DUM-PULL-SP28 Raised lip pull plate - Dummy - SP28
ED1500T-DUM-PULL-SP313 Raised lip pull plate - Dummy - SP313
ED1500T-CLRM-R-KDC-SP28 Key in lever round rose - Classroom KDC SP28
ED1500T-CLRM-R-KDC-SP313 Key in lever round rose - Classroom KDC SP313
ED1500T-NL-R-KDC-SP28 Key in lever round rose - Night latch KDC SP28
ED1500T-NL-R-KDC-SP313 Key in lever round rose - Night latch KDC SP313
ED1500T-CLRM-R-SFIC-SP28 Key in lever round rose - Classroom Less SFIC SP28
ED1500T-NL-R-SFIC-SP28 Key in lever round rose - Night latch Less SFIC SP28
ED1500T-NL-PULL-ESC-NC-SP28 Handle pull plate - Night latch NC (requires rim) SP28
ED1500T-NL-PULL-ESC-NC-SP313 Handle pull plate - Night latch NC (requires rim) SP313
ED1500T-DUM-PULL-ESC-SP28 Handle pull plate - Dummy - SP28
ED1500T-DUM-PULL-ESC-SP28 Handle pull plate - Dummy - SP313

NC = No cylinder included

KDC = KIL cylinder, Schlage C Keyway, Keyed differently

1 Mortise cylinder with standard cam similar to Schlage B502-191 cam

Escutcheon lever - Classroom/ Night latch

Raised lip pull plate - Night latch

Raised lip pull plate - Dummy

Key in lever round rose - Classroom/ Night latch Less SFIC not shown

Handle pull plate - Night latch

Handle pull plate - Dummy

Finishes

SP28 SP313

Extension rods

Product description Length Finish
ED1500-EXTRD-SP28 12" SP28
ED1500-EXTRD-SP313 12" SP313

Notes

Notes

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in seamless access, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion secures people and assets with a range of solutions for homes, businesses, schools and institutions. Allegion had $2.7 billion in revenue in 2018, and sells products in almost 130 countries.

For more, visit www.allegion.com.
