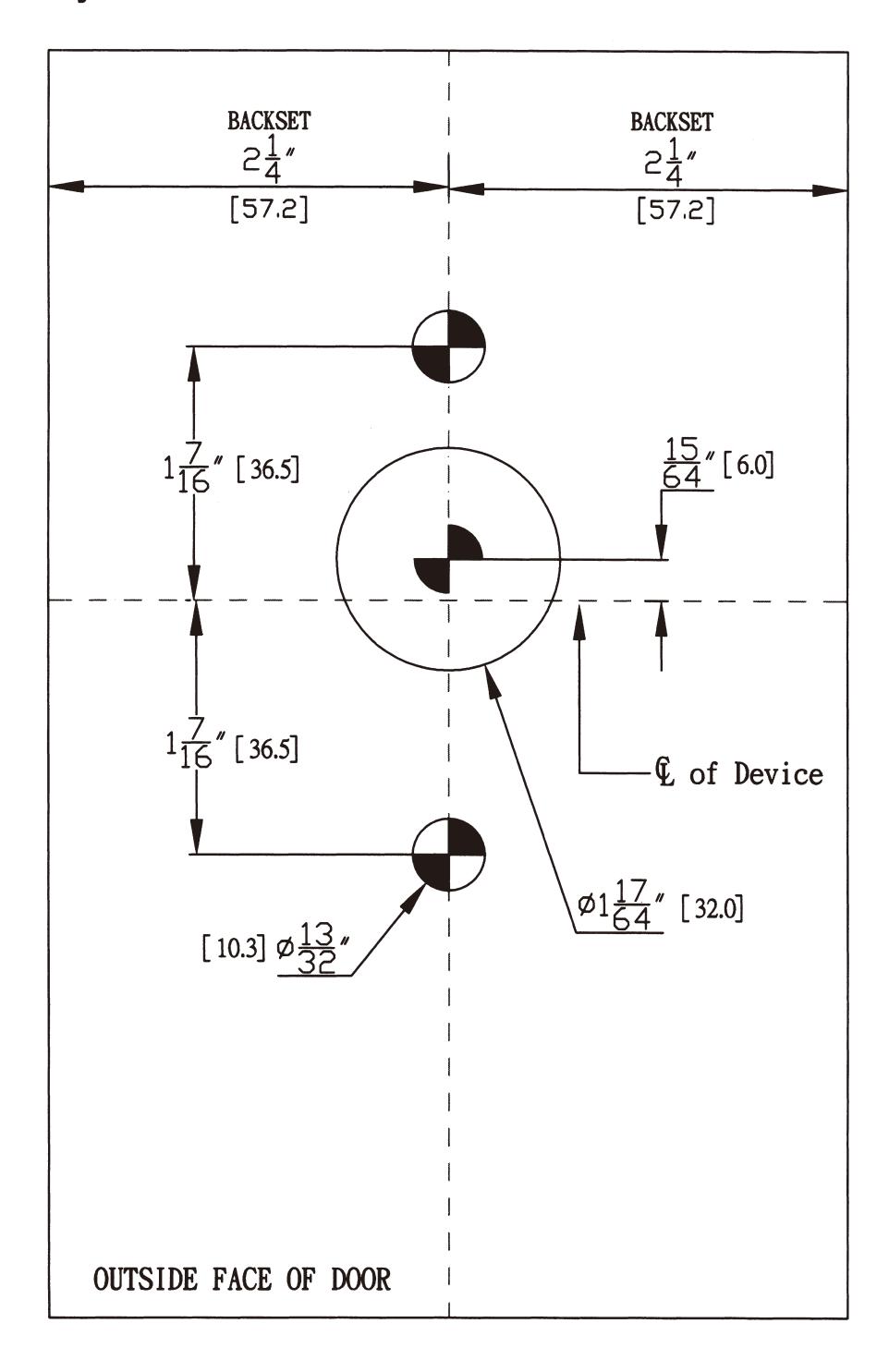

TEMPLATE

Cylinder Pull Plate

Simple Installation Instructions:

Drill two thru holes on outside face of door for Sex Bolts use shown as the marks :

For Metal Door Application: 9/32" Dia. Drill Inside 13/32" Dia. Drill Outside

For Wood Door Application: 13/32" Dia. Drill Thru

  • 2. Drill 117/64" Dia. on outside face of door for Rim Cylinder use.
  • Fasten the supplied mounting screws into the sex bolts from inside of the door. The two screws must go through the chassis of exit device.
  • 4. Install cylinder, see Installation Instructions of Rim Exit Device.

Note:

  • For single door and double door with mullion use, the backset 2 7/16" is to face of stop.
  • 2. For double door without mullion use, the backset 2 7/16" is to edge of door.
