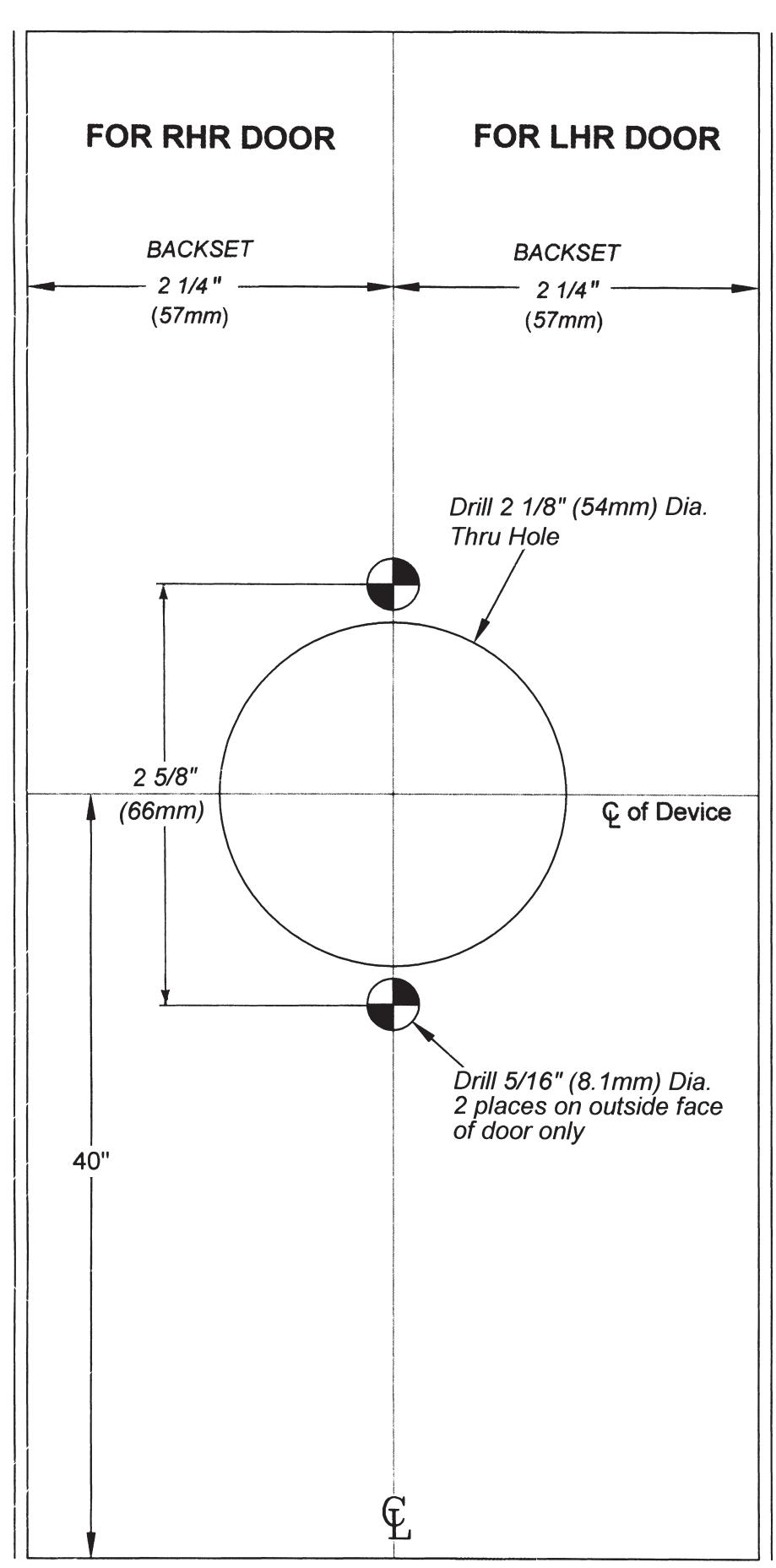

TEMPLATE

FOR ROUND ROSE LEVER / KNOB TRIM

- Use for Economy Exit Device only

NOTE:

  • 1. For single door & double doors with mullion applications, the backset 2 1/4" (57mm) is to face of stop.
  • 2. For double doors without mullion applications, the backset 2 1/4" (57mm) is to edge of door.
