Dexter ED2000T Key In Lever Installation Instructions 111071

ROUND ROSE LEVER / KNOB TRIM INSTALLATION INSTRUCTIONS

(For Economy Exit Device use)

1. DRILL HOLE

• a. Drill one ø2-1/8" (54mm) through hole as shown on the template.
• b. Drill two ø5/16" (8.1mm) on outside face of door for anti-rotation studs use.

2. INSTALL TRIM

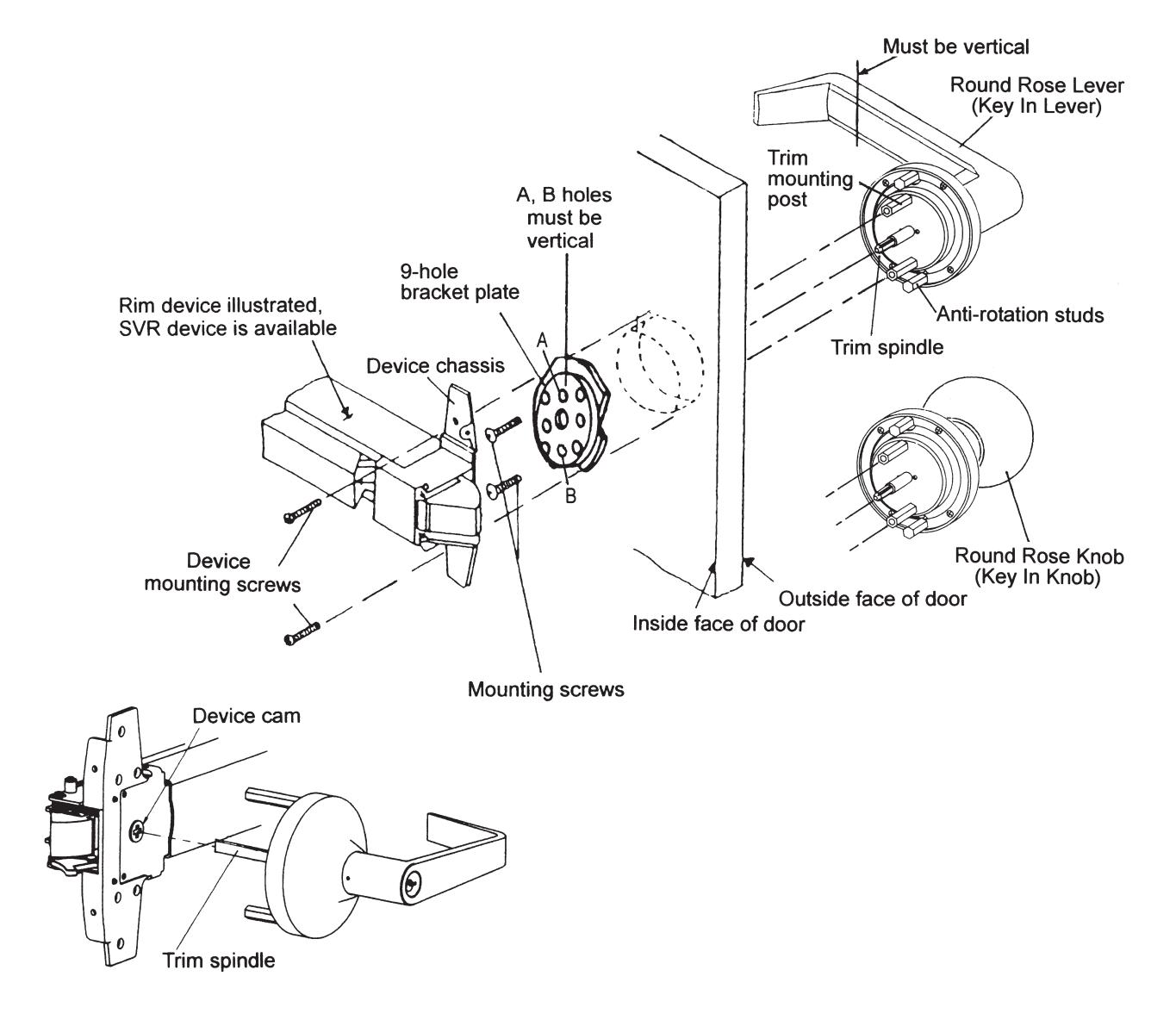

• a. Insert trim into the holes in door from outside of door.
• b. Place 9-hole bracket plate into the hole in inside face of door.

Note: Make sure the 9-hole bracket hole is seated in right angle when it is placed into the hole. The placed angle must match recessed back of exit device, and A, B two holes of 9-hole bracket plate must meet two mounting posts of the trim.

c. Insert the supplied two mounting screws through 9-hole bracket plate into the mounting posts of the trim, then tighten the screws.

3. INSTALL EXIT DEVICE

• a. Install exit device on inside face of door using the supplied round head screws to the door. Details see exit device installation instructions.
  • Make sure " trim spindle " has mated with the cam on the back of the exit device.
• b. Check if both exit device and trim secured in the position tightly and can be operated well.

Trim spindle must insert into device cam.
