Dexter ED1000T Thumbpiece Pull Wide Stile Trim Installation Instructions 111059

PULL PLATE W/THUMBPIECE INSTRUCTIONS

FOR USE WITH ANSI GRADE 1 WIDE STILE RIM OR SVR EXIT DEVICE

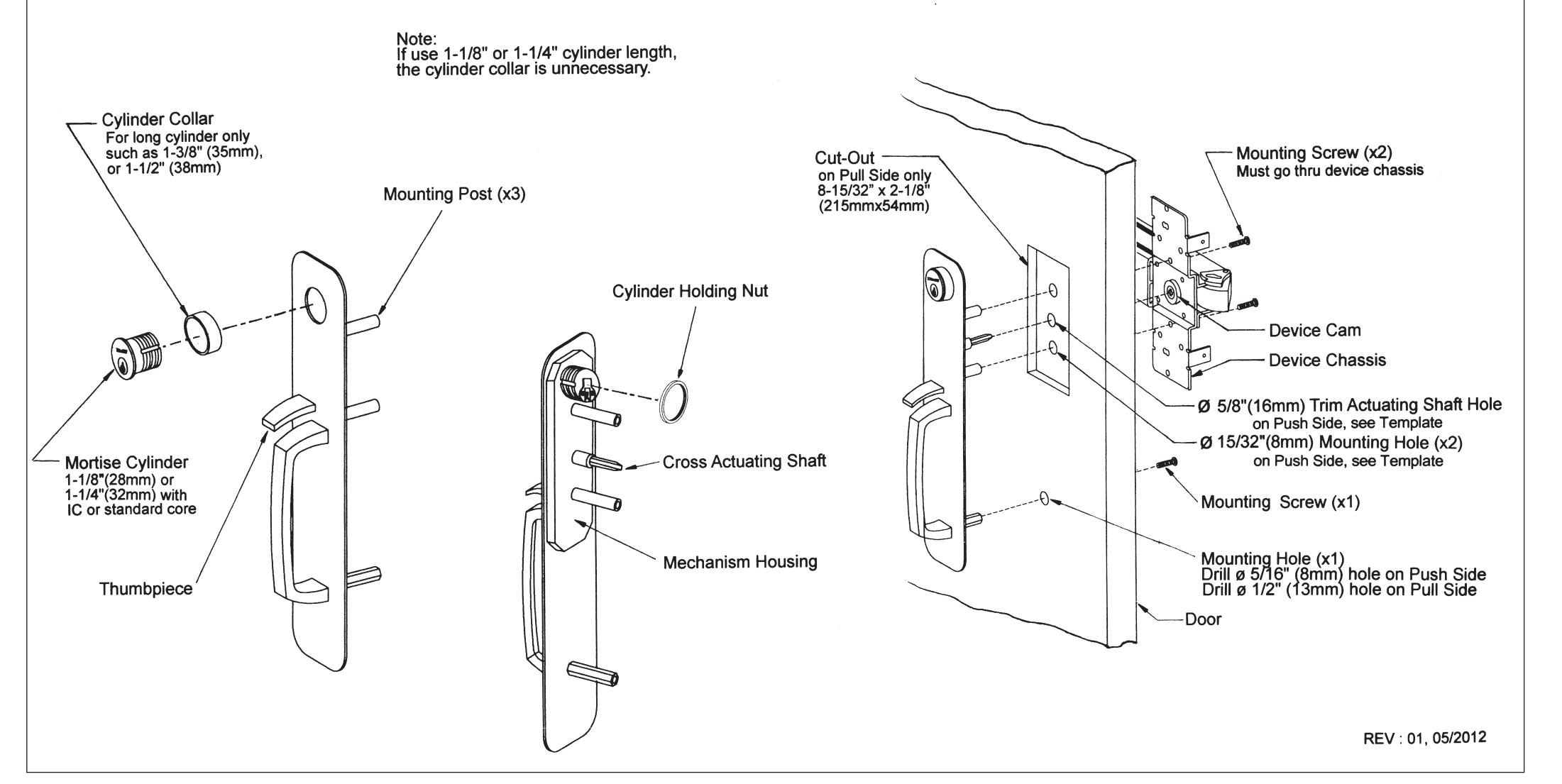

STEP A: INSTALL CYLINDER (SKIP TO STEP B FOR DUMMY TRIM)

• Use template to mark cut-out location and mounting holes locations on door. If all holes have been drilled or cut, start to install cylinder first.
• Install mortise cylinder through provided cylinder collar, then insert the cylinder through hole in pull plate w/thumbpiece.
• 3. Fasten mortise cylinder using provided cylinder holding nut as shown.

STEP B: INSTALL PULL PLATE w/THUMBPIECE

• 1. Insert pull plate w/thumbpiece mechanism housing with three (3) mounting posts and the mortise cylinder through door.
• 2. Be sure to line up cross actuating shaft with cam located on back of device chassis, then insert it to the cam.
• 3. Fasten pull plate w/thumbpiece and exit device using the supplied three (3) mounting screws.
