Dexter ED1000 SV Panic Fire Wood and HMD Template Installation Instructions 111053

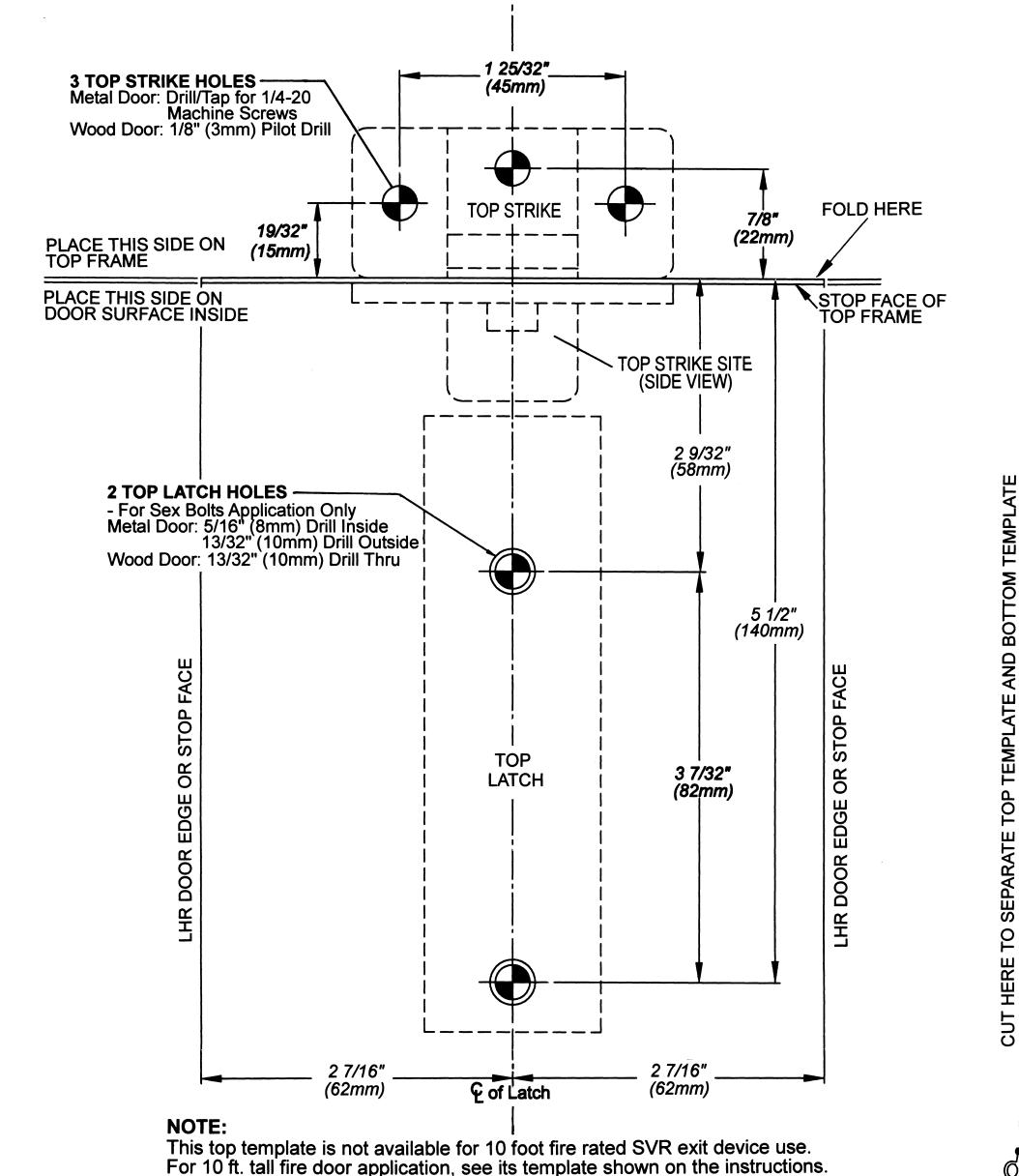

TOP LATCH TEMPLATE

GRADE 1 SVR EXIT DEVICE LATCH TEMPLATE FOR USE WITH SVR & LBR DEVICES

(FOR PANIC AND FIRE RATED DEVICES)

(NOT REQUIRED FOR LBR DEVICE)

2 7/16" 2 7/16 (62mm) (62mm) 2 BOTTOM LATCH HOLES - For Sex Bolts Application Only Metal Door: 5/16" (8mm) Drill Inside 13/32" (10mm) Drill Outside Wood Door: 13/32" (10mm) Drill Thru воттом 3 7/32' LATCH (82mm) STOP FACE STOP FACE 4 11/16" (119mm) 8 LHR DOOR EDGE OR RHR DOOR EDGE 1 15/32' C of Latch (37mm) FOLD HERE Bottom Edge of Door PLACE THIS SIDE ON DOOR SURFACE INSIDE 1/4" (6mm) PLACE THIS SIDE ON TOP OF FINISHED FLOOR OR TOP OF PANIC THRESHOLD 27/32" (21.5mm)FINISHED FLOOR BOTTOM STRIKE Q 3/4" (19mm) hole, 2 1/8" (54mm) deep 1 13/16' (46mm) REV: 02, 03/2011
