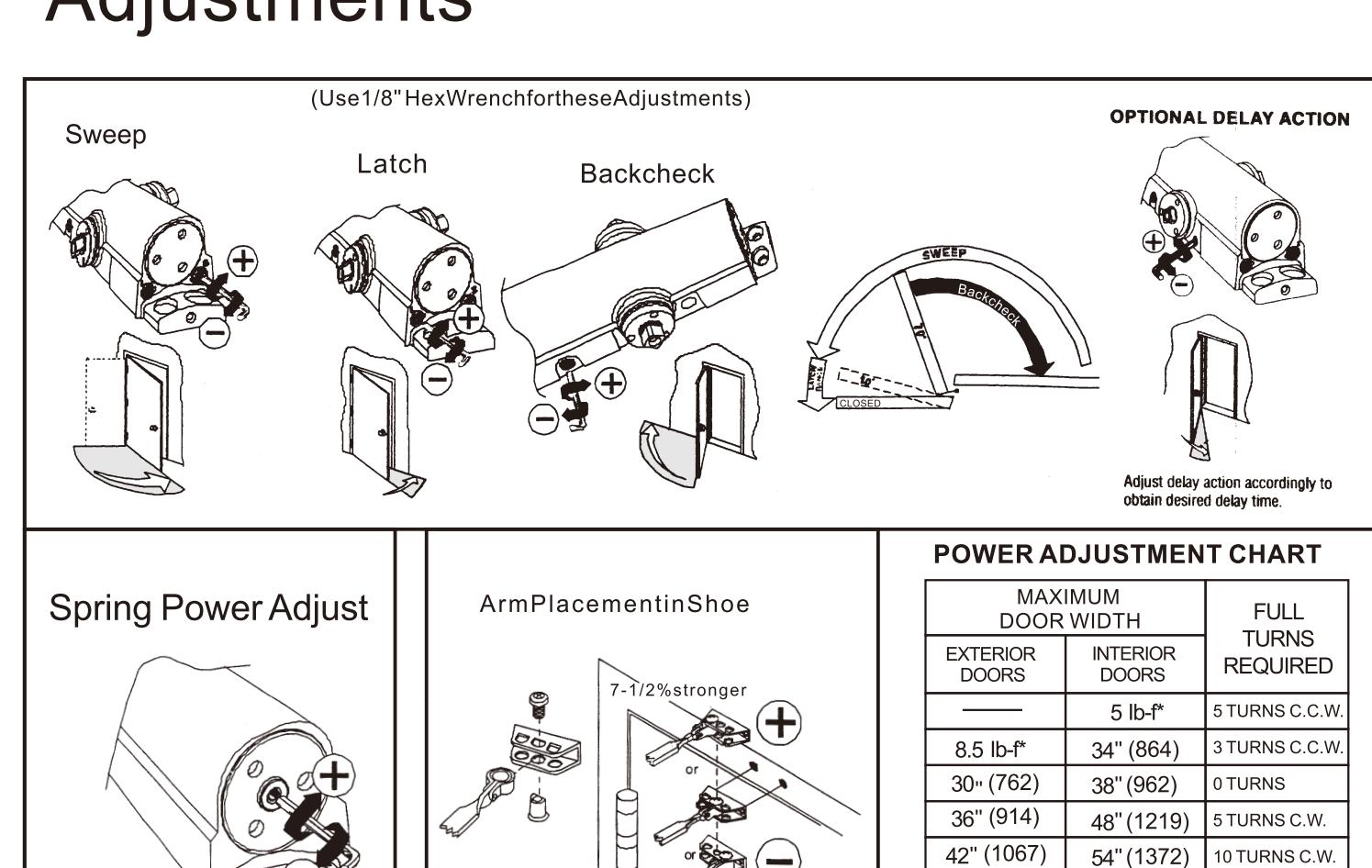

Adjustments

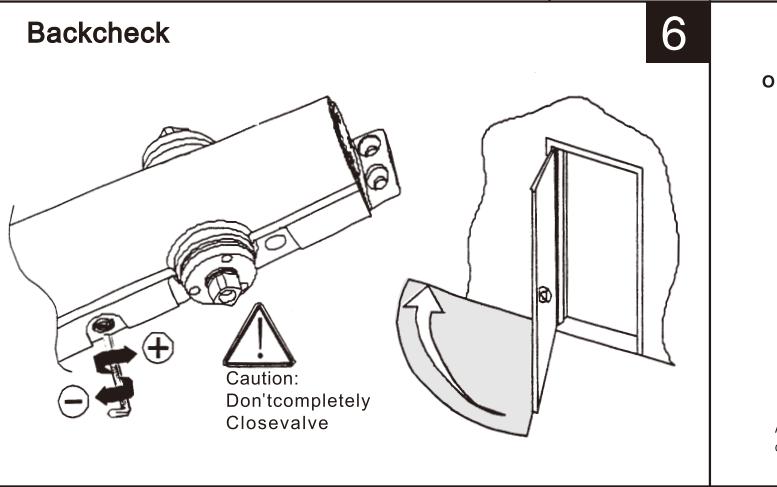

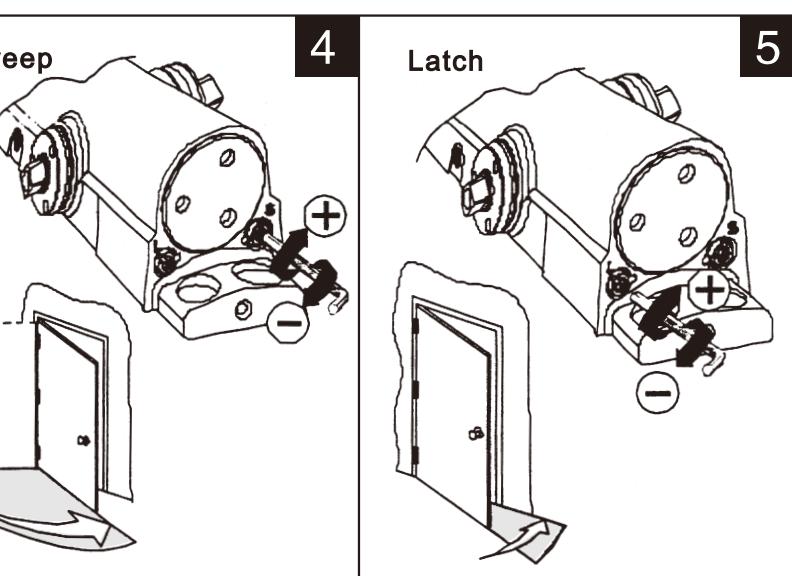

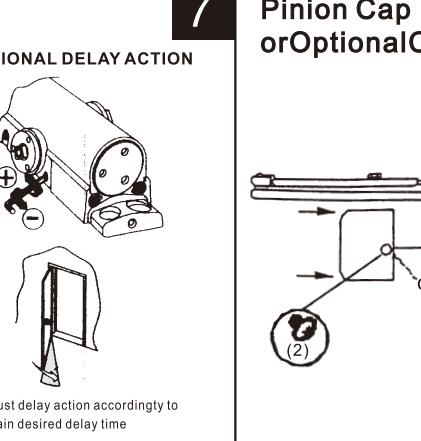

Closer was set down as size 3 from the factory originally.

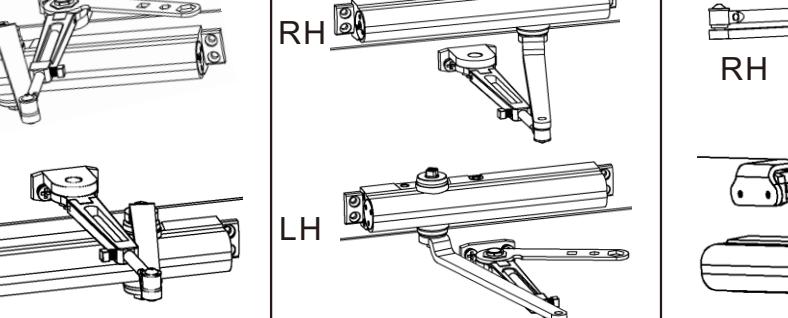

Optional Hold Open Arms

180° Mounting Hold Open(120°-180°) 120° Mounting Hold Open(95° - 120°) 100° Mounting Hold Open(85° - 100°)

48" (1219) 60" (1524) 15 TURNS C.W. *15 Full (360°) turns maximum available

Hold Open Arm Adjustment

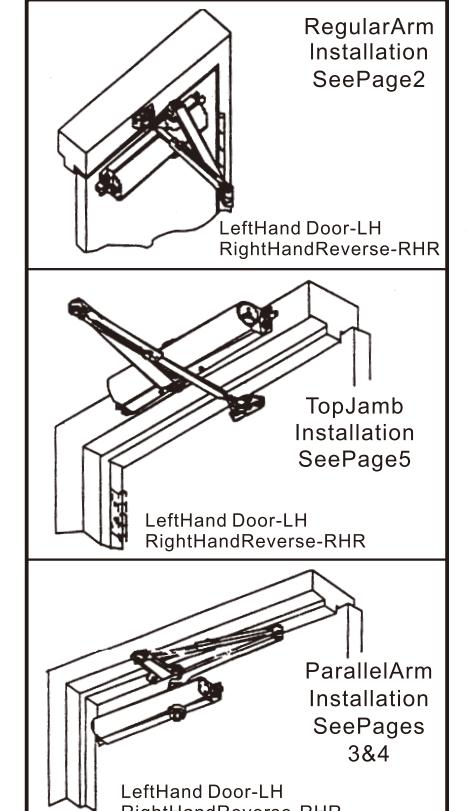

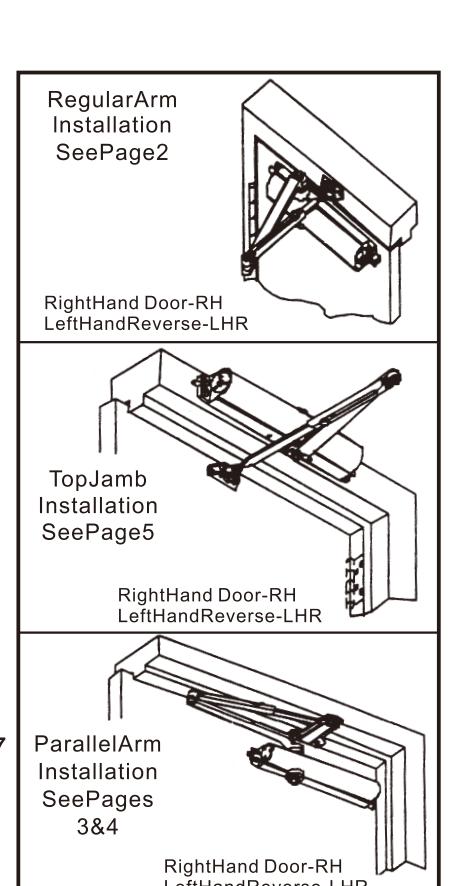

the Hold Open Arm installs like the regular closer arm. Follow steps 2-3 on page 2 and 5 for standard and top jamb Hold Open Arm installation, follow step 2-3 on page 3 and steps 7-10 for paralell Hold Open Arm installation. To adjust Optional Hold-open arm

Loosen hold open nut. Open door to 5° less than desired hold position and tighten hold open nut securely.

<u> 6 </u>

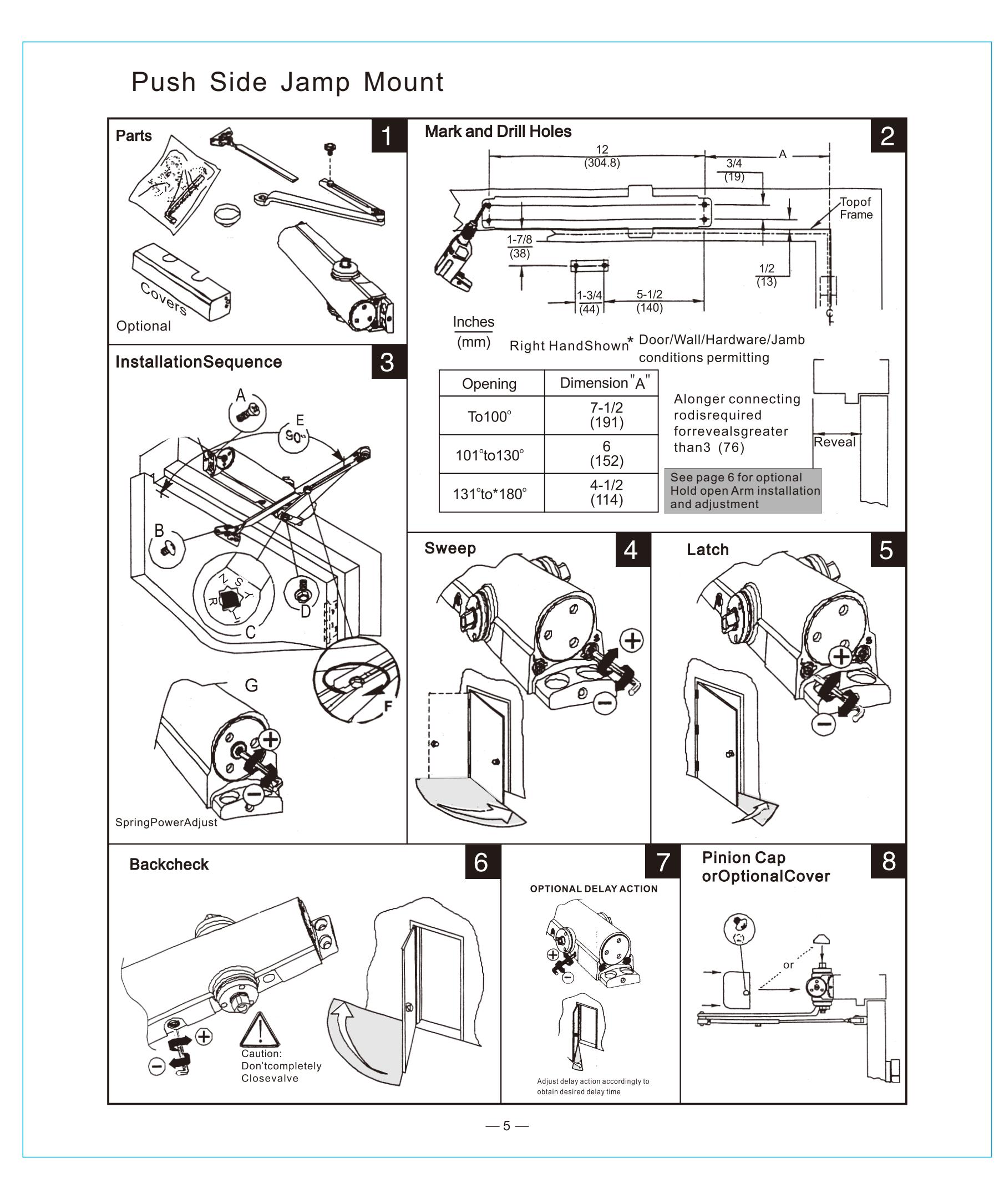

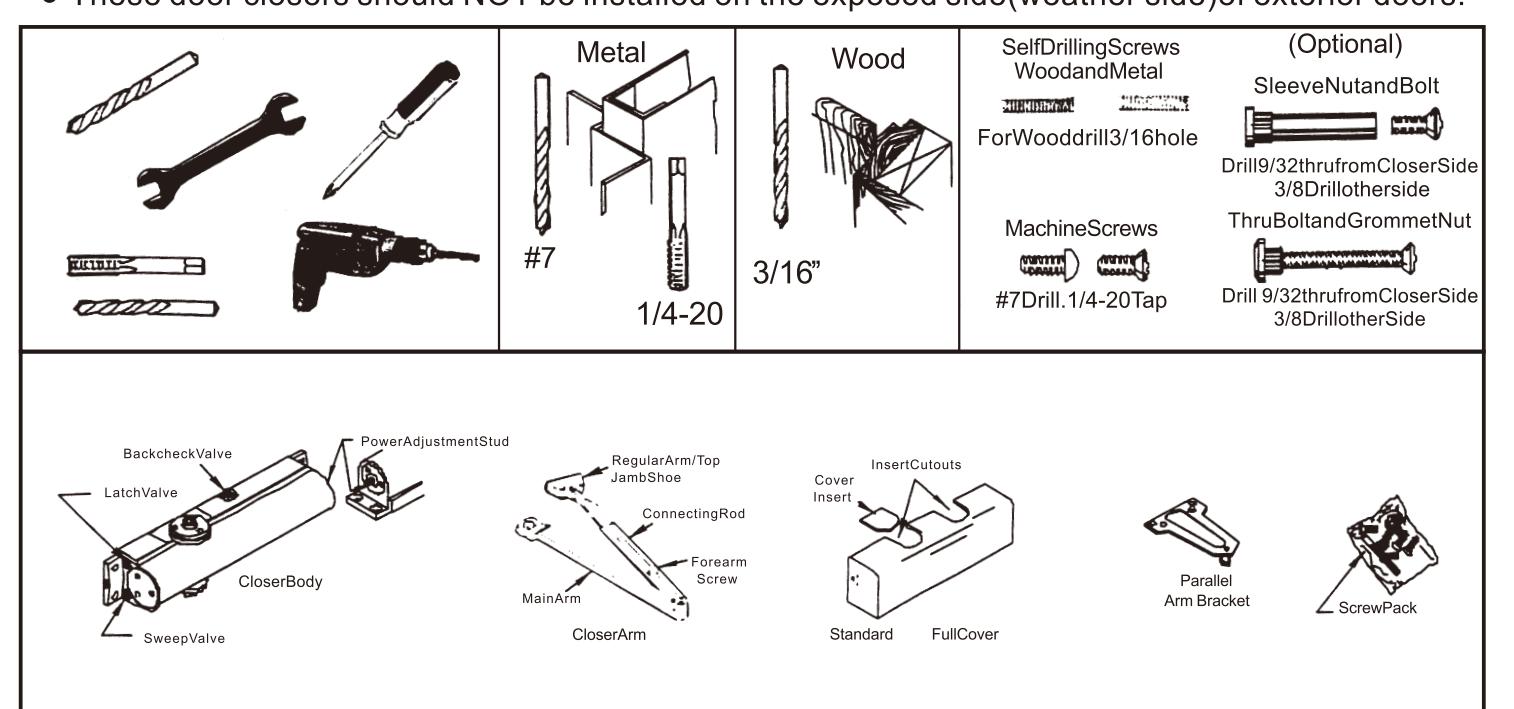

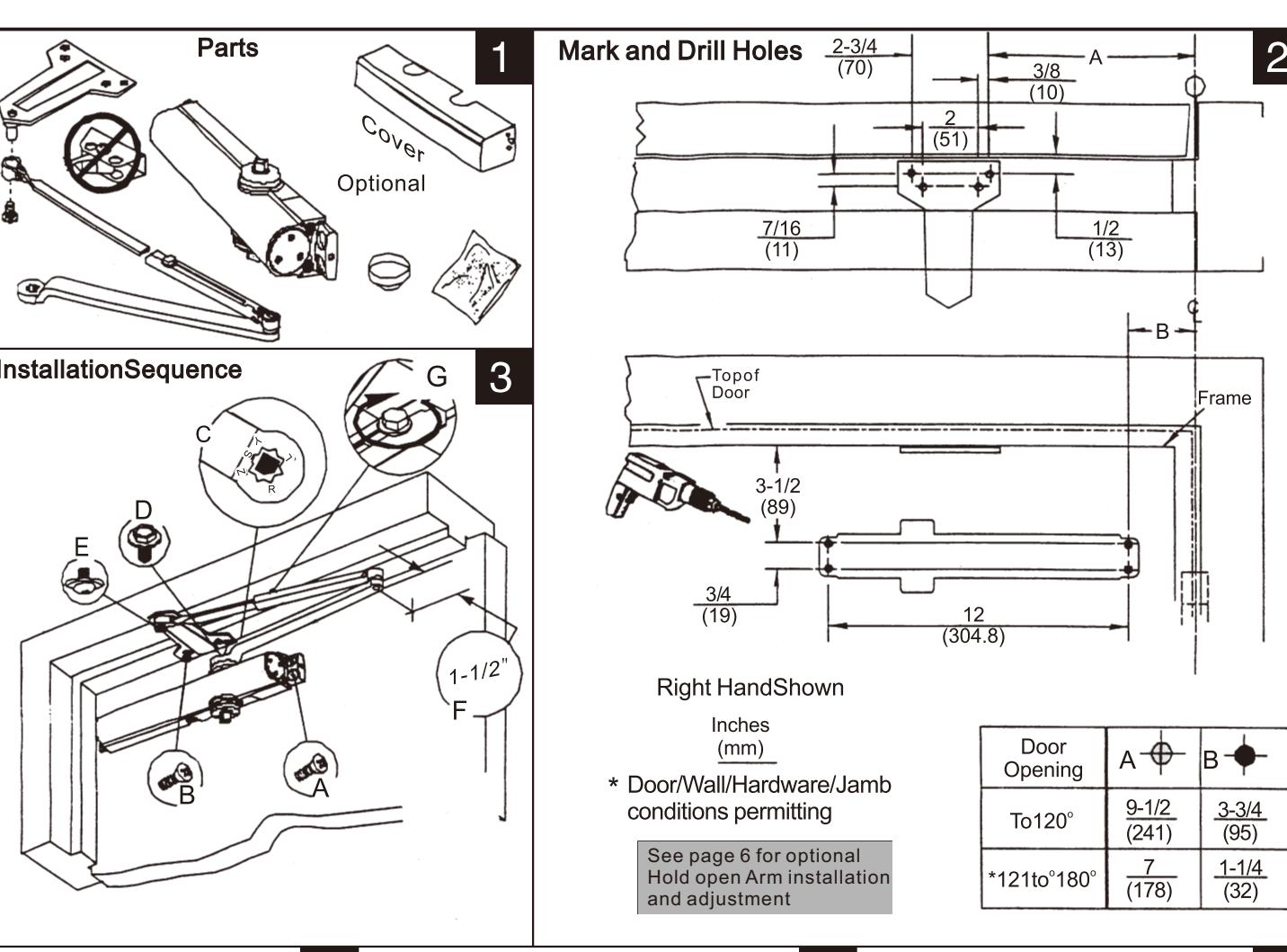

Pull Side Standard Mount

See page 6 for optional

Hold open Arm installation and adjustment

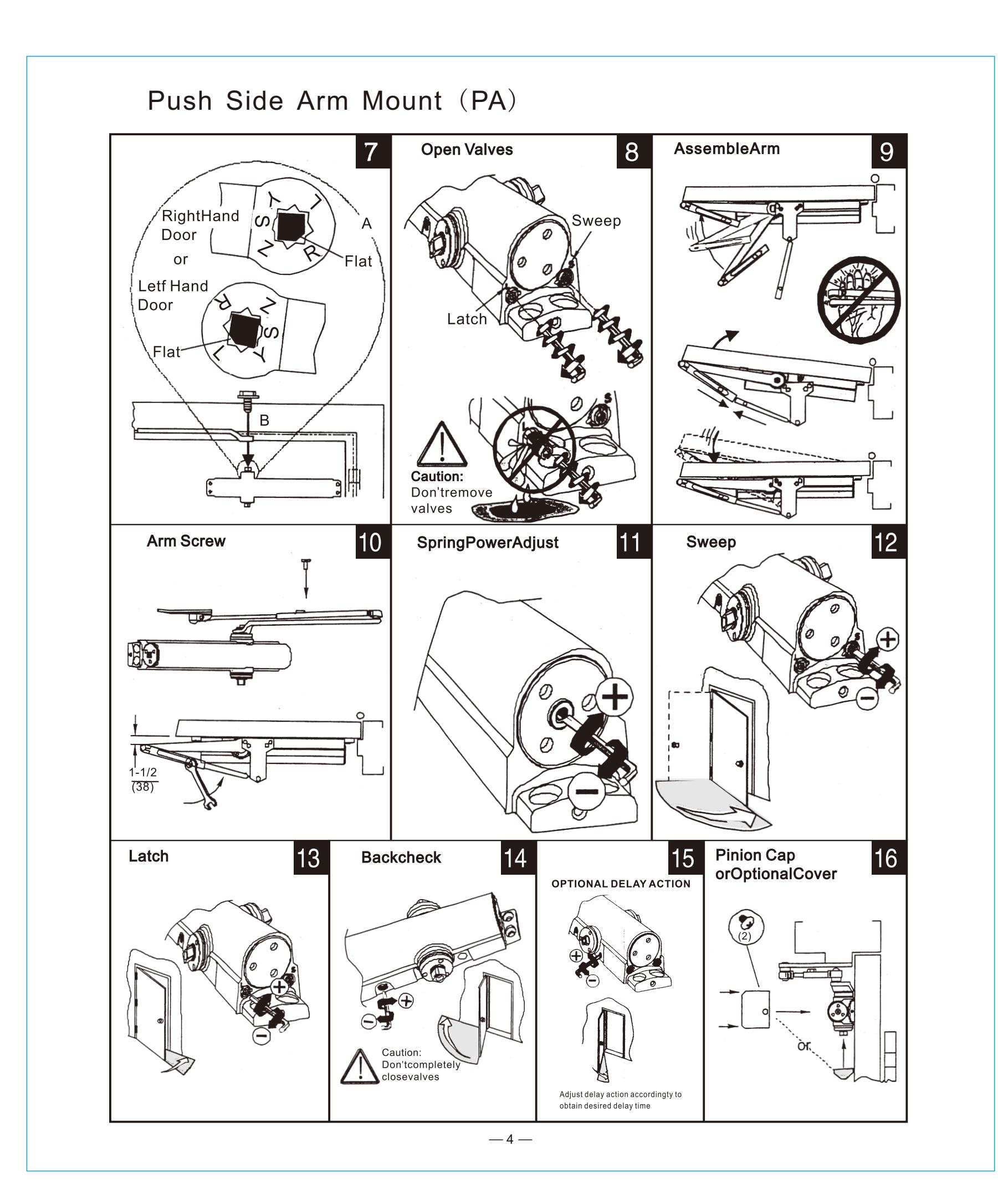

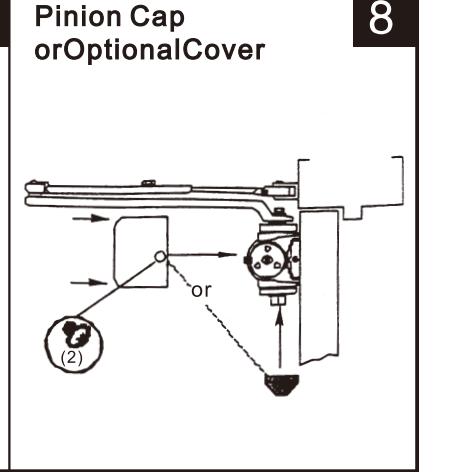

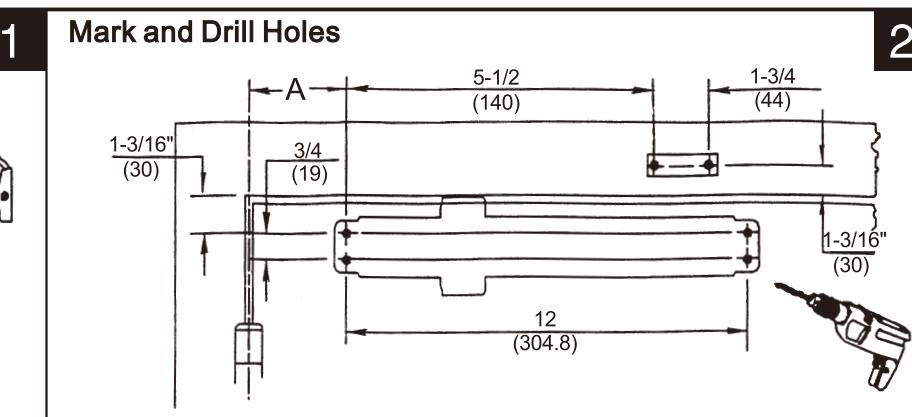

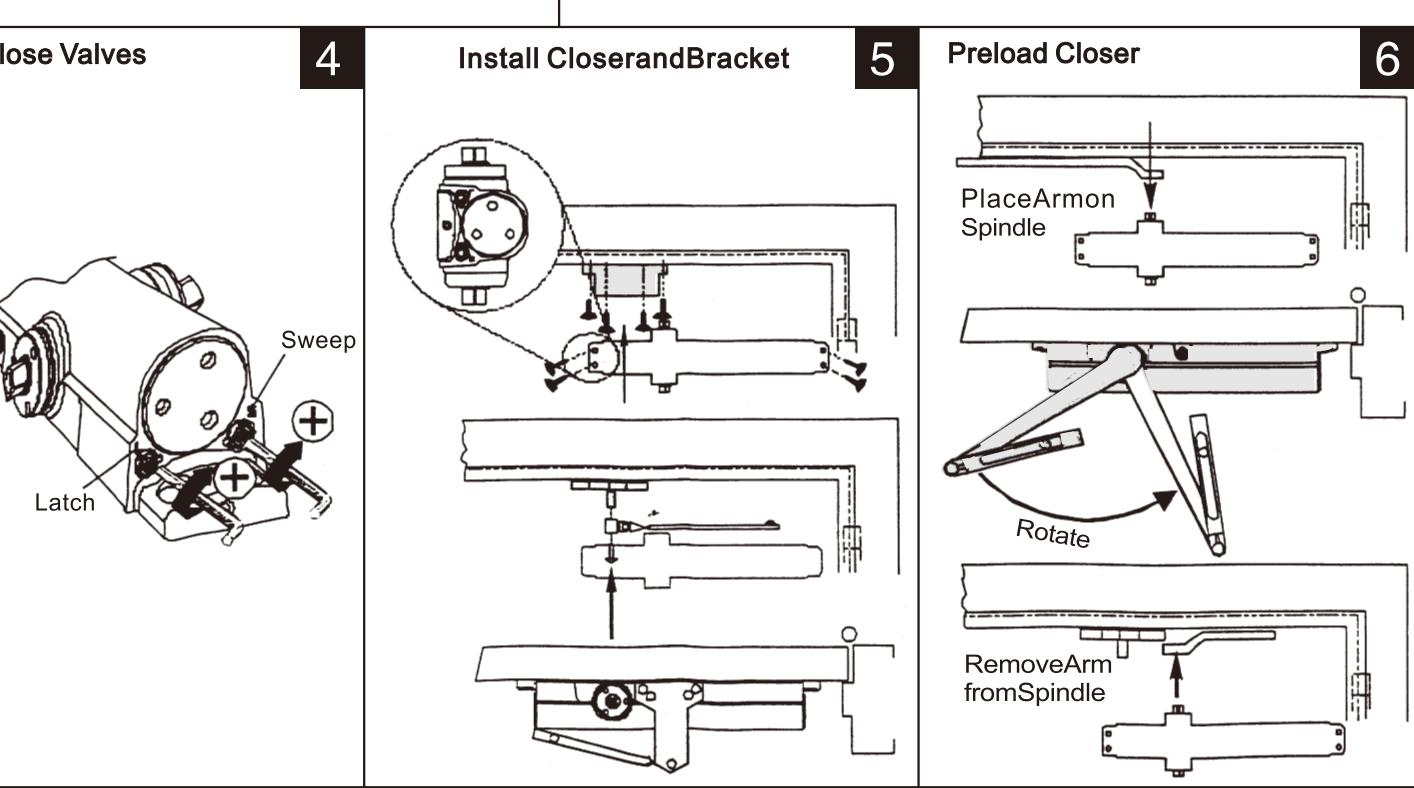

Push Side Parallel Arm(PA)
