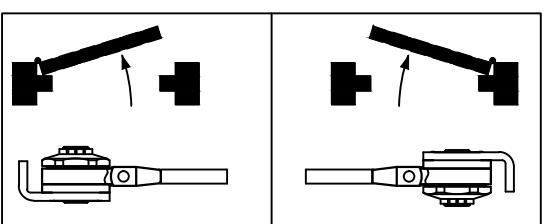

DCL2000 SERIES DOOR CLOSER HOLD OPEN ARM INSTALLATION

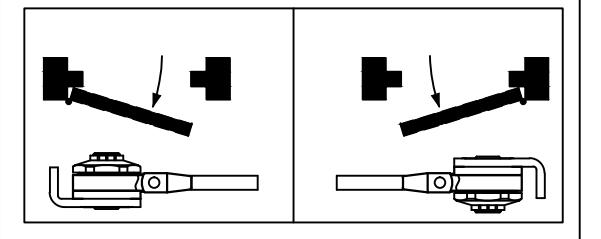

Optional Hold-open arm.ldentify direction of hold-open nut according to mounting.

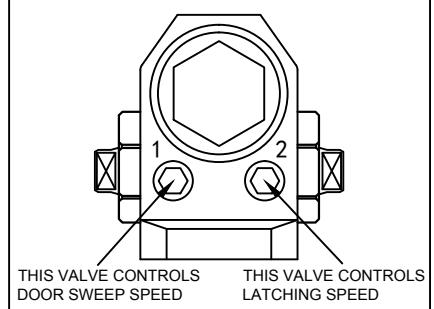

REGULATING DOOR SPEED AND LATCHING SPEED

TURN SPEED REGLATING VALVE CLOCKWISE TO SLOW COUNTER-CLOCKWISE TO SPEED UP DOOR MOVEMENT

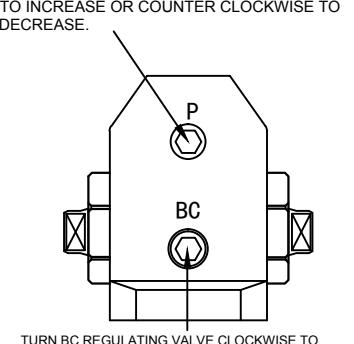

REGULATING SPRING POWER REGULATING BC POWER

POWER ADJUSTMENT SCREW. TURN THIS SCREW CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO

TURN BC REGULATING VALVE CLOCKWISE TO INCREASE OR COUNTER CLOCKWISE TO DECREASE.NEVER CLOSE THS VALVE COMPLETELY.

FRAME

DOOR

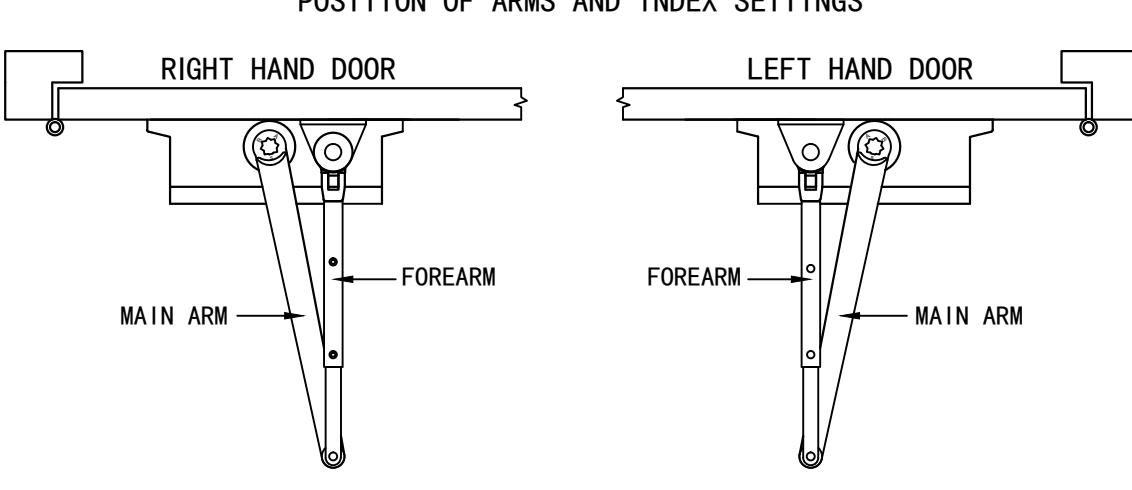

POSITION OF ARMS AND INDEX SETTINGS

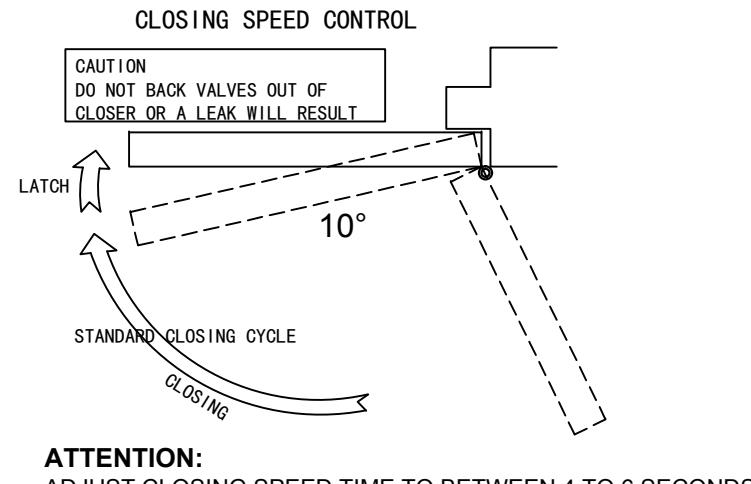

ADJUST CLOSING SPEED TIME TO BETWEEN 4 TO 6 SECONDS FROM 90° USE OF THE DOOR BY HANDICAPPED, ELDERLY OR SMALL CHILDREN MAY REQUIRE LONGER CLOSING TIME.

◆STANDARD INSTALLATION:PULL SIDE RIGHT INSTALLATION

PINION CAP INSTALLATION INSTRUCTIONS

BC

FOOT

SCREW AND WASHER

SHOWN IN CHART AND ILLUSTRATION ABOVE TO MARK LOCATION OF ATTACHING SCREWS. ON DOOR AND FRAME PREPARE HOLES.

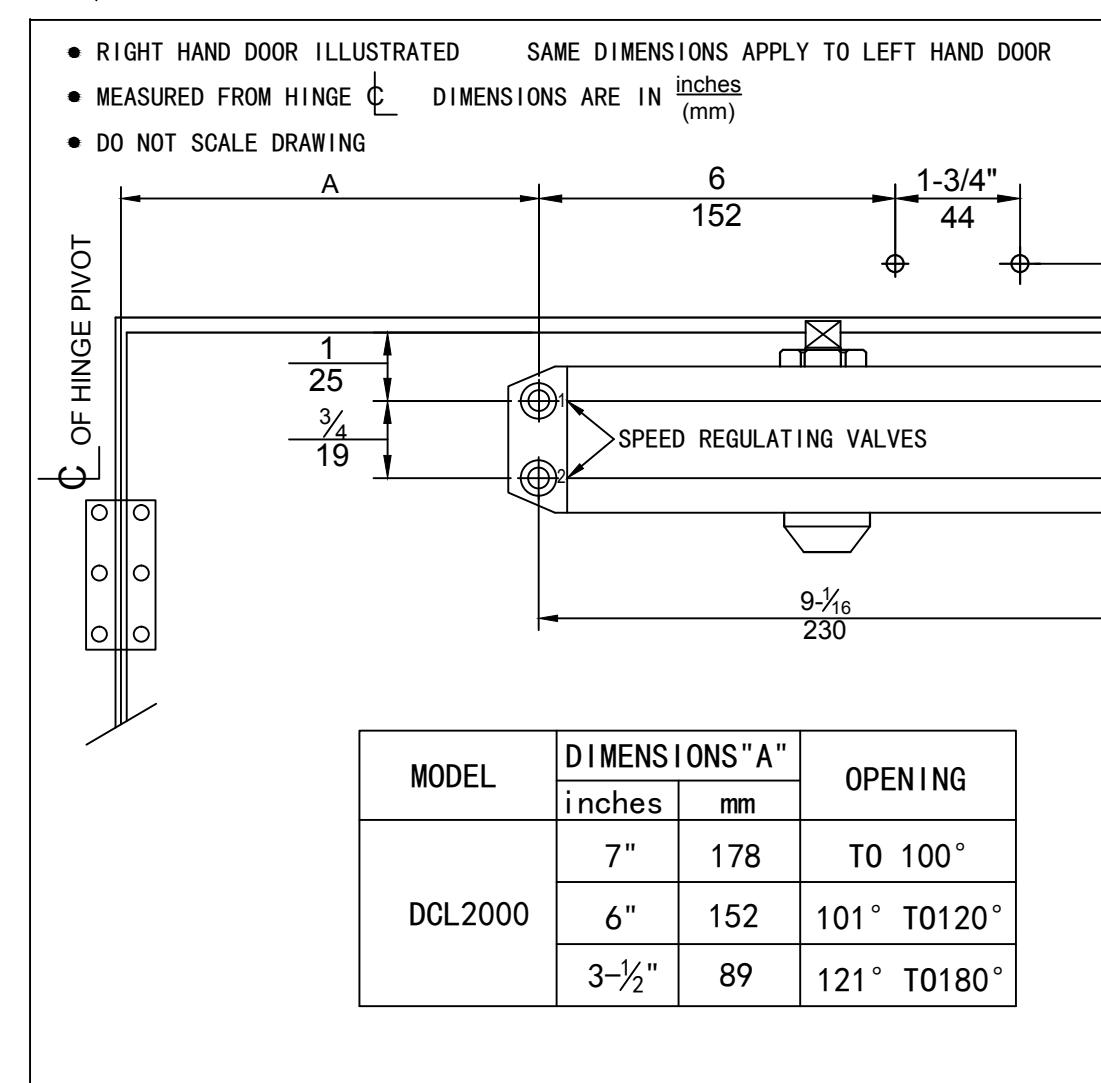

1.SELECT DEGREE OF DOOR.USE DIMENSIONS

• 2.ASSEMBLE MAIN ARM TO CLOSER.
• 3.ATTACH CLOSER TO DOOR WITH SPEED REGULATING VALVES TOWARD HINGE.
• 4.ATTACH THE FOOT OF THE FOREARM TO FRAME.
• 5.ADJUST LENGTH OF FOREARM TO POSITION FOREARM AT RIGHT ANGLE TO FRAME TIGHTEN THE SCREW OF FOREARM.
• 6.SNAP PINION CAP OVER SPINDLE AT BOTTOM OF CLOSER.
• 7.ADJUST DOOR CLOSER.

29

1-18

8.LOOSEN THE INNER HEX SCREW AT THE ELBOW OF THE FOREARM,OPEN THE DOOR TO THE ANGLE YOU NEED,THEN TIGHEN THE INNER HEX SCREW TO HOLD THE DOOR OPEN.

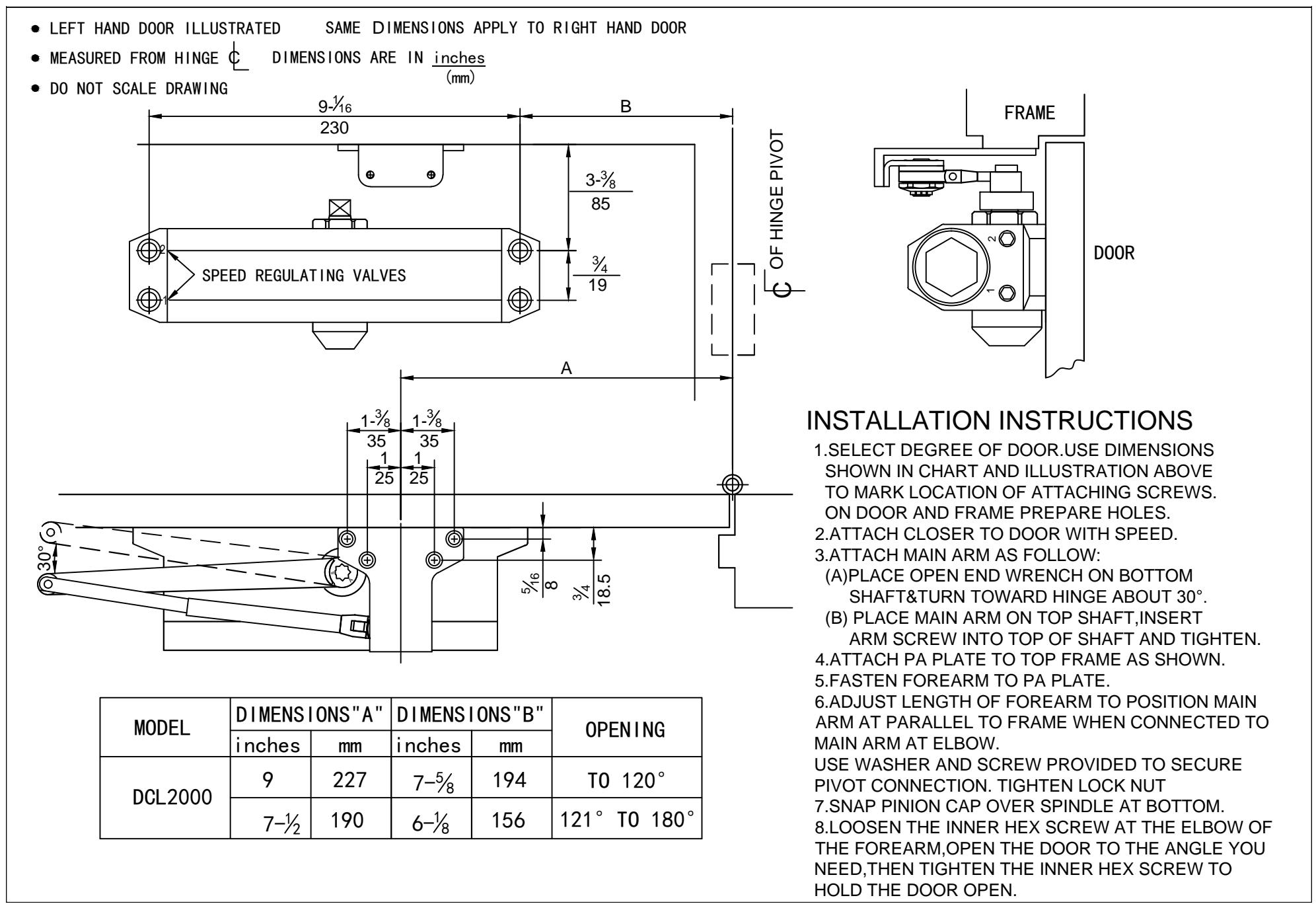

◆OTHER INSTALLATION: PULL SIDE TOP JAMB INSTALLATION

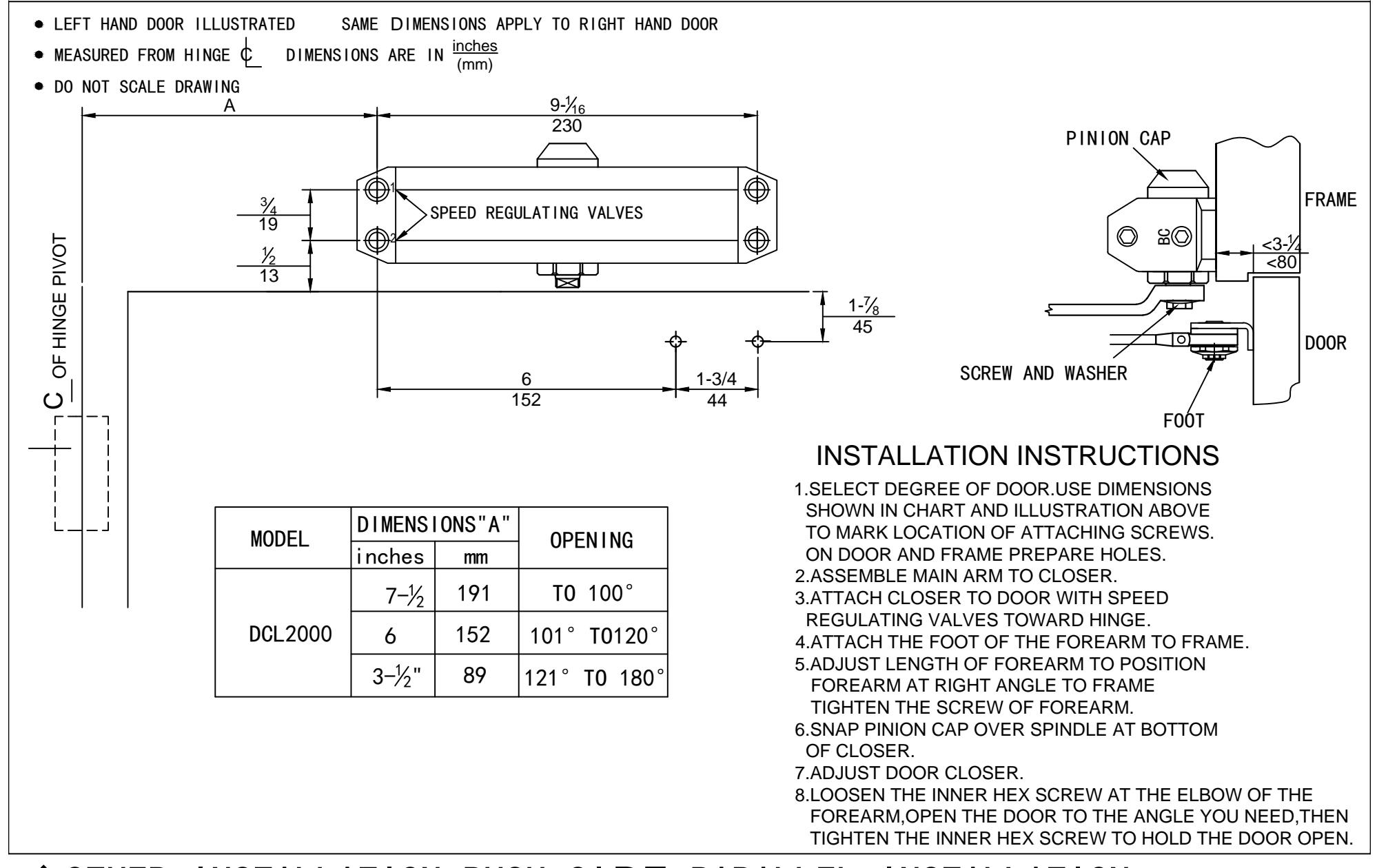

◆OTHER INSTALLATION: PUSH SIDE PARALLEL INSTALLATION
