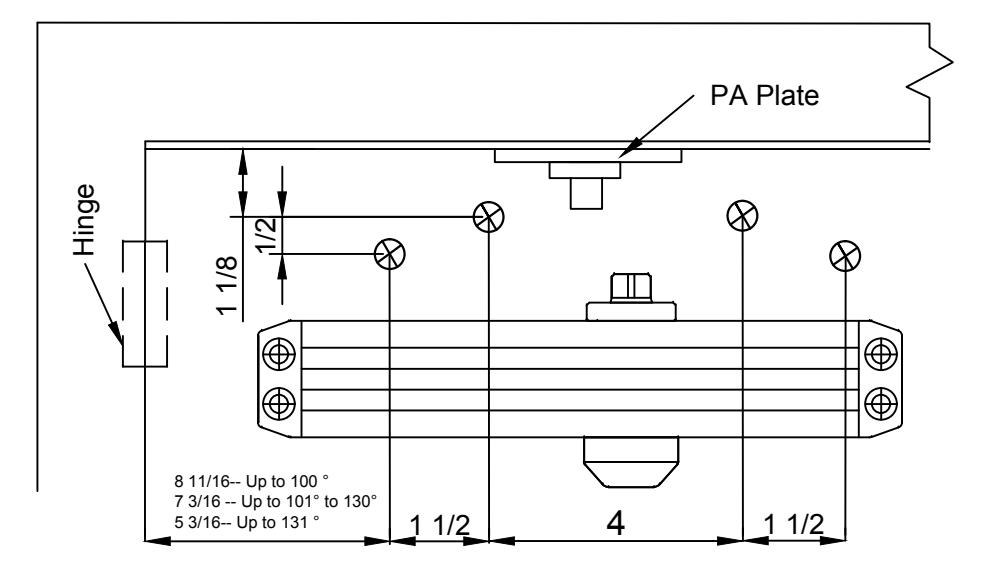

DCL2000/DCR8000-DP18 PA Push Side (Door Mount) Allowing 180° Max. Opening, Max.Hinge Size 5"x5"

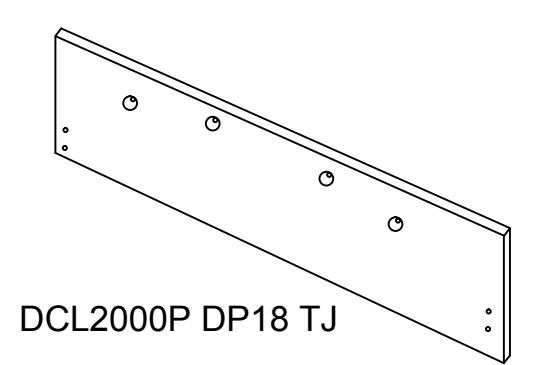

DCL2000P DP18 PA

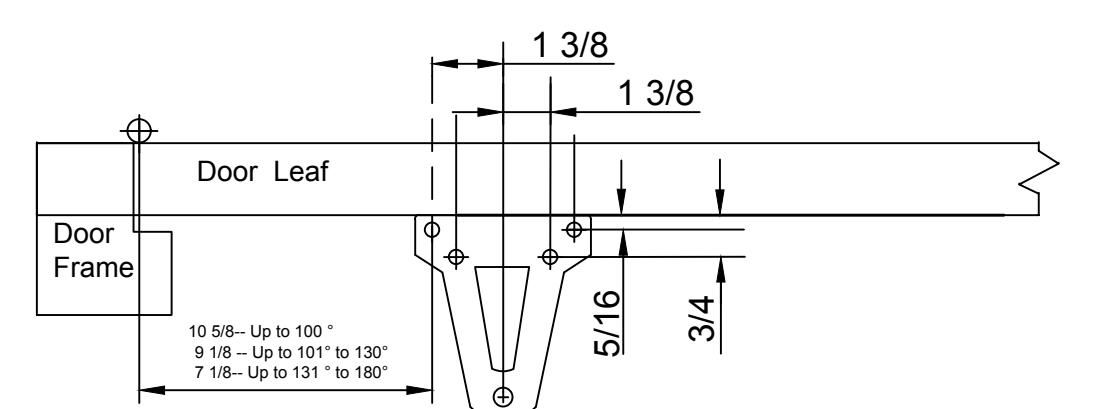

LDP Drop Plate (3-1/2") tall

Left Hand Door shown, use opposite for right hand door.

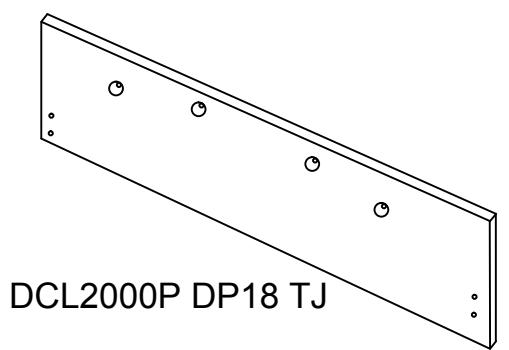

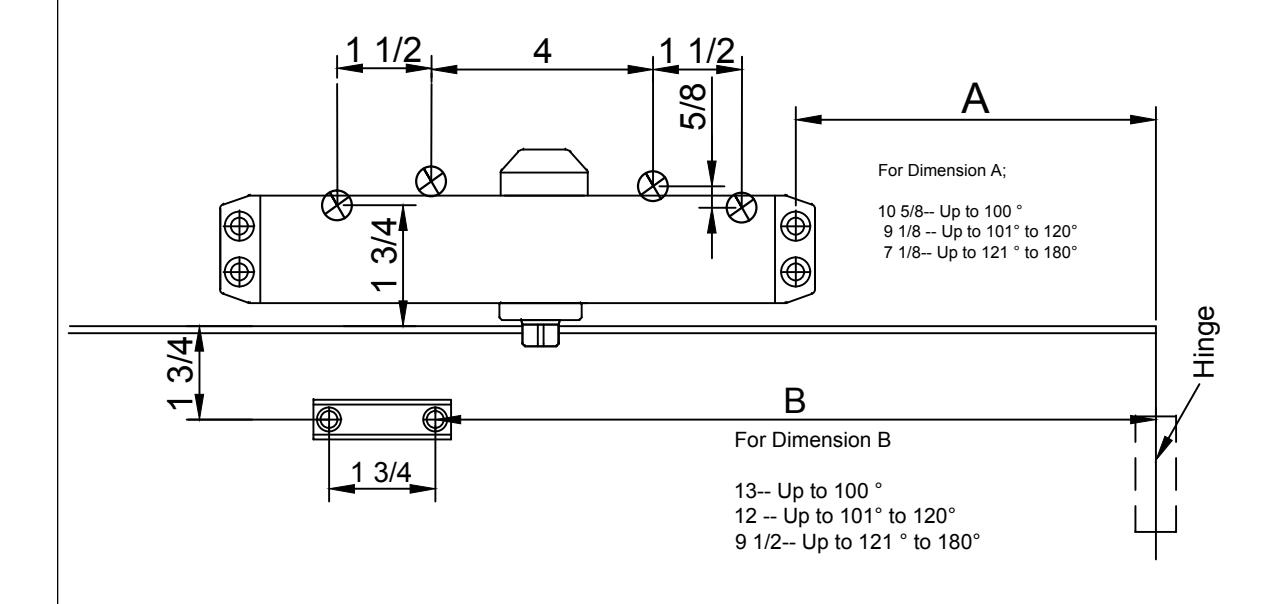

DCL2000/DCR8000 DP18 TJ - Push Side (Top Jamb) Allowing 180° Max. Opening, Max.Hinge Size 5"x5"

Narrow Drop Plate (2-9/16") tall Right Hand Door shown, use opposite for left hand door.

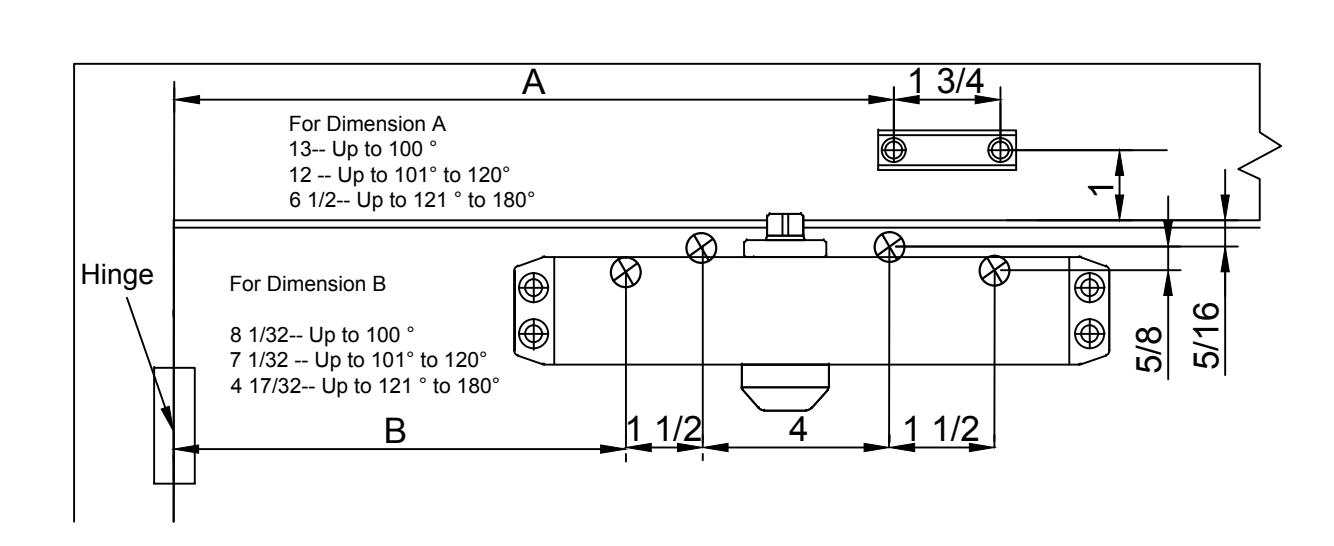

DCL2000/DCR8000 DP18 TJ - Pull Side (Door Mount) Allowing 180° Max. Opening, Max.Hinge Size 5"x5"

Narrow Drop Plate (2-9/16") tall Right Hand Door shown, use opposite for left hand door.
