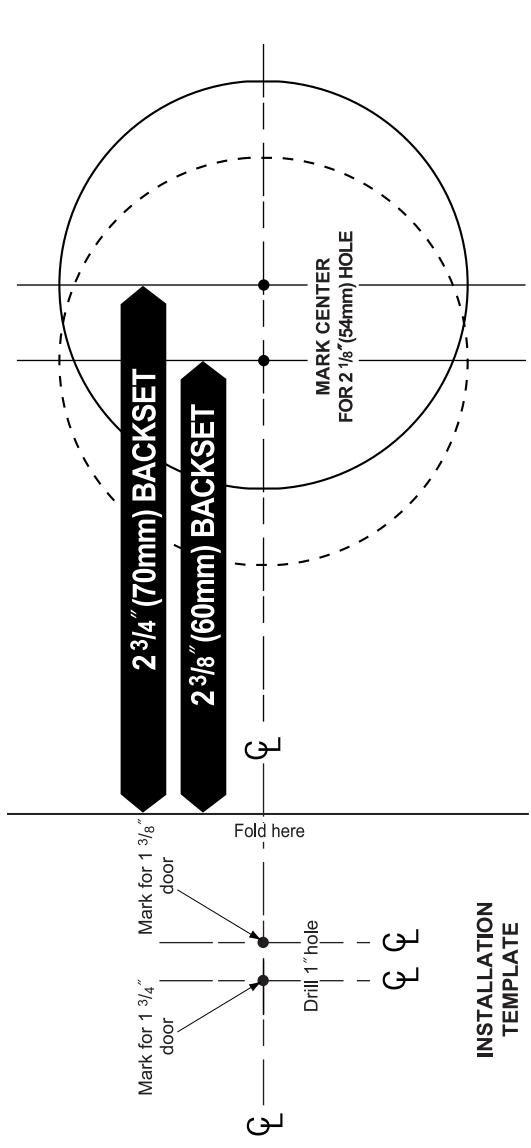

1. Mark Door

• A. Check lock for proper backset before
• marking. B. Fold template over door edge. C. Mark center for 2 1/8" (54mm) hole.
• D. Mark center for 1"(25mm) diameter latch hole in door edge.

High side of door bevel

2. Drill holes

• A . Determine backset $(2^\{3\}/\_\{4\}^\{\backslash prime\backslash prime\backslash prime\})$ or $2^\{3\}/\_\{8\}^\{\backslash prime\backslash prime\backslash prime\})$ of the lock.
• B. Drill a $2^\{1/8\}$ " (54mm) hole through both sides of the door as shown. C. Drill a 1"(25mm) hole into front face

Be certain holes are perpendicular.

of the door.

3. Install Dead Bolt

Adjustable deadbolt is factory preset 2 3/4" (70mm) backset.

Bolt must be retracted. Retract deadbolt(If necessary, use screwdriver to turn cam and retract bolt).

B . How to adjust for $2^3/8^\{\backslash prime\backslash prime\}$ (60mm) backset.

NOTE: Press on the bolt with thumb. Rotate faceplate and push down to move housing to next position.

Exterior Tailpiece

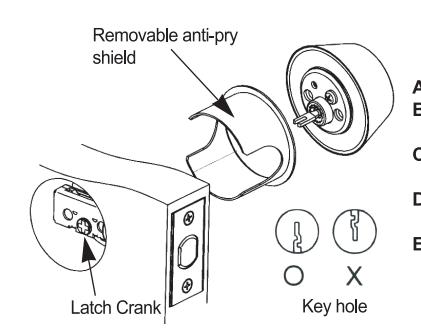

6. Install Single Cylinder

Removable anti-pry

shield

Faceplate

• Mortise a 5/32" (4mm) deep
• C . Scribe line around faceplate. D Chisel out scribed area to depth of 5/32" (4mm) or until face is flush with
• door edge. E. Insert deadbolt and fasten with two

A. Retract deadbolt to unlock position.

B. Insert exterior tailpiece horizontally through latch crank

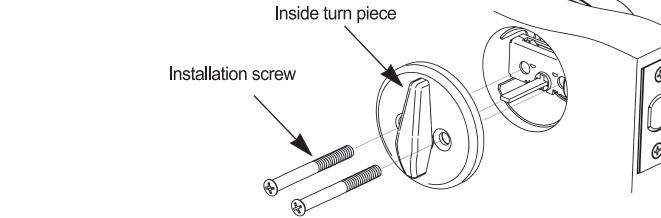

C. Press cylinder against door.D. Place inside turn piece assembly and tighten installation screws.

Exterior Cylinder

4. Prepare Door Jamb

Note: Close door to mark horizontal center line of strike.

C. Drill two overlapping $^\{7\}/\_\{8\}\text{'}\text{'}(22\backslash text\{mm\})$ dia holes 3/8" (10mm) above and below centerline to a depth of $1^\{1\}/\_\{8\}$ " (32mm).

1 1/8" (32mm)

• A. Locate exact centerline of bolt and mark centerline on jamb.
• B. Mark drill points $\backslash frac\{3\}\{8\}$ (10mm) above and below centerline.

• through latch crank. C. Press exterior cylinder flush against

5. Install Strike

• A. Place strike box in hole. Place strike over the strike box and use it as pattern for cutout.
• B. Chisel about $\backslash frac\{1\}\{8\}$ (3.2mm) deep for flush fit of box and strike.
• C. Install strike box and strike with combi screws.

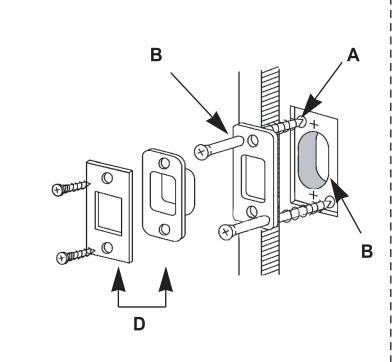

• A. Place reinforcer over holes with screw holes as shown. reinforcement screws.
• C. Install Reinforcer with 3"(76mm) wood screws.
• D. Install strike box and strike with combi

O X

Key hole

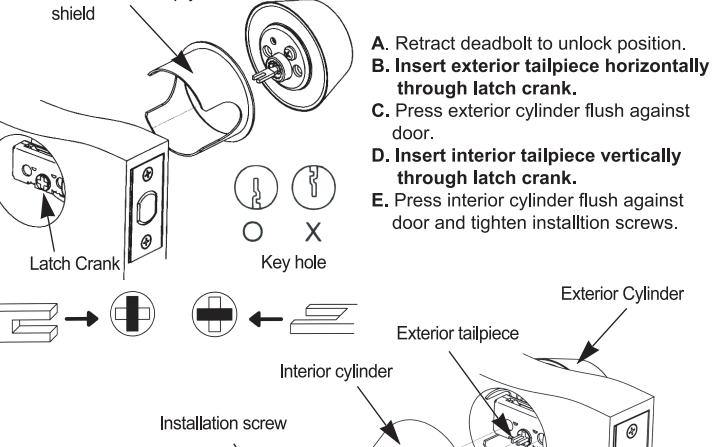

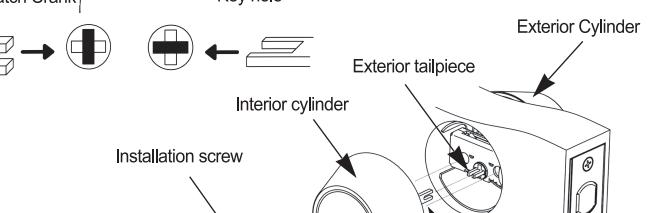

7. Install Double Cylinder

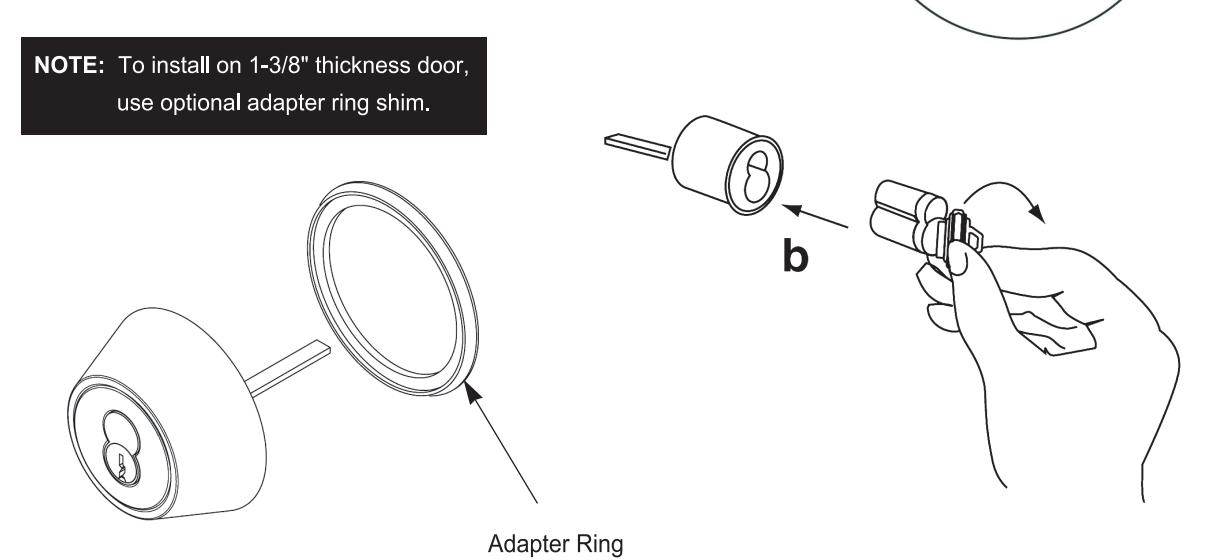

Small Format Interchangable Core(Optional)

A. Align driver horizontally as shown. B. Install core: Turn control key clockwise and push core into housing. Turn control key back to vertical position remove from the core.

* Adapter Ring (Thin door kit)

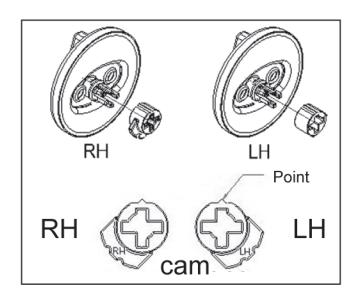

CAUTION FOR CLASSROOM FUNCTION

• A. Check handing of lock installation (RH or LH).
• B. Insert the cam with Point upward into thumbturn piece.
