V50xW/V51xW SERIES

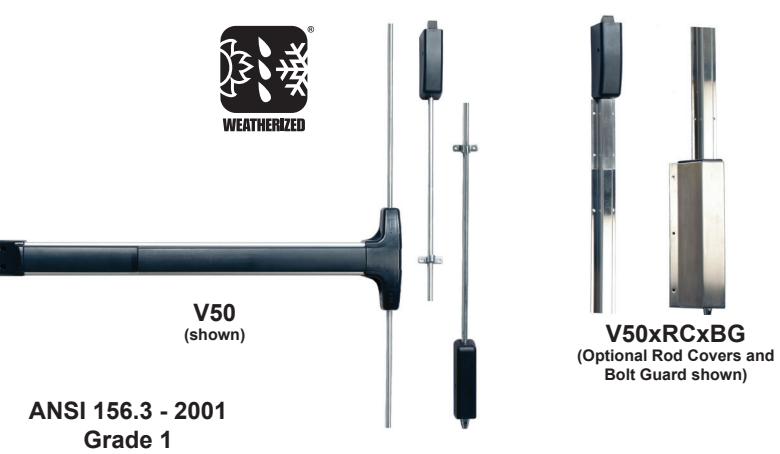

Weatherized Surface Vertical Rod Device

The Weatherized V50 Series, surface vertical rod exit device and V51 Series, top rod exit device are heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device. In addition to listing as UL panic and fire exit hardware device, this device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

Benefits

• Priced to be the best value for durable, attractive panic hardware
• Patented mounting plate and strike locator replaces paper templates
• Minimal door prep saves time and money

Type 2

• Angled end cap deflects damage away from device
• Fits any door in almost any décor
• Outside trims are easily changed or rekeyed without removing device from door
• Fast and easy installation saves time and money

Features

• Stainless steel 3/4" deadlocking top latch bolt
• Bottom drop bolt, 5/8" dia. x 5-5/8" long secures into strike plate
• Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• Modular design accepts a variety of outside trims and functions
• Standard and narrow stile pull trims available

Mechanical Options

• H Hurricane Rated
• F 3-Hour Fire Rated
• HD Hex Dogging (Std.)
• CD Cylinder Dogging
• LD Less Dogging
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width
• For Narrow Stile that fits 2" Narrow Stile glass door see V50xNS/ V51xNS catalog page
• 84 Fits 7' Door Height (Std.)
• 96 Fits 8' Door Height

• 120 Fits 10' Door Height
• RC Rod Covers (630 Brushed Stainless)
• BG Bottom bolt and 12" ADA ramped cover (630 Brushed Stainless)
• 96 Surface top stike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 aluminum base rail extrusion
• Available with 711 black base rail extrusion

• FC3W Weatherized 3' Flex Conduit Kit, mounts to device end cap
• FC10W Weatherized 10' Flex Conduit Kit, mounts to device end cap

For full list of available mechanical options, see V50 Series How To Order page

Electrical Options

• EB W Exit Alarm 9V Battery Weatherized
• EXV W Request to Exit Weatherized High Current/Voltage
• Refer to Electrified Options section for more information

• EX W - Request to Exit Weatherized

Accessories

• Outside Trim (see Value Series Trim Options)
• SN1 Sex Nut Kit (2 per package)

• NSK - Narrow Kit for 2" narrow stile glass door applications

• GB# Glass Bead Kits

Technical Information

• Door Stile Fits 3-1/2" stile doors (Std.)
• Door Stile Fits 2" narrow stile doors - specify NS
• Fasteners Machine and Self- Drilling Screws standard

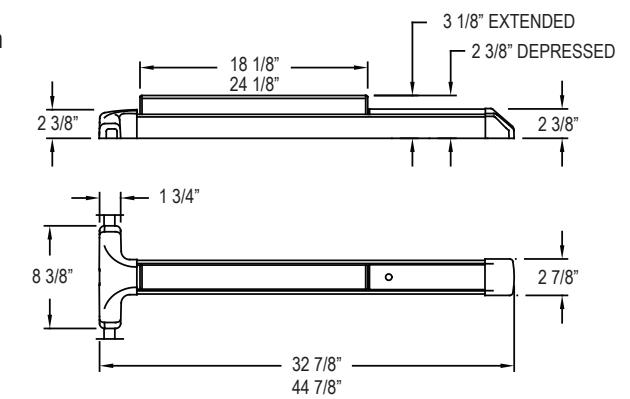

Dimensions

18 1/8" & 32 7/8" device dimensions for 36" door

24 1/8" & 44 7/8" device dimensions for 48" door

Add 2" for NS

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Detex Limited Warranty

Listings and Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

UL1034-34 Temperature Section 34 [Temperature Range -31° F (-35° C) to 150° F (+66° C)]

UL1034-54 Dust Section 54

ANSI/BHMA certified A156.3

November 1, 2019

Meets NFPA 80 & 101 for Life Safety

Meets ADA requirements

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

California State Fire Marshall

State of Florida Approval

Texas Department of Insurance

MIL-STD 810F (G), Method 509.4 (Salt Fog Test) MIL-STD 810F (G), Method 506.4 (Driving Rain), Procedure 1

For detailed windstorm and fire listings, visit www.detex.com/PROVEN
