VALUE SERIES®

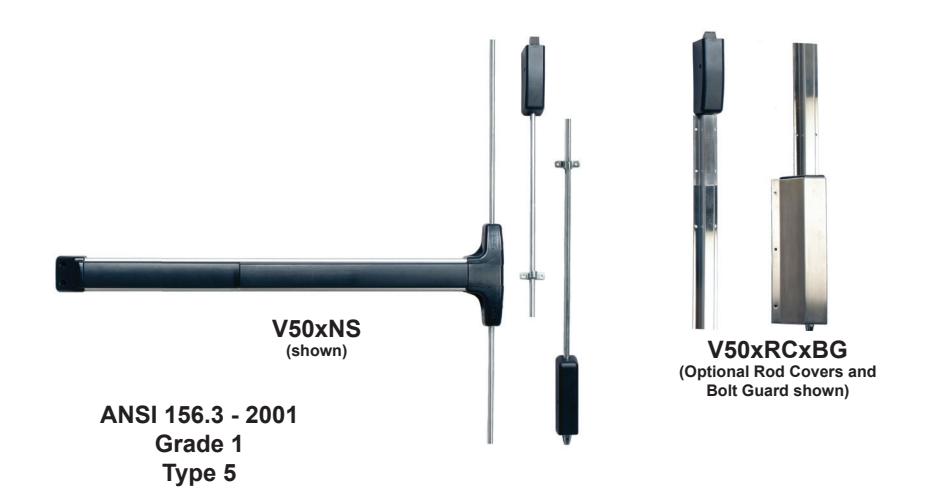

V50xNS / V51xNS

Narrow Stile Surface Vertical Rod Device

The V50xNS Series, narrow stile surface vertical rod exit device and V51xNS Series, narrow stile top rod exit device are economical panic and fire exit hardware for use on narrow stile double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation in an economical panic device.

Benefits

• Priced to be the best value for durable, attractive panic hardware
• Fast and easy installation saves time and money
• Minimal door prep saves time and money
• · Fits any door in almost any décor
• Patented mounting plate and strike locator replaces paper templates
• Outside trims are easily changed or rekeyed without removing device from door

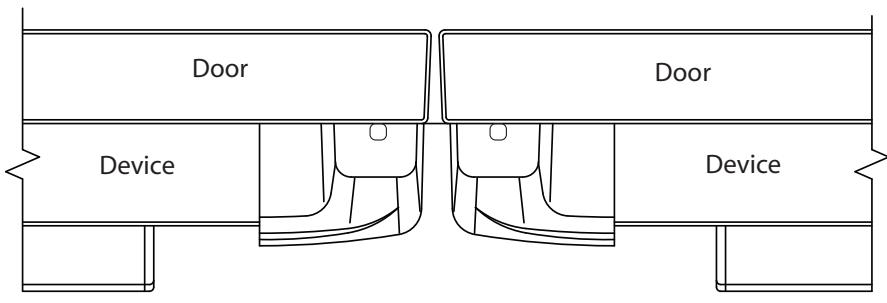

• Angled end cap deflects damage away from device

Features

• Stainless steel 3/4" deadlocking top latch bolt
• Ribbed aluminum rail extrusion
• Impact resistant ABS and anodized surfaces
• · Handed, field reversible
• Field sizable
• 1/8 turn dogging
• Standard and narrow stile pull trims available
• Modular design accepts a variety of outside trims and functions
• Bottom drop bolt, 5/8" dia. x 5-5/8" long secures into strike plate

Mechanical Options

• V51 Top Rod Only
• F 3-Hour Fire Rated
• HD Hex Dogging (Std.)
• CD Cylinder Dogging
• · LD Less Dogging
• 36 Fits 36" Door Width (Std.)
• 48 Fits 48" Door Width
• 84 Fits 7' Door Height (Std.)
• 96 Fits 8' Door Height
• 120 Fits 10' Door Height

• RC Rod Covers (630 Brushed Stainless)
• BG Bottom bolt and 12" ADA ramped cover (630 Brushed Stainless)
• 96 Surface top stike top (Std.)
• 96B Bottom dust proof strike
• Available with 628 base rail extrusion
• Available with 711 base rail extrusion
• FC3 Flexible 3' Conduit Kit, mounts to device end cap

• FC10 Flexible 10' Conduit Kit, mounts to device end cap
• PT5 Concealed mortise mount power transfer
• EH8 Five-knuckle energy transfer hinge - 8 wires

For full list of available mechanical options, see V50 Series How To Order page

Electrical Options

• Exit Alarm (EA)
• Electric Battery Alarm (EB)
• Electric Dogging (ED)
• Delayed Egress (EE)

Electric Latch Retraction with Request to Exit Switch (ER EX)

Refer to Electrified Options section for more information

Accessories

• Outside Trim (see Value Series Trim Options)
• SN1 Sex Nut Kit (2 per package) GB# Glass Bead Kits

Technical Information

• Door Stile Fits 3-1/2" stile doors (Std.)
• Door Stile Fits 2" narrow stile doors - specify NS
• Fasteners Machine and Self- Drilling Screws standard

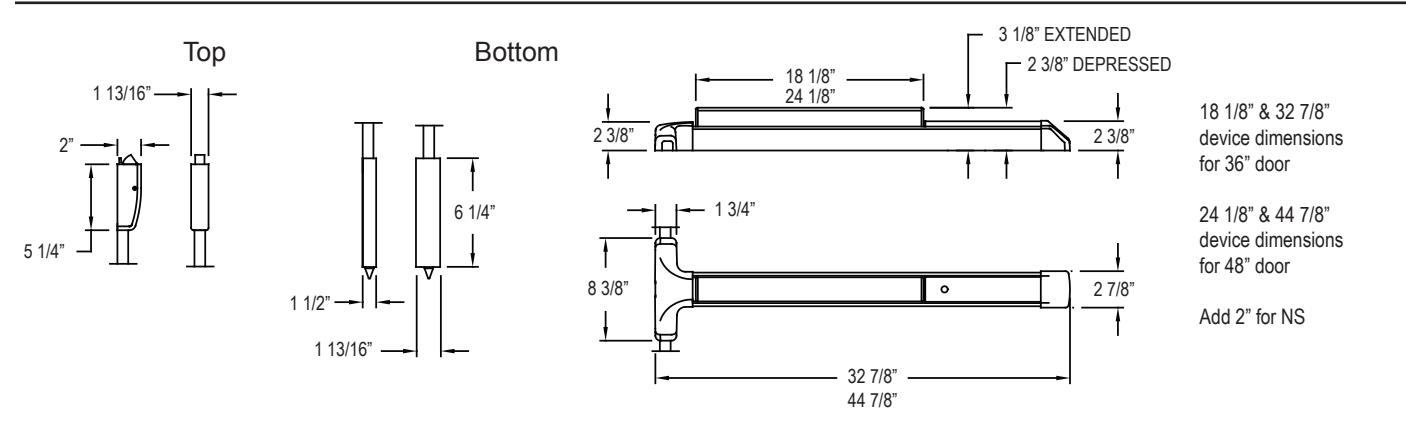

Dimensions

Detex Limited Warranty

10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Listings and Approvals

UL Listed Panic Hardware

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and 8'x10' pairs of doors

Meets ADA requirements

ANSI/BHMA certified A156.3

UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure

Meets NFPA 80 & 101 for Life Safety

State of Florida Approval

Texas Department of Insurance

California State Fire Marshall

For detailed windstorm and fire listings, visit www.detex.com/PROVEN
